DOOR AND TAILGATE

BODY

42A-32

EASY CLOSER SYSTEM

If the electric tailgate is closed to its ajar position, the
system will close the tailgate automatically to its full
position. This ensures safety by closing the tailgate
fully, and improves comfort by eliminating unpleasant
noise during slamming.

NOTE: The easy closer system can operate even if
the slide door power switch is OFF.

DATA LIST REFERENCE TABLE

Using M.U.T.-III, the input data sent from the sensors
and switches can be read. For service data items,
refer to Workshop Manual.

WEATHERSTRIP

M2420020000513

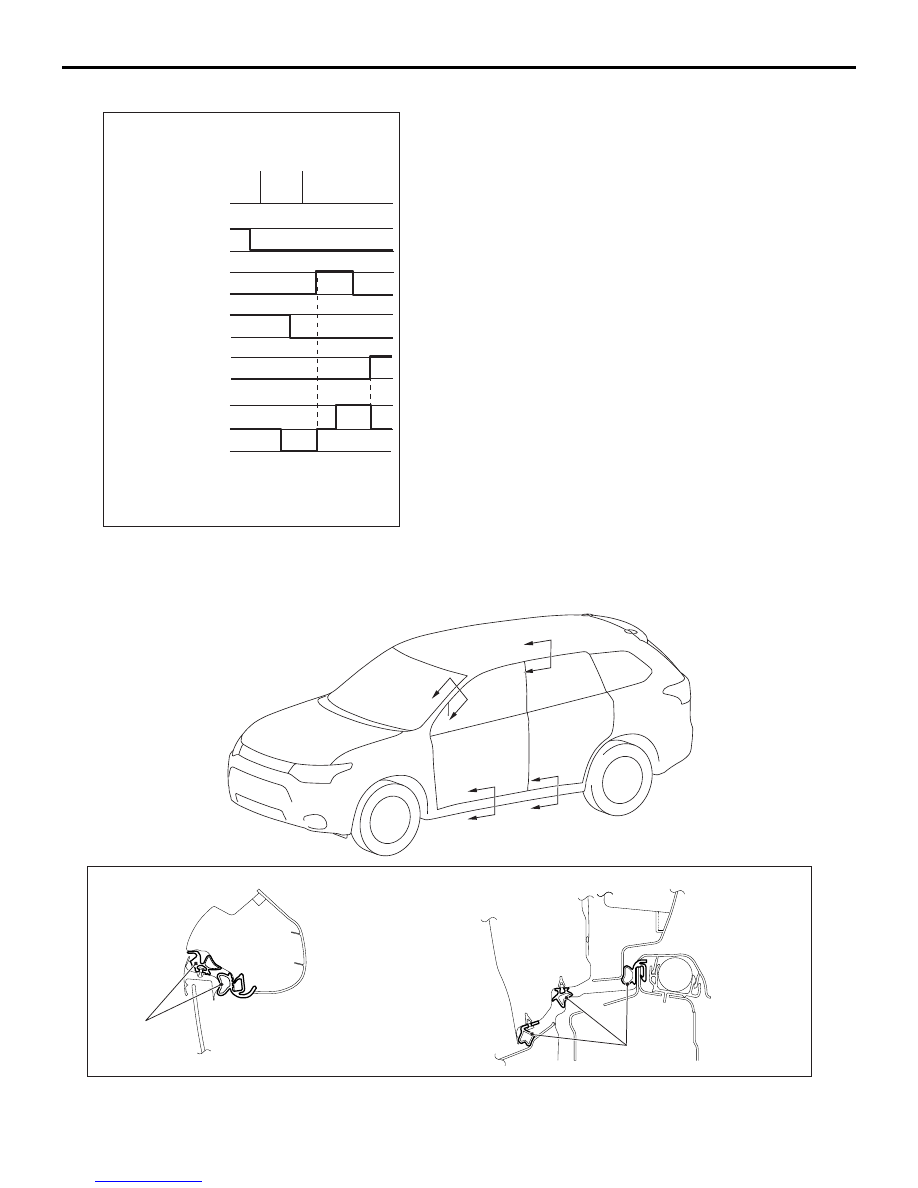

The double weather strips have been installed along
the perimeter of the door window to improve the

sound-proof and water-proof performances.

AC402931AB

ON

OFF

ON

OFF

ON

OFF

ON

OFF

OFF

Door-
ajar

Fully closed

Open

Door-ajar switch

Full latch switch

Half latch switch

Neutral switch

Latch motor

Electric tailgate
position

Disengaged
side

Engaged
side

ACB06034

ACB05719

ACB05720

ACB04501

AB

A

A

A

B

B

B

B

Section A – A

Section B – B

Door opening
weatherstrip

Door opening
weatherstrip

A

Downloaded from

www.Manualslib.com



manuals search engine



WINDOW GLASS

BODY

42A-33

WINDOW GLASS

M2420015001640

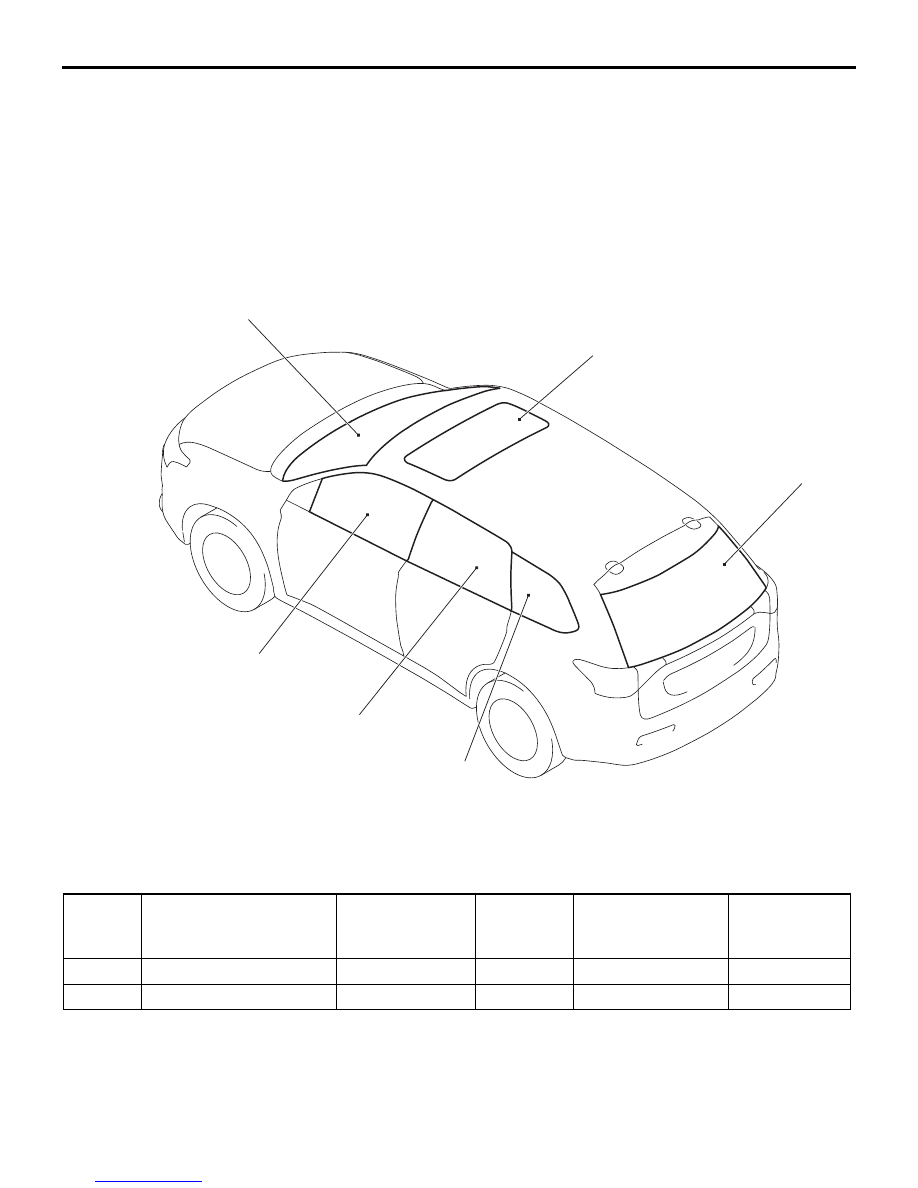

VISIBLE RAY TRANSMISSIVITY RATE
FOR WINDOW GLASS

ACB05026

1

2

3

4

5

6

AB

Number

Name

Type

Thickness
(mm)

Colour

Visible ray
transmissivity
rate (%)

1

Windshield

Laminated glass

4.76

Green

79

2

Front door window glass

Tempered glass

4.0

Green

80

Downloaded from

www.Manualslib.com



manuals search engine



SUNROOF

BODY

42A-34

NOTE: The visible ray transmissivity rate (%) is a reference value.

The laminated glass has been adopted for the wind-
shield, and the tempered glass has been adopted for
other windows. The window glass has the following
features.

• The privacy glasses for the rear door window

glass, quarter window glass, and tailgate window
glass have been adopted <Optional>.

SUNROOF

M2420016000877

3

Rear door window glass

Tempered glass

3.1

Green

82

Dark grey (privacy
glass)

25

4

Quarter window glass

Green

82

Dark grey (privacy
glass)

25

5

Tailgate window glass

Green

82

Dark grey (privacy
glass)

25

6

Sunroof lid glass

3.5

Dark grey

20

Number

Name

Type

Thickness
(mm)

Colour

Visible ray
transmissivity
rate (%)

ACB05472AB

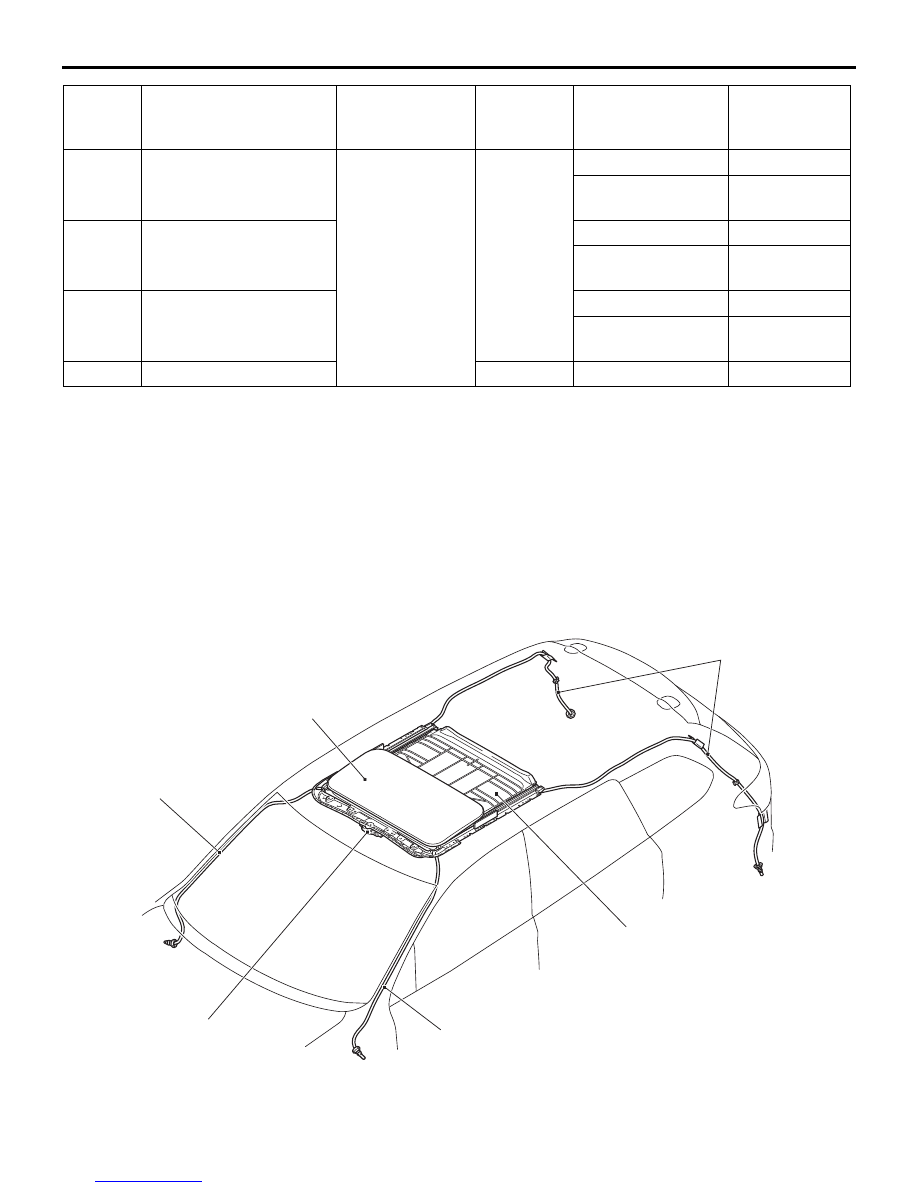

Sunroof lid glass

Sunshade

Sunroof motor assembly
(integrated into sunroof-ECU)

Drain pipe

Drain pipe

Drain pipe

Downloaded from

www.Manualslib.com



manuals search engine



SUNROOF

BODY

42A-35

The electric sliding glass sunroof with tilt-up mecha-
nism has been adopted as an option. This sunroof
has the following characteristics:

• A lightweight sunroofs has been adopted.

• The sunroof tilts up for approximately 30 mm to

improve ventilation performance.

• The integrated switch allows for all slide open-

ing/closing, tilt up/down, and stop operations. All
operations are available at one touch.

• If external force is applied during slide closing or

tilt down operations that obstructs operations, the
sunroof lid glass will move in the reverse direc-
tion.

DESCRIPTION OF CONSTRUCTION AND
OPERATION

SAFETY MECHANISM

• If any obstacle such as a hand or a head is

detected to be pinched during a sunroof lid glass
closing operation, the sunroof lid glass is opened
by approximately 200 mm or more.

• During the sunroof lid glass closing operation, by

continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating
the safety mechanism even when the obstacle is
detected to be pinched.

• During the safety mechanism activation, when

the sunroof close switch is operated, the sunroof
lid glass stops. By continuing the close switch
operation, the sunroof lid glass can be forcibly
closed without activating the safety mechanism
even when the obstacle is detected to be
pinched.

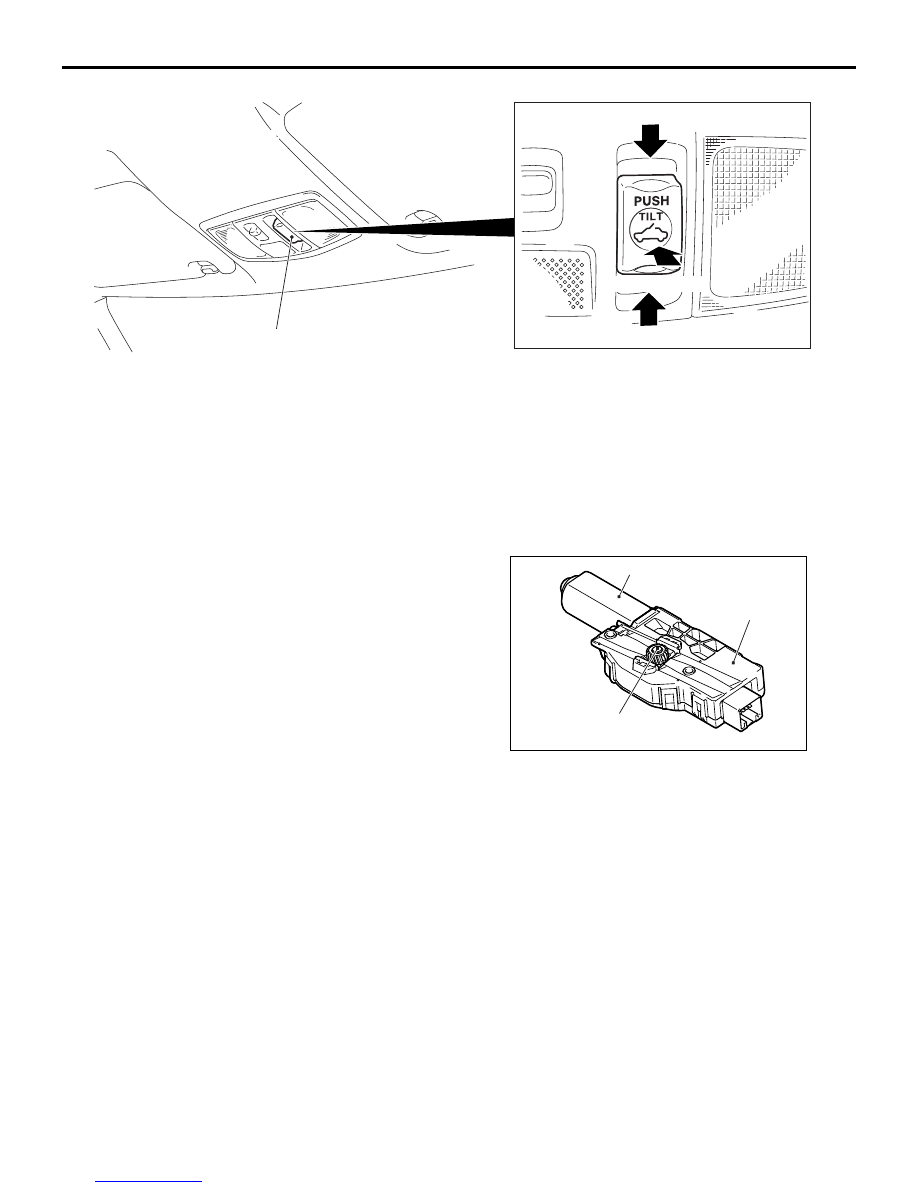

SUNROOF MOTOR ASSEMBLY

The sunroof motor assembly, which consists of the
motor main body, drive gear, and sunroof ECU, is
installed in front of the housing.

AC505239

AC505240

AC506511AB

Sunroof switch

Open switch

Close/down switch

Tilt-up switch

ACB05550AB

Sunroof ECU

Drive gear

Sunroof motor
