GENERAL INFORMATION

PARKING BRAKES

36-2

GENERAL INFORMATION

M2360000101165

A parking brake lever is used to operate the mechan-
ical rear-wheel acting type parking brake.

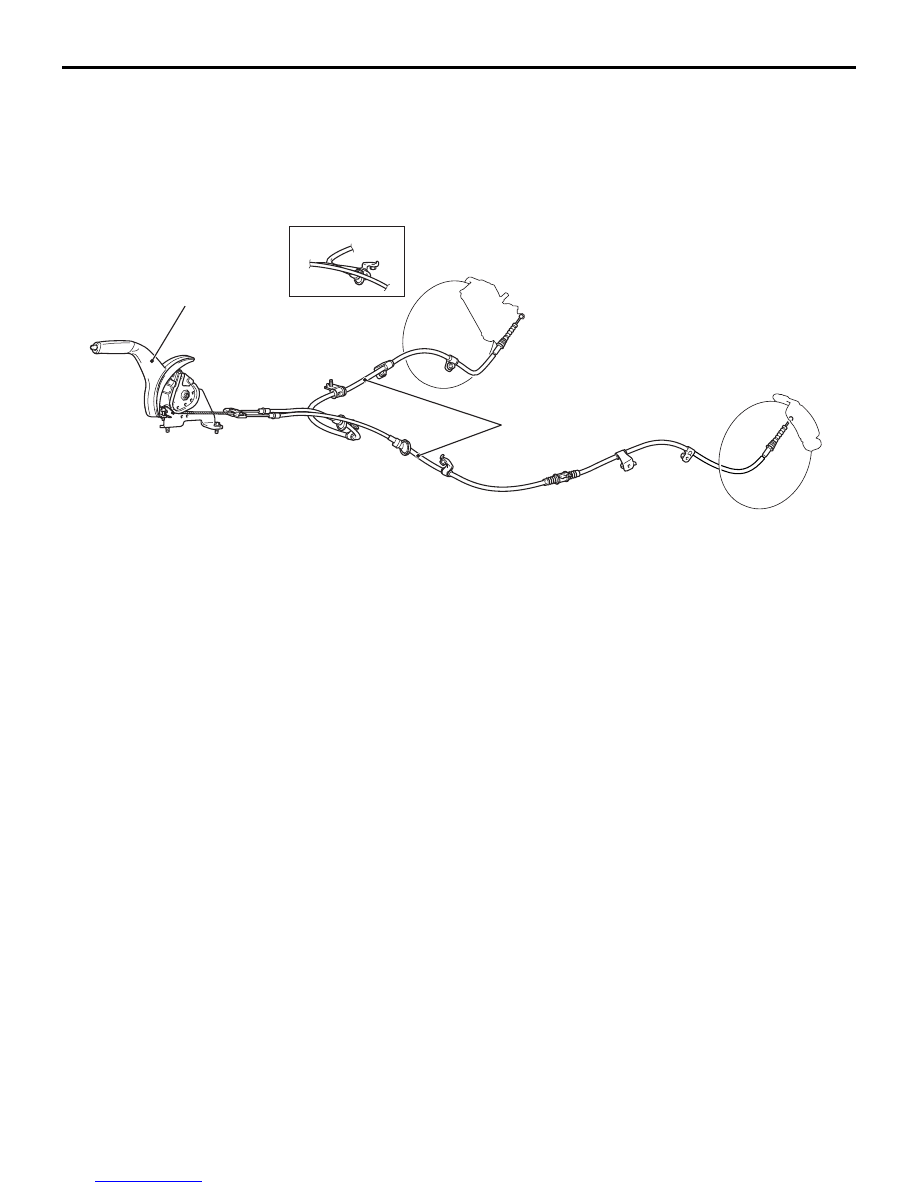

CONSTRUCTION DIAGRAM

ACB04927

Parking brake lever

Parking brake rear cable

<2WD>

AB

Downloaded from

www.Manualslib.com



manuals search engine



37-1

GROUP 37

ELECTRIC POWER

STEERING (EPS)

CONTENTS

GENERAL INFORMATION . . . . . . . .

37-2

STEERING WHEEL . . . . . . . . . . . . . .

37-3

STEERING SHAFT AND COLUMN. .

37-4

ELECTRIC POWER STEERING. . . . .

37-5

GENERAL INFORMATION . . . . . . . . . . . . .

37-5

MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37-7

TORQUE SENSOR . . . . . . . . . . . . . . . . . . .

37-8

ELECTRIC POWER STEERING-ECU



 (EPS-ECU) . . . . . . . . . . . . . . . . . . . . . . . . .

37-8

OPERATION . . . . . . . . . . . . . . . . . . . . . . . .

37-9

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

ELECTRIC POWER STEERING (EPS)

37-2

GENERAL INFORMATION

M2370000102158

An electrical power steering system has been
adopted.

FEATURES

• Improved fuel consumption by reduction of

engine load, and weight saving by decrease of
the number of parts have been achieved with the
introduction of the electric power steering system.

• 3-spoke type steering wheel integrated with an

SRS air bag has been adopted.

• Shock absorbing mechanism has been adopted

with the steering column shaft assembly.

SPECIFICATIONS

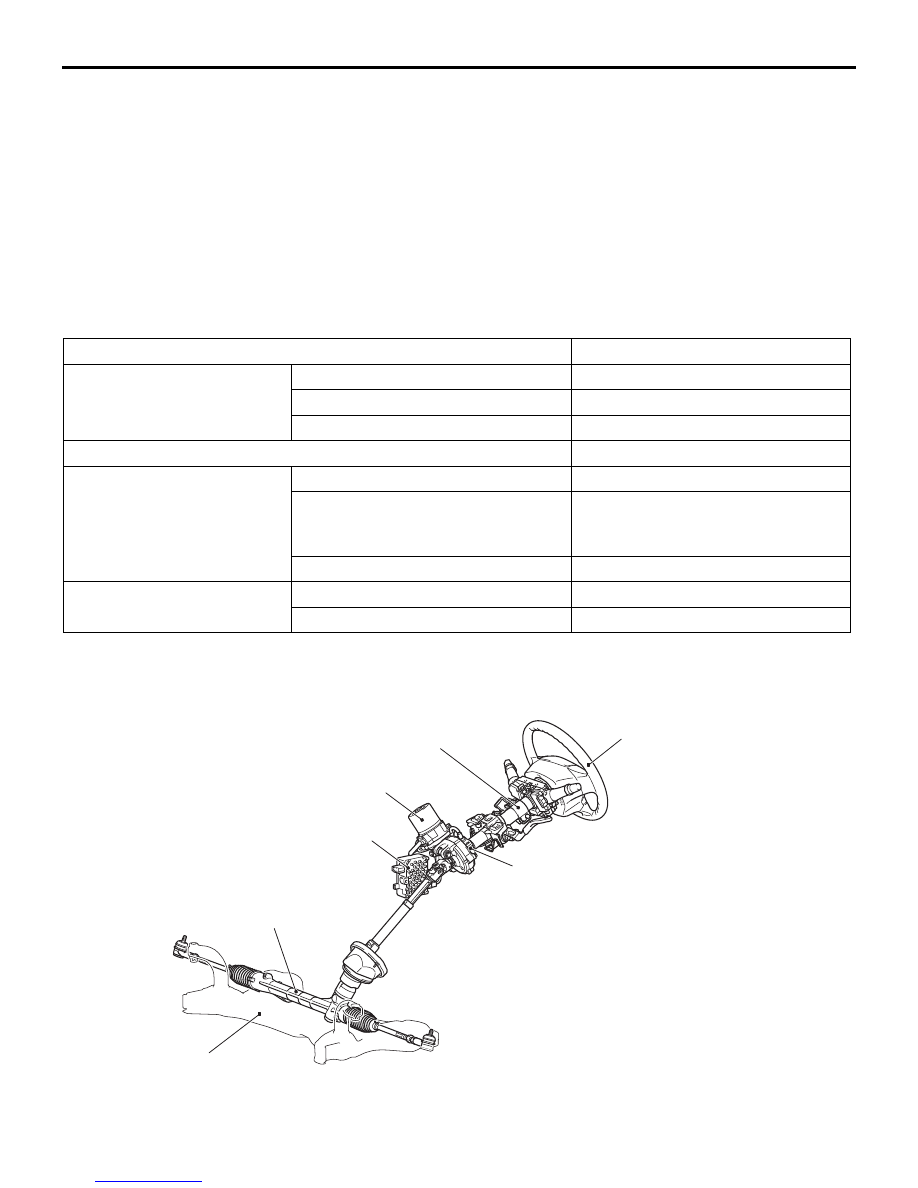

CONSTRUCTION DIAGRAM

Item

Specification

Steering wheel

Type

3-spoke type

Outside diameter mm

370

Maximum number of turns

3.3

Power steering type

Electrical powered type

Steering gear

Type

Rack and pinion type

Stroke ratio (Rack stroke/Steering
wheel maximum number of turns)
mm/rev

43.69

Rack stroke mm

144

Steering angle

Inner wheel

38

° 50'

Outer wheel (reference value)

32

° 20'

ACA00055AC

Steering wheel assembly

Steering column shaft assembly

Electric power steering-ECU (EPS-ECU)

Motor

Steering gear and linkage

Front axle crossmember

Torque sensor

Downloaded from

www.Manualslib.com



manuals search engine



STEERING WHEEL

ELECTRIC POWER STEERING (EPS)

37-3

STEERING WHEEL

M2370001001474

The steering wheel is designed to improve operabil-
ity, safety and maintainability and has the following
features:

• The 3-spoke type has been adopted. The steer-

ing wheel made of urethane or leather has been
adopted.

• Steering wheel remote control switch (steering

wheel audio remote control switch, steering
wheel voice control switch) and cruise control
switch are available on some models.

• It incorporates an SRS airbag to protect the driver

in the event of a frontal collision (single inflator).

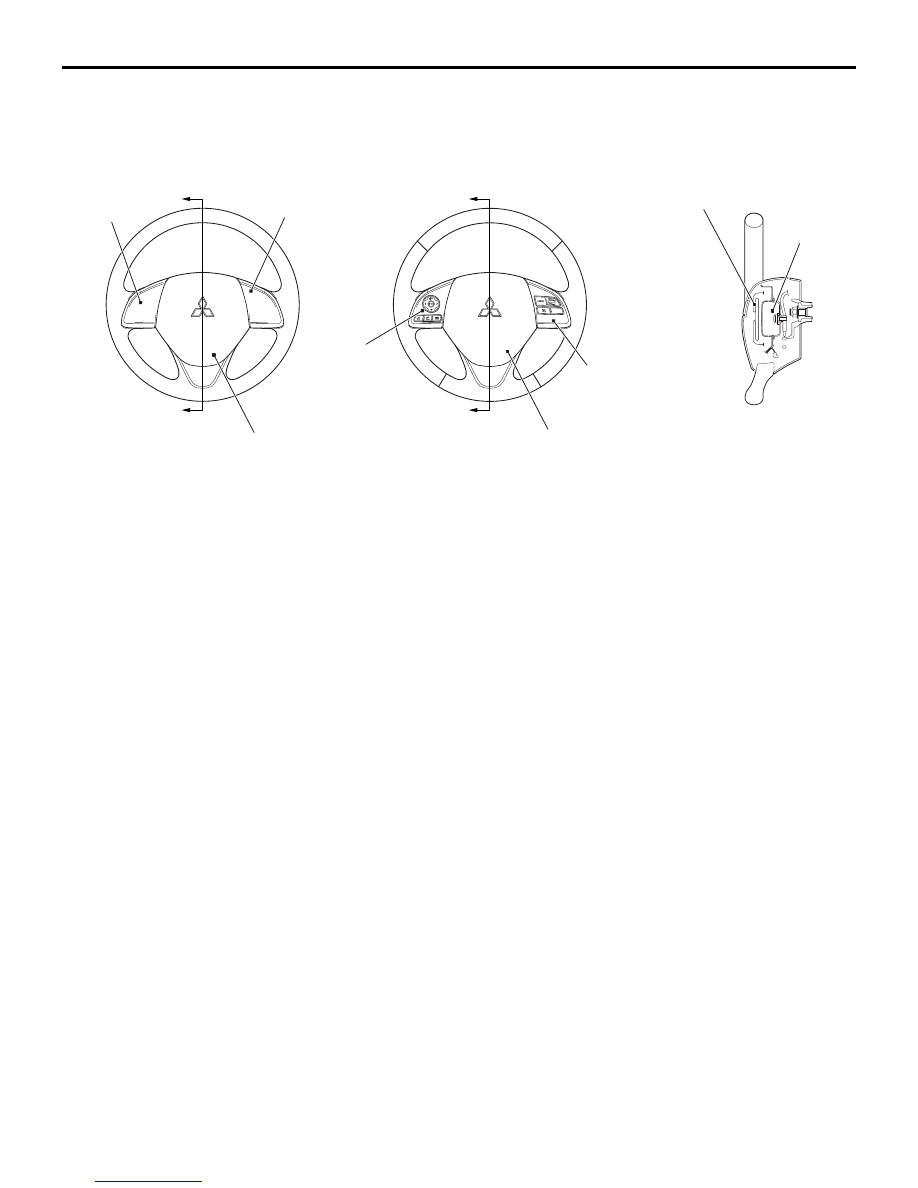

ACB05486

<Urethane steering wheel>

Section A - A

<Leather steering wheel>

A

A

A

A

Inflator

Driver's air bag
module

AB

Driver's air bag module

Driver's air bag module

Cruise control switch

Bezel cover

Steering wheel
remote control
switch

Bezel cover
