TRANSMISSION CONTROL

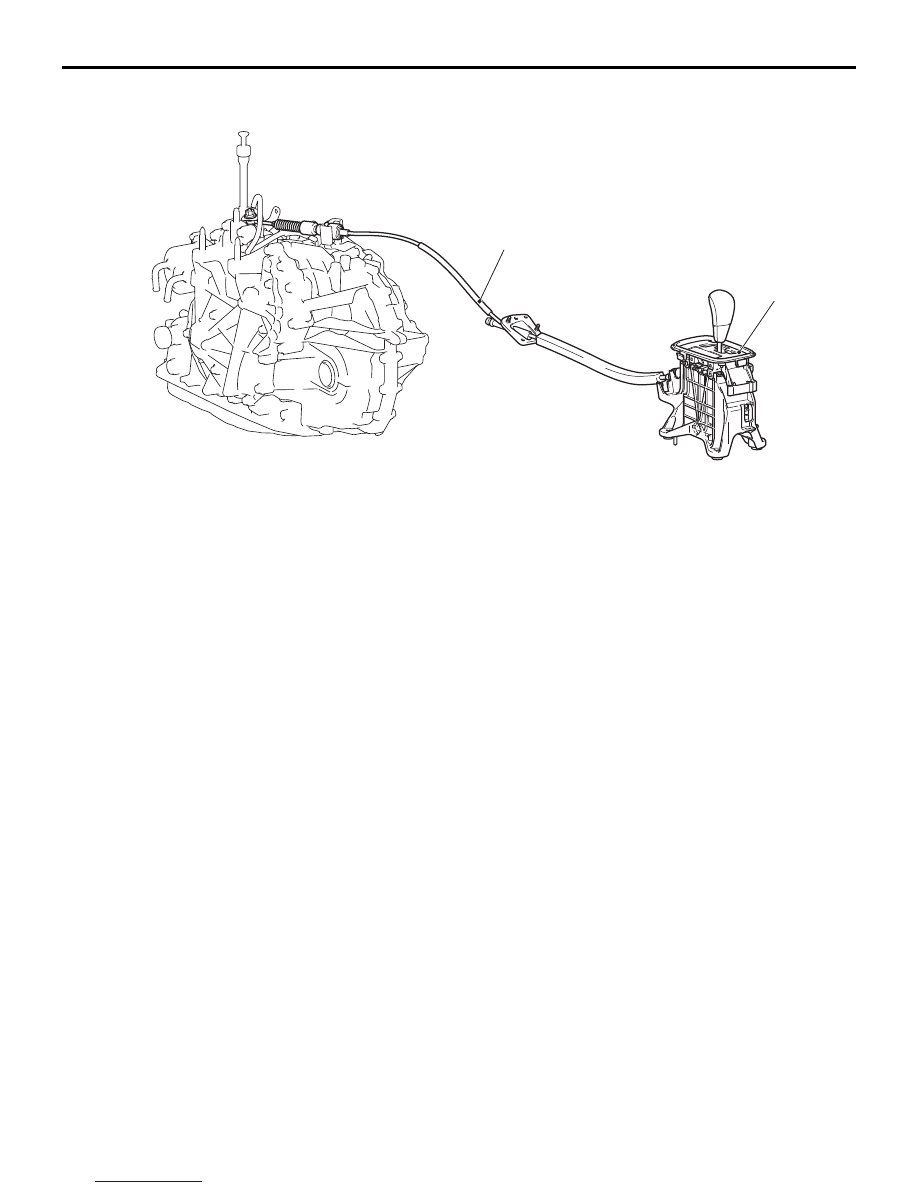

CONTINUOUSLY VARIABLE TRANSMISSION (CVT)

23-4

ACC00027AB

Transmission control cable

Selector lever
assembly

Downloaded from

www.Manualslib.com

manuals search engine

GENERAL INFORMATION

PROPELLER SHAFT

25-2

GENERAL INFORMATION

M2250000100829

The 2-piece, 3-joint type propeller shaft with a centre
bearing is adopted.
It has the following features:

• An insulator is installed to the vehicle body joint of

the centre bearing to reduce vibration.

• Inside the rear propeller shaft, the dynamic

damper is integrated to reduce a booming noise
cased by the resonance at the high engine
speed.

• Adopting the friction welding method, the installa-

tion structure is streamlined to reduce the weight.

• Lead-free grease is adopted for the universal

joint.

SPECIFICATIONS

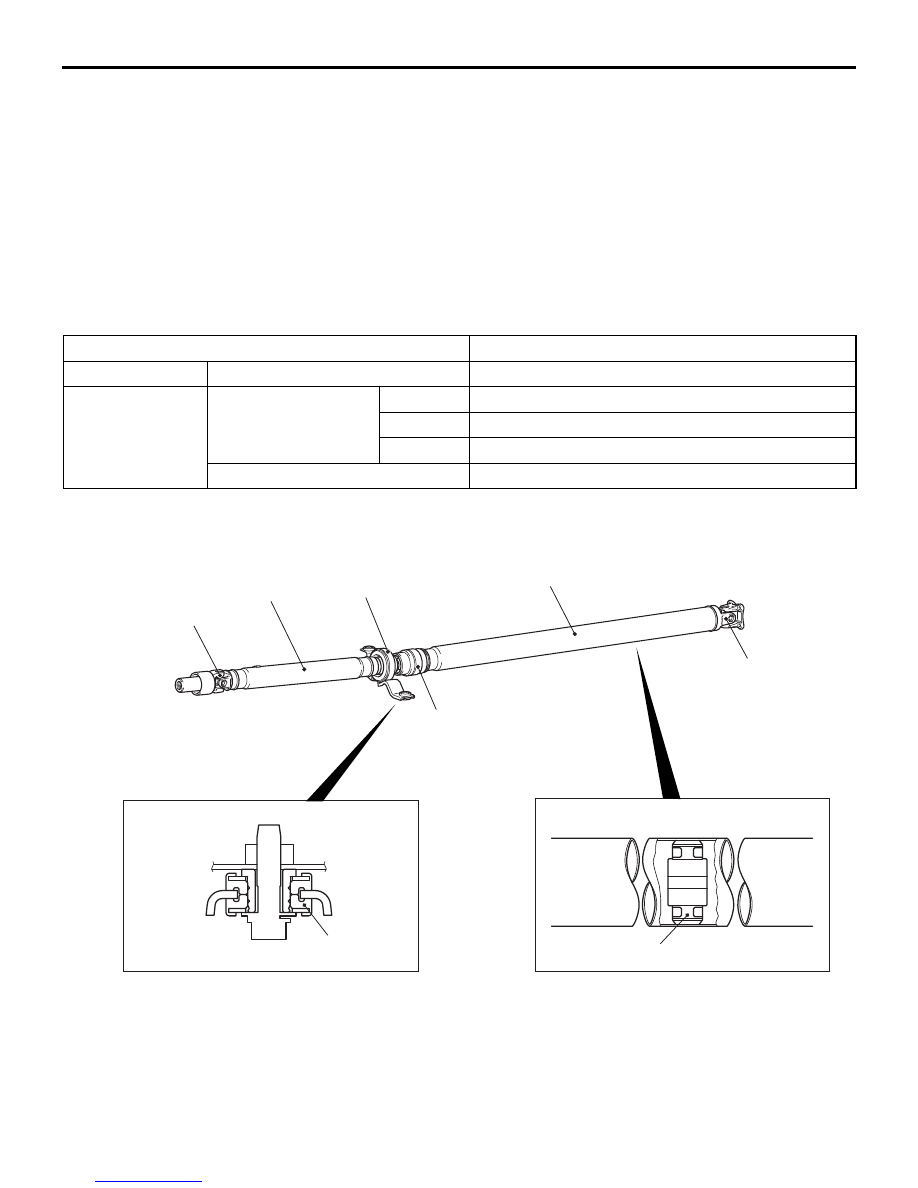

CONSTRUCTION DIAGRAM

Item

Specifications

Propeller shaft

Type

2-piece, 3-joint type propeller shaft

Universal joint

Type

No.1

Cross type (caulking method)

No.2

Constant velocity type

No.3

Cross type (caulking method)

Bearing

Needle roller bearing (maintenance-free type)

AC602513AD

AC504844

AC504845

Front propeller
shaft

No.2 joint

Rear propeller shaft

No.1 joint

Centre bearing

No.3 joint

Dynamic damper

Insulator
