14-1

GROUP 14

ENGINE COOLING

CONTENTS

GENERAL INFORMATION . . . . . . . .

14-2

WATER PASSAGE  . . . . . . . . . . . . . .

14-3

WATER PUMP  . . . . . . . . . . . . . . . . . .

14-3

Downloaded from

www.Manualslib.com



manuals search engine



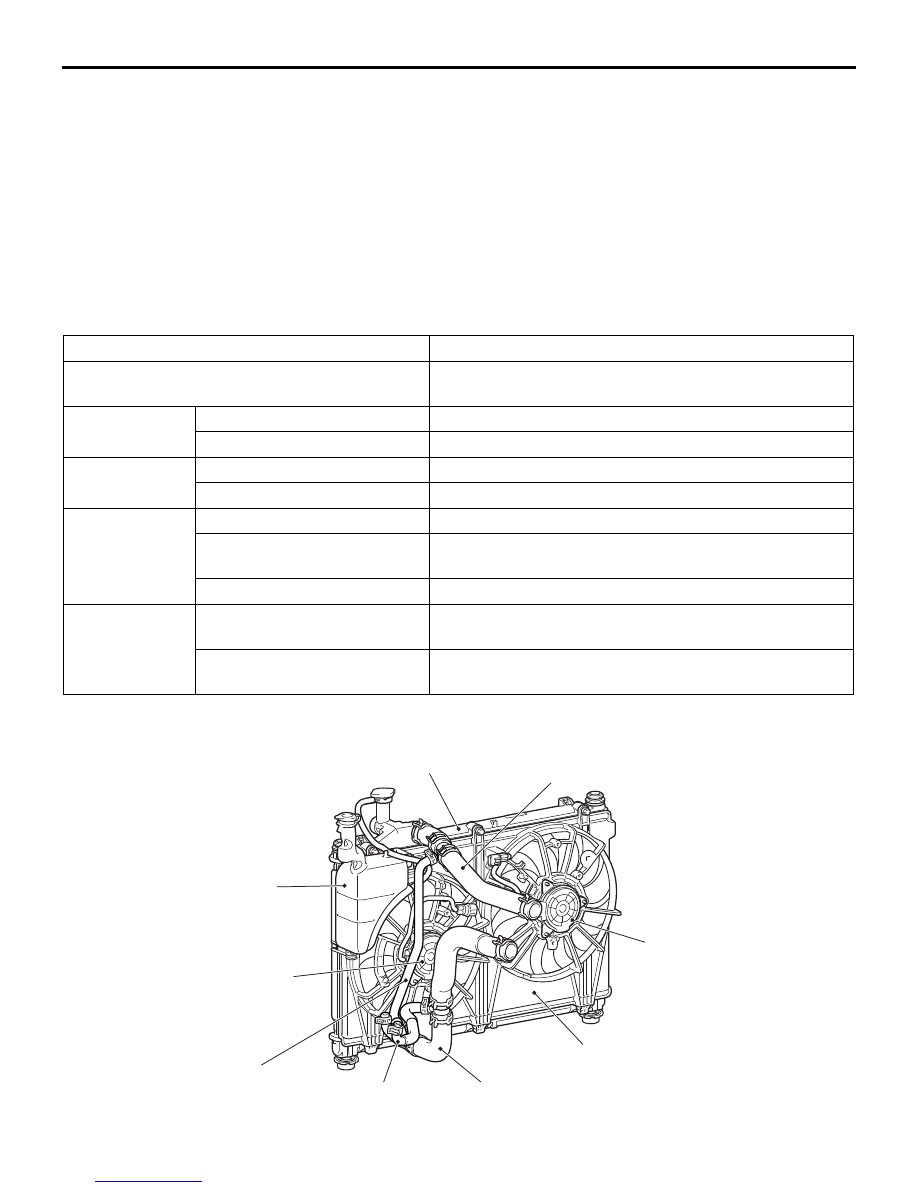

GENERAL INFORMATION

ENGINE COOLING

14-2

GENERAL INFORMATION

M2140000101567

For the cooling method, a forced water-cooling circu-
lation system is adopted and it has the following
characteristics:

• To reduce the coolant temperature variation, the

inlet control system which arranges the thermo-
stat at the inlet side of the coolant flowing from
the radiator to the engine is adopted.

• A down-flow radiator has been adopted in order

to reduce the number of parts and improve serv-
iceability.

• A ring fan has been adopted in order to reduce

noise.

• A radiator condenser tank is assembled into the

fan shroud in order to reduce the number of parts
and improve serviceability.

SPECIFICATIONS

CONSTRUCTION DIAGRAM

Item

4B1

Cooling method

Water-cooled pressurised, forced circulation with
electrical fan

Water pump

Type

Centrifugal impeller

Drive method

Drive belt

Thermostat

Type

Wax pellet with jiggle valve

Valve open temperature

°C

82

± 1.5

Radiator

Type

Pressurised corrugate type

Core size (width

× height ×

thickness) mm

687.4

× 400 × 16

Performance kJ/h

201,800

Engine coolant

Specified coolant

DIA QUEEN SUPER LONG LIFE COOLANT or
equivalent

Quantity (including 0.65 L in
the radiator condenser tank) L

Approximately 7.5

ACB05950

Radiator lower hose
assembly

Radiator condenser tank

Radiator upper hose assembly

Radiator assembly

Radiator fan motor

Condenser fan motor

Fan shroud

CVT fluid cooler
feed hose

AB

CVT fluid cooler
return hose

Downloaded from

www.Manualslib.com



manuals search engine



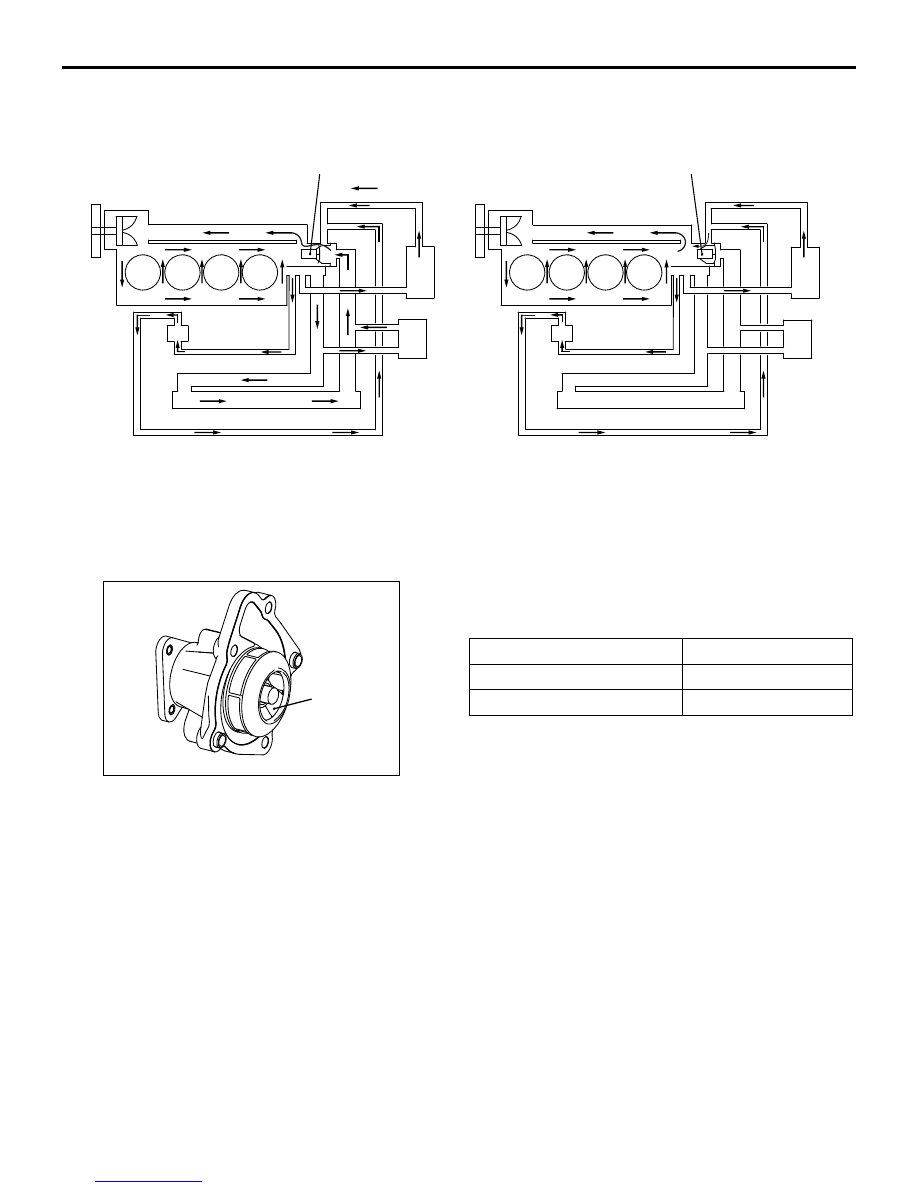

WATER PASSAGE

ENGINE COOLING

14-3

WATER PASSAGE

M2140004000718

WATER PUMP

M2140003000492

The water pump is the centrifugal, impeller type that
is installed in front of the cylinder block. It is driven by
the drive belt.

ACB04926

Water pump

AB

Thermostat

Radiator

Throttle body

CVT
oil cooler

Heater

<Hot>

Water pump

Thermostat

Radiator

CVT
oil cooler

Heater

<Cold>

Throttle body

AK503034

Impeller

AD

Item

Specifications

Discharge volume L/rpm

185/6 500

Impeller diameter mm

62
