GENERAL INFORMATION

FUEL SUPPLY

13B-2

GENERAL INFORMATION

M2134000101676

The fuel system consists of the following compo-
nents:

• Fuel injector

• Fuel delivery pipe

• Fuel vapour canister

• Fuel high-pressure hose

• Fuel line pipe

• Fuel tank assembly

• Fuel pump and gauge assembly

• Fuel gauge unit <4WD>

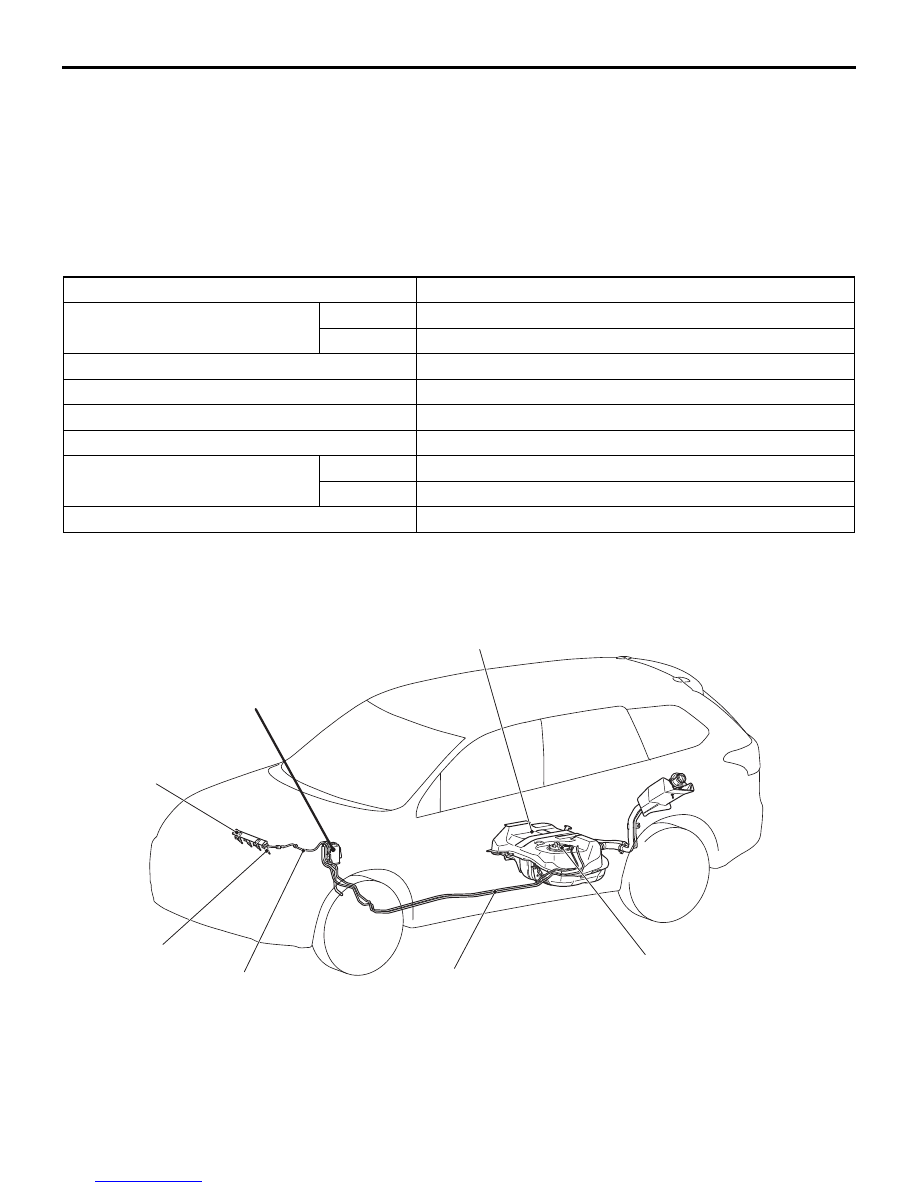

SPECIFICATIONS

CONSTRUCTION DIAGRAM

<2WD>

Item

Specification

Fuel tank capacity L

2WD

4WD

Fuel pump type

Electric (incorporates tank pump and gauge assembly)

Fuel filter type

Cartridge (incorporates tank pump and gauge assembly)

Fuel return system

Return less

Fuel pressure regulator control pressure kPa

324

Fuel injector

Type

Elector-magnetic

Quantity

Evaporative emission control system

Fuel vapour canister

ACB05409AB

Fuel vapour canister

Fuel delivery pipe

Fuel injector

Fuel tank assembly

Fuel pump and
gauge assembly

Fuel line pipe

Fuel high-pressure hose

Downloaded from

www.Manualslib.com

manuals search engine

FUEL TANK

FUEL SUPPLY

13B-3

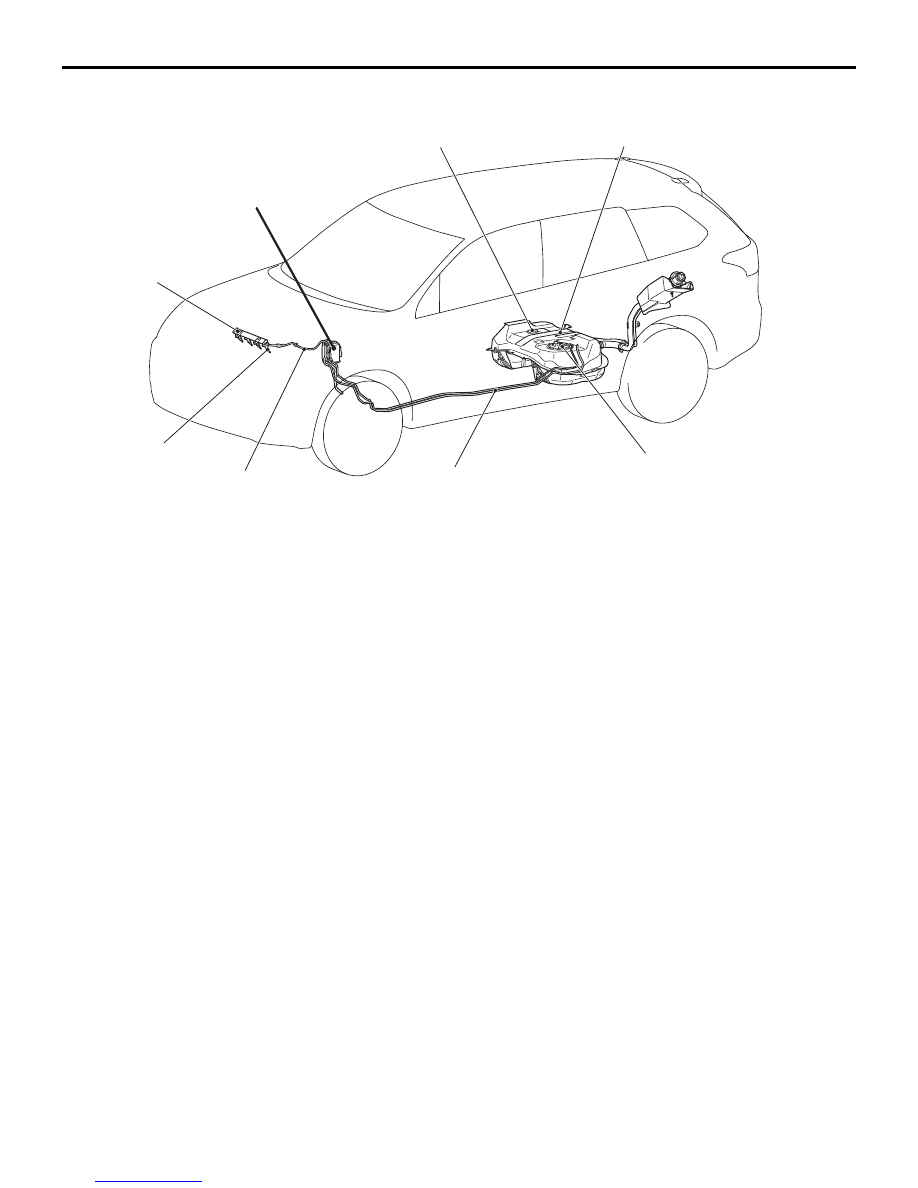

<4WD>

This fuel system is designed with consideration for
global environment protection to ensure safety at a
collision, reduce weight, and improve reliability and
quality. This system has the following features:

• A quick-joint connector of a plastic tube is used

for the fuel high-pressure hose in the engine
compartment to reduce the permeation of fuel
evaporative emission.

• The surface of under floor fuel line pipes is

coated with 1-mm thickness of resin to improve
resistance to corrosion and chipping.

• A return less fuel system eliminates returned fuel

from the engine. The heat that fuel receives from
the engine is reduced, minimising fuel tempera-
ture in the fuel tank and controlling the amount of
evaporated gas.

• The activated charcoal of fuel vapour canister is

modified for downsizing, weight saving and better
performance.

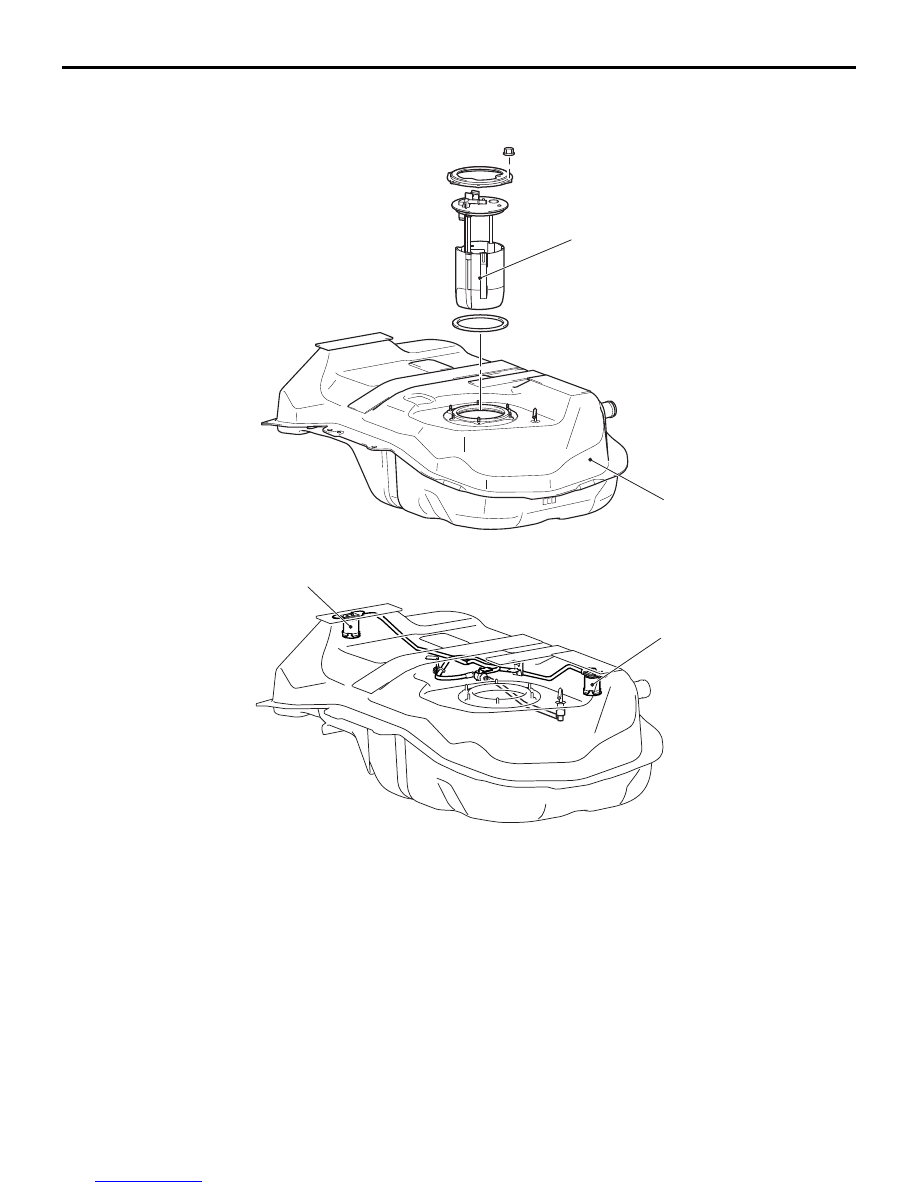

FUEL TANK

M2134001001672

The fuel tank assembly consists of components such
as a fuel pump and gauge assembly, a fuel gauge
unit, and a fuel tank, and has the following features:

• The fuel tank is mounted underneath the second

seat to improve safety at a collision.

• The fuel tank itself is made of a pre-coat galva-

nized steel sheet that contains no lead.

• The capacity of the fuel tank is 63 litres <2WD>

or 60 litres <4WD> to meet long-distance drives.

• A fuel tank safety valve, which prevents fuel leak-

age when the vehicle banks or rolls over, is
located inside the fuel tank for fewer openings
and hose bonding points on the fuel tank top sur-
face.

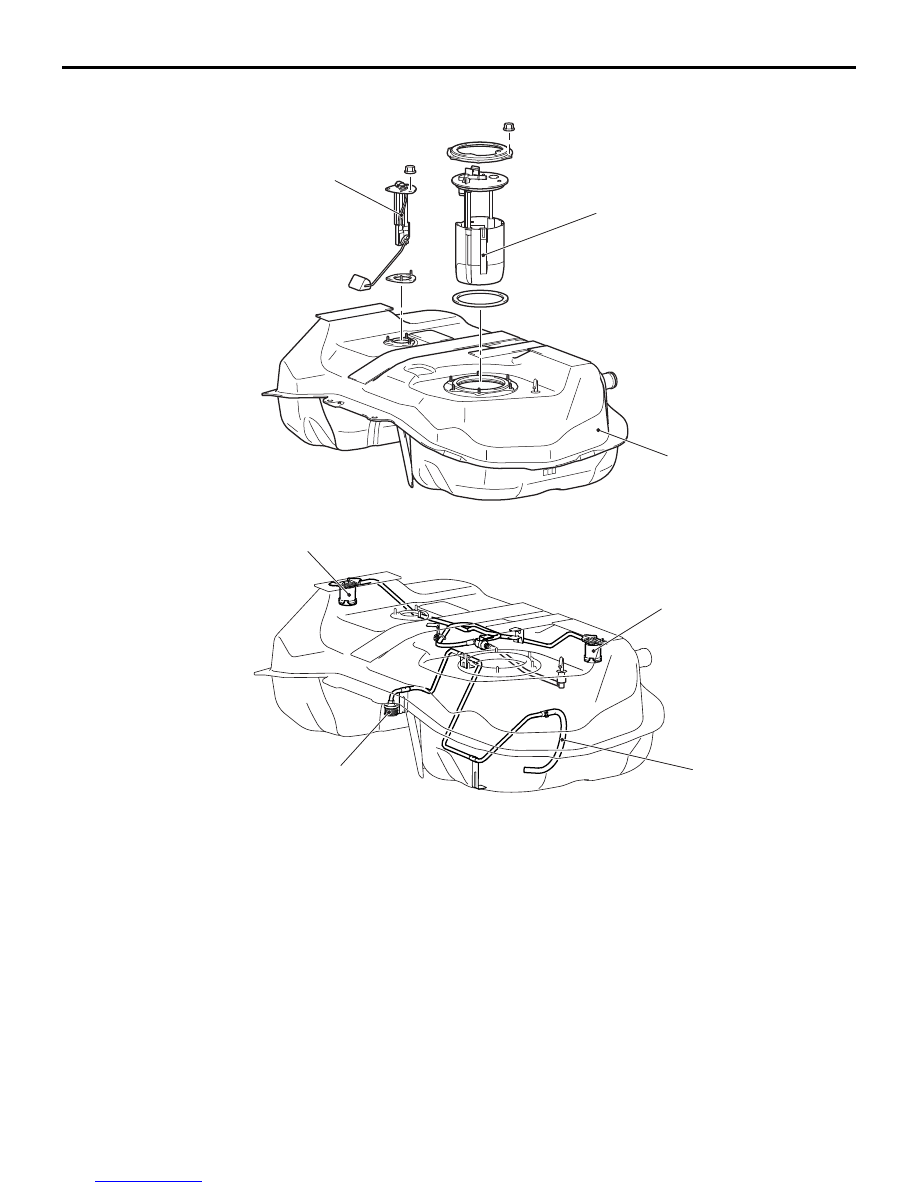

• A built-in fuel filter and a fuel tank suction hose

have been adopted to meet the fuel tank of a sad-
dleback shape. <4WD>

The fuel pump and gauge assembly consist of the
following components:

• Fuel pump
