51-1

GROUP 51

EXTERIOR

CONTENTS

GENERAL INFORMATION . . . . . . . .

51-2

BUMPER  . . . . . . . . . . . . . . . . . . . . . .

51-3

AERO PARTS  . . . . . . . . . . . . . . . . . .

51-5

GARNISHES  . . . . . . . . . . . . . . . . . . .

51-6

WIPER AND WASHER  . . . . . . . . . . .

51-7

WINDSHIELD WIPER AND WASHER  . . . .

51-7

REAR WIPER AND WASHER  . . . . . . . . . .

51-14

HEADLAMP WASHER <OPTIONAL>

51-16

WIPER DEICER <OPTIONAL>  . . . . .

51-17

OUTSIDE MIRROR . . . . . . . . . . . . . . .

51-17

CUSTOMISATION FUNCTION. . . . . .

51-20

GENERAL INFORMATION

EXTERIOR

51-2

GENERAL INFORMATION

M2510000103148

FEATURES

BETTER APPEARANCE
1. Newly designed front bumper and radiator grille
2. The windshield washer nozzles are located at the
rear end under the hood.

BETTER AERODYNAMIC CHARACTERISTICS
3. Aerodynamic front bumper
4. Front side air dam (Refer to )
5. Overfender
6. Roof drip moulding (Refer to )

BETTER USER-FRIENDLINESS
7. Electric folding remote-controlled door mirrors
<Some models>
8. Heated door mirrors

9. Door mirrors with built-in side turn-signal lamps
<Some models>
10 Roof rails <Optional>

BETTER PRODUCT PACKAGE
11. Front bumper to reduce the severity of an injury
in an accident with pedestrians. (Refer to )
12. Vehicle speed sensitive intermittent windshield
wiper system
13. Rain sensitive AUTO wiper <Optional >
14. Wiper deicer <Optional >
15.Headlamp washer <Optional>

SUPPORT RECYCLING OF RESOURCES

Aggressively uses PP (polypropylene) materials that
are easy to recycle and easy to stamp material sym-
bols on the plastic (resin) parts.

ACB05806

7,8,9

5

5

4

10

1

3

AB

2,12,13,14

6

11

15

6

BUMPER

EXTERIOR

51-3

BUMPER

M2510001300566

FRONT BUMPER

CONSTRUCTION DIAGRAM

• Impact-absorbing structure

The front bumper reinforcement has been installed

behind the front bumper assembly and
energy-absorbing material has been adopted to
reduce a risk of injury to pedestrian's legs upon a
collision.

• With the front bumper reinforcement remaining

on the body, the front bumper can be removed as
a unit.

• front side air dam

The front side air dams have been adopted in front of

the left and right tyres to suppress the airflow
against the tyres.

• Resin-made front bumper side brackets have

been adopted to improve the alignment with the
body.

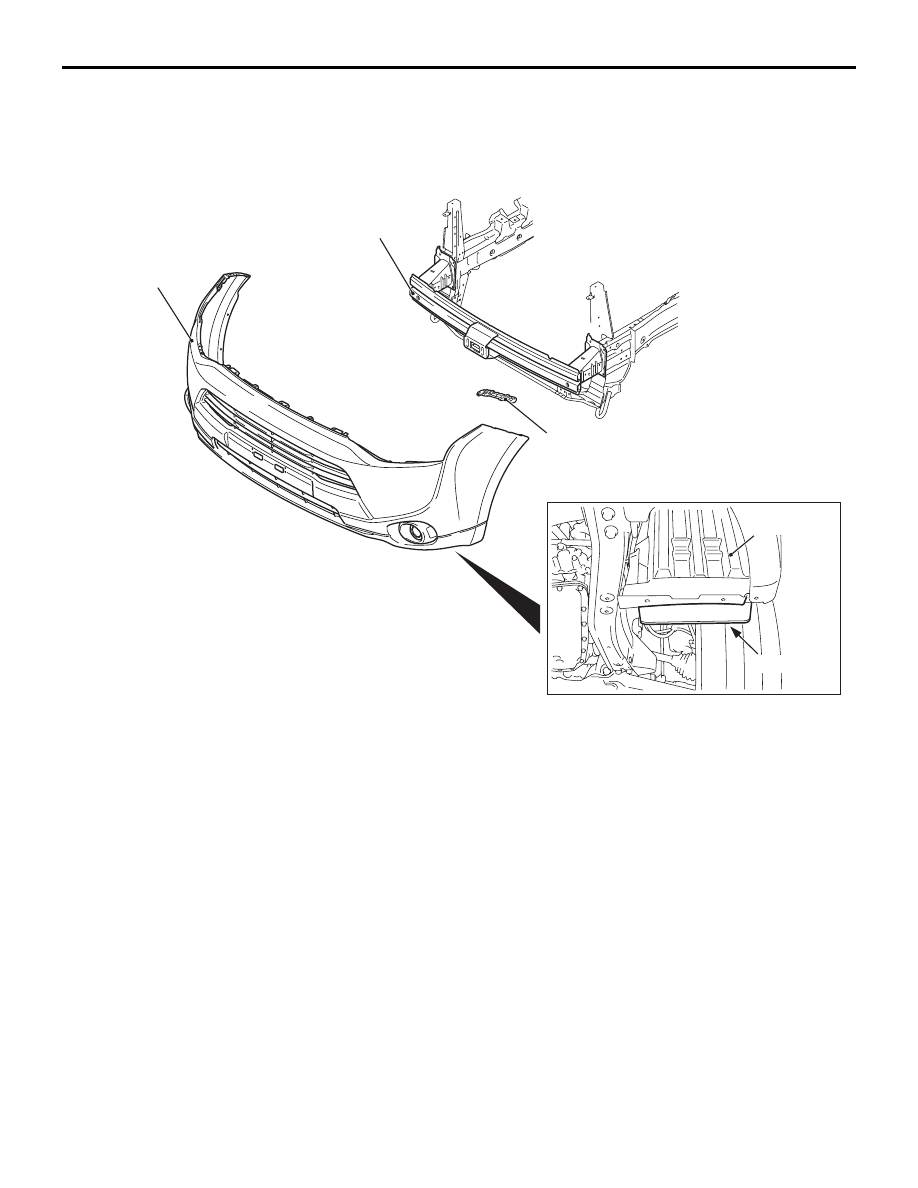

ACC00353AB

Front bumper face

Front bumper
side bracket

Front bumper
reinforcement

Bulge

Splash shield
front

BUMPER

EXTERIOR

51-4

REAR BUMPER

CONSTRUCTION DIAGRAM

• Resin-made rear bumper face support brackets

have been adopted to improve the alignment with
the body.

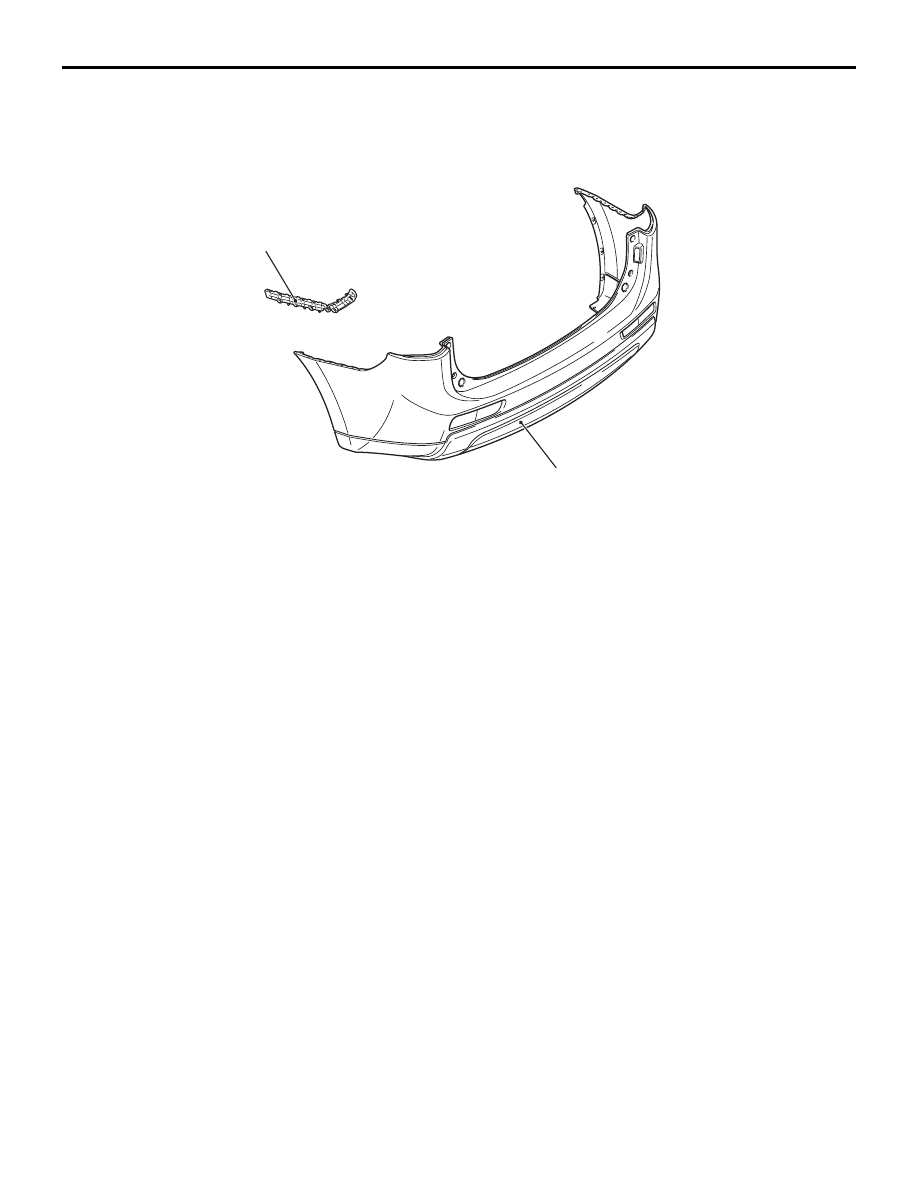

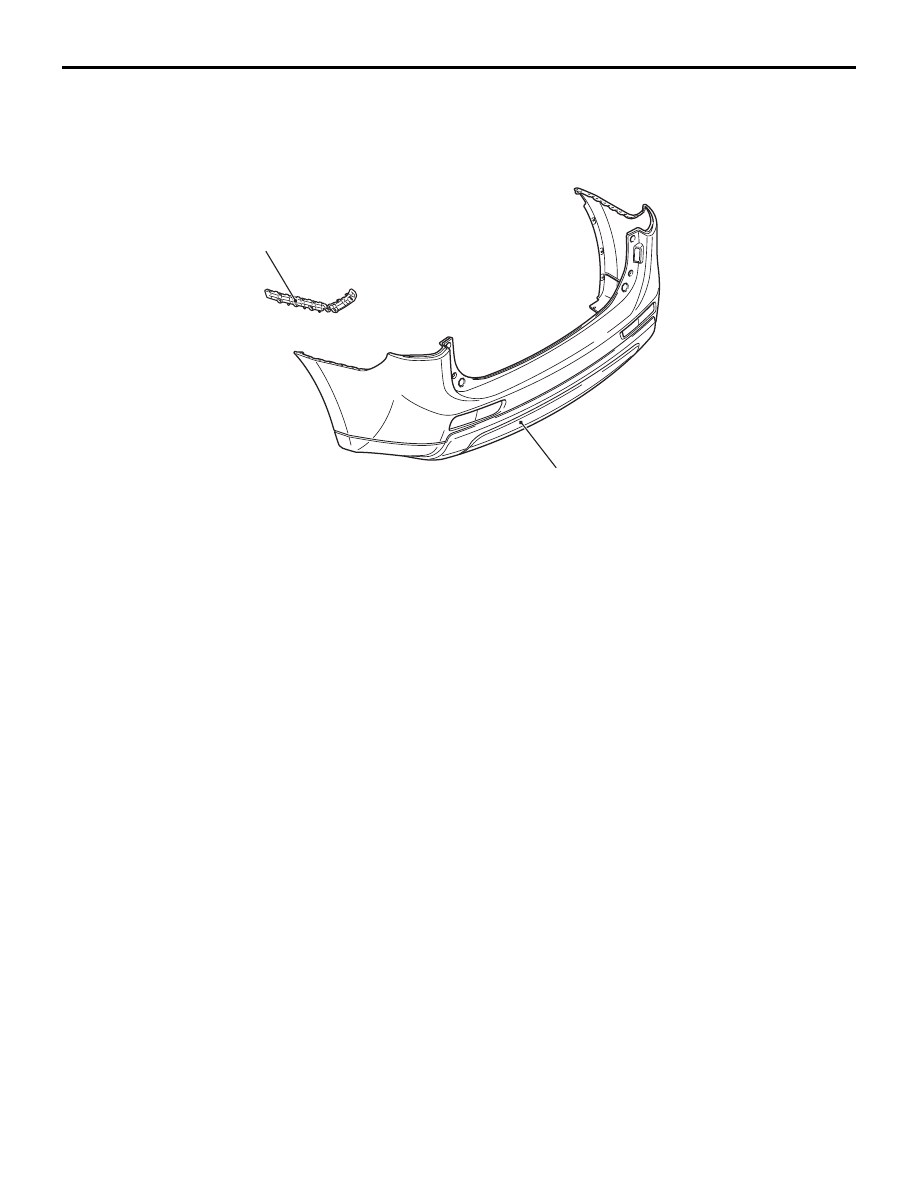

ACB05705AB

Rear bumper face

Rear bumper face
support bracket
