Mitsubishi Outlander (2013+). Manual - part 46
EXHAUST SYSTEM
INTAKE AND EXHAUST
15-3
EXHAUST PIPE AND MUFFLER
M2150003001775
CONSTRUCTION DIAGRAM
Exhaust pipe and muffler consisting of two separa-
tion system has the following features:
• Improve emission gas cleaning ability by adopt-
ing rear exhaust system and placing front cata-
lytic converter by engine as close as possible.
• A 4-point exhaust muffler hanger has been
adopted for optimisation of position, which
reduces vibration to the vehicle.
• The spherical joint has been adopted for connec-
tion between the front exhaust pipe and the
exhaust manifold, and between the exhaust pipe
and the centre exhaust pipe, which reduces
vibration to the vehicle.

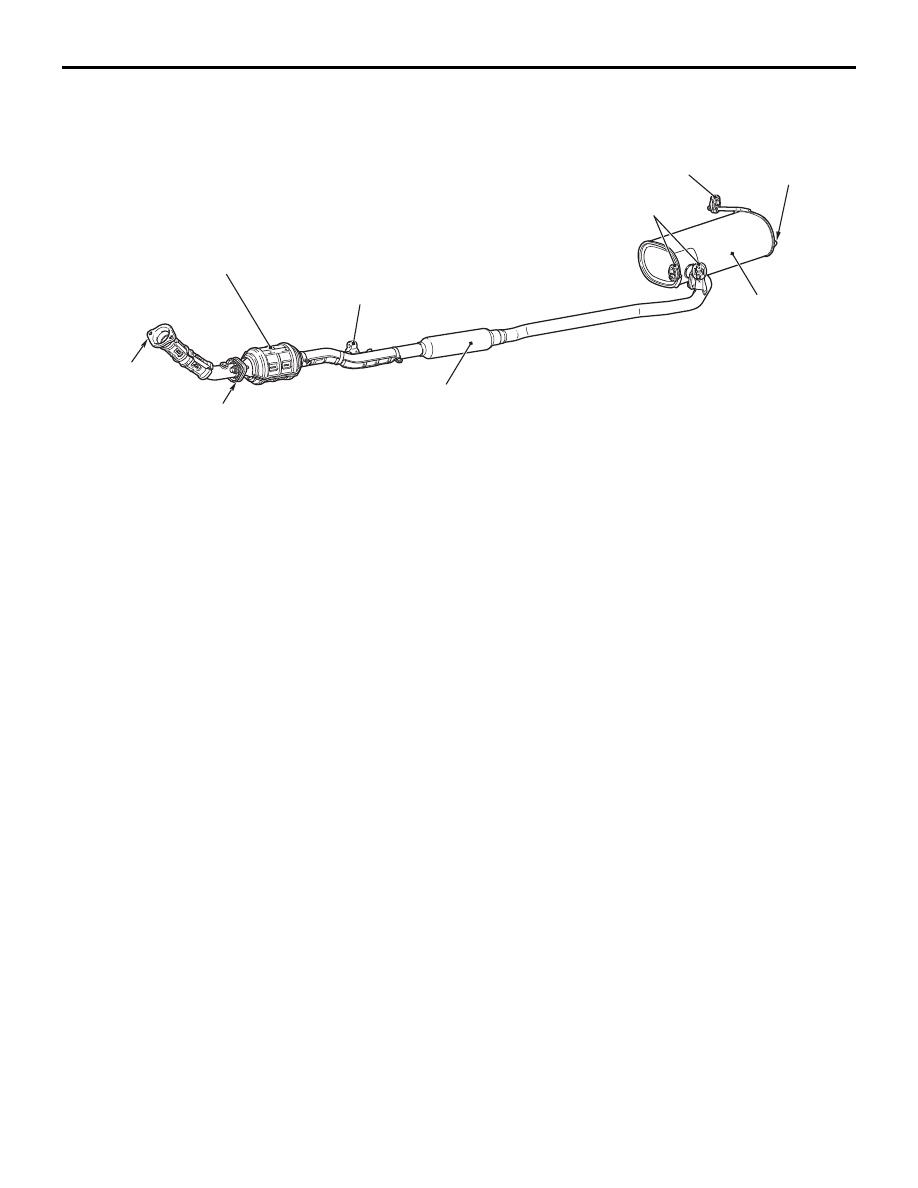

ACB05022AB
Annular joint
Annular joint
Catalytic converter
Hanger bracket
Main muffler
Sub muffler
Tail pipe
Hanger bracket
Hanger bracket
