Mitsubishi Outlander (2013+). Manual - part 28





TECHNICAL FEATURES

GENERAL

00-7

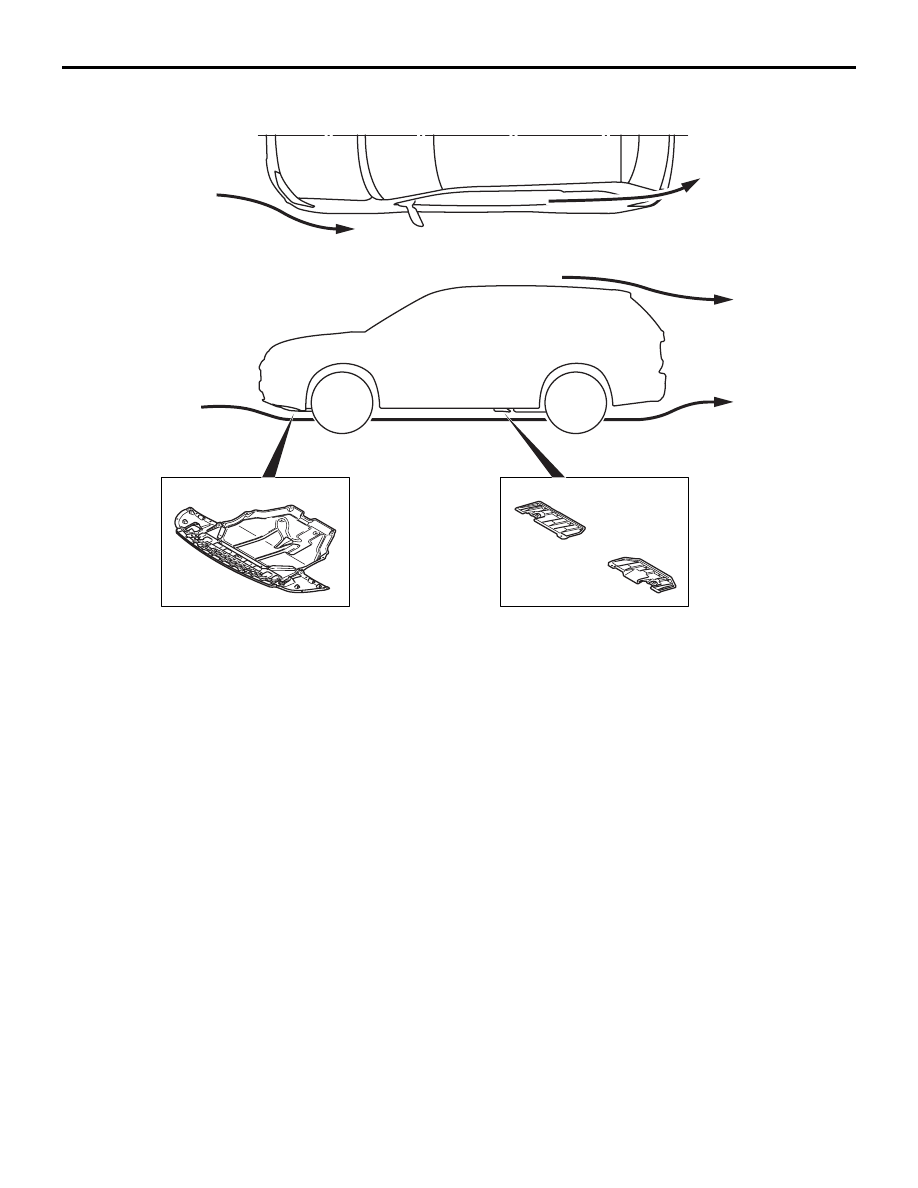

AERODYNAMICS

New OUTLANDER achieved a drag coefficient of C

D



(Coefficient of drag), 7% reduction as compared to
the current model, by using the cutting-edge compu-
ter simulation technology and with the numerous
wind tunnel experiments. Optimized body form of
bumper side, roof, C-pillar and effective aerodynamic
items such as air dams, under covers, rear spoiler
also reduce aerodynamic drag and lift force.

1. Optimized bumper makes the side flow very

smooth.

2. Tapered body shape makes the wake stable and

small.

3. Stream-lined roof shape is even more optimized.
4. Air resistance is reduced by optimally arranged

aerodynamic items such as air dams, under cov-
ers.

These items reduce front and rear lift force, too.

ACTIVE SAFETY

M2000031001598

The following safety equipment/systems are used:

• ABS (Anti-skid Braking System) with EBD (Elec-

tronic Brake-force Distribution)

• ASC (Active Stability Control system)

•  Hill start assist system

• ESS (Emergency Stop signal System)

• S-HID headlamp (Super wide High Intensity Dis-

charge headlamp)

• Security alarm

PASSIVE SAFETY

M2000032001654

The following safety equipment/systems are used:

• RISE Body (Reinforced Impact Safety Evolution

body)

• Driver's and front passenger's SRS (Supplemen-

tal Restraint System) air bag

• Curtain air bag and Side-airbag

• Driver's knee air bags

• Front seat belt retractor with pre-tensioner and

force-limiter function.

• Three-point rear seat belt with ELR/ALR (child

seat fixing mechanism)

• Immobilizer function

COMFORTABLE EQUIPMENTS

M2000026000953

STEERING SYSTEM WITH TILT AND TEL-
ESCOPIC MECHANISMS

The tilt and telescopic mechanisms allow the driver
to adjust the steering wheel position precisely
depending on his/her wish and body size.

ACC00050

1

2

3

4

4

Rear under cover

Front under cover

AB

TECHNICAL FEATURES

GENERAL

00-8

KEYLESS OPERATION SYSTEM (KOS)

The door entry function has been employed, that
enables the driver to lock or unlock all the doors
(including tailgate) without taking the key out from
his/her pocket or bag by operating the lock/unlock
switches on the front door <Driver's side> or tailgate
whenever the driver carries the keyless operation
key with him/her. [Refer to GROUP 42B

− Keyless

Operation System (KOS) ]

ONE-TOUCH START SYSTEM (OSS)

For vehicles equipped with the keyless operation
system (KOS), the push-type engine start switch has
been employed. [Refer to GROUP 42B

− One-touch

Start System (OSS) ]

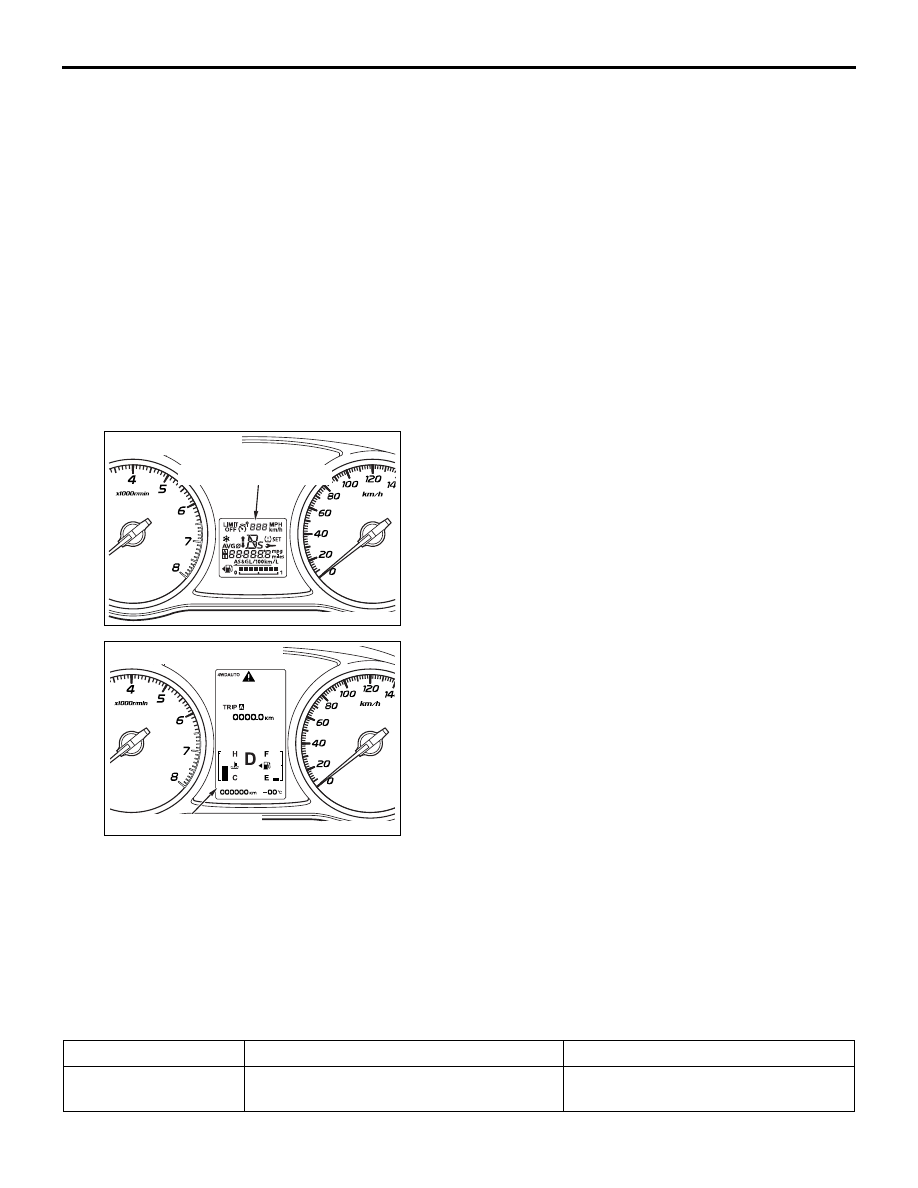

MULTI-INFORMATION DISPLAY

The multi-information display can display the follow-
ing items: various warnings, odometer and trip meter,
illumination control, service reminder information,
engine coolant temperature, remaining fuel amount,
selector lever position, average and instantaneous
fuel consumption, possible cruising distance, aver-
age vehicle speed, and others. Displayed contents

can be switched by operating the multi-information
meter switch. Also, the displayed language or unit on
the multi-information display can be changed from
the function setting screen. (Refer to GROUP 54A

−

Combination Meter )

AUDIO AND NAVIGATION SYSTEM

A NEW GENERATION WIDE 2-DIN CD OUDIO

• A "Wide 2-DIN" size system has been

adopted.

• Piano black paint and chrome decorations

offer premium image.

• Supports USB/iPod control functions

Newly developed DISPLAY AUDIO

• Piano black paint and chrome decorations

offer premium image.

• Features 6.1 inch QVGA (Quarter Video

Graphics Array) full-colour display and touch
screen.

• Supports USB/iPod control functions

• Rear view camera image with reference lines

Newly-developed NAVIGATION

− Mitsubishi Multi

Communication System (MMCS)

• SD card is used as data storage instead of

HDD.

• High-definition display [VGA (Video Graphics

Array) instead of QVGA (Quarter Video
Graphics Array)]

• Dual display function such as navigation and

AV (Audio Visual)/Vehicle information, etc.

• Supports USB/iPod control functions and SD

audio files

A/C SYSTEM

There are two modes for the air conditioner system
(same as the predecessor); full auto A/C and dual
zone A/C.
The "dual zone A/C" mode allows separate stratifica-
tion control selections for the right and left outlets,
depending on individual passenger's wishes (Refer
to GROUP 55

− Heater, Air Conditioner and Ventila-

tion ).

ENVIRONMENTAL PROTECTION

M2000027000945

Mitsubishi Motors Corporation has given careful con-
sideration to protection of natural resources and the
environment. Environmentally friendly features are
shown below.

ACC00056

<Standard meter>

Multi-information display

AB

ACC00057

<High contrast meter>

Multi-information display

AB

Classification

Parts Name

Features

Adoption of easy
recycling material

Bumper, Radiator grille, Instrument panel,
Interior door trims

Adoption of thermoplastic resin

VEHICLE IDENTIFICATION

GENERAL

00-9

VEHICLE IDENTIFICATION

MODELS

M2000001101495

VEHICLES FOR RUSSIA (EASTERN EUROPE COUNTRIES)

<2000>

<2400>

MODEL CODE

Expansion of recycled
material

Bumper, Radiator grille, Instrument panel,
Interior door trims

Re-use of material discarded in plant

Sound absorbing materials in dash panel
and headlining, Oil level gauge

Re-use of discarded material in other
industry

Reduction of
hazardous substances

Fuel tank, Radiator, Heater core, Balance
weight for wheel, Glass ceramics print,
Electrode position paint, bearing metal,
valve sheet

Adoption of lead free material

Discharge headlight, combination meter,
Navigation system

Adoption of mercury free material

Classification

Parts Name

Features

Model code

Seating
capacity

Engine model

Transmission model

Fuel supply
system

GF2W

XTSHL6Z

5-persons

4B11 (1,998 mL)
DOHC MIVEC
petrol engine

F1CJA (Front wheel drive 2WD,
INVECS-III CVT with sport mode)

MPI

XTSHZL6Z

W1CJA (Electronic control 4WD,
INVECS-III CVT with sport mode)

Model code

Seating
capacity

Engine model

Transmission model

Fuel supply
system

GF3W

XTHHZL6Z

5-persons

4B12 (2,360 mL)
DOHC MIVEC
petrol engine

W1CJA (Electronic control 4WD,
INVECS-III CVT with sport mode)

MPI

1

2

3

4 5 6 7 8 9

10

ACB04331AB

No. Item

Content

1

Development

GF

OUTLANDER

2

Engine type

2

2.0L MPI (4B11)

3

2.4L MPI (4B12)

3

Vehicle type

W

Station wagon

4

Body style

X

4-door with tailgate

5

Transmission type

T

CVT

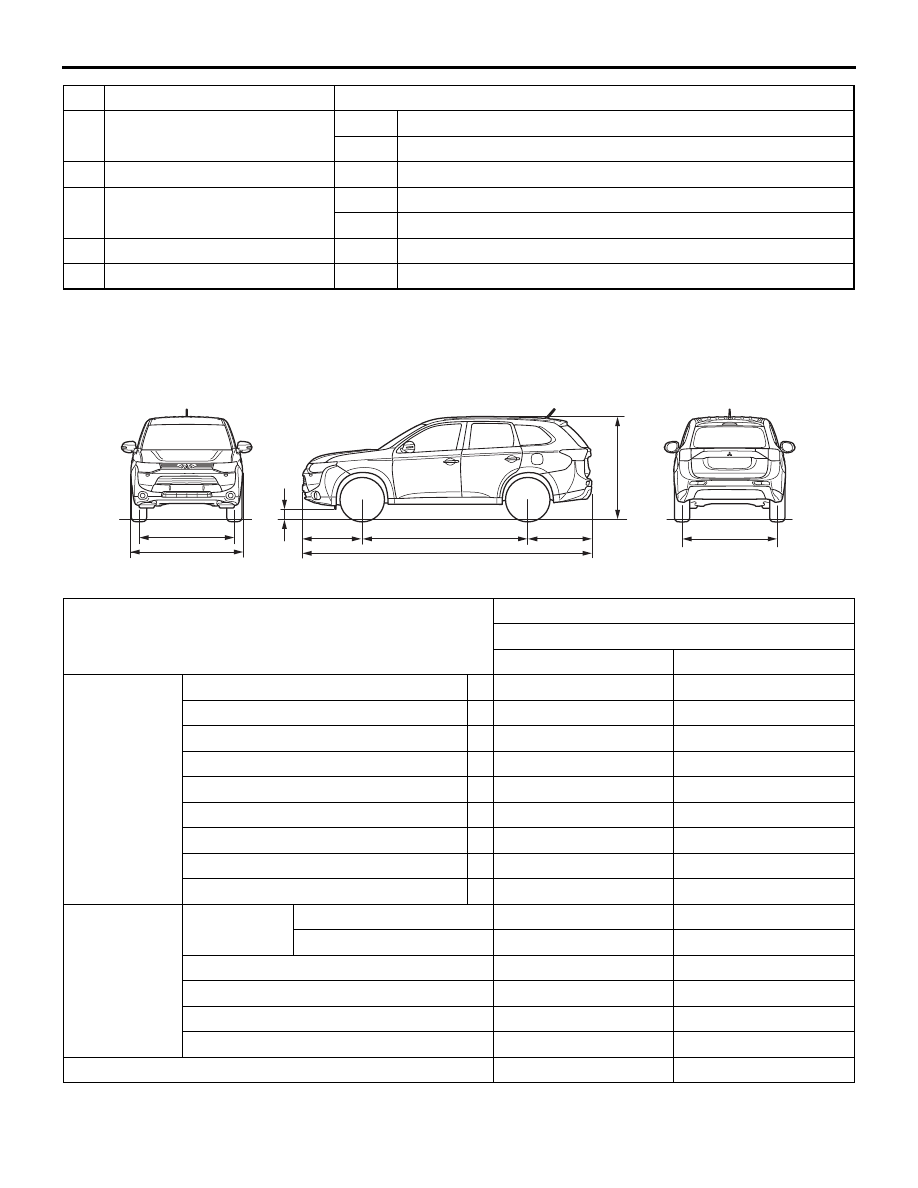

MAJOR SPECIFICATIONS

GENERAL

00-10

MAJOR SPECIFICATIONS

M2000030003256

<2000>

6

Trim level (Price class)

S

INFORM <2000

− 2WD>

H

INVITE <2000

− 4WD>, INSTYLE <2400>

7

Engine specification

H

MIVEC (DOHC)

8

Special feature

None

2WD

Z

4WD

9

Steering wheel location

L

Left hand

10

Destination

6Z

Vehicles for Russia

No. Item

Content

Item

INTENSE

GF2W

XTSHL6Z

XTSHZL6Z

Vehicle
dimension mm

Front track

1

1,540

1,540

Overall width

2

1,800

1,800

Front overhang

3

955

955

Wheelbase

4

2,670

2,670

Rear overhang

5

1,030

1,030

Overall length

6

4,655

4,655

Ground clearance (unladen)

7

215

215

Overall height (unladen)

8

1,680

1,680

Rear track

9

1,540

1,540

Vehicle weight
kg

Kerb weight

Without full optional parts 1,415

1,480

With full optional parts

1,484

1,559

Gross vehicle weight

1,985

1,985

Gross axle weight rating-front

1,150

1,150

Gross axle weight rating-rear

1,250

1,250

Gross combination weight

3,665

3,665

Seating capacity

5

5

ACB04339AB

1
2

3

4

5

6

7

8

9
