GROUP 3

WELDED PANEL

REPLACEMENT

CONTENTS

ULTRA HIGH STRENGTH STEEL PLATE



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2

FRONT END CROSSMEMBER . . . . .

3-2

FENDER SHIELD. . . . . . . . . . . . . . . .

3-3

FRONT SIDEMEMBER (PARTIAL
REPLACEMENT) . . . . . . . . . . . . . . . .

3-8

FRONT PILLAR . . . . . . . . . . . . . . . . .

3-9

CENTRE PILLAR . . . . . . . . . . . . . . . .

3-12

SIDE SILL. . . . . . . . . . . . . . . . . . . . . .

3-15

QUARTER OUTER  . . . . . . . . . . . . . .

3-18

ROOF . . . . . . . . . . . . . . . . . . . . . . . . .

3-21

REAR END CROSSMEMBER  . . . . . .

3-23

REAR FLOOR. . . . . . . . . . . . . . . . . . .

3-24

QUARTER INNER. . . . . . . . . . . . . . . .

3-25

QUARTER INNER LOWER  . . . . . . . .

3-29

FRONT DOOR OUTER PANEL (WELDED
TYPE)  . . . . . . . . . . . . . . . . . . . . . . . . .

3-32

FRONT DOOR OUTER PANEL (ADHESION
TYPE)  . . . . . . . . . . . . . . . . . . . . . . . . .

3-33

REAR DOOR OUTER PANEL (WELDED TYPE)



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-35

REAR DOOR OUTER PANEL (ADHESION
TYPE)  . . . . . . . . . . . . . . . . . . . . . . . . .

3-36

ULTRA HIGH STRENGTH STEEL PLATE

WELDED PANEL REPLACEMENT

3-2

ULTRA HIGH STRENGTH STEEL PLATE

M4030002800073

ADVANTAGES OF ULTRA HIGH
STRENGTH STEEL PLATE

The ultra high strength steel plate has the following
advantages as compared with conventional high
strength steel plate.

• It has tensile strength approximately 1.7 times

higher than the conventional high strength steel
sheet.

• It has a higher yielding point and yielding ratio

(yielding point/tensile strength).

These advantages allow thinner and lighter plates
and better fuel efficiency than the high strength steel
plate.

PRECAUTION UPON MAINTENANCE OF
ULTRA HIGH STRENGTH STEEL PLATE

• Use a spot cutter for ultra high strength steel

plate to ensure that the spot-welded area is cut
off.

• For the part in which the ultra high strength steel

plate is used, do not repair it by cutting and bond-
ing to avoid the reduction in strength by heat.
Instead, replace the whole assembly including
the part.

• Be careful with rough extending work, because

the ultra high strength steel plate has higher ten-
sile strength and a higher yielding point than high
strength steel plate and general steel plate. Care-
less work will cause symptom such as over-pull-
ing and springback. Do not extend it completely
at a time. Do it gradually while removing the dis-
tortion by sheet metal processing with a hammer.

• Plug welding of φ 8 mm diameter plug for repair

ensures the strength equivalent to spot welding
for 2 steel sheets. For 3 sheets, weld 2 sheets
each time instead of welding from one side to
give sufficient welding strength.

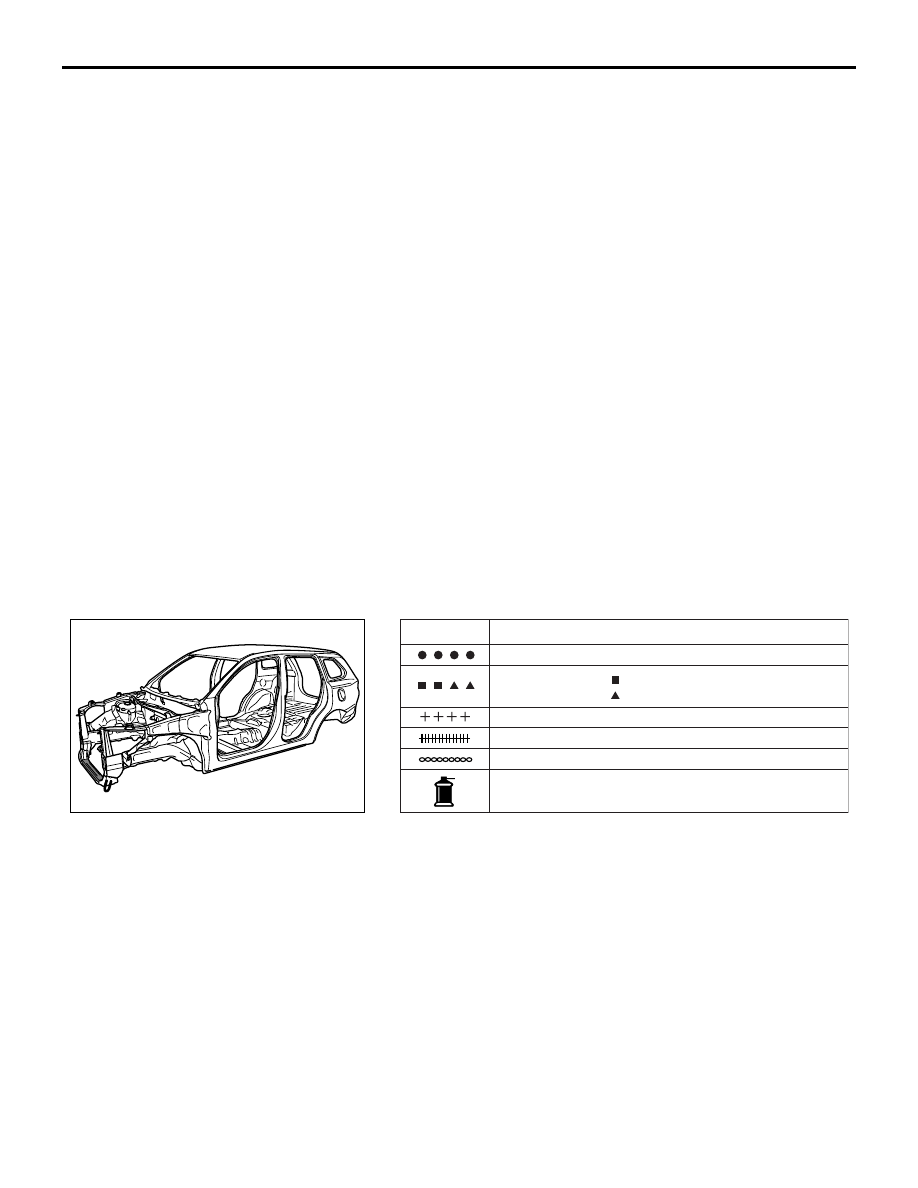

FRONT END CROSSMEMBER

M4030003100408

ABC00011

AB

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

FENDER SHIELD

WELDED PANEL REPLACEMENT

3-3

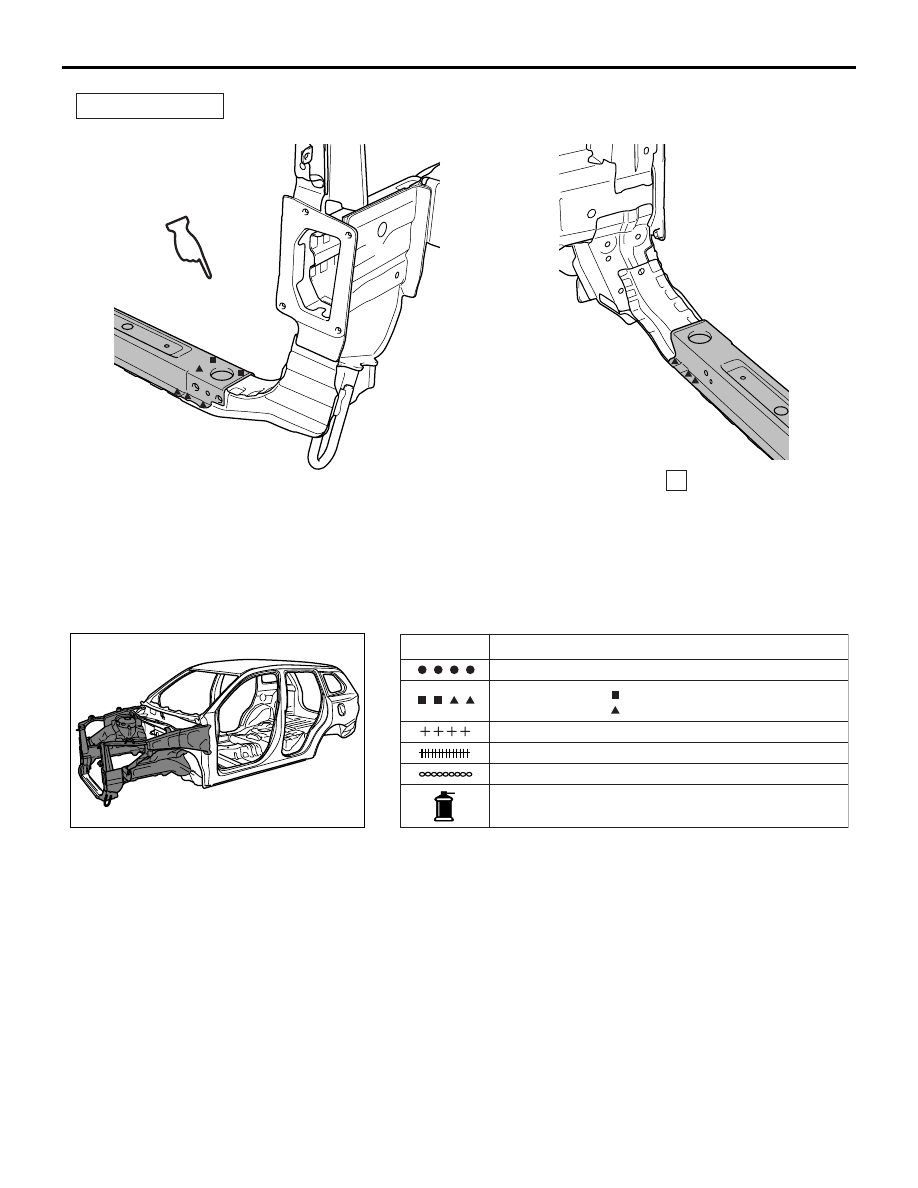

FENDER SHIELD

M4030004001731

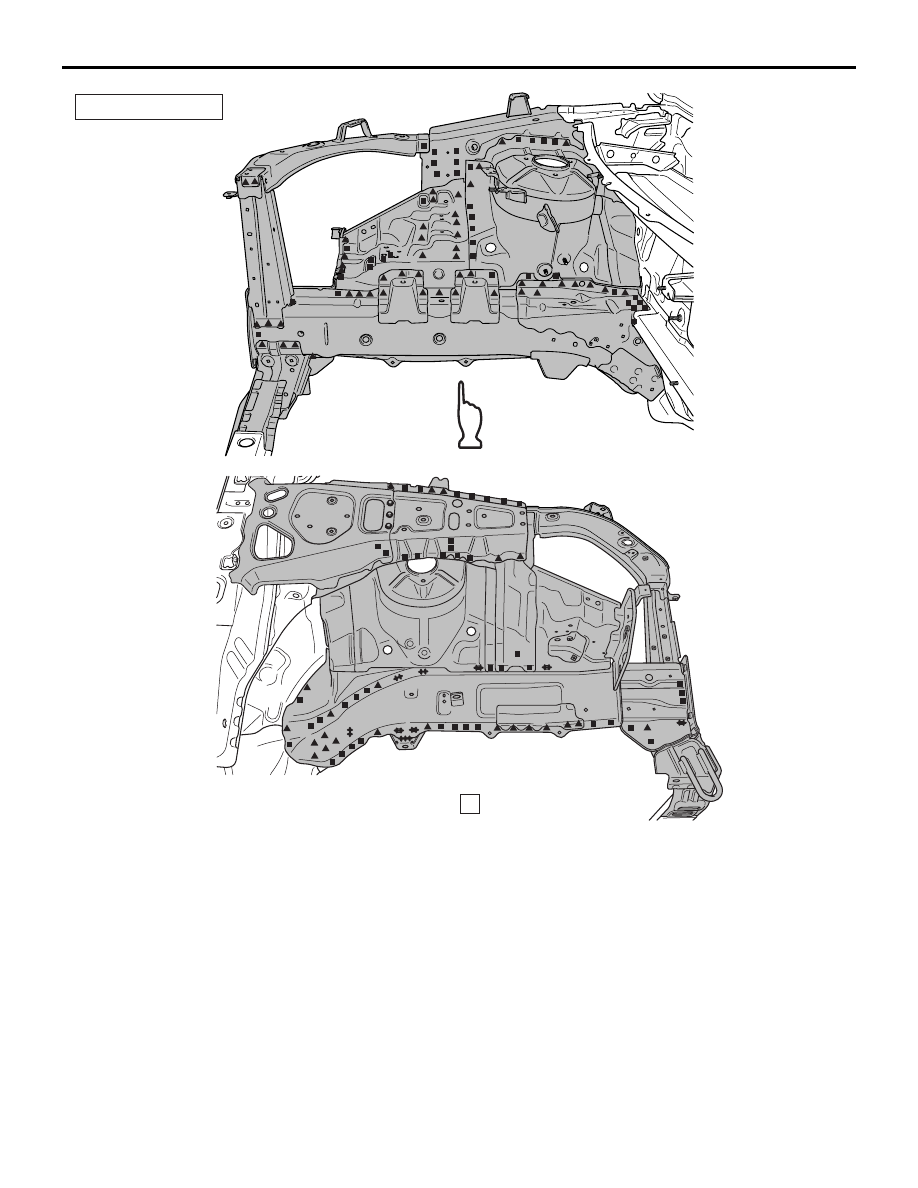

ABB00797AB

A

REPAIR WELDS

A

ABC00012

AB

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

FENDER SHIELD

WELDED PANEL REPLACEMENT

3-4

NOTE: Refer to the Front End Crossmember section on

P.3-2

 for the welding point with headlamp support

panel lower.

ABB00843 AB

A

A

REPAIR WELDS
