Mitsubishi Outlander. Body repair manual - part 23





REAR DOOR OUTER PANEL

WELDED PANEL REPLACEMENT

3-35

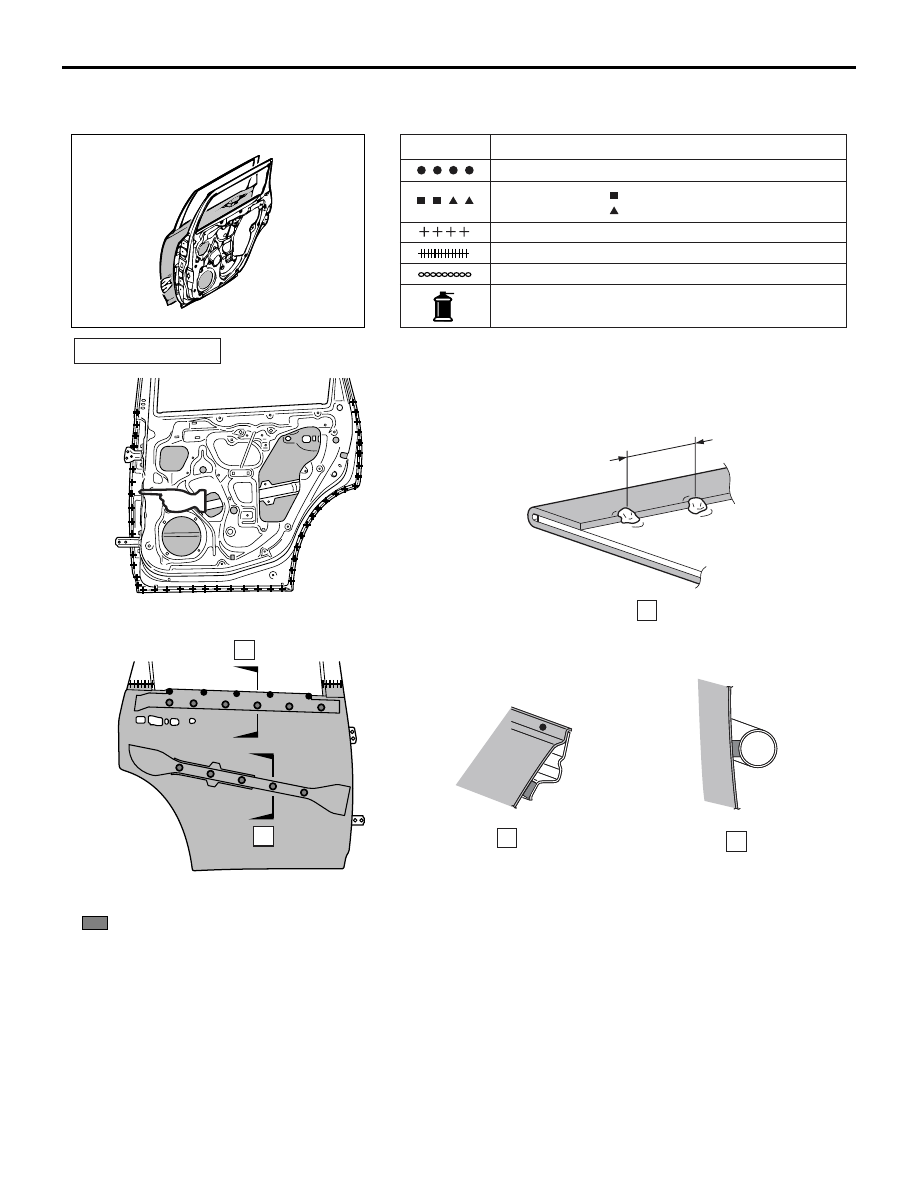

REAR DOOR OUTER PANEL

M4030014000319

AB300034

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB

AB202414

B

C

A

 50 mm

B

C

A

REPAIR WELDS

: Adhesive

AB

Adhesive : Urethane body sealer
Brand : 3M ATD Part No.8542 or equivalent

NOTE: After hemming the rear door outer panel, MIG
spot weld the flange overlap section at a pitch of 50
mm.

NOTE ON REPAIR WORK
REMOVAL

Since it is difficult to replace the sash due to a
pressed door structure, cut the outer panel from the
bottom of the sash.

NOTES

4-1

GROUP 4

CORROSION

PROTECTION

CONTENTS

BODY SEALING LOCATIONS  . . . . .

4-2

WAX INJECTION LOCATIONS . . . . .

4-5

ROCKER PANEL PRIMER APPLICATION
LOCATIONS. . . . . . . . . . . . . . . . . . . .

4-11

UNDERCOAT APPLICATION LOCATIONS



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-12

UNDERBODY ANTICORROSION AGENT
LOCATIONS . . . . . . . . . . . . . . . . . . . .

4-13

BODY SEALING LOCATIONS

CORROSION PROTECTION

4-2

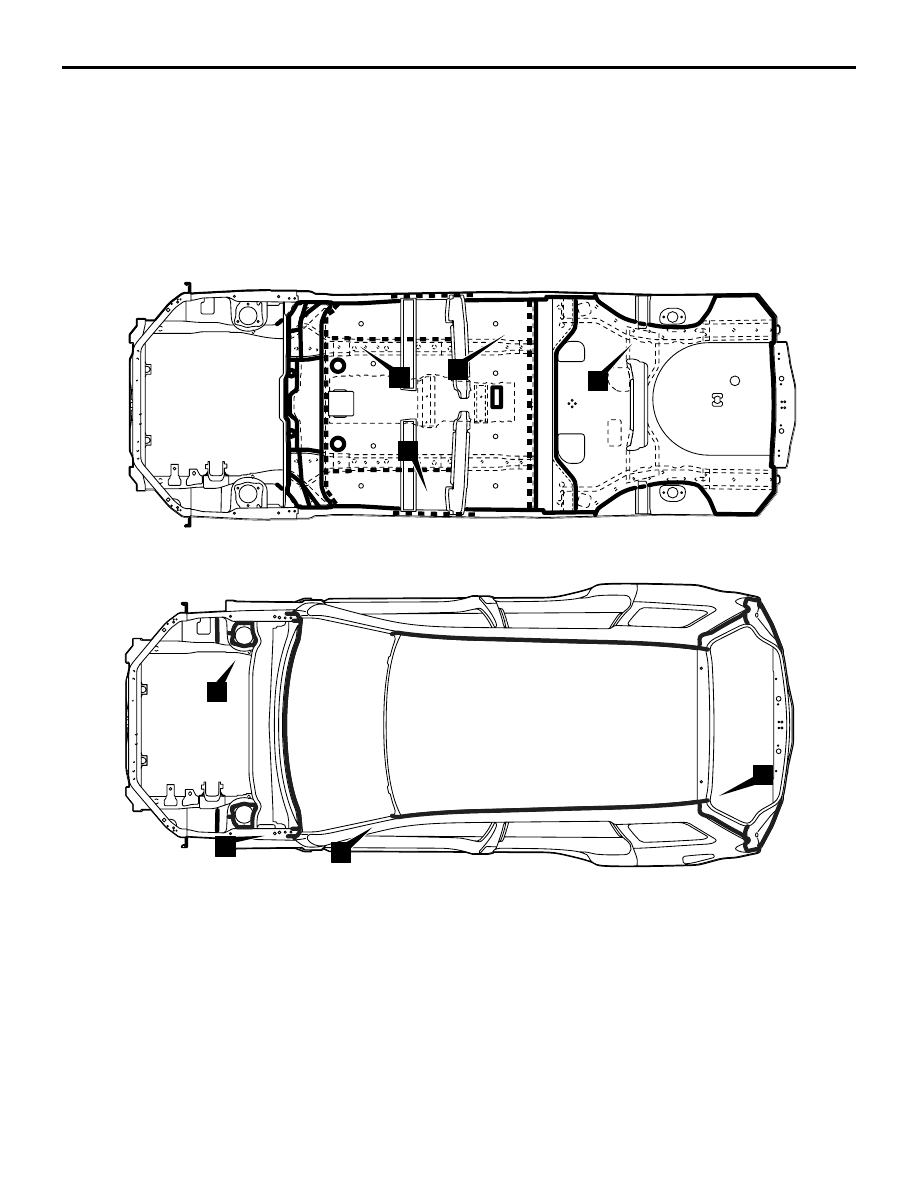

BODY SEALING LOCATIONS

M4040001000365

If the sealant application is directly visible on the
outer plate and requires appearance quality of the
application in areas such as the drip rail, pillar, clinch
and so on, then apply the sealant so that it is flat, or
wipe off any excess mounding after the application.
Be careful not to obstruct the water draining hole.

NOTE: The bold dotted line indicates the application
area on the underside.

FLOOR

AB400094

AB

1

2

3

4

UPPER BODY

AB301616

5

6

7

8

AB
