Mitsubishi Outlander (2003+). Manual - part 544





COMPRESSOR ASSEMBLY AND TENSION PULLEY

HEATER, AIR CONDITIONER AND VENTILATION

55A-71

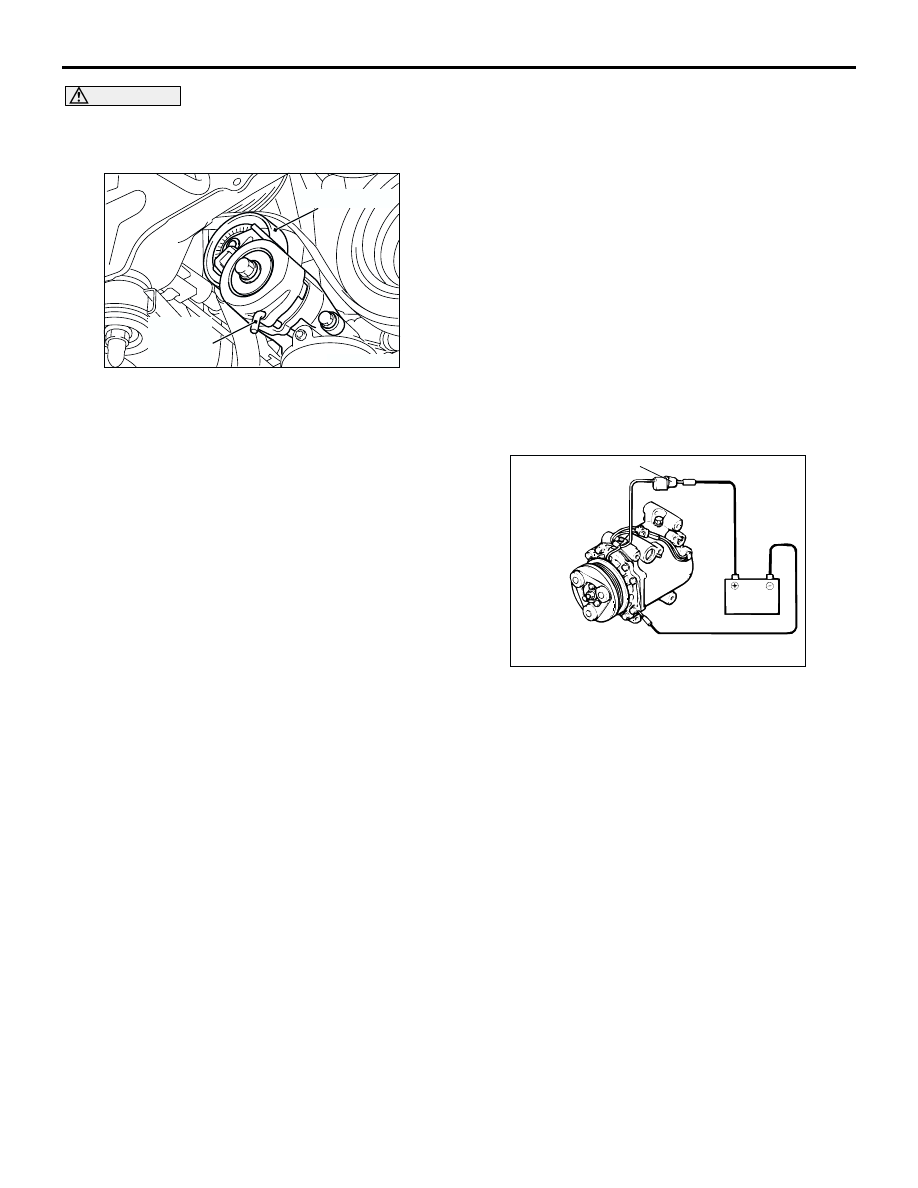

CAUTION

To reuse the drive belt, draw an arrow indicating
the rotating direction (clockwise) on the back of
the belt using chalk, etc.

3. Insert an L-shaped hexagon wrench, etc. into the

hole to fix and then remove the drive belt.

<<C>> COMPRESSOR REMOVAL
Take care not to spill any compressor oil when
removing the compressor.

INSTALLATION SERVICE POINT

>>A<< A/C COMPRESSOR INSTALLATION
If a new compressor is installed, first adjust the
amount of oil according to the procedures described
below, and then install the compressor.
1. Measure the amount (X mL) of oil within the

removed compressor.

2. Drain (from the new compressor) the amount of

oil calculated according to the following formula,
and then install the new compressor.
New compressor oil amount = 120
mL<MSC90CA> or 140 mL<MSC120CA>

120 mL

X mL = Y mL<MSC90CA> or 140

mL

X mL = Y mL<MSC120CA>

NOTE: Y mL indicates the amount of oil in the
refrigerant line, the condenser, the evaporator, etc.
NOTE: When replacing the following parts at the
same times as the compressor, subtract the rated oil
amount of the each part from Y mL and discharge
from the new compressor.

Quantity:

Evaporator: 60 mL

Condenser: 15 mL

Suction hose: 10 mL

Receiver: 10 mL

INSPECTION

M1552014300701

COMPRESSOR MAGNETIC CLUTCH
OPERATION CHECK

Connect the compressor connector terminal to the
battery positive (+) terminal and earth the battery’s
negative (

) terminal to the compressor unit. At that

time, the magnetic clutch should make a definite
operating sound.

AC301705AB

L-shaped
hexagon
wrench

Auto-tensioner

AC005671

Magnetic cluch
connector

AC

COMPRESSOR ASSEMBLY AND TENSION PULLEY

HEATER, AIR CONDITIONER AND VENTILATION

55A-72

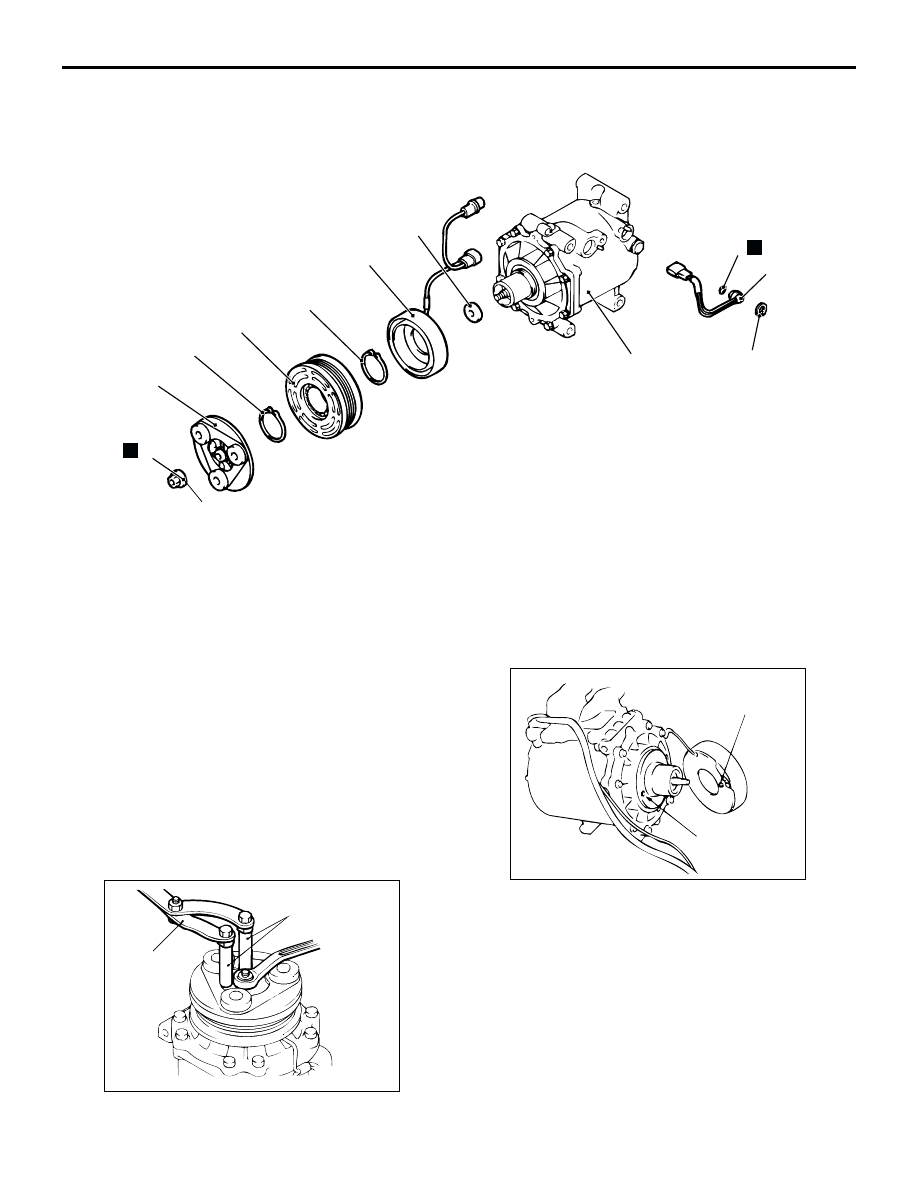

DISASSEMBLY AND REASSEMBLY

M1552004600381

DISASSEMBLY SERVICE POINT

<<A>> SELF-LOCKING NUT REMOVAL

Use the special tools to remove the self-locking nut.

Special spanner (MB991367)

Pin (MB991386)

REASSEMBLY SERVICE POINTS

>>A<< FIELD CORE ATTACHMENT

Line up the pin hole on the compressor unit with the
field core projection and attach.

AC100630

N

N

16 ± 1 N·m

10

4

6

7

8

9

5

1

2

AB

3

11

Cooling temperature switch
disassembly steps

1.

Snap ring

2.

Refrigerant temperature switch

3.

O ring
Magnetic clutch disassembly

>>D<<

Air gap adjustment

<<A>>

>>C<<

4.

Self-locking nut

5.

Armature

>>B<<

6.

Snap ring

7.

Rotor

8.

Snap ring

>>A<<

9.

Field core

10. Shim
11. A/C compressor

AC100633AB

MB991386

MB991367

AC100634 AB

Field core projection

Compressor
unit pin hole

COMPRESSOR ASSEMBLY AND TENSION PULLEY

HEATER, AIR CONDITIONER AND VENTILATION

55A-73

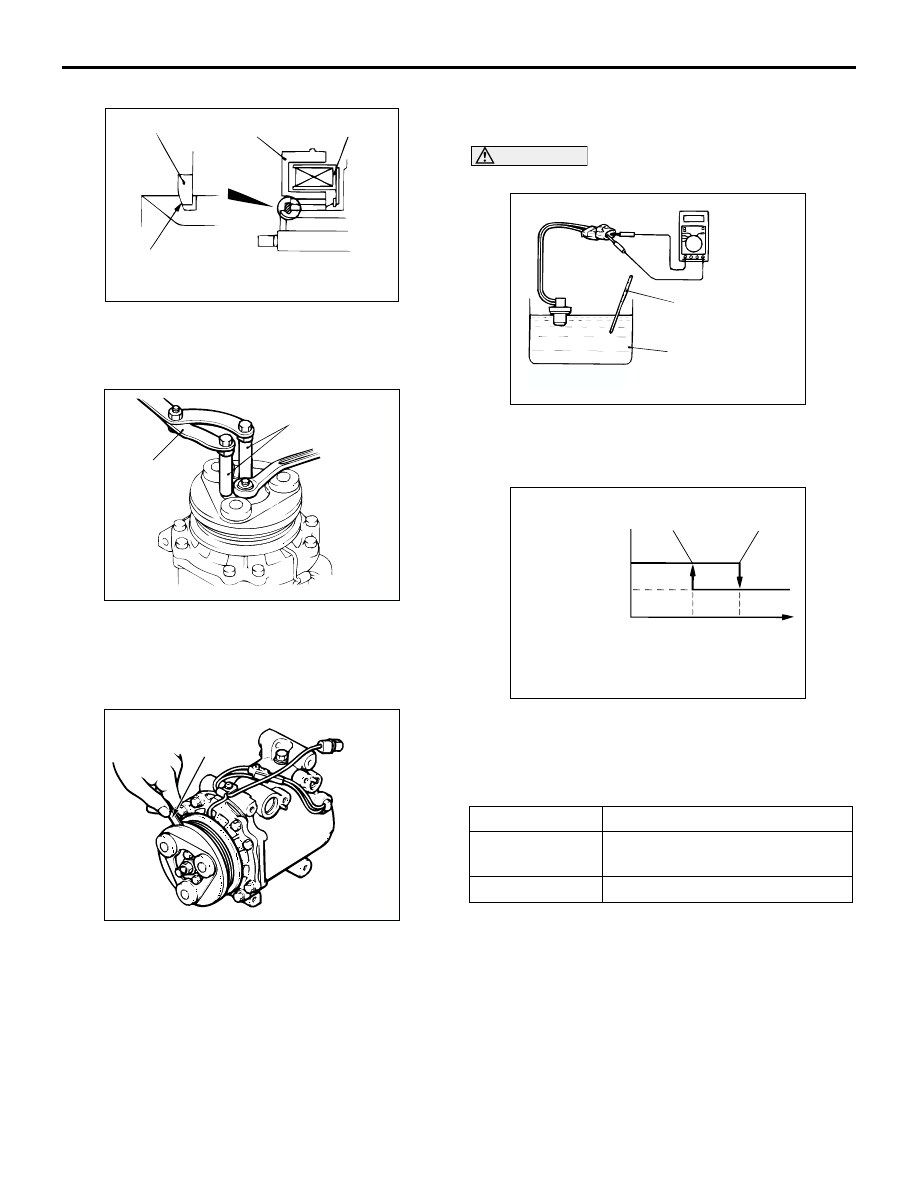

>>B<< SNAP RING INSTALLATION

Using snap ring pliers, fit the snap ring so that the
snap ring’s tapered part is on the outside.

>>C<< SELF-LOCKING NUT INSTALLATION

Use the special tools to install the self-locking nut.

Special spanner (MB991367)

Pin (MB991386)

>>D<< AIR GAP ADJUSTMENT

Apply voltage from the battery to the magnetic clutch
and check that the clutch air gap is inside the
standard value. If outside the standard value, use a
shim to adjust the gap.

Standard value: 0.3

 0.5 mm

INSPECTION

M1552014301265

REFRIGERANT TEMPERATURE SWITCH

CAUTION

Do not heat more than necessary.

1. Dip the metal part of the cooling temperature

switch into engine oil and increase the oil
temperature using a gas burner or similar.

2. When the oil temperature reaches the standard

value, check that voltage is supplied between the
terminals.

Standard value:

NOTE: When the oil temperature is 150

°

C or

more and there is no continuity, the resistance will
not be 2 ohms or lower until the oil temperature
reduces to 120

°

C or less.

AC001412

Snap ring

Rotor

Clutch coil

Tapered part

AB

AC100633AB

MB991386

MB991367

AC100637AB

Thickness
gauge

Item

Temperature

Less than 2
ohms

Slightly below 150

°

C

No continuity

150

°

C or more

AC100787

Thermometer

Engine oil

AB

AC100810

Contiunity

No continuity

Oil temprature

AD

120˚C

150˚C

CONDENSER AND CONDENSER FAN MOTOR

HEATER, AIR CONDITIONER AND VENTILATION

55A-74

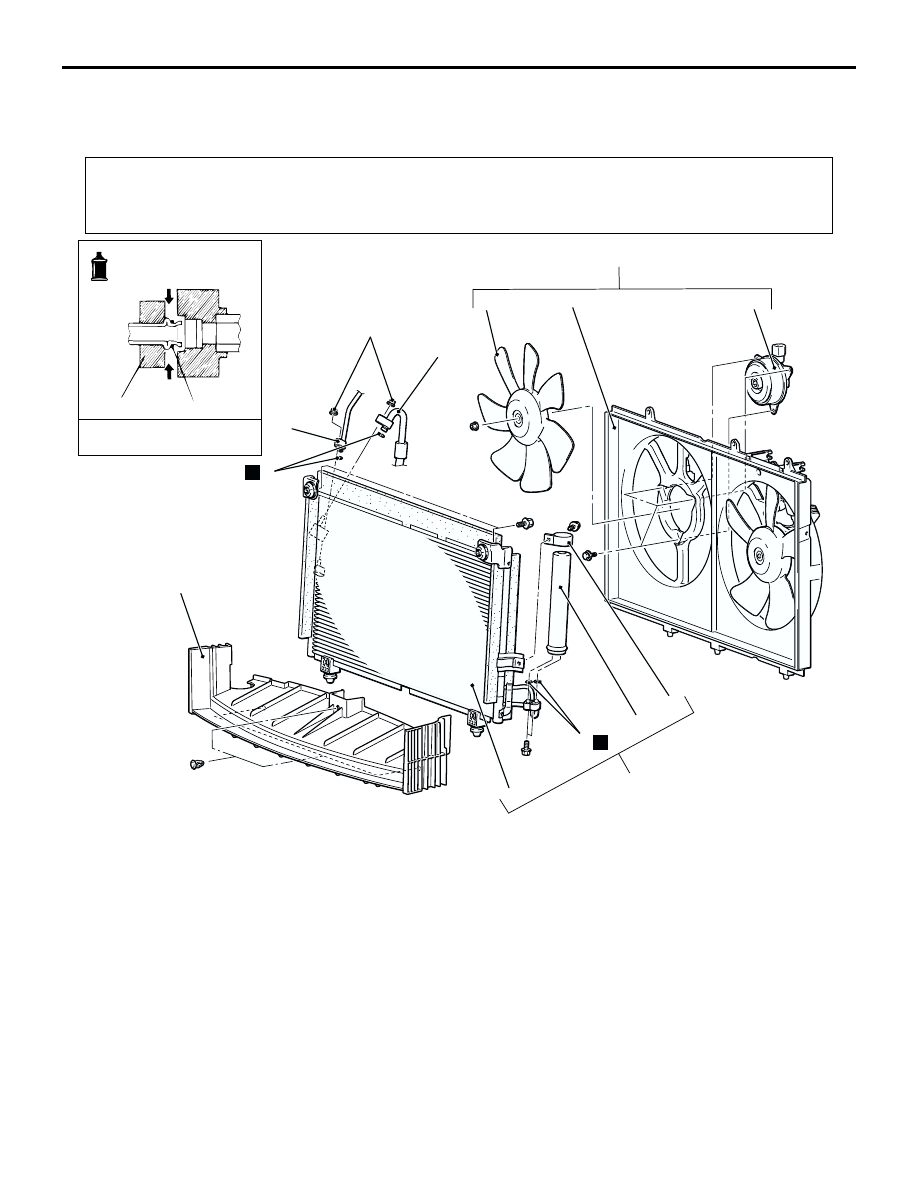

CONDENSER AND CONDENSER FAN MOTOR

REMOVAL AND INSTALLATION

M1552006700469

Pre-removal and Post-installation Operation

Refrigerant draining and Refilling (Refer to Charging

P.55A-52

 and Dischargin

P.55A-55

).

Air cleaner cover and air flow sensor assembly Removal and Installation (Refer to GROUP 14, Air cleaner

P.15-3



<2000> or

P.15-4

 <2400>).

AC300948

1, 2

A/C compressor oil:
  SUN PAG 56

-Pipe coupling

O ring

10

13

11

9

2

1

3

AF

4.9 ± 0.9 N·m

N

14

8

7

5

N

6

4

<2000>
