ON-VEHICLE SERVICE

HEATER, AIR CONDITIONER AND VENTILATION

55A-59

Refer to GROUP 11C, On-vehicle Service

−

 Basic

Idle Speed Adjustment

P.11C-14

. <2400>

Standard value:
750

±

 50 r/min <2000>

700

±

 50 r/min <2400>

3. When the A/C is running after turning the A/C

switch to ON, and the blower switch to the 3(MH)
or 4(HI) position, check to be sure that the idle
speed is at the standard value.

Standard value: 850

±

 50 r/min

NOTE: It is not necessary to make an adjustment,
because the idling speed is automatically
adjusted by the ISC system. If, however, a
deviation from the standard value occurs for some
reason, check the ISC system.

CLEAN AIR FILTER REPLACEMENT
PROCEDURE

M1552020100074

1. Remove the glove box. (Refer to GROUP 52A,

Instrument Panel <LHD>

P.52A-2

  or Instrument

Panel <RHD>

P.52A-8

).

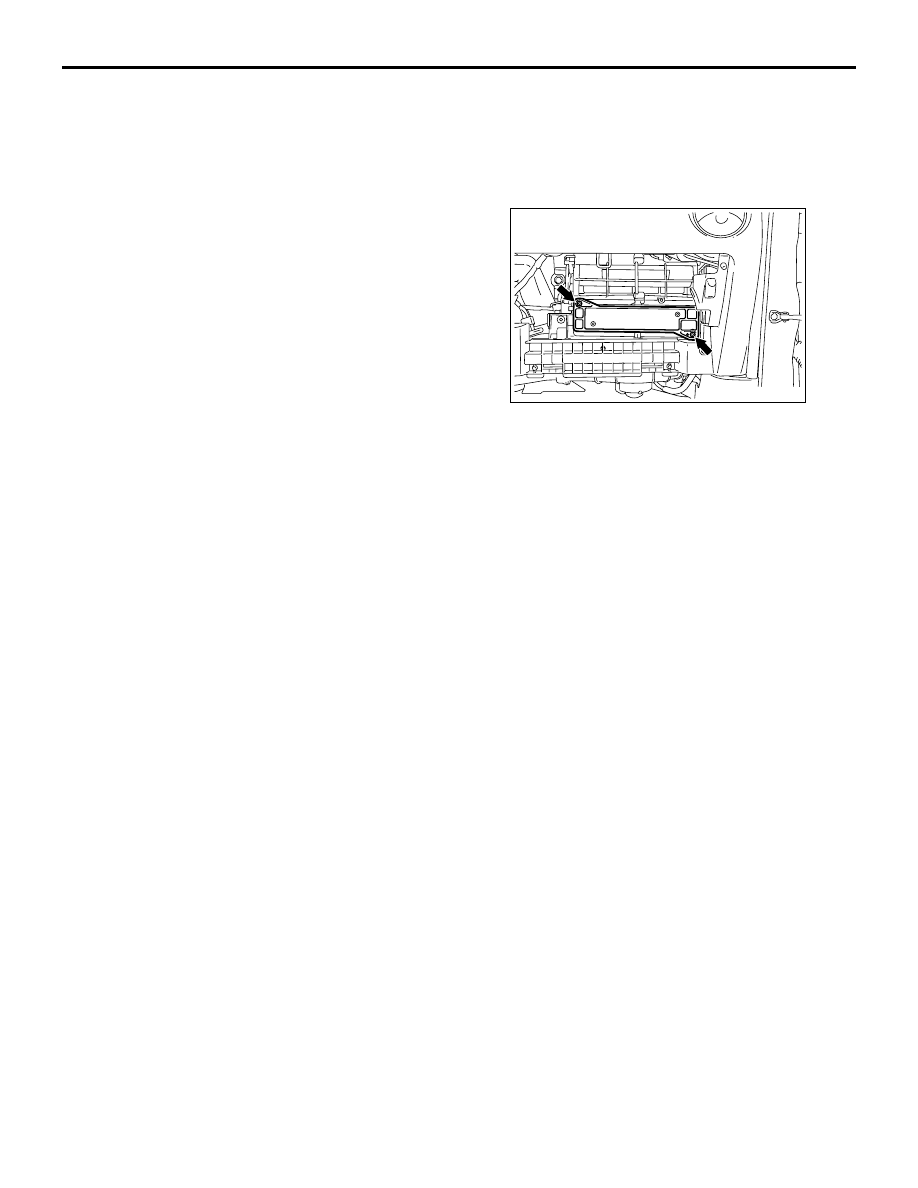

2. Remove the two screws as shown, and replace

the clean air filter.

3. Install the glove box.

AC301365

AC

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-60

HEATER CONTROL ASSEMBLY AND A/C SWITCH

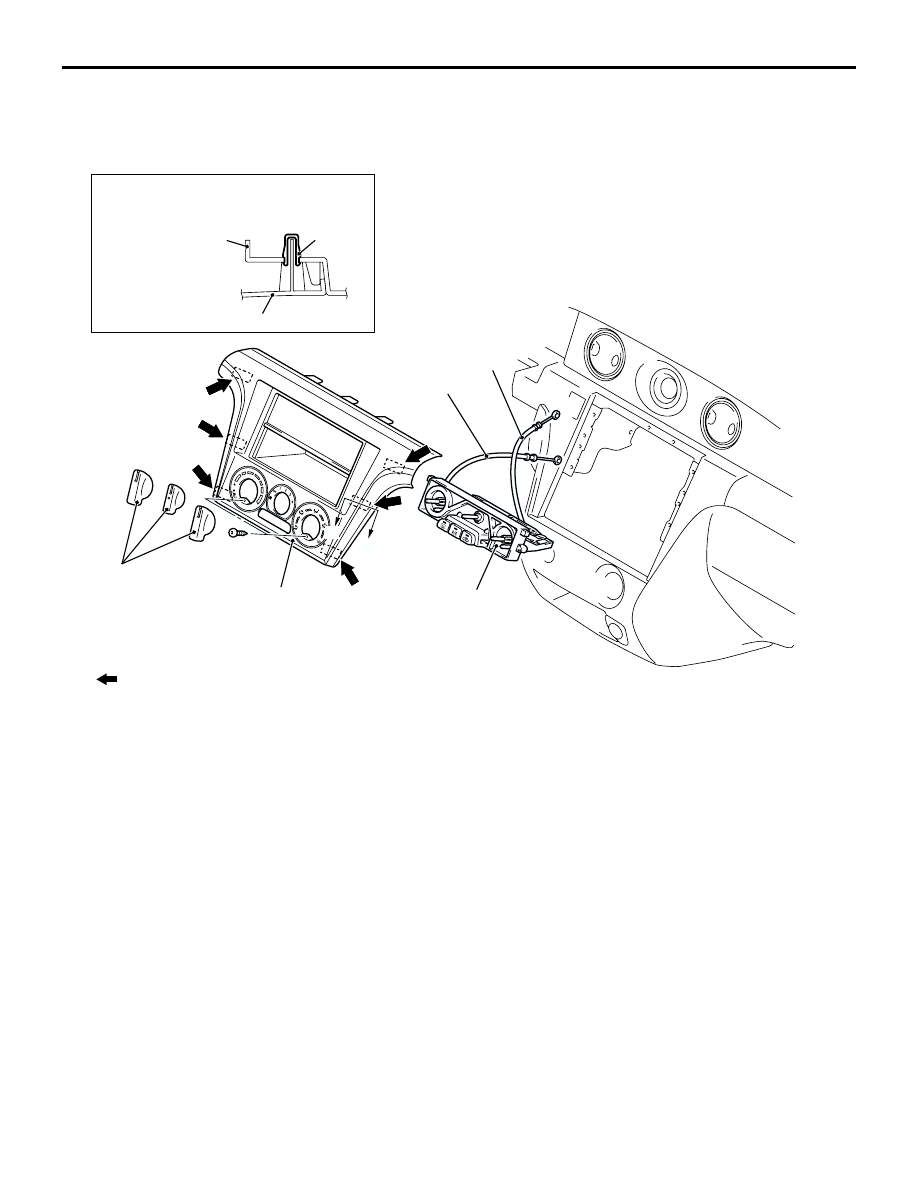

REMOVAL AND INSTALLATION

M1552002400314

AC106926

1

2

4

5

AB

Section A – A

Clip

Instrument panel

Center cover

A

A

3

NOTE
      : Clip position

Removal steps

>>B<<

1.

Air mixing door control cable
connection

>>A<<

2.

Mode selection damper cable
connection

3.

Knob

4.

Centre panel

5.

Manual air conditioner control panel
assembly

Removal steps (Continued)

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-61

INSTALLATION SERVICE POINT

>>A<< BLOWER VENT CHANGEOVER DAMPER
CABLE
1. Set the heater control assembly’s blower vent

changeover knob to the DEF position.

2. Set the heater unit’s blower vent changeover

damper relay to the DEF position (turn the
damper relay to the left until it stops) and install
the cable.

3. Set the mode locator to the heater unit case and

secure with a clip.

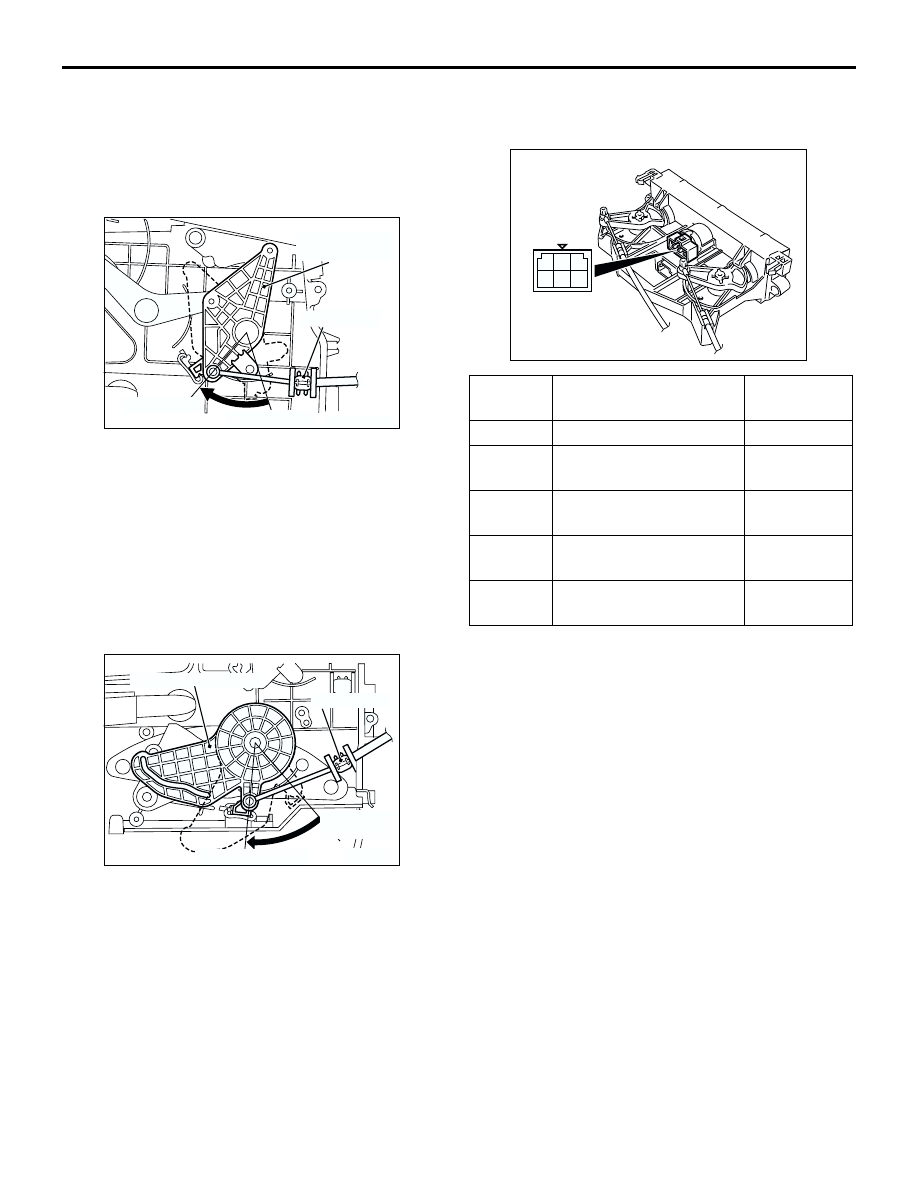

>>B<< AIR MIX DOOR CABLE CONNECTION
1. Turn the heater control assembly’s temperature

adjustment knob all the way to the HOT side.

2. Set the heater unit’s air mix door lever to the MAX

HOT position (turn the damper lever as the left
illustration) and attach the cable.

3. Set the mode locator to the heater unit case and

secure with a clip.

INSPECTION

M1552014300682

BLOWER SWITCH CONTINUITY CHECK

AC106925

DEF position

FACE position

AC

Mode selection
damper link

Mode locator

AC106924

MAX HOT position

MAX. COOL
position

AC

Air mix damper lever

Mode locator

Switch
position

Tester connection

Specified
condition

0 (OFF)

 1

−

 2, 2

−

 4, 2

−

 5, 2

−

 6 Open circuit

1 (LO)

1

−

 2

Less than 2
ohms

2 (ML)

2

−

 4

Less than 2
ohms

3 (MH)

2

−

 5

Less than 2
ohms

4 (HI)

2

−

 6

Less than 2
ohms

1

2

6

3

4

5

AC100615AB

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-62

 DISASSEMBLY AND REASSEMBLY

M1552014200157

DISASSEMBLY SERVICE POINT

<<A>> BLOW VENT CHANGEOVER DAMPER
CABLE AND AIR MIX DAMPER CABLE REMOVAL

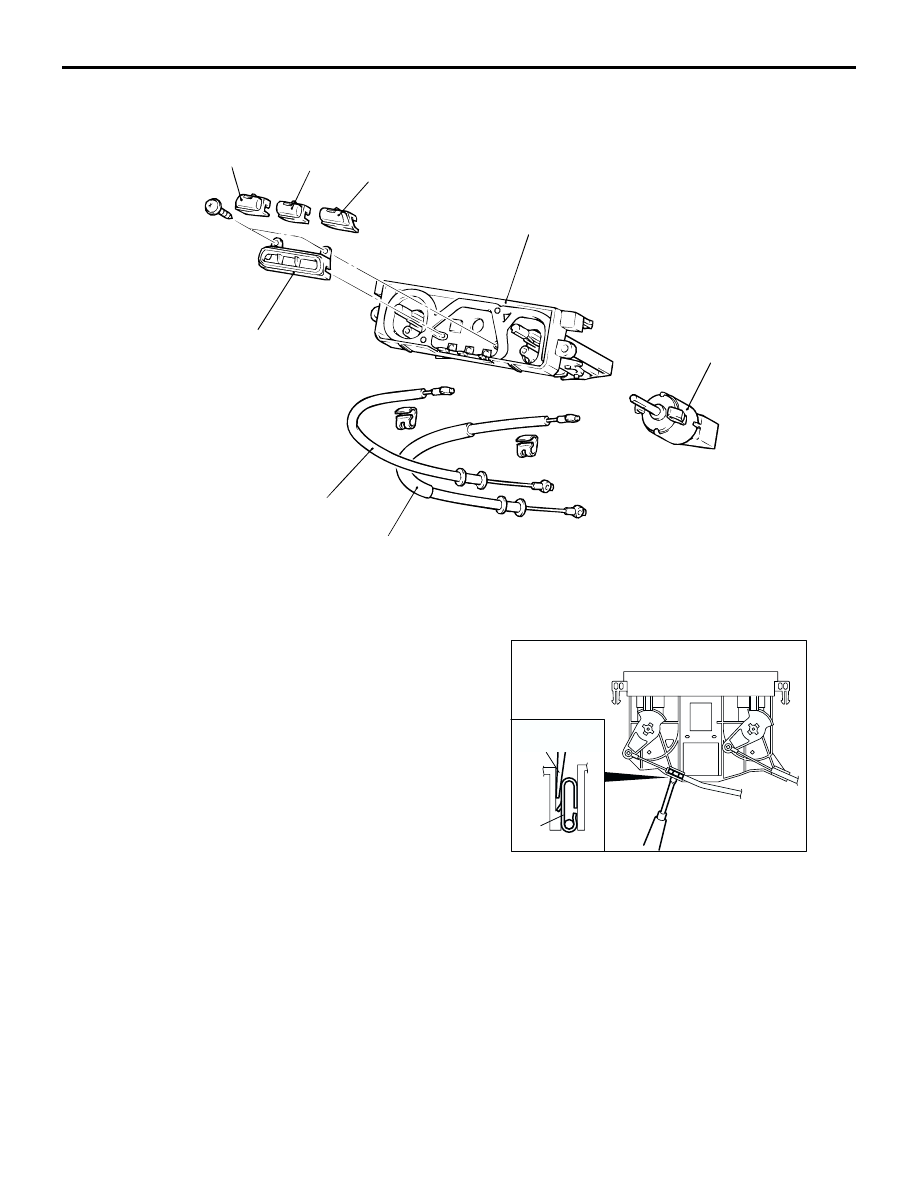

Insert a flat-tipped screwdriver into the clip through
the inside of the control base and prize out the clip
claw to disconnect the cables.

AC100614

1

2

3

4

5

6

7

8

AB

Disassembly steps

1.

Switch panel

2.

Rear window defogger switch

3.

Air conditioner switch

4.

Inside/outside air selection switch

<<A>>

5.

Mode selection damper control
cable

<<A>>

6.

Air mixing damper control cable

7.

Blower switch assembly

8.

Manual air conditioner control panel
(A/C-ECU)

AC100619AB

Clip
claw

(-) flat-tipped
screwdriver
