Mitsubishi Outlander (2003+). Manual - part 519





INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-365

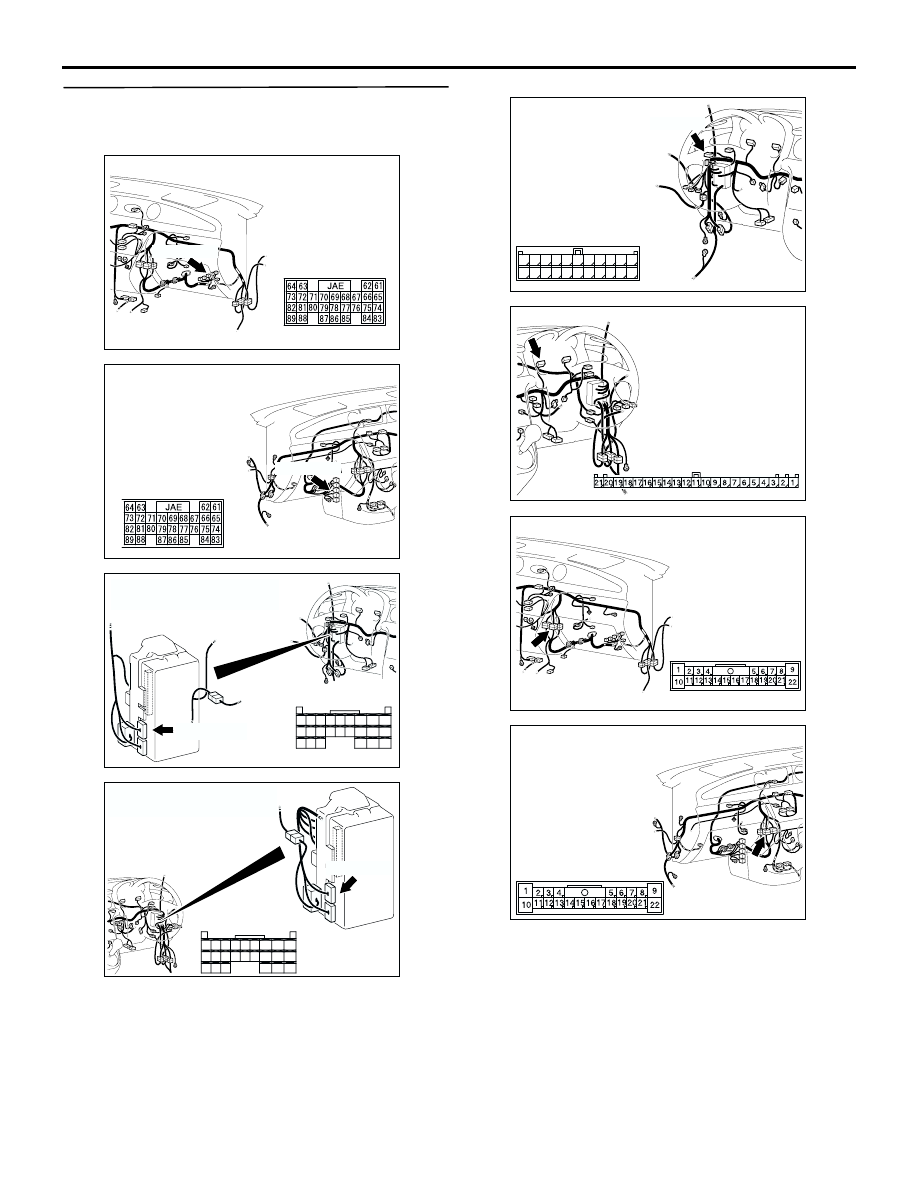

Step 3. Check the wiring harness between C-141
engine-A/T-ECU connector terminal No.79 and
C-219 ETACS-ECU connector terminal No.63.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-02 <L.H. driver vehicles>, combination
meter connector C-04 <R.H. drive vehicles> and
intermediate connector C-105, and repair if
necessary.

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the wiring harness.

AC308718

AE

Connector: C-141 <LHD>

C-141(GR)

Harness side

AC308735

AD

Connector: C-141 <RHD>

C-141(GR)

Harness side

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

AC308716

Connector: C-02
<LHD>

AF

2

1

3

13

12

14

21

10

5

4

6

16

15

17

7 8 9

19

18

20

11

22

C-02 (B)

AC308769

Connector: C-04 <RHD>

AF

Harness side

AC308718

Connector: C-105

AB

<LHD>

AC308735

Connector: C-105

AB

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-366

Step 4. Check the speedometer.

Check that the speedometer works normally.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the engine-A/T-ECU.

Step 5. Retest the system.

Check that the vehicle speed signal is received
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE N-14: Each switch signal of the keyless entry transmitter is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the keyless entry transmitter is
used to operate the keyless entry system. If the
signal is abnormal, the keyless entry system will not
work normally.

POSSIBLE CAUSES

Malfunction of the keyless entry transmitter

Defective battery of the keyless entry transmitter

Malfunction of the ETACS-ECU

DIAGNOSTIC PROCEDURE

Step 1. Pulse check

Check whether the ETACS-ECU receives signal from
a transmitter or not. For this check, you should use
the 2-button-type transmitter (integrated with a key),
which cover screw is silver and has already been
registered.
NOTE: For how to register the keyless entry
transmitter encrypted code, refer to GROUP 42



On-vehicle Servic

P.42-54

.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Go to Step 4.

W3Z10E39AA

KEYLESS ENTRY
TRANSMITTER

KEYLESS ENTRY
RECEIVER

ETACS-ECU

Transmitter Input Circuit

System switch

Check condition

Keyless entry transmitter
"LOCK/UNLOCK" switch

When the switch is
turned from off to on

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-367

Step 2. Check the transmitter battery.

Refer to GROUP 42

 Keyless entry system

P.42-50

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the keyless entry transmitter
battery.

Step 3. Register the encrypted code, and then
retest the system.
(1) Register the keyless entry transmitter again.
(2) Check that each signal is received from the

keyless entry transmitter.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the keyless entry transmitter.

Step 4. Retest the system.

Check that each signal is received from the keyless
entry transmitter.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

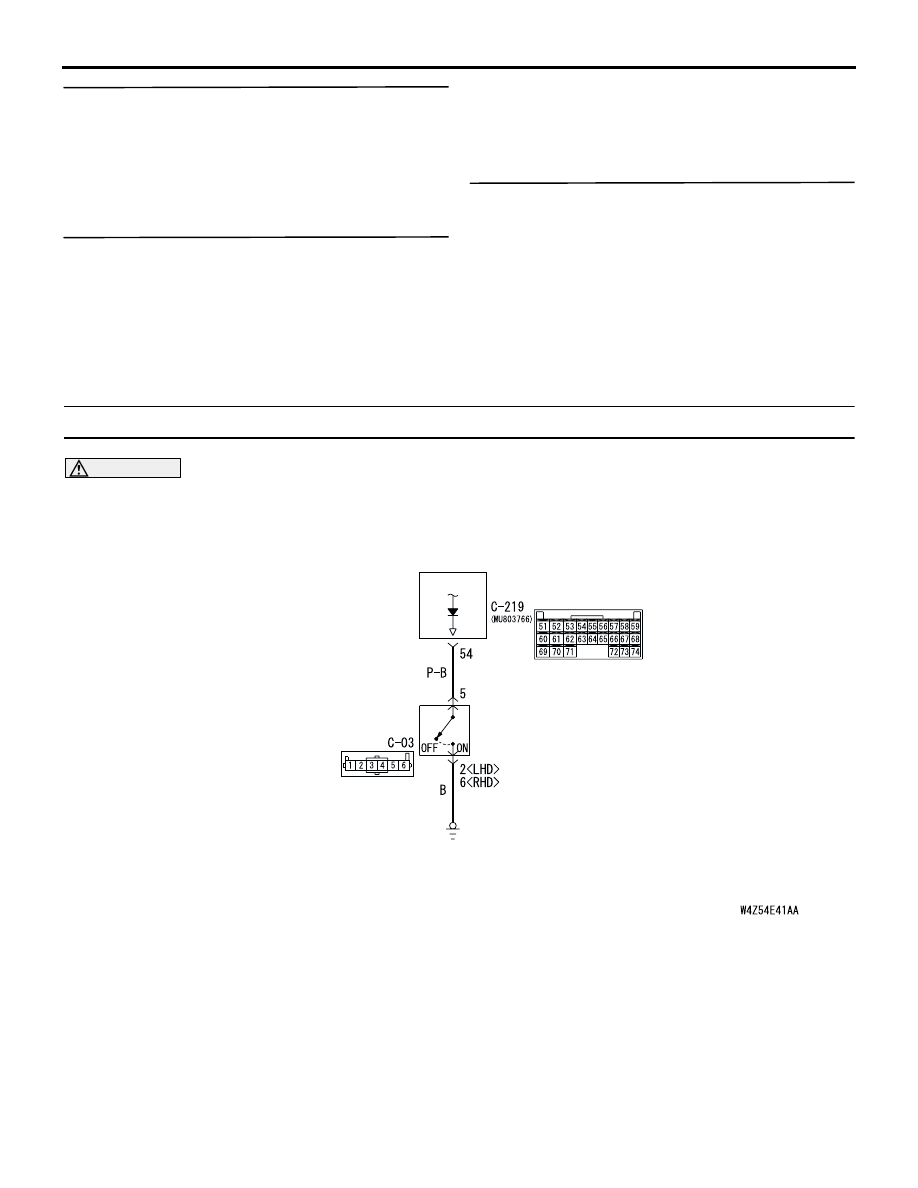

INSPECTION PROCEDURE N-15: The front fog lamp switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the front fog lamp switch is used to
operate the front fog lamps. If the signal is abnormal,
the front fog lamps will not illuminate and extinguish
normally.

POSSIBLE CAUSES

Malfunction of the fog lamp switch

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

ETACS-
ECU

FOG LAMP
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Front Fog Lamp Switch Input Circuit

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-368

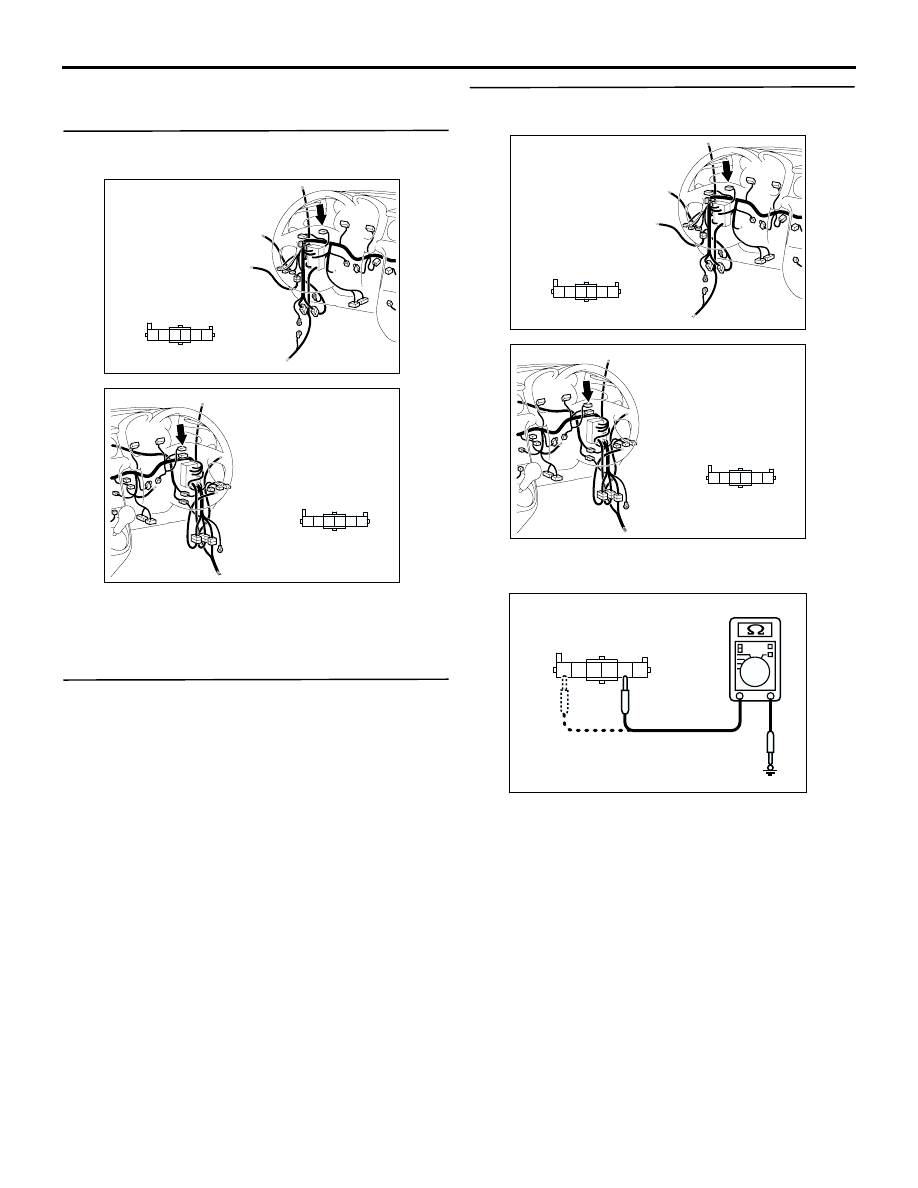

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-03 fog lamp switch
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the front fog lamp switch.

Refer to GROUP 54A

 Front fog lamp

P.54A-82

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the fog lamp switch.

Step 3. Measure the resistance at the C-03 fog
lamp switch connector.

(1) Remove the fog lamp switch, and measure at the

wiring harness side.

(2) Resistance between C-03 fog lamp switch

connector terminal No.2 <L.H. drive vehicles> or
terminal No.6 <R.H. drive vehicles> and body
earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC308716

AE

1

5

6

4 3 2

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC308716

AE

1

5

6

4 3 2

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC301541 FU

Connector C-03
(Harness side)

1

5

6

4 3 2

*1

*2

Note
*1: LHD
*2: RHD
