INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-357

Step 6. Check the wiring harness from E-25 front
door lock actuator (RH) connector terminal Nos.
1 and 2 to C-220 ETACS-ECU connector terminal
Nos. 35 and 36.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15, and repair if necessary.

•

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the front door lock actuator (RH) switch
signal is received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

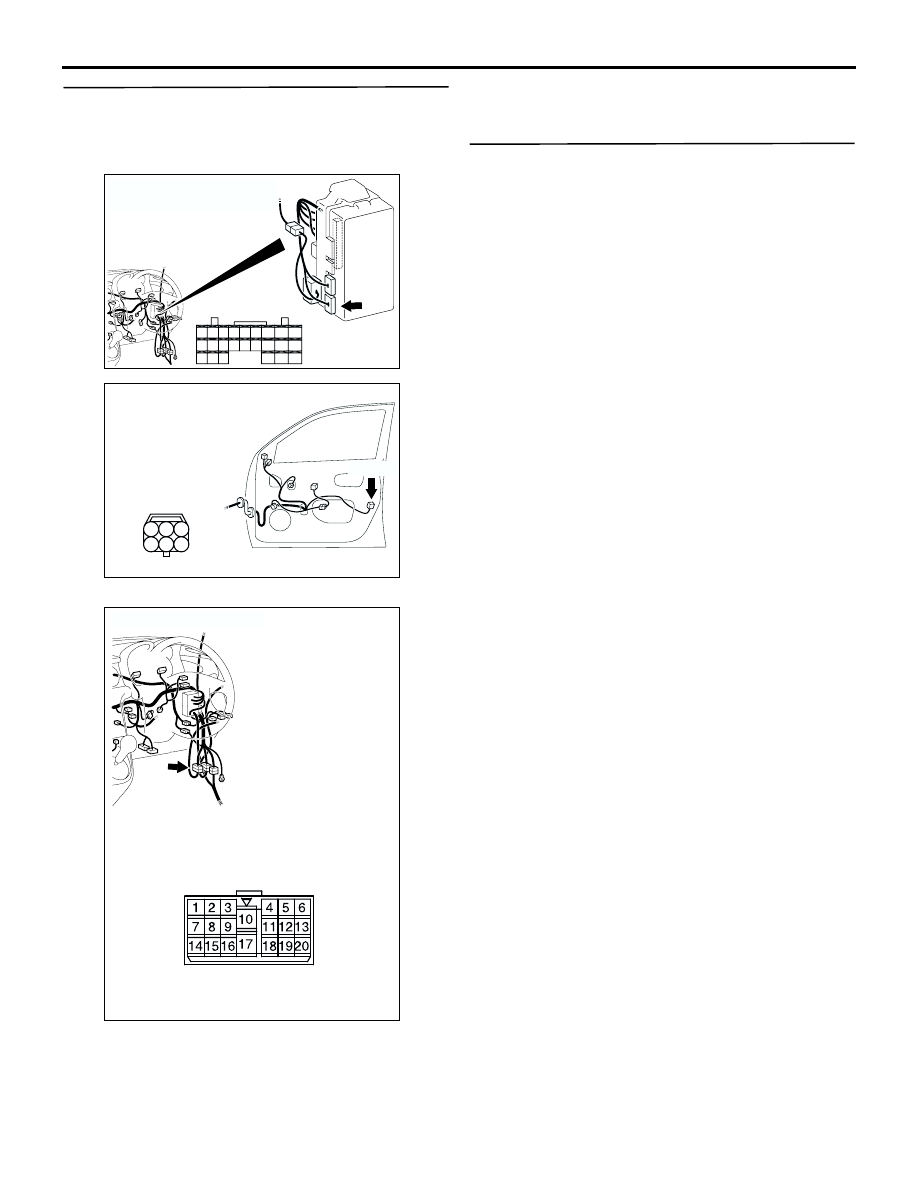

AC308776

Connector: C-220 <RHD>

Junction block (Rear view)

AF

Harness side

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

AC308797AB

Connector: E-25

Harness side

E-25(B)

5

6

4

2

3

1

<RHD>

AC308770

Connector: C-15 <RHD>

AB

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-358

INSPECTION PROCEDURE N-13: The vehicle speed signal is not received. <M/T>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Vehicle speed signal is used to operate the
windshield wiper (vehicle speed-dependent wiper
function). If this signal is abnormal, the windshield
wipers do not work normally.

POSSIBLE CAUSES

•

Malfunction of the vehicles speed sensor

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

ETACS-ECU

VEHICLE
SPEED SENSOR

Wire colour code
B : Black     LG : Light green
G : Green     L : Blue
W : White     Y : Yellow
SB : Sky blue     BR : Brown
O : Orange     GR : Gray
R : Red     P : Pink     V : Violet

<2000>

<2400>

<2000>

<2400>

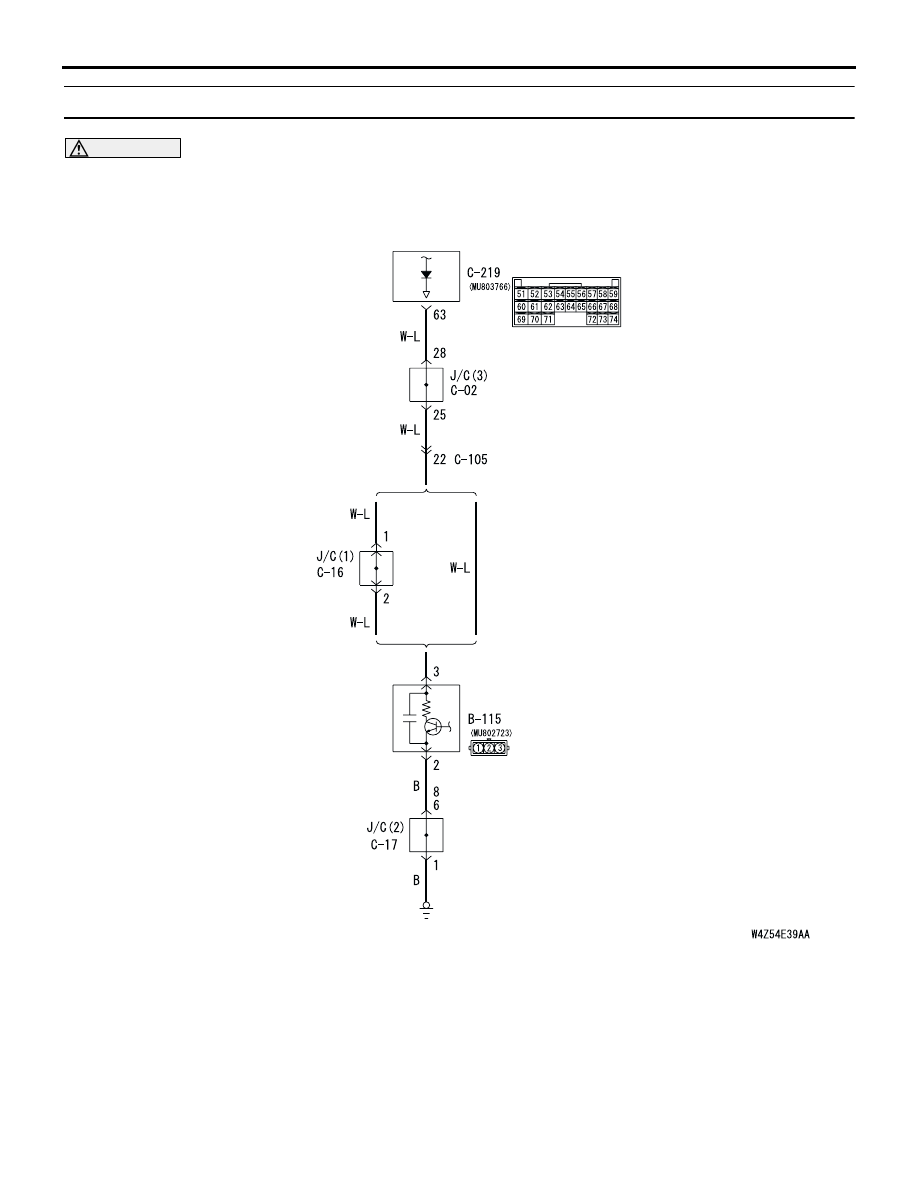

Vehicle Speed Sensor Input Circuit <M/T>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-359

DIAGNOSTIC PROCEDURE

Step 1. Check the speedometer.

Check that the speedometer works normally.

Q: Is the diagnosis code set?

YES :

Go to Step 2.

NO :

Diagnose the combination meter (Refer to
GROUP 54A

−

 Combination meter

P.54A-38

).

Step 2. Connector check: B-115 vehicles speed
sensor connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Measure the resistance at the B-115
vehicles speed sensor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between B-115 vehicles speed

sensor connector terminal No.2 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

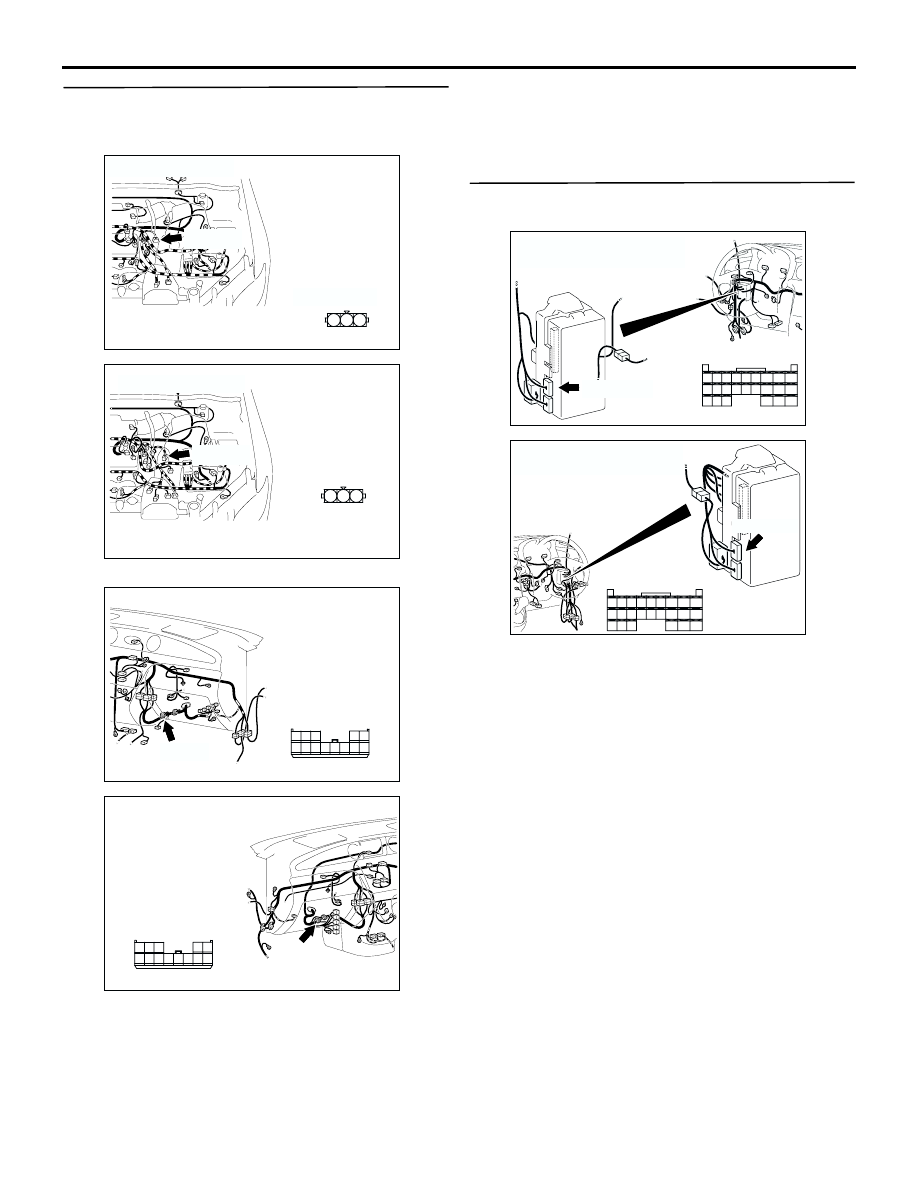

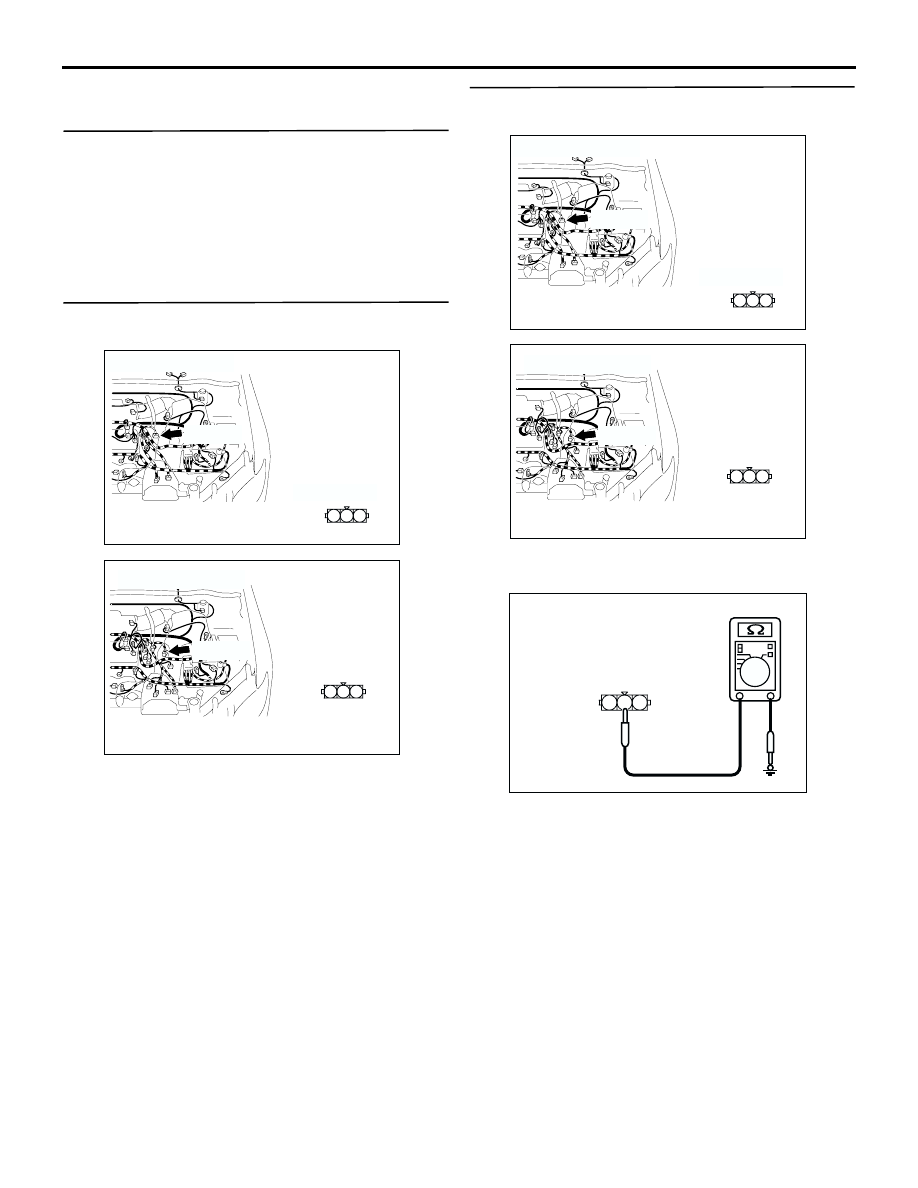

AC308694

AC

B-115(B)

1

2

3

Connector: B-115 <2000>

Harness side

AC308708

AG

B-115(B)

1

2

3

Connector: B-115 <2400 (LHD)>

Harness side

AC308694

AC

B-115(B)

1

2

3

Connector: B-115 <2000>

Harness side

AC308708

AG

B-115(B)

1

2

3

Connector: B-115 <2400 (LHD)>

Harness side

AC301541 AL

Connector B-115
(Harness side)

1

2

3

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-360

Step 4. Check the wiring harness between B-115
vehicles speed sensor connector terminal No.2
and the body earth.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-17, and repair if necessary.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC308694

AC

B-115(B)

1

2

3

Connector: B-115 <2000>

Harness side

AC308708

AG

B-115(B)

1

2

3

Connector: B-115 <2400 (LHD)>

Harness side

AC308718

Connector: C-17 <LHD>

AF

C-17(GR)

5

4

3

2

1

13

12

11

10

9

8

7

6

AC308735

Connector: C-17
<RHD>

AF

C-17(GR)

5

4

3

2

1

13

12

11

10

9

8

7

6

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)
