INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-349

NOTE:

Prior to the wiring harness inspection, check
intermediate connector F-05 <tailgate> or C-117
<LH> and junction block connector C-221 <RH and
tailgate> or C-205 <LH>, and repair if necessary.

•

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness between each of
the door switches and the ETACS-ECU.

Step 6. Retest the system.

Check that all the driver's door switch signals are
received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

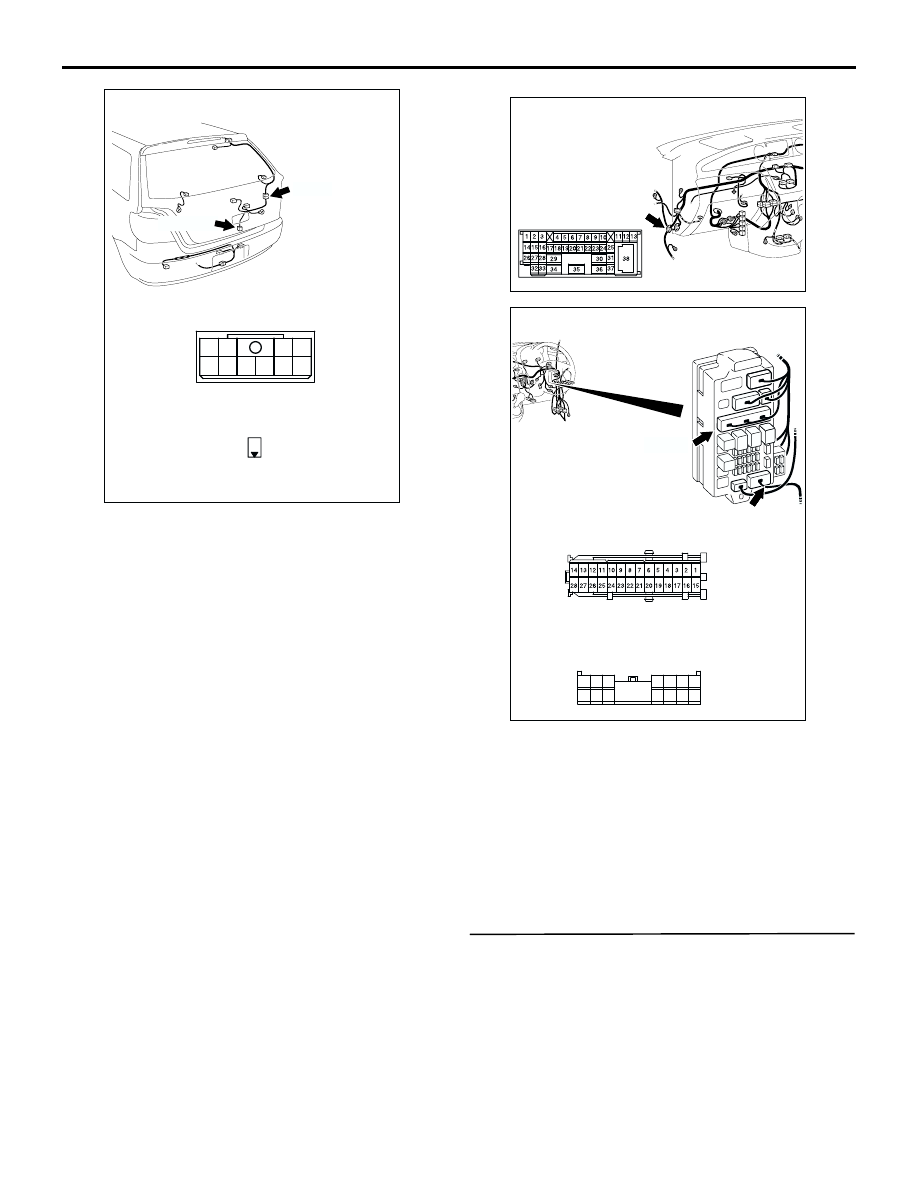

AC308809

Connectors: F-05, F-07

F-05

AH

F-05

5

1

8

7

6

2

9 10

3 4

F-07

Harness side

1

F-07(B)

AC308735

Connector: C-117
<RHD>

Harness side

AJ

AC308773

Connector: C-205, C-221 <RHD>

Harness side

AE

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

Junction block (Front view)

Harness side

C-221

C-205

C-205

C-221

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-350

INSPECTION PROCEDURE N-12: The driver's door lock actuator switch signal is not received. <L.H.
drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the driver's door lock actuator is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

•

Key reminder function

•

Central door locking

•

Keyless entry system

•

Room lamps

POSSIBLE CAUSES

•

Malfunction of the front door lock actuator (LH)

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

ETACS-ECU

DOOR LOCK
ACTUATOR
(FRONT: LH)

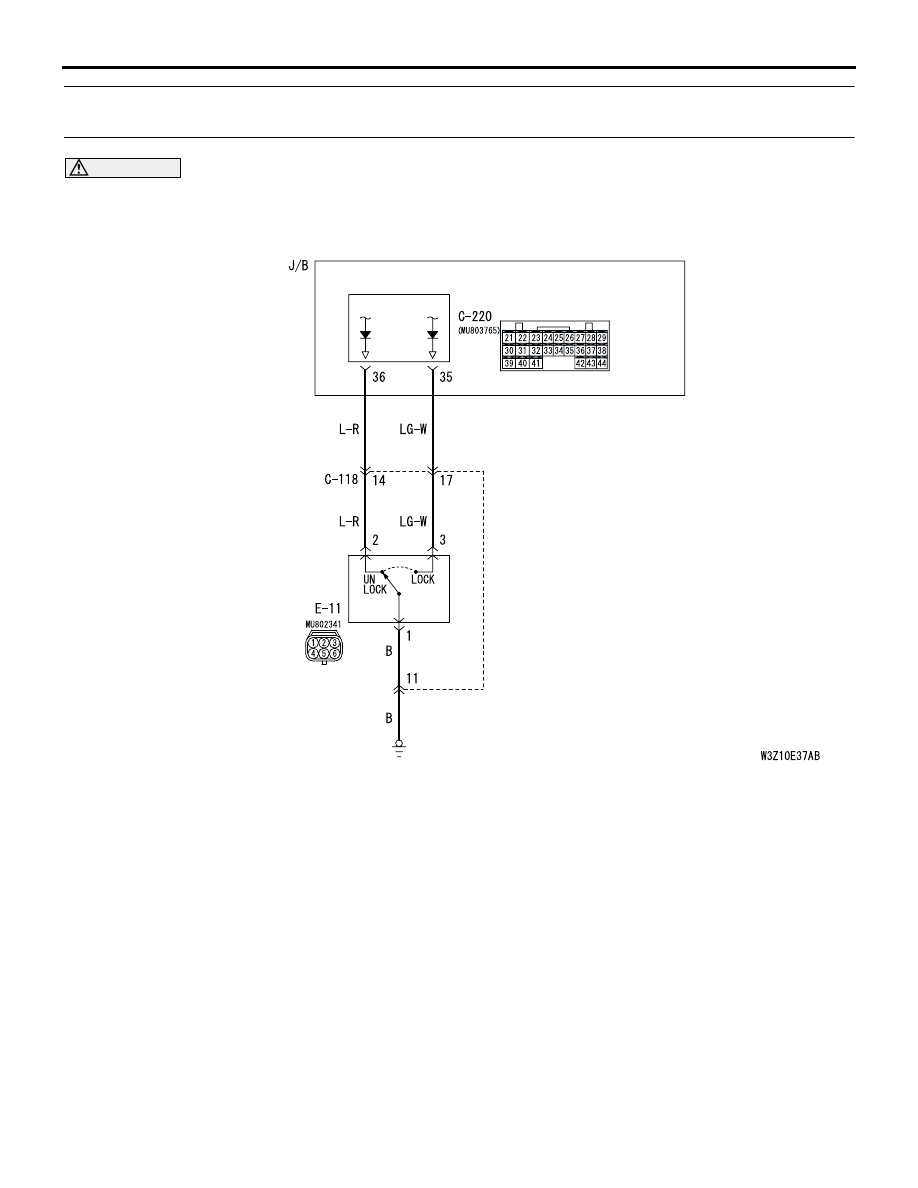

Door Lock Actuator Input Circuit <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-351

DIAGNOSTIC PROCEDURE

Step 1. Connector check: E-11 front door lock
actuator (LH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the front door lock actuator (LH).

Refer to GROUP 42

−

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the front door lock actuator (RH).

Step 3. Measure the resistance at the E-11 front
door lock actuator (LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-11 front door lock actuator

(LH) connector terminal No.1 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between E-11
front door lock actuator (LH) connector terminal
No.1 and body earth

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-118, and repair if
necessary.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

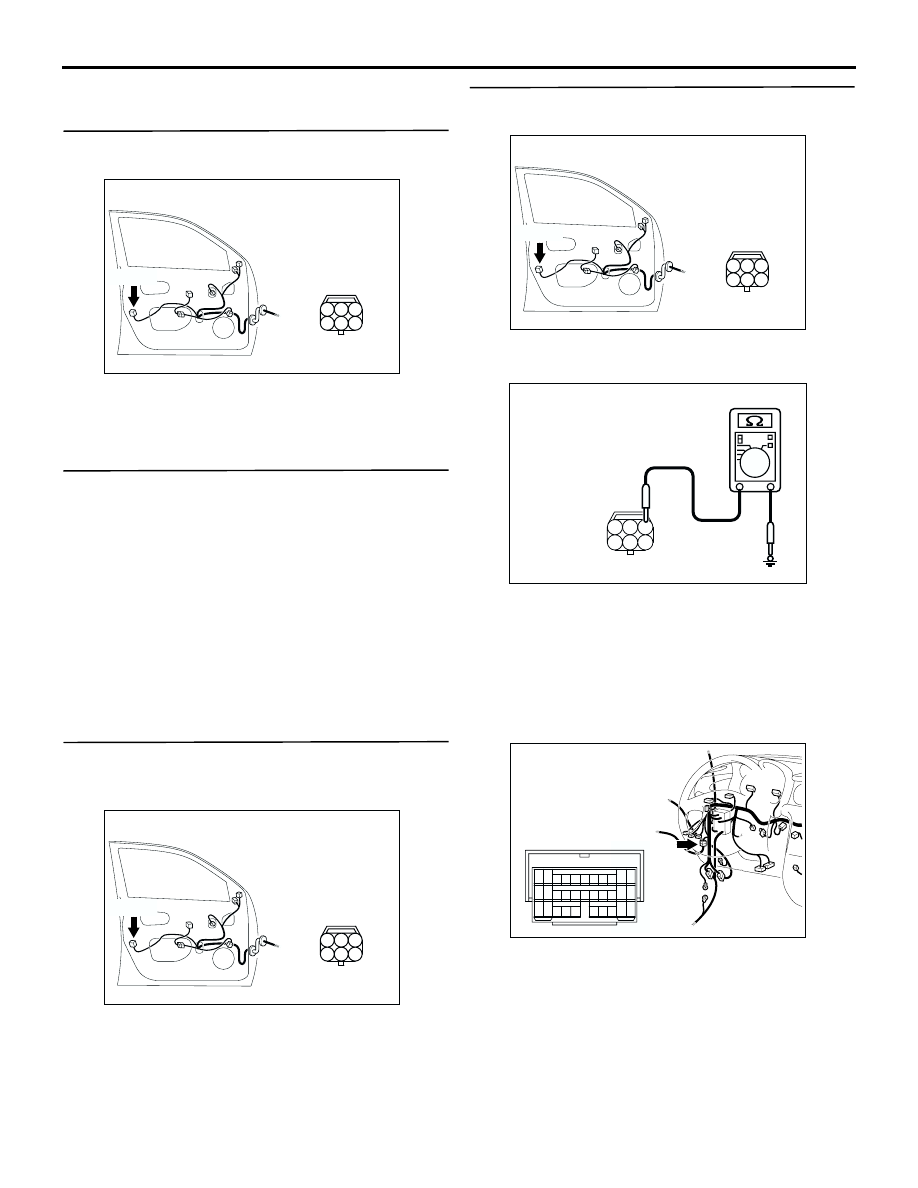

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC301541BK

Connector E-11
(Harness side)

5

6

4

2

3

1

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-352

Step 5. Connector check: C-220 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from E-11 front
door lock actuator (LH) connector terminal Nos.
2 and 3 to C-220 ETACS-ECU connector terminal
Nos. 36 and 35.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-118, and repair if
necessary.

•

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

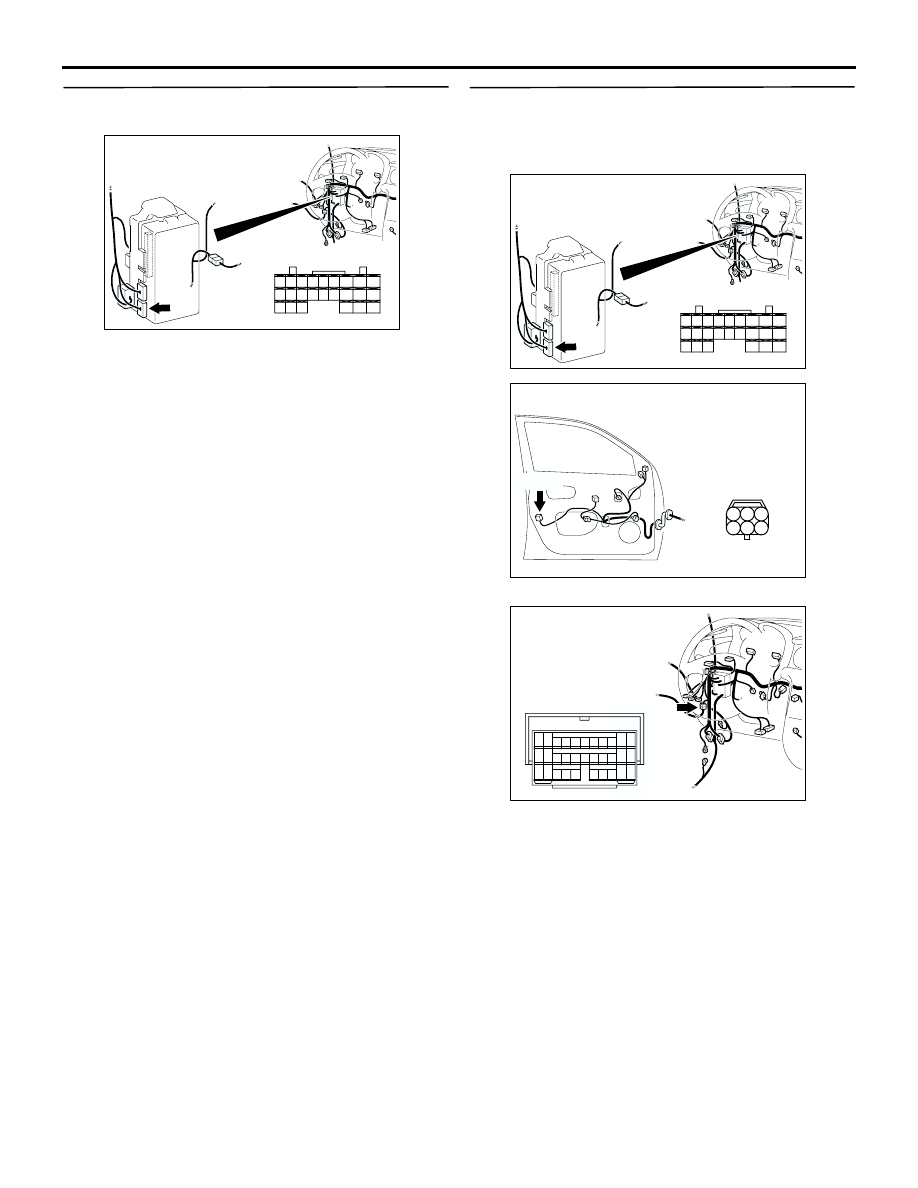

AC308722

Connector: C-220

Junction block (Rear view)

AF

Harness side

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

<LHD>

AC308722

Connector: C-220

Junction block (Rear view)

AF

Harness side

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

<LHD>

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10
