SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-281

Step 7. Retest the system.

Check that the rear fog lamp and the rear fog lamp
indicator lamp illuminate normally.

Q: Is the check result normal?

The lamps illuminate normally at both high and low
beams. :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

The rear fog lamps do not illuminate. :

Replace the

rear fog lamp(s).

The rear fog lamp indicator lamp does not
illuminate. :

Replace the combination meter.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-282

ROOM LAMP

INSPECTION PROCEDURE M-1: The front or rear room lamp does not illuminate or extinguish
normally. <Vehicles without keyless entry system>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
The ETACS-ECU operates this function in
accordance with the input signals below.

•

Ignition switch (IG1)

•

All of the door switches

•

Driver's door lock actuator

If this function does not work normally, these input
signal circuit(s) or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

•

Malfunction of the door switches

•

Malfunction of the driver's door lock actuator

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

ETACS-ECU

REAR
ROOM
LAMP

FRONT
ROOM
LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

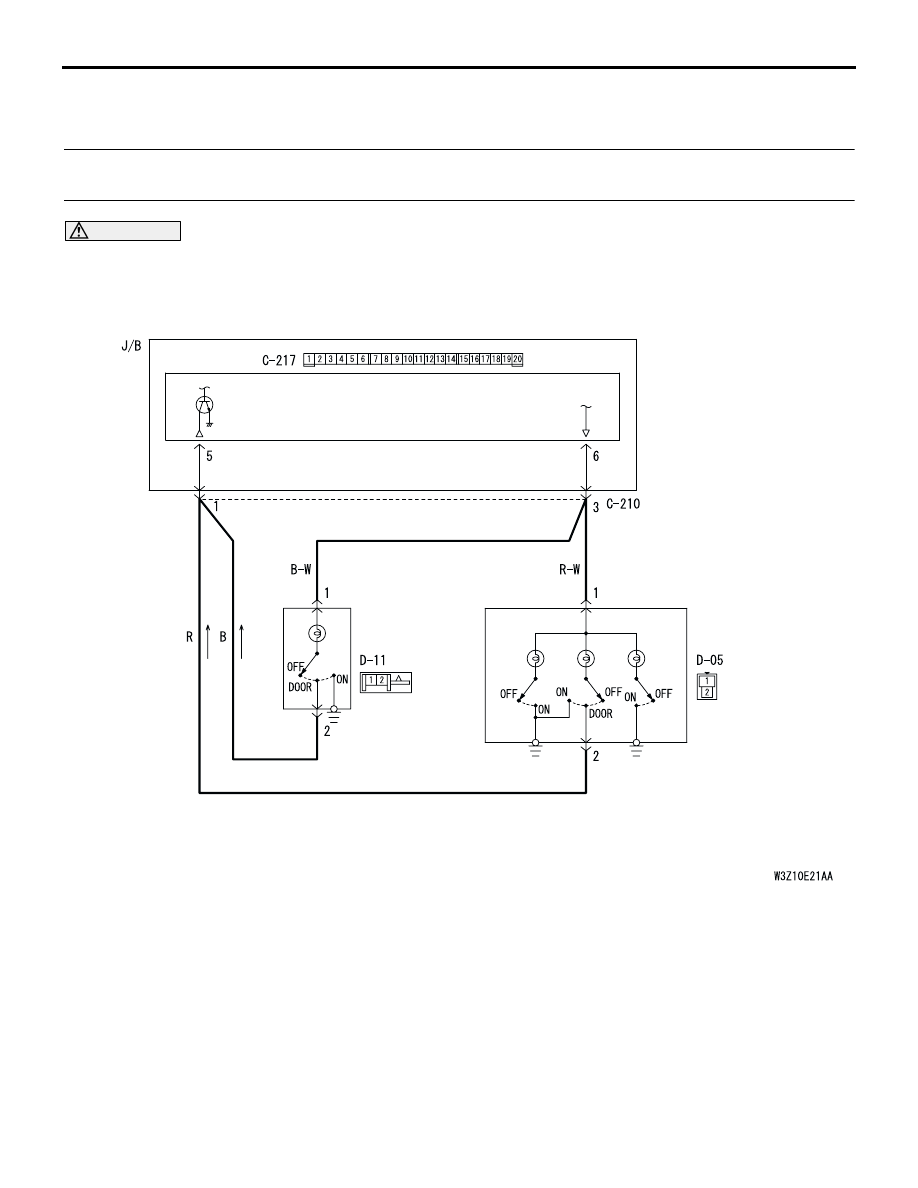

Room Lamp Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-283

DIAGNOSTIC PROCEDURE

Step 1. Check the power supply circuit.

When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit

P.54B-52

."

Step 2. Pulse check

Check the input signals below, which are related to
the front and rear room lamps.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-301

."

All the door switch signals are not received. :

Refer to inspection procedure N-11 "All the
door switch signals are not received
<L.H.drive vehicles>

P.54B-342

  or

<R.H.drive vehicles>

P.54B-346

 ."

The driver's door lock actuator switch signal is not
received. :

Refer to inspection procedure N-12

"The driver's door lock actuator switch
signal is not received <L.H. drive
vehicles>

P.54B-350

 or <R.H. drive

vehicles>

P.54B-354

."

Step 3. Connector check: D-05 front room lamp
connector, D-11 rear room lamp connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

System switch

Check condition

Ignition switch (IG1)

When turned from ACC
to ON

All of the door switches

A door is opened when
all the doors are closed

Driver's door lock
actuator switch

When the driver's door is
unlocked or locked

AC308781

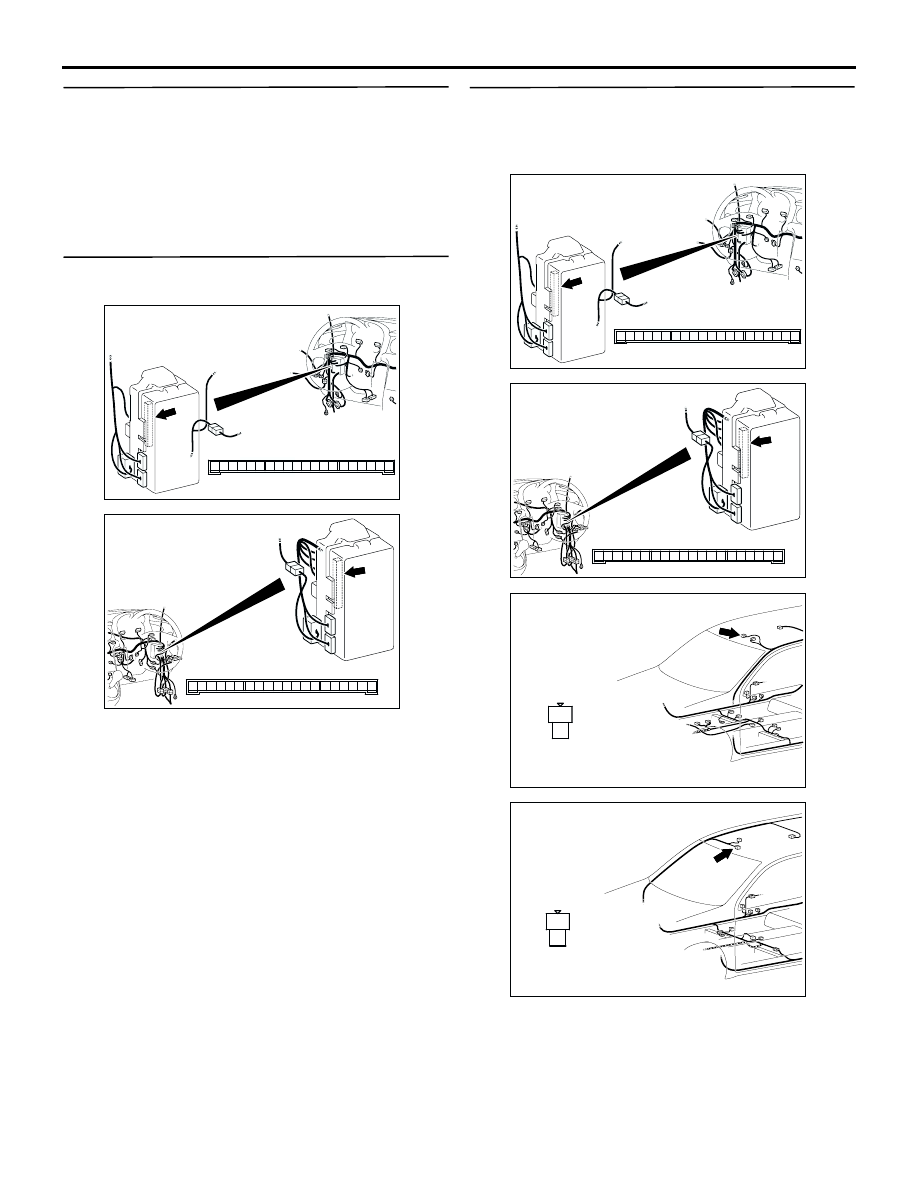

Connector: D-05

2

1

Harness side

AF

<LHD>

AC308785

Connector: D-05

2

1

Harness side

AE

<RHD>

AC308783

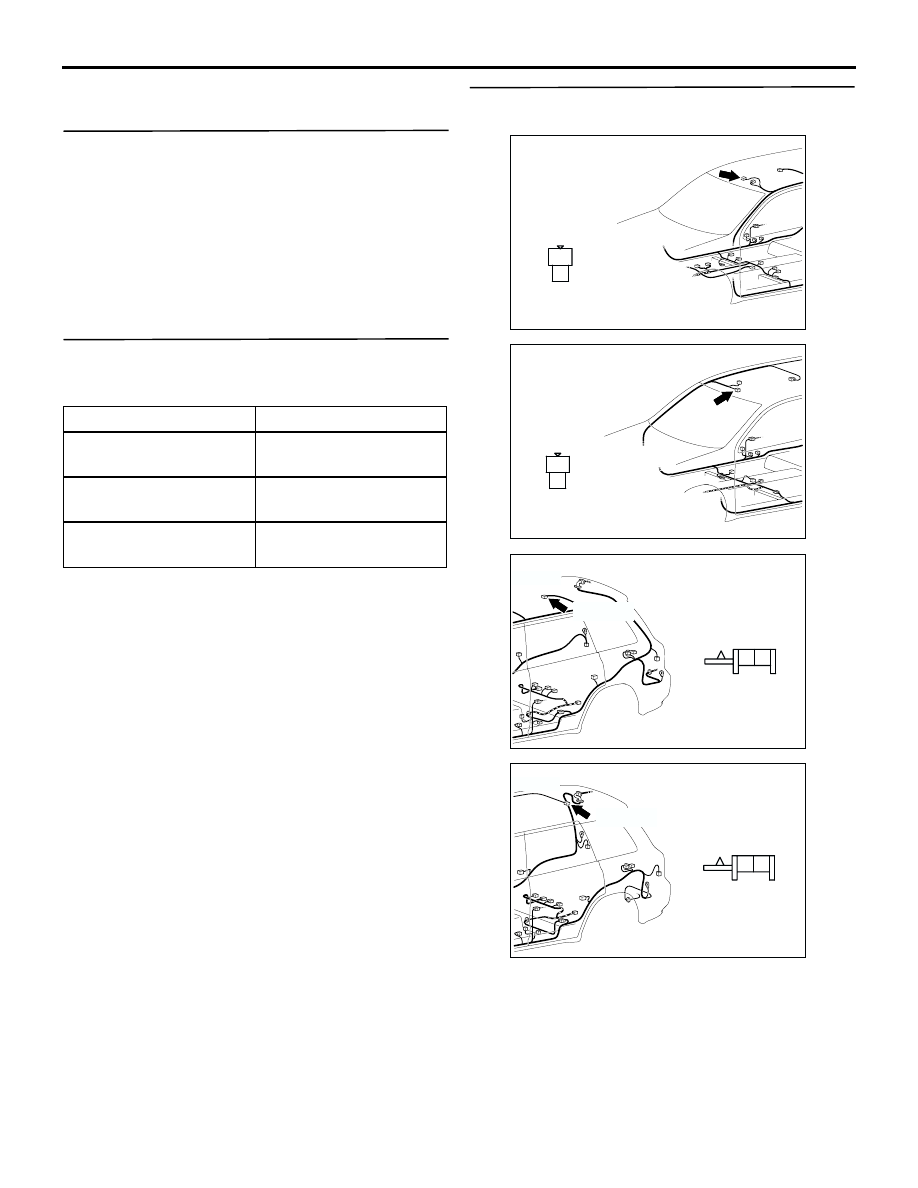

Connector: D-11

AE

Harness side

2 1

D-11(GR)

<LHD>

AC308787

Connector: D-11

AD

Harness side

2 1

D-11(GR)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-284

Step 4. Check the bulbs of the front or rear room
lamps.

Check that the front or rear room lamp bulbs are not
burned out.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the front or rear room lamp bulb.

Step 5. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from C-217
ETACS-ECU connector terminal Nos. 5 and 6 to
D-05 front room lamp connector terminal Nos. 2
and 1.

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308781

Connector: D-05

2

1

Harness side

AF

<LHD>

AC308785

Connector: D-05

2

1

Harness side

AE

<RHD>
