SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

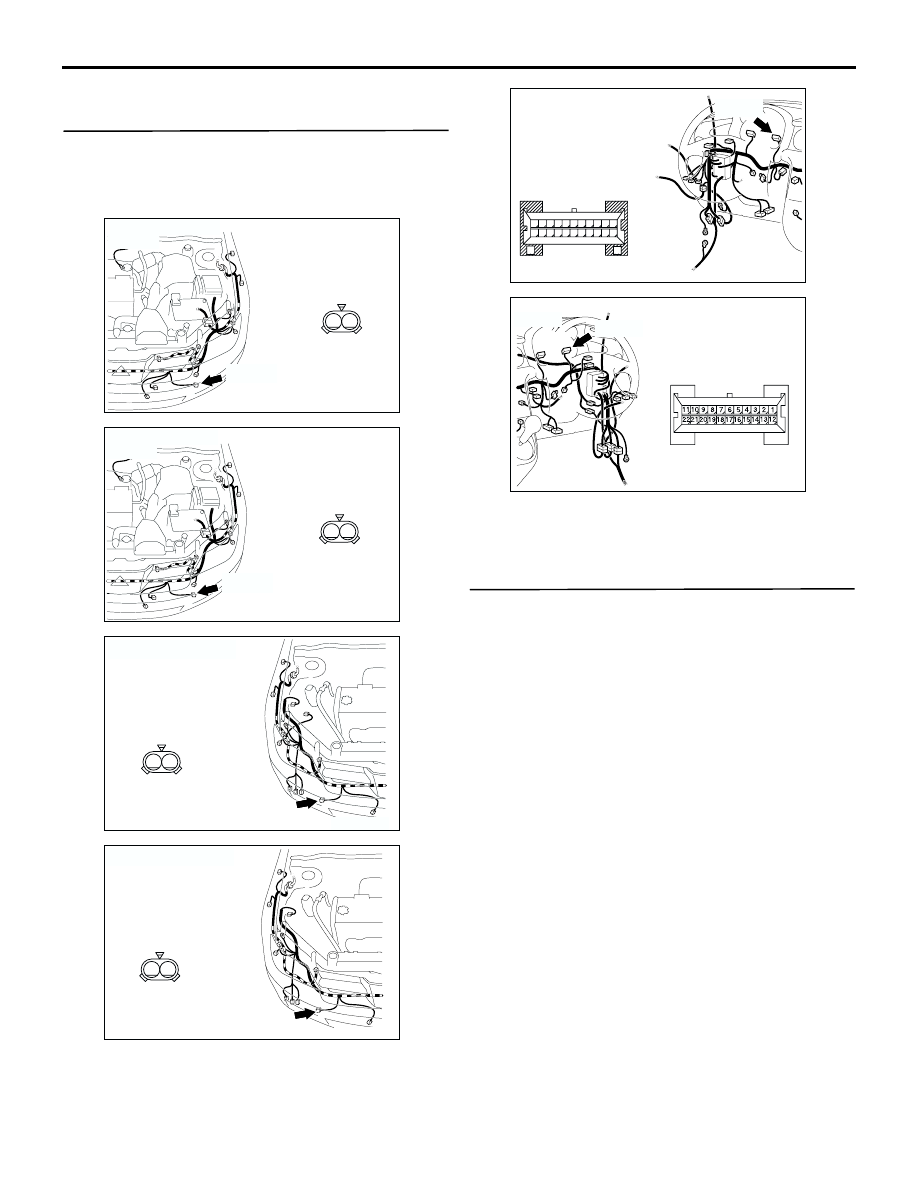

54B-269

DIAGNOSTIC PROCEDURE

Step 1. Connector check: A-24 <RH> or A-19
<LH> front fog lamp connector, or C-05 <front fog
lamp indicator lamp> combination meter
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the front fog lamps or
the front fog lamp indicator lamp.

Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

AC308679

A-19(B)

AF

2

1

Connector: A-19

Harness side

<LHD>

AC308686

A-19(B)

AF

2

1

Connector: A-19

Harness side

<RHD>

AC308677

2

1

AE

A-24(B)

Connector: A-24

Harness side

<LHD>

AC308684

2

1

AG

A-24(B)

Connector: A-24

Harness side

<RHD>

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AP

C-05(L)

Connector: C-05

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

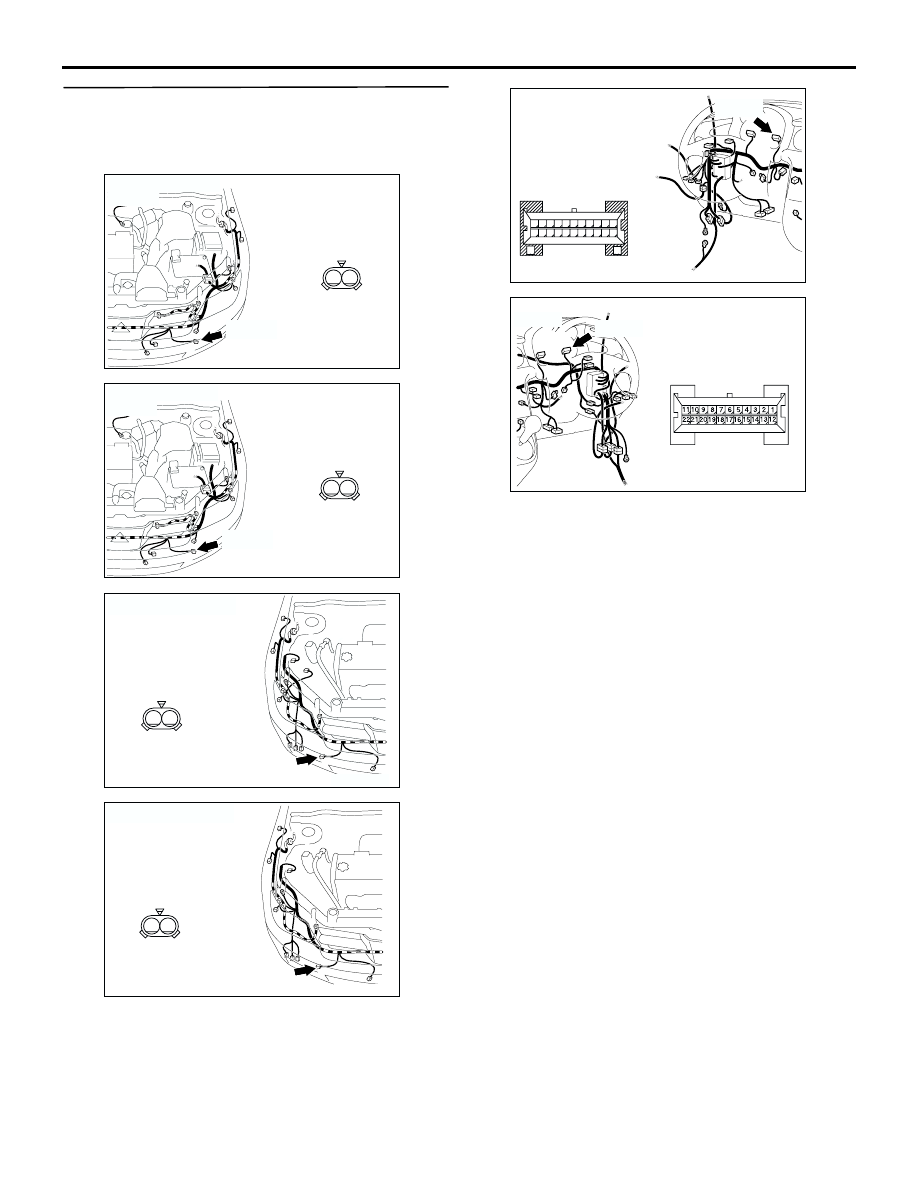

54B-270

Step 3. Measure the resistance at A-24 <RH> or
A-19 <LH> front fog lamp connector, or C-05
<front fog lamp indicator lamp> combination
meter connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

AC308679

A-19(B)

AF

2

1

Connector: A-19

Harness side

<LHD>

AC308686

A-19(B)

AF

2

1

Connector: A-19

Harness side

<RHD>

AC308677

2

1

AE

A-24(B)

Connector: A-24

Harness side

<LHD>

AC308684

2

1

AG

A-24(B)

Connector: A-24

Harness side

<RHD>

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AP

C-05(L)

Connector: C-05

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

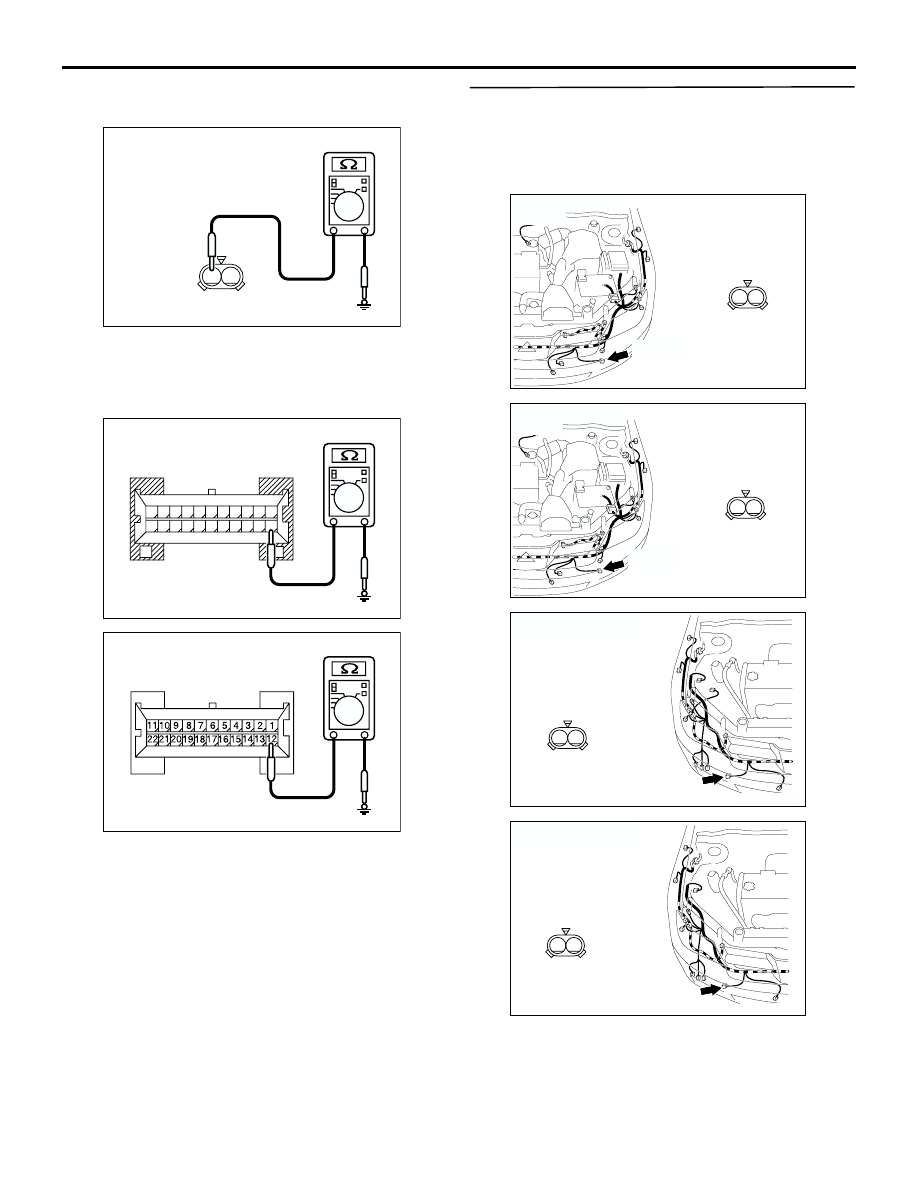

54B-271

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-24 <RH> front fog lamp

connector terminal No.2 and body earth

•

Resistance between A-19 <LH> front fog
lamp connector terminal No.2 and body earth

•

Resistance between C-05 <front fog lamp

indicator lamp> combination meter connector
terminal No.12 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from A-24 <RH>
or A-19 <LH> front fog lamp connector terminal
No.2 or C-05 <front fog lamp indicator lamp>
combination meter connector terminal No.12 to
body earth.

AC301541

2

1

AJ

Connector A-19, A-24
(Harness side)

AC301541 FX

Connector C-05 <LHD>
(Harness side)

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

AC301541 FY

Connector C-05 <RHD>
(Harness side)

AC308679

A-19(B)

AF

2

1

Connector: A-19

Harness side

<LHD>

AC308686

A-19(B)

AF

2

1

Connector: A-19

Harness side

<RHD>

AC308677

2

1

AE

A-24(B)

Connector: A-24

Harness side

<LHD>

AC308684

2

1

AG

A-24(B)

Connector: A-24

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

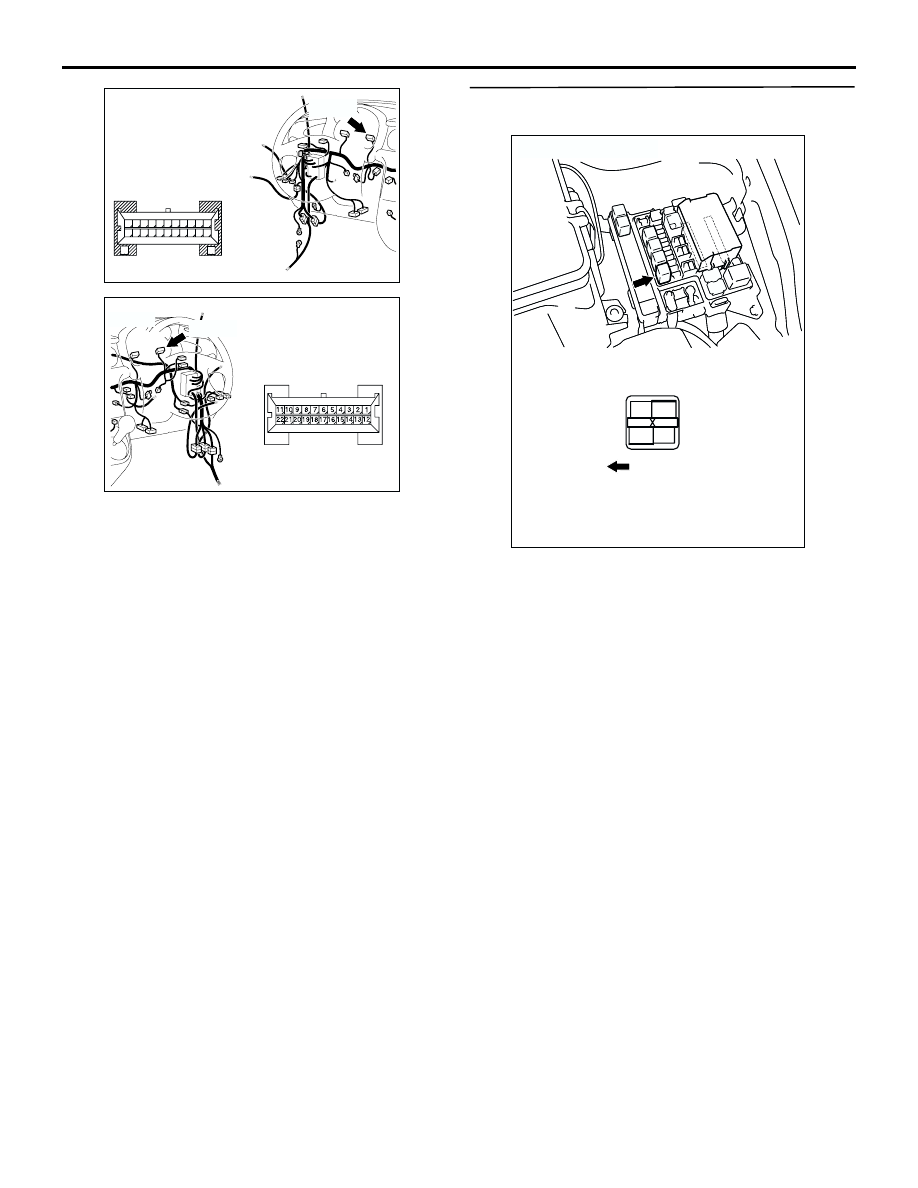

54B-272

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Connector check: A-05X fog lamp relay
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AP

C-05(L)

Connector: C-05

Harness side

<RHD>

AC301483 AI

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-05X
