SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-205

DIAGNOSTIC PROCEDURE

Step 1. Check the operation of the room lamp.

Check that the room lamps illuminate and extinguish
normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure M-1 "The
front or rear room lamp does not
illuminate/extinguish <vehicles without
keyless entry system>

P.54B-282

." Or refer

to inspection procedure M-2 "The front or
rear room lamp does not
illuminate/extinguish <vehicles with keyless
entry system>

P.54B-287

."

Step 2. Pulse check

Check the input signals below, which are related to
the ignition key cylinder illumination lamp.

NOTE:

*

: Vehicles with keyless entry system

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-301

."

The key reminder switch signal is not received. :

Refer to inspection procedure N-9 "The key
reminder switch signal is not received

P.54B-334

."

The driver's door switch signal is not received. :

Refer to inspection procedure N-4 "The front
door switch signal is not received <L.H.
drive vehicles>

P.54B-315

 or <R.H. drive

vehicles>

P.54B-317

."

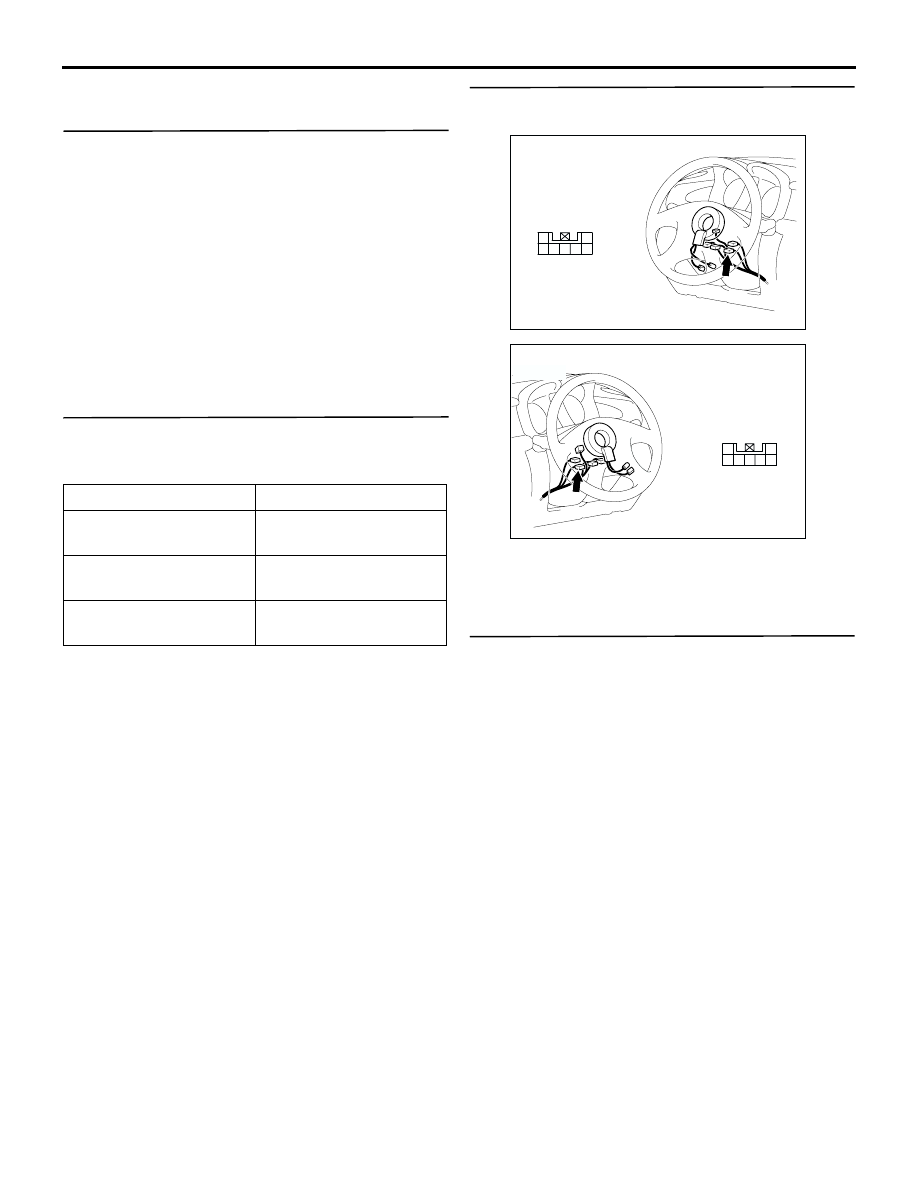

Step 3. Connector check: C-304 key reminder
switch connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the bulb of the ignition key
cylinder illumination lamp.

Check the bulb of the ignition key cylinder
illumination lamp.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the bulb of the ignition key cylinder
illumination lamp.

System switch

Check condition

Ignition switch (IG1)

When turned from ACC
to ON

Key reminder switch

*

When the inserted
ignition key is pulled out

Driver's door switch

When the driver's door is
opened

AC308724

2
7 6

1
3

5 4

AC

Connector: C-304

Harness side

<LHD>

AC308778

2
7 6

1
3

5 4

Connector: C-304

AC

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-206

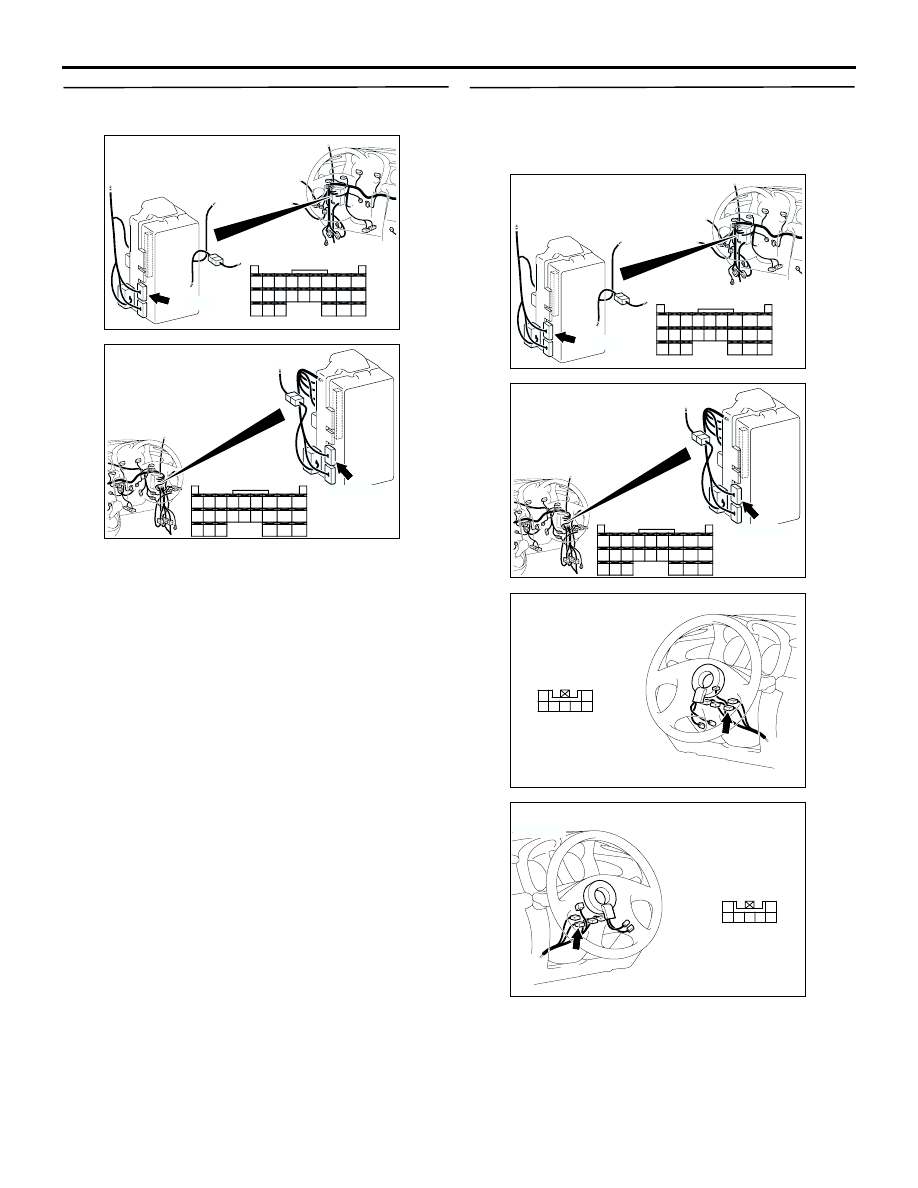

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from C-219
ETACS-ECU connector terminal Nos. 69 and 71 to
C-304 ignition key cylinder illumination lamp
connector terminal Nos. 1 and 2.

•

Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC308722

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<LHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308776

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<RHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308722

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<LHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308776

Connector: C-219

Junction block (Rear view)

Junction block side

AB

<RHD>

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

C-219 (GR)

AC308724

2
7 6

1
3

5 4

AC

Connector: C-304

Harness side

<LHD>

AC308778

2
7 6

1
3

5 4

Connector: C-304

AC

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-207

Step 7. Retest the system.

Check that the ignition key cylinder illumination lamp
illuminates/extinguishes normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-208

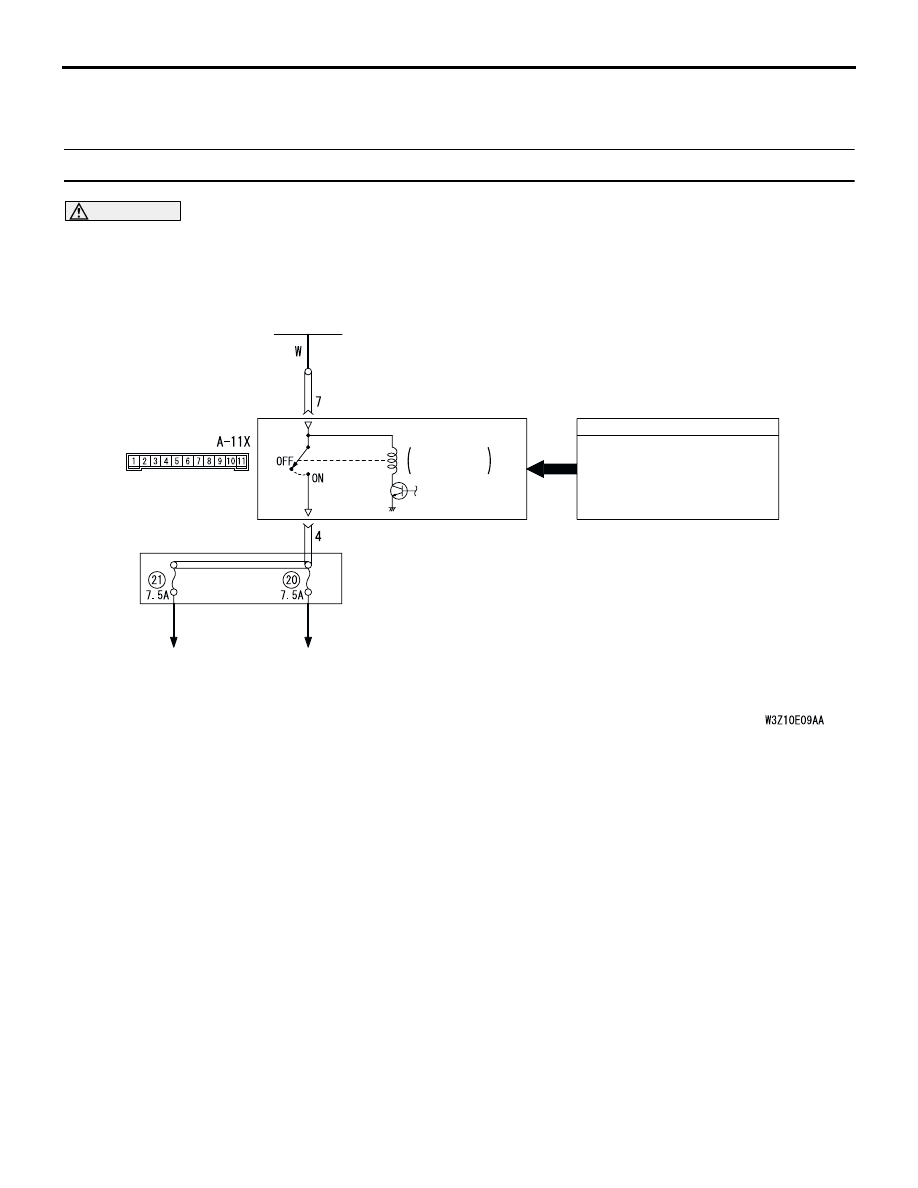

HEADLAMP AND TAIL LAMP

INSPECTION PROCEDURE J-1: The tail lamps do not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If all the tail lamps do not illuminate, the tail lamp
switch input circuit or the front-ECU may be
defective.

POSSIBLE CAUSES

•

Malfunction of the column switch

•

Malfunction of the front-ECU

•

Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

FRONT-ECU

TAIL LAMP
RELAY

RELAY
BOX

INPUT SIGNAL

· HEADLAMP AUTOMATIC
  SHUTDOWN
· TAIL LAMP SWITCH

· REAR COMBINATION
  LAMP (LH)

· LICENSE PLATE LAMP
· POSITION LAMP (LH)

· REAR COMBINATION
  LAMP (RH)

· POSITION LAMP (RH)

Tail Lamp Relay Circuit
