SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-189

NOTE:

Prior to the wiring harness inspection, check
intermediate connector F-05 and junction block
connectors C-209 <L.H. drive vehicles> and C-211
<R.H. drive vehicles>, and repair if necessary.

•

Check the output line.

Q: 1Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. Retest the system.

Check that the rear wiper works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308720

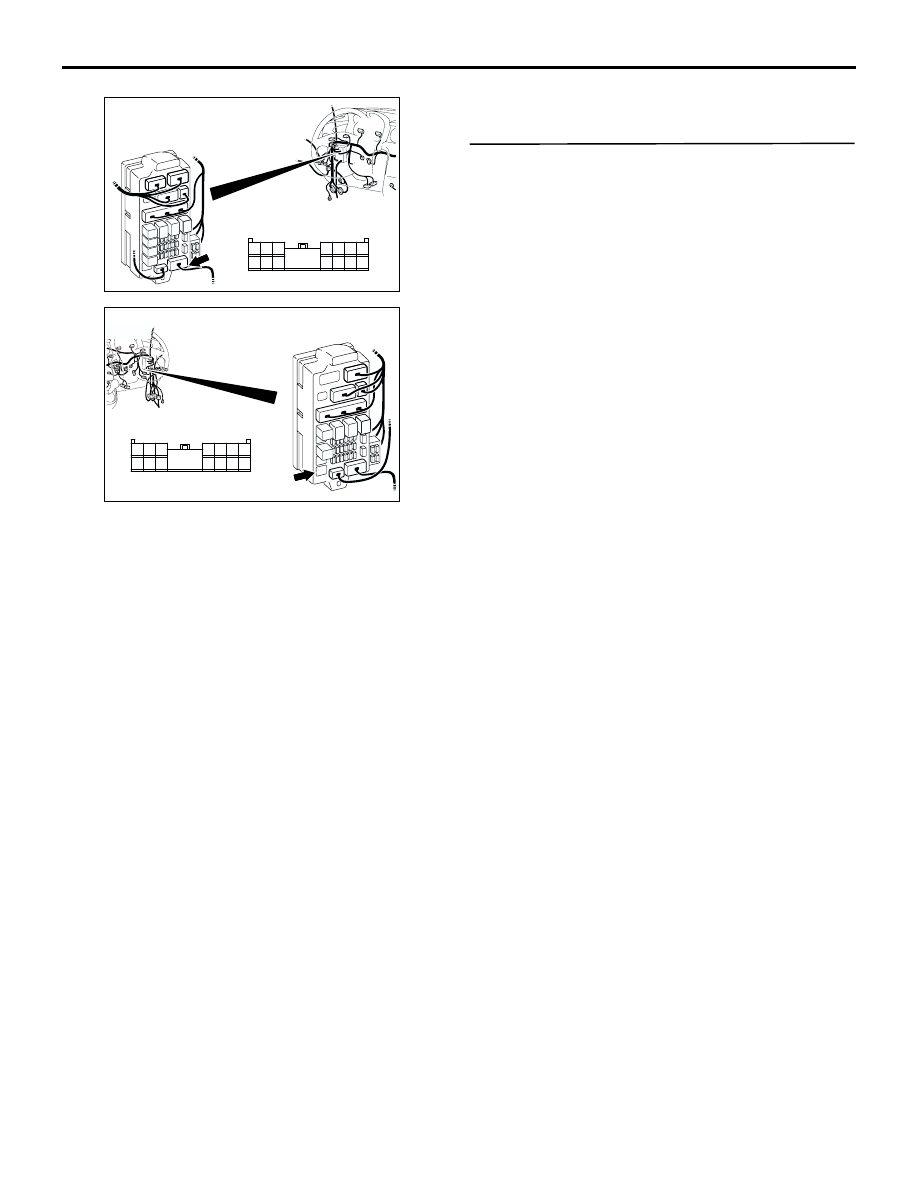

Connector: C-209
<LHD>

Harness side

AH

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

Junction block (Front view)

AC308772

Harness side

AK

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

Junction block (Front view)

Connector: C-211
<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-190

INSPECTION PROCEDURE G-2: The rear wiper does not stop at the specified park position.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

IGNITION
SWITCH (ACC)

REAR
WIPER
RELAY

REAR WIPER
MOTOR

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

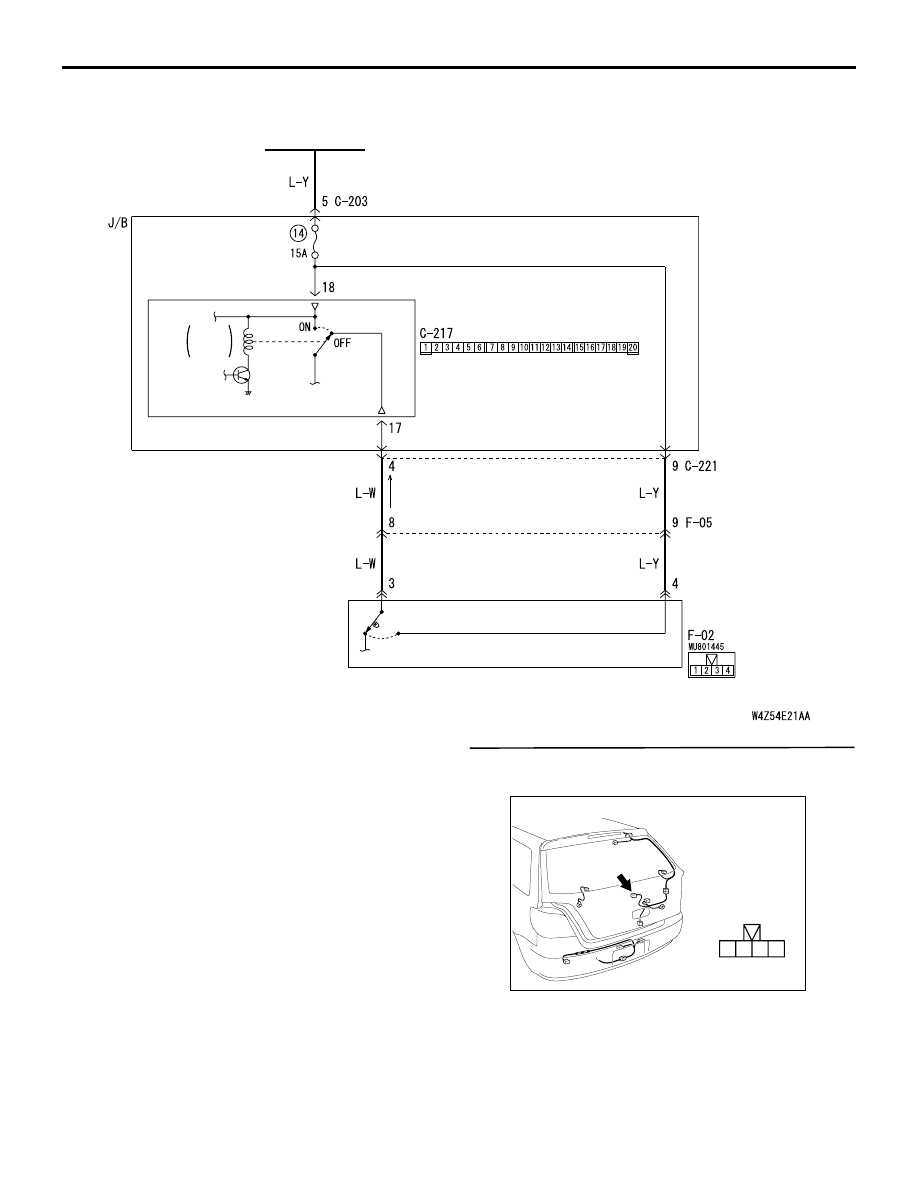

Rear Wiper Auto-stop Signal Input <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-191

COMMENTS ON TROUBLE SYMPTOM
If the rear wiper does not stop normally within the
predetermined range, the rear wiper motor or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

•

Malfunction of the rear wiper motor

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

Step 1. Connector check: F-02 rear wiper motor
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

IGNITION
SWITCH(ACC)

ETACS-
ECU

REAR
WIPER
RELAY

REAR WIPER
MOTOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Rear Wiper Auto-stop Signal Input <RHD>

AC308808

Connector: F-02

AG

Harness side

3

4

2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-192

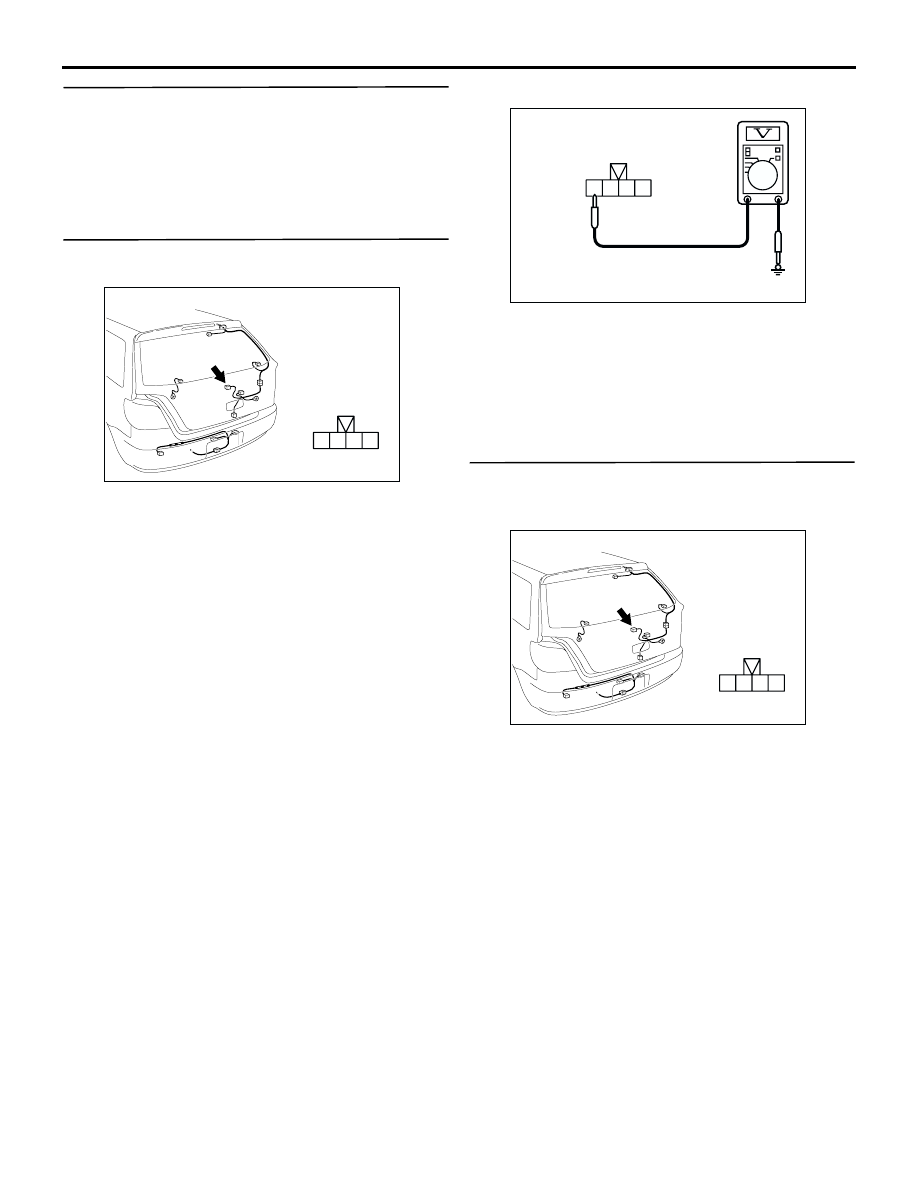

Step 2. Check the rear wiper motor.
Refer to GROUP 51

−

 Rear wiper and washer

P.51-31

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the rear wiper motor.

Step 3. Measure the voltage at the F-02 rear wiper
motor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ACC

(3) Check the voltage between F-02 rear wiper motor

connector terminal No.4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between
ignition switch (ACC) and F-02 rear wiper motor
connector terminal No.4.

AC308808

Connector: F-02

AG

Harness side

3

4

2 1

3

4

2 1

AC301642

Connector F-02
(Harness side)

AB

AC308808

Connector: F-02

AG

Harness side

3

4

2 1
