SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-185

REAR WIPER AND WASHER

INSPECTION PROCEDURE G-1: The rear wiper does not work at all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

IGNITION
SWITCH (ACC)

REAR
WIPER RELAY

REAR
WIPER MOTOR

ETACS-ECU

REAR WIPER SWITCH

INPUT SIGNAL

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

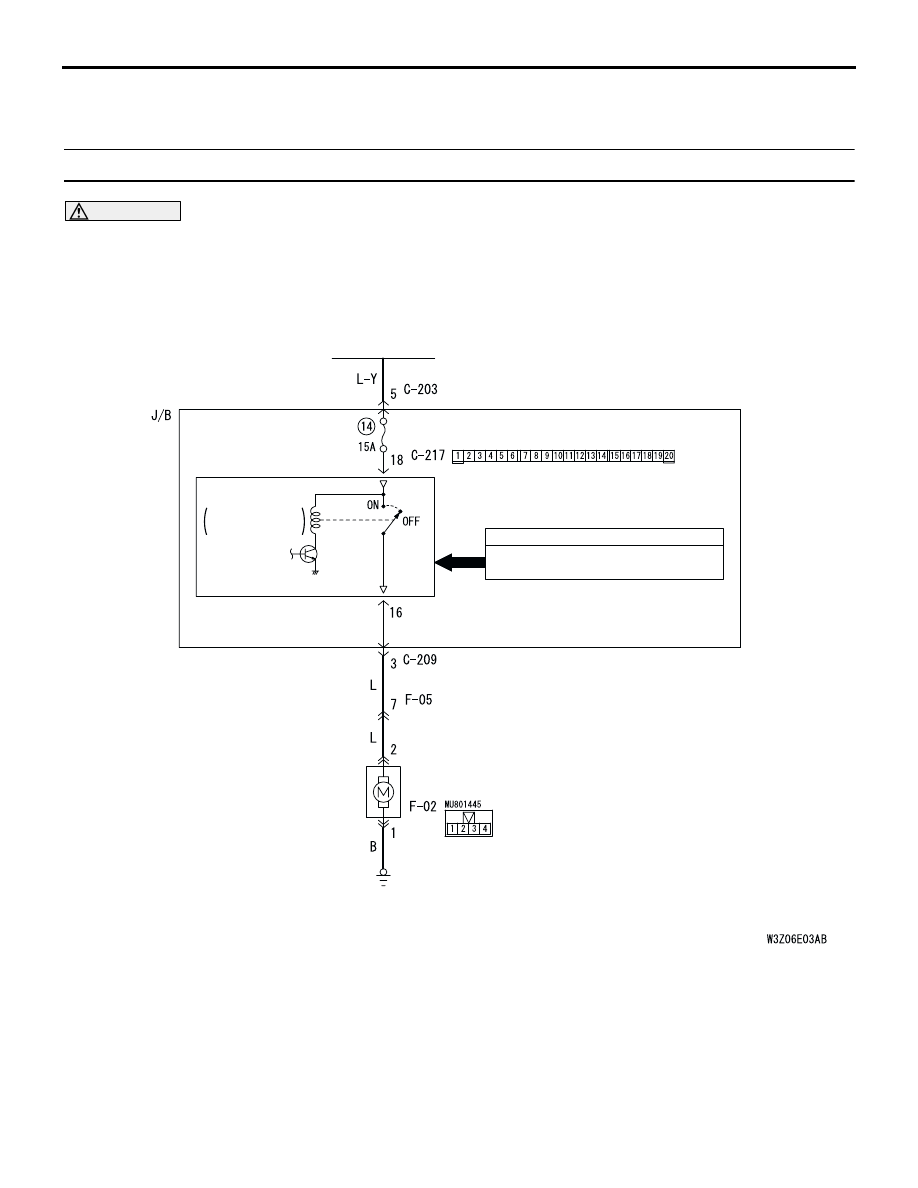

Rear Wiper Drive Circuit <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-186

COMMENTS ON TROUBLE SYMPTOM
If the rear wiper does not work normally, the input
signal circuits to the components below, the rear
wiper motor or the ETACS-ECU may be defective.

•

Ignition switch (ACC)

•

Rear wiper switch

POSSIBLE CAUSES

•

Malfunction of the rear wiper motor

•

Malfunction of the column switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

IGNITION
SWITCH(ACC)

INPUT SIGNAL

ETACS-ECU

REAR WIPER SWITCH

REAR
WIPER MOTOR

REAR
WIPER RELAY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

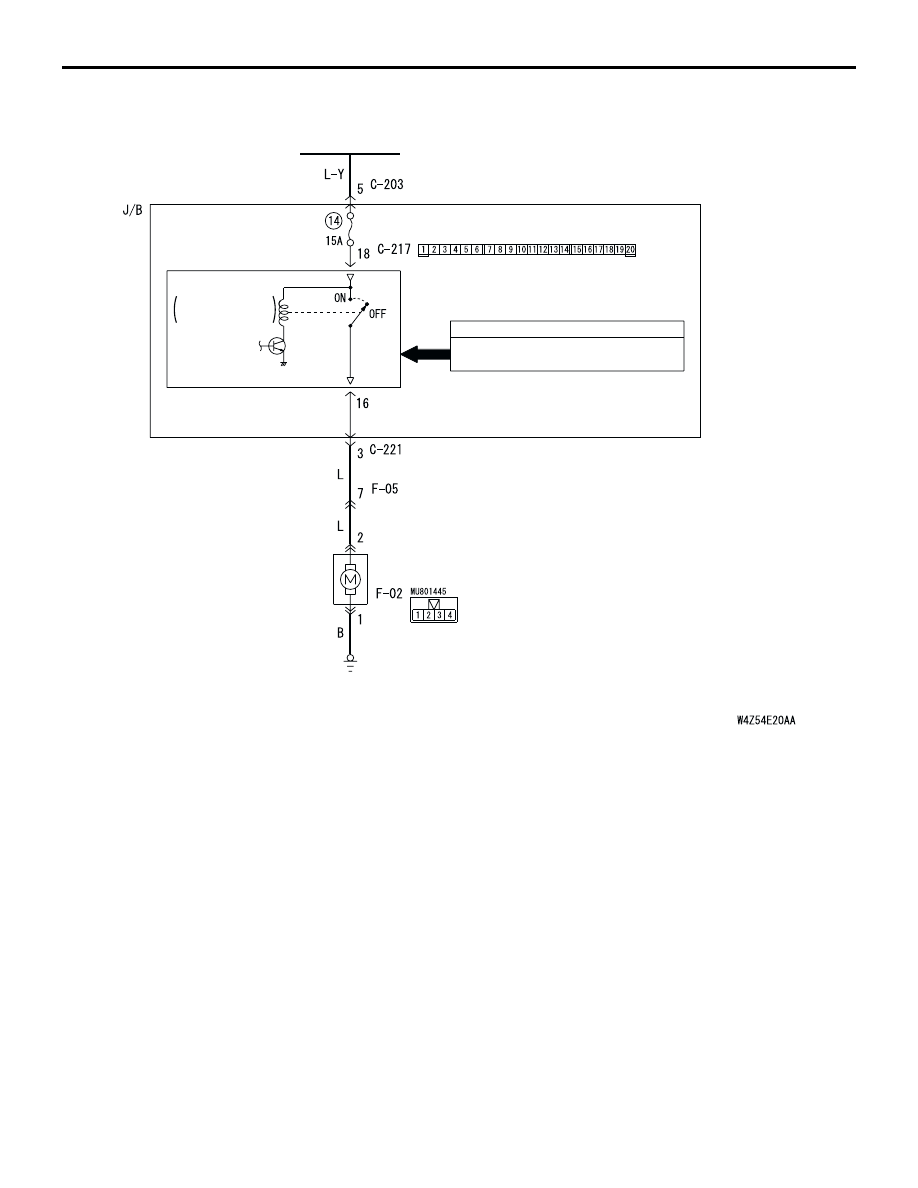

Rear Wiper Drive Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-187

DIAGNOSTIC PROCEDURE

Step 1. Use the MUT-II/III to confirm a diagnosis
code.

Check that the ETACS-ECU sets a diagnosis code.

Q: Is diagnosis code set?

YES :

Refer to diagnosis code chart

P.54B-17

.

NO :

Go to Step 2.

Step 2. Pulse check

Check the input signals below which are related to
the rear wiper.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (ACC) signal is not received. :

Refer to inspection procedure N-1 "The
ignition switch (ACC) signal is not received

P.54B-301

."

The column switch (rear wiper switch) signal is not
received. :

Refer to inspection procedure N-6 "The

column switch (windshield wiper washer
and rear wiper washer switch) signal is not
received

P.54B-320

."

Step 3. Connector check: F-02 rear wiper motor
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

Step 4. Check the rear wiper motor.
Refer to GROUP 51

−

 Rear wiper and washer

P.51-31

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the rear wiper motor.

Step 5. Measure the resistance at the F-02 rear
wiper motor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between F-02 rear wiper motor

connector terminal No.1 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 6.

System switch

Check condition

Ignition switch (ACC)

When turned from the
LOCK (OFF) position to
the ACC position

Column switch (rear
wiper switch)

When the switch is
turned from off to on

AC308808

Connector: F-02

AG

Harness side

3

4

2 1

AC308808

Connector: F-02

AG

Harness side

3

4

2 1

3

4

2 1

AC301641

Connector F-02
(Harness side)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-188

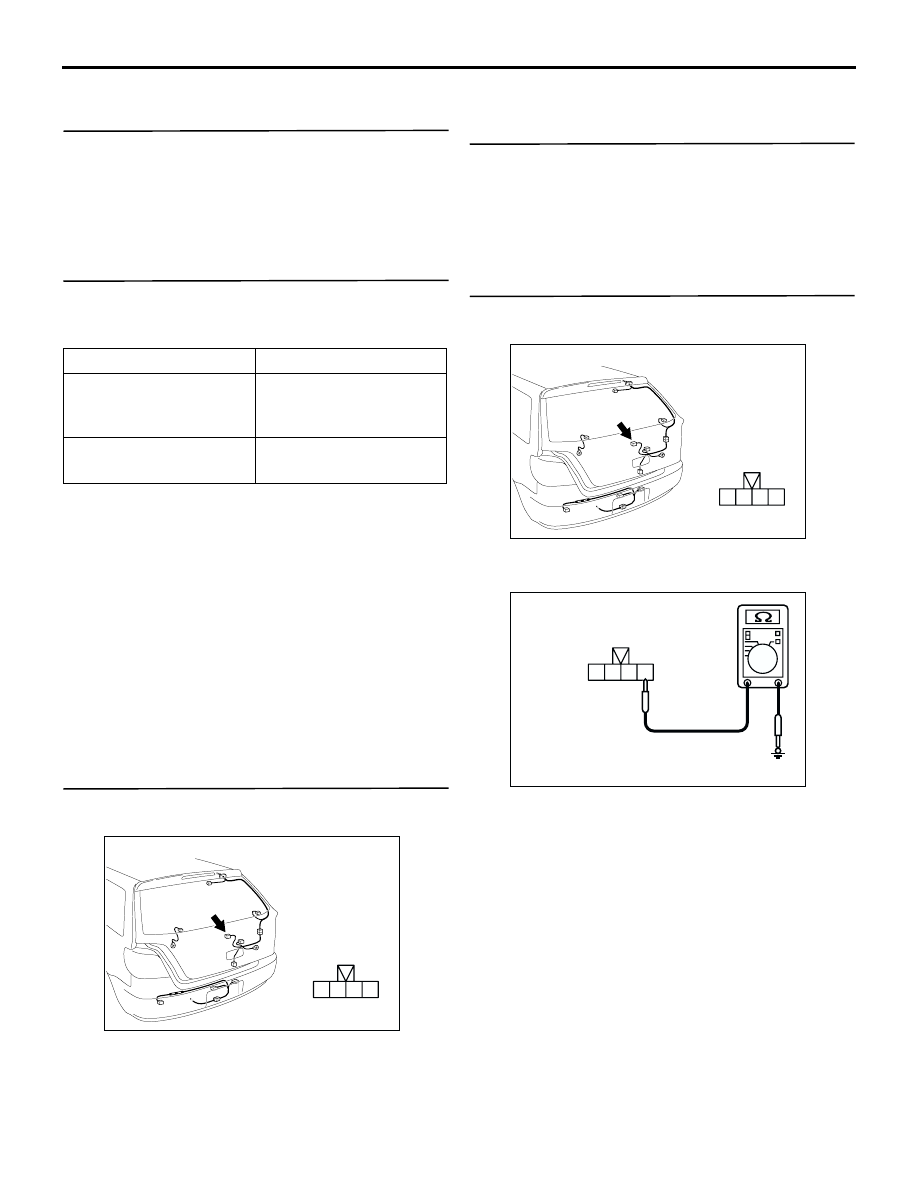

Step 6. Check the wiring harness between F-02
rear wiper motor connector terminal No.1 and
body earth.

•

Check the earth line for open or short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 7. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

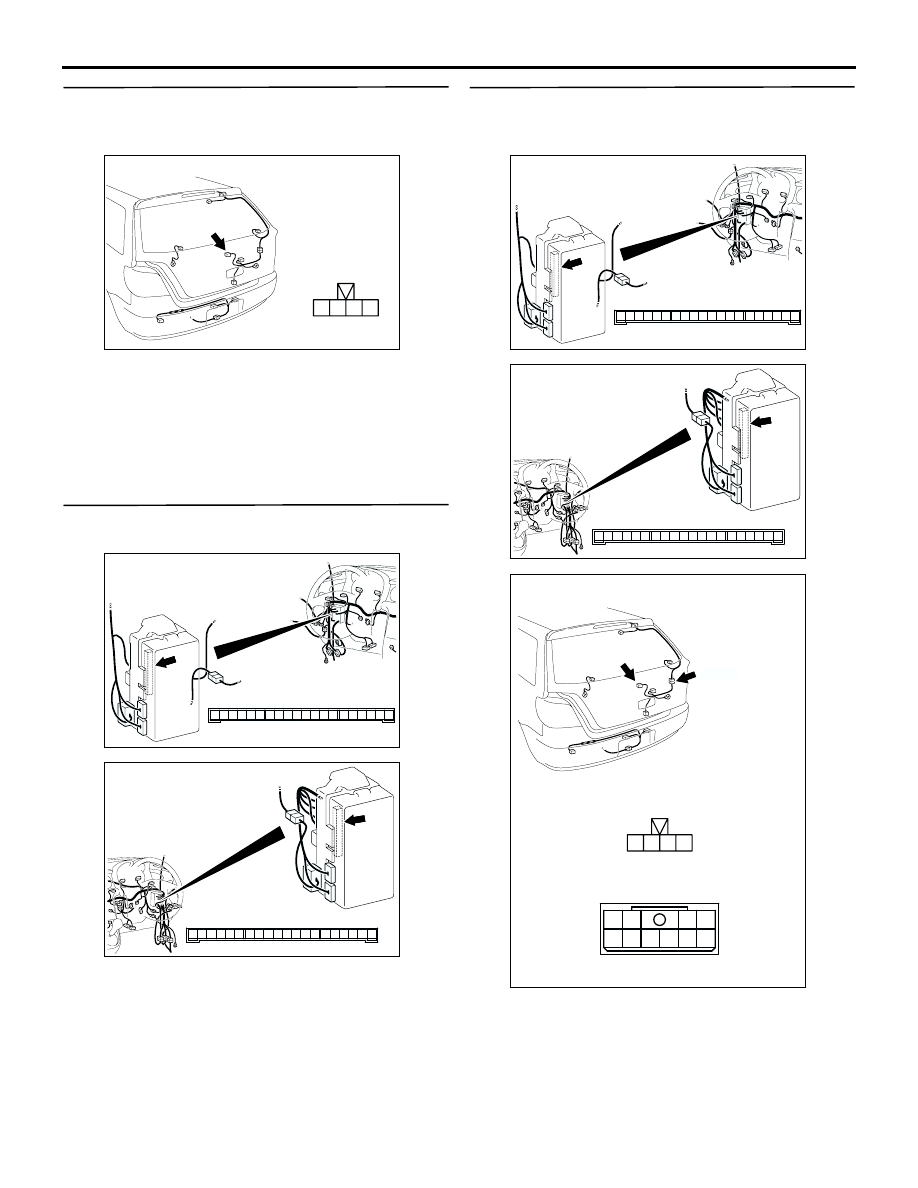

Step 8. Check the wiring harness between C-217
ETACS-ECU connector terminal No.16 and F-02
rear wiper motor connector terminal No.2.

AC308808

Connector: F-02

AG

Harness side

3

4

2 1

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308809

Connectors: F-02, F-05

F-05

AG

F-05

F-02

5

1

8

7

6

2

9 10

3 4

F-02

Harness side

3

4

2 1
