Mitsubishi Outlander (2003+). Manual - part 471





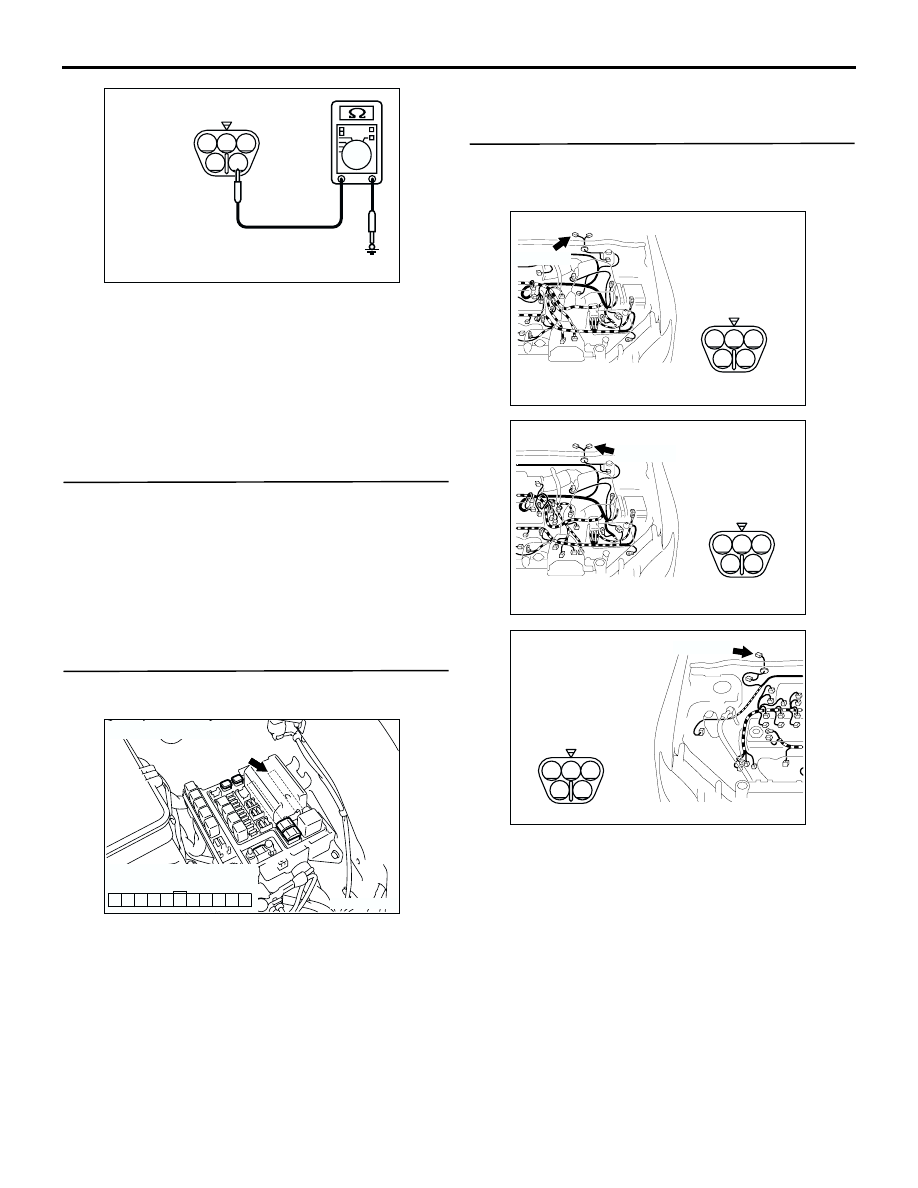

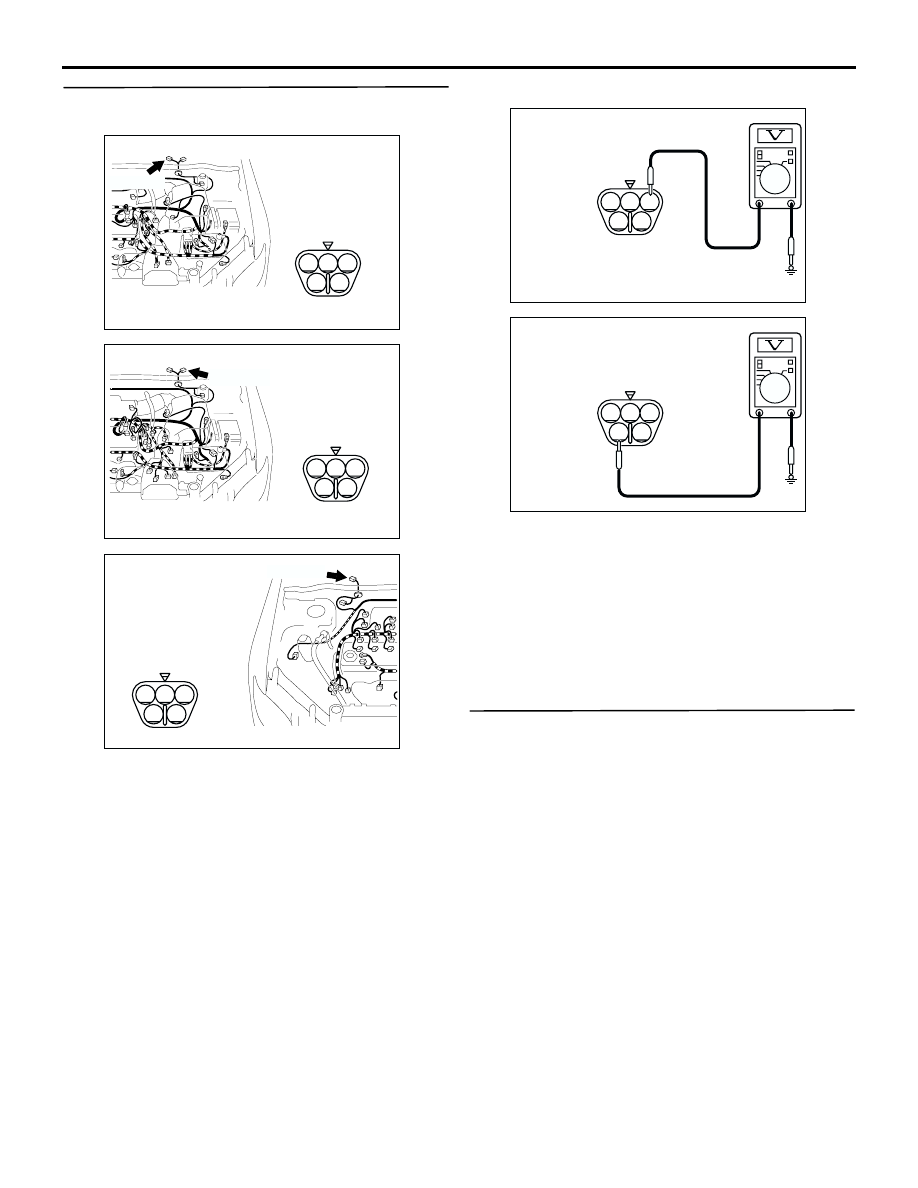

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-173

(4) Check the voltage between the B-07 windshield

wiper motor connector terminal No.4 <L.H. drive
vehicles> or No.3 <R.H. drive vehicles> and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 6.

Step 5. Retest the system.

Check that the windshield wipers work normally by
moving the switch to each position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the windshield wiper motor.

Step 6. Connector check: A-12X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

Step 7. Check the wiring harness between B-07
windshield wiper motor connector terminal No.4
and body earth.

4

1

2

5

3

AC301637

Connector B-07
(Harness side)

AB

AC301515 AE

Connector: A-12X

24

29

30

31

2827

25

26

21

2322

Relay box side

AC308694

Connector: B-07 <2000>

B-07(GR)

AE

Harness side

4

1

2

5

3

AC308708

Connector: B-07 <2400 LHD>

B-07(GR)

AF

Harness side

4

1

2

5

3

AC308710

Connector: B-07
<2400 RHD>

B-07(GR)

AB

Harness side

4

1

2

5

3

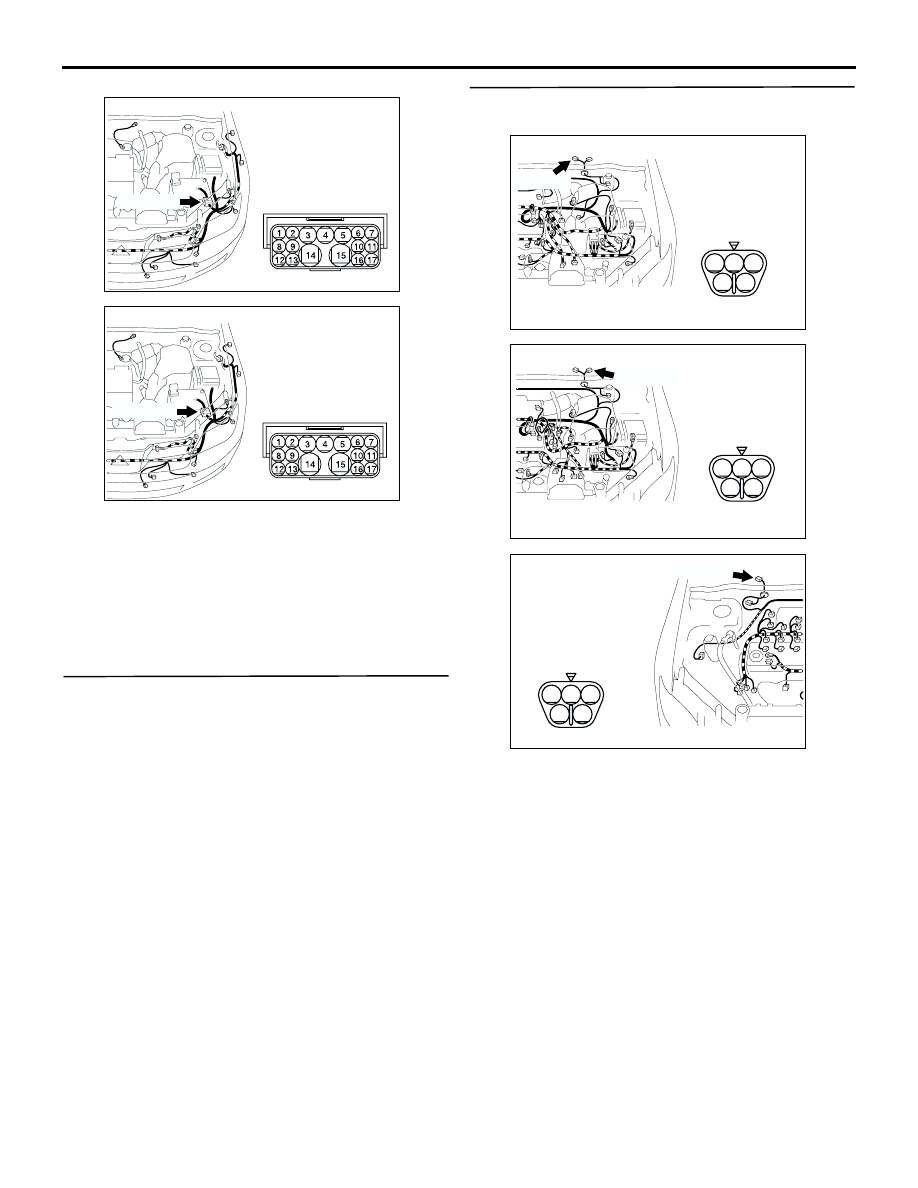

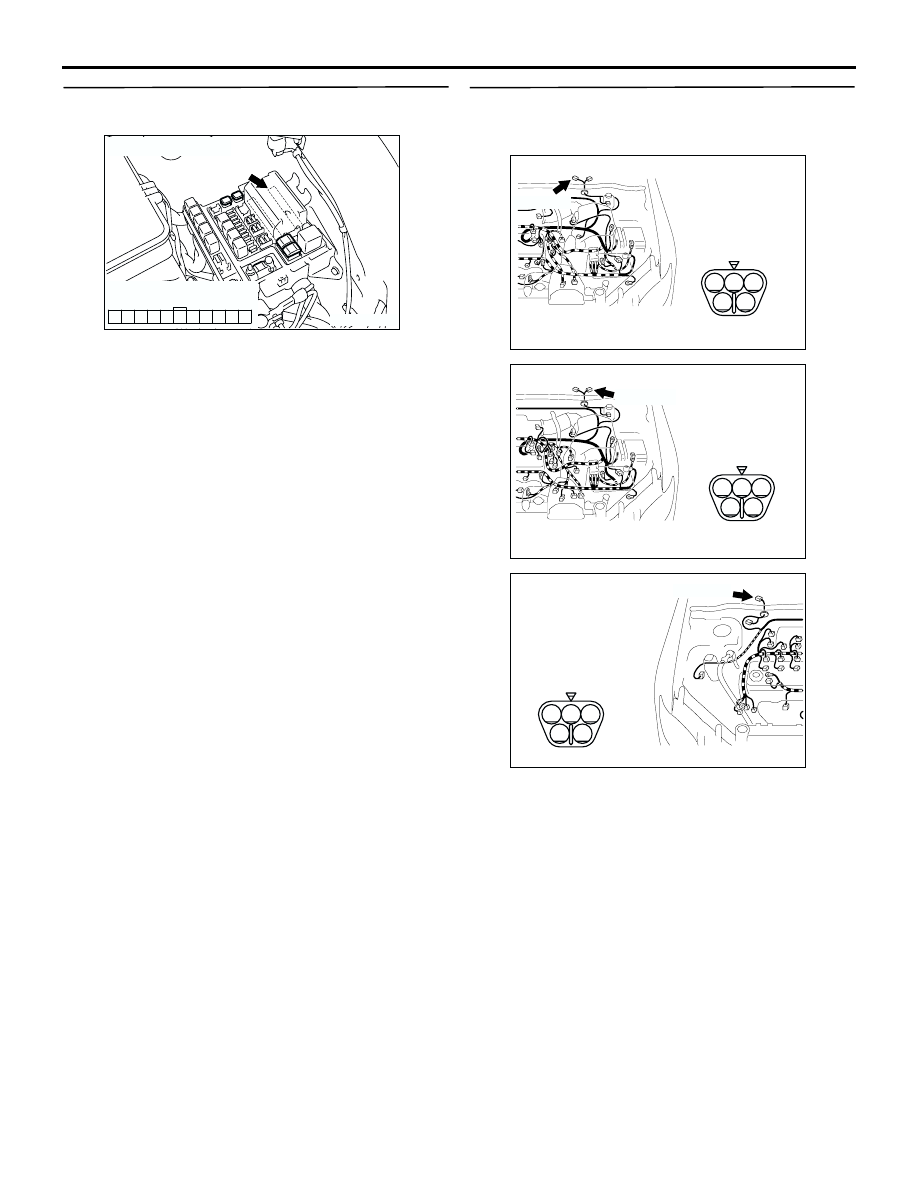

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-174

NOTE:

Prior to the wiring harness inspection, check the
intermediate connector A-14, and repair if necessary.

Check the power supply line to front-ECU for
open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the front-ECU.

Step 8. Retest the system.

Check that the windshield wipers work normally by
moving the switch to each position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the windshield wiper motor.

Step 9. Connector check: B-07 windshield wiper
motor connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

AC308679 AB

Connector: A-14

A-14 (GR)

<LHD>

AC308686AB

Connector: A-14

A-14 (GR)

<RHD>

AC308694

Connector: B-07 <2000>

B-07(GR)

AE

Harness side

4

1

2

5

3

AC308708

Connector: B-07 <2400 LHD>

B-07(GR)

AF

Harness side

4

1

2

5

3

AC308710

Connector: B-07
<2400 RHD>

B-07(GR)

AB

Harness side

4

1

2

5

3

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-175

Step 10. Measure the voltage at the B-07
windshield wiper motor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ON

(3) Windshield wiper switch: HI

(4) Check the voltage between the B-07 windshield

wiper motor connector terminal No.1 <L.H. drive
vehicles> or No.5 <R.H. drive vehicles> and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 12.

Step 11. Retest the system.

Check that the windshield wipers work normally by
moving the switch to each position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the windshield wiper motor.

AC308694

Connector: B-07 <2000>

B-07(GR)

AE

Harness side

4

1

2

5

3

AC308708

Connector: B-07 <2400 LHD>

B-07(GR)

AF

Harness side

4

1

2

5

3

AC308710

Connector: B-07
<2400 RHD>

B-07(GR)

AB

Harness side

4

1

2

5

3

AC309092

4

1

2

5

3

Connector B-07 <LHD>
(Harness side)

AB

AC309092

4

1

2

5

3

Connector B-07 <RHD>
(Harness side)

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-176

Step 12. Connector check: A-12X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

Step 13. Check the wiring harness between B-07
windshield wiper motor connector terminal No.4
and body earth.

AC301515 AE

Connector: A-12X

24

29

30

31

2827

25

26

21

2322

Relay box side

AC308694

Connector: B-07 <2000>

B-07(GR)

AE

Harness side

4

1

2

5

3

AC308708

Connector: B-07 <2400 LHD>

B-07(GR)

AF

Harness side

4

1

2

5

3

AC308710

Connector: B-07
<2400 RHD>

B-07(GR)

AB

Harness side

4

1

2

5

3
