Mitsubishi Outlander (2003+). Manual - part 452





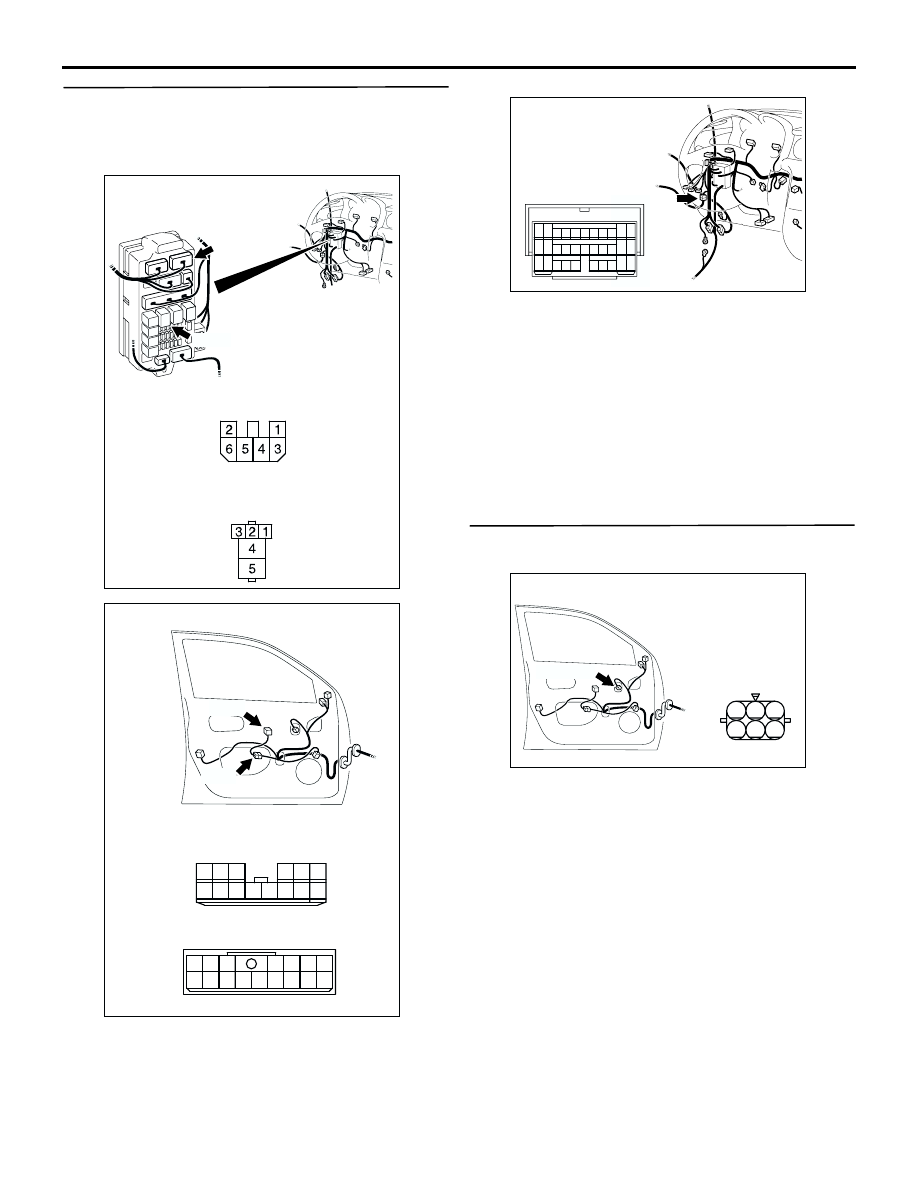

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-97

INSPECTION PROCEDURE D-2: Driver's power window does not work by means of the power window
main switch. <L.H. drive vehicles>

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

ETACS-ECU

POWER
WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

FRONT
 (LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

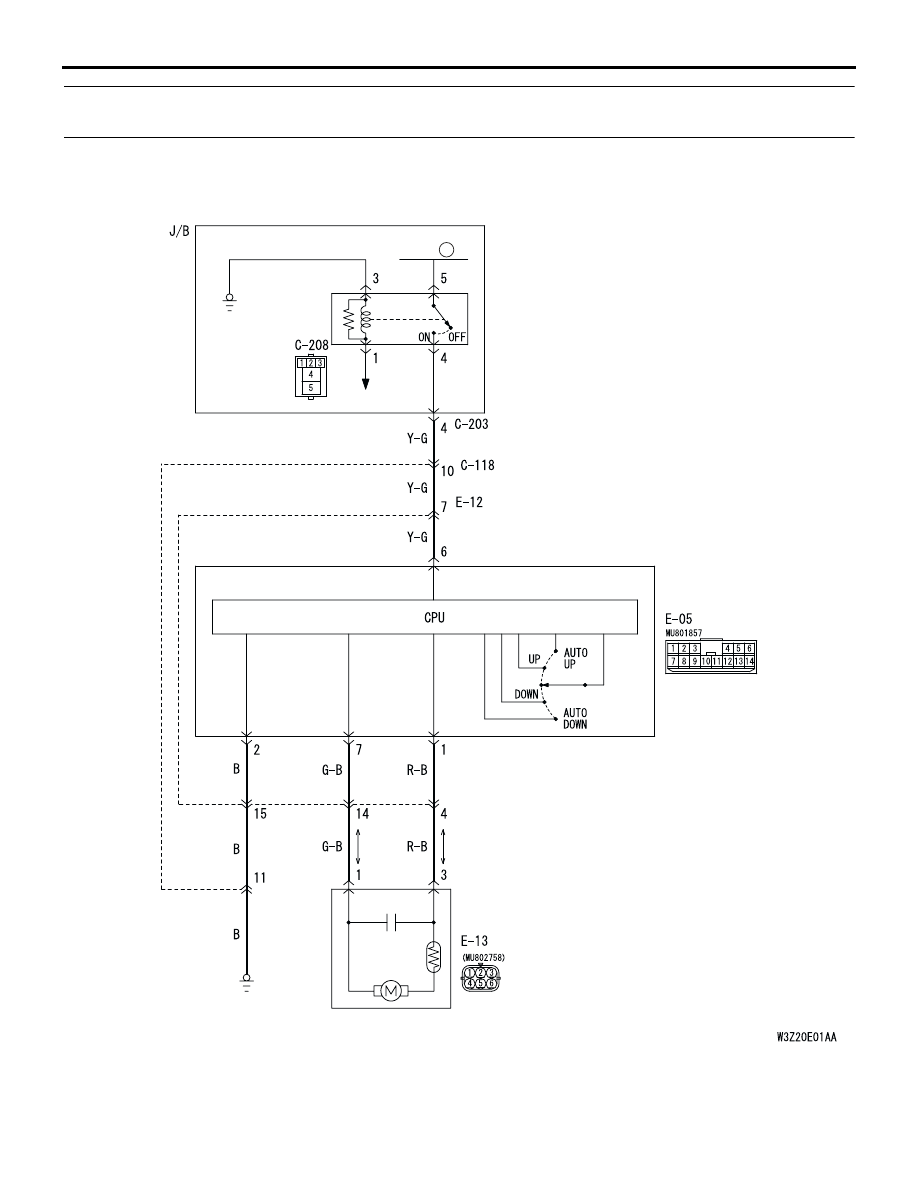

Power Window (front: LH) Circuit

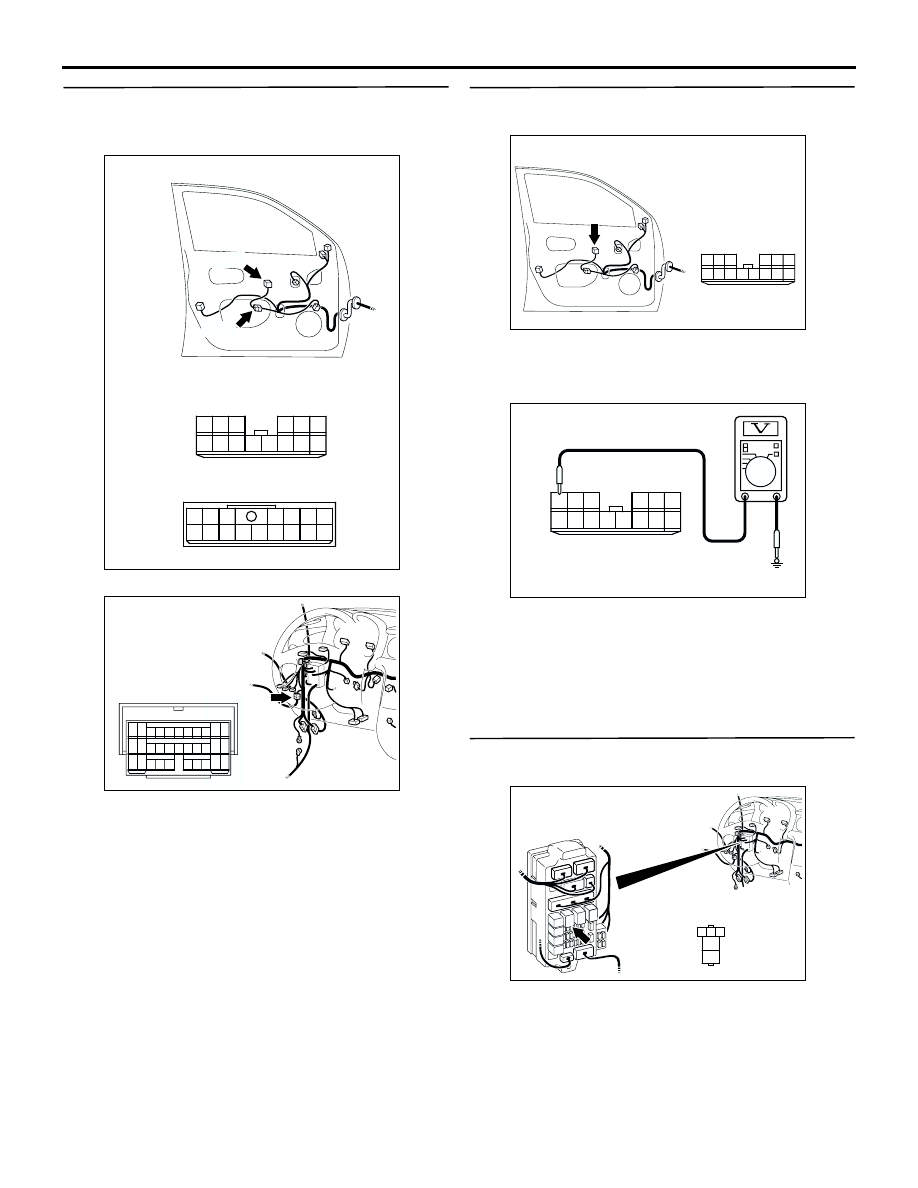

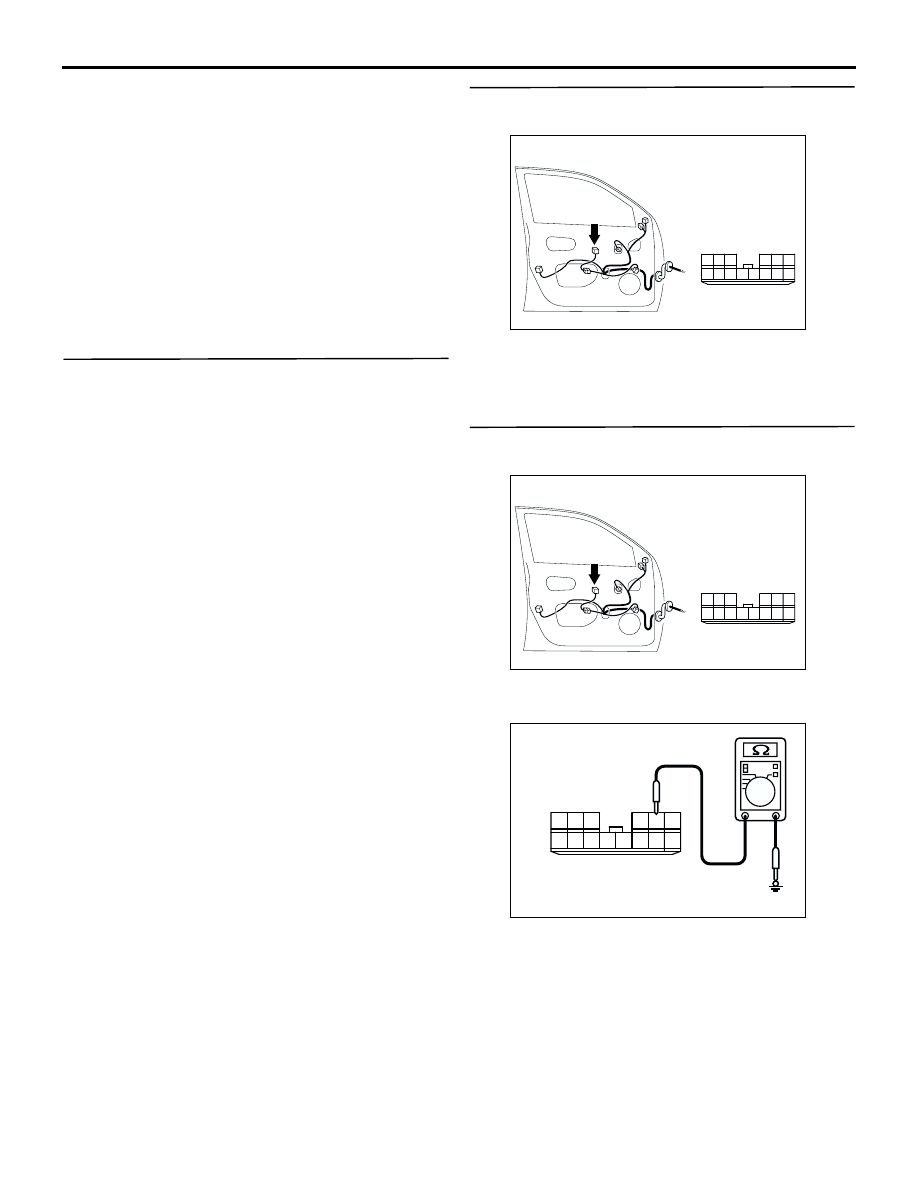

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-98

COMMENTS ON TROUBLE SYMPTOM
If the driver's power window does not work by means
of the power window main switch, the power window
main switch or the driver's door power window motor
may be defective.

POSSIBLE CAUSES

Malfunction of the power window main switch

Malfunction of the power window motor (front,
LH)

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.

Check that all of the front passenger's and rear door
power windows can operate by means of the power
window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure D-1 "Power
windows do not work at all

P.54B-86

."

Step 2. Connector check: E-05 power window
main switch connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

Step 3. Measure the resistance at the E-05 power
window main switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 2 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC308791

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

Connector: E-05

Harness side

<LHD>

AC308791

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

Connector: E-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC301468

Connector E-05
(Harness Side)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-99

Step 4. Check the wiring harness between E-05
power window main switch connector terminal
No.2 and body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-118 and E-12, and repair
if necessary.

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Measure the voltage at the E-05 power
window main switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 6 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 6.

Step 6. Connector check: C-208 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

AC308792

Connectors: E-05, E-12
<LHD>

E-05

Harness side

E-05

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AE

E-12

E-12

10

2
9

1
8

3

12

11

4

13

6

15

5

14

7

16

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

AC308791

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

Connector: E-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC301469

Connector E-05
(Harness side)

AB

AC308720

Connector: C-208

AG

3

4

5

1

2

Junction block (Front view)

Junction block side

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-100

Step 7. Check the wiring harness between C-208
power window relay connector terminal No.4 and
E-05 power window main switch connector
terminal No.6.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-118, E-12 and junction
block connector C-203, and repair if necessary.

Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the harness wire, and then go to
Step 7.

Step 8. Connector check: E-13 power window
motor (front LH) connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

AC308721

Junction block side

Junction block (Front view)

Connectors: C-203, C-208

C-203

C-208

Harness side

C-203

AG

<LHD>

C-208

AC308792

Connectors: E-05, E-12
<LHD>

E-05

Harness side

E-05

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AE

E-12

E-12

10

2
9

1
8

3

12

11

4

13

6

15

5

14

7

16

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

AC308791

Connector: E-13
<LHD>

AE

Harness side

E-13(GR)

4

6 5

3 2 1
