IGNITION SWITCH

CHASSIS ELECTRICAL

54A-27

Registration of additional keys with the MUT-II
Additional key(s) can be registered with the MUT-II
while keeping all existing key data.

CAUTION

To prevent damage to MUT-II, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting MUT-II.
NOTE: To register additional keys with the MUT-II,
no registered keys must be lost.

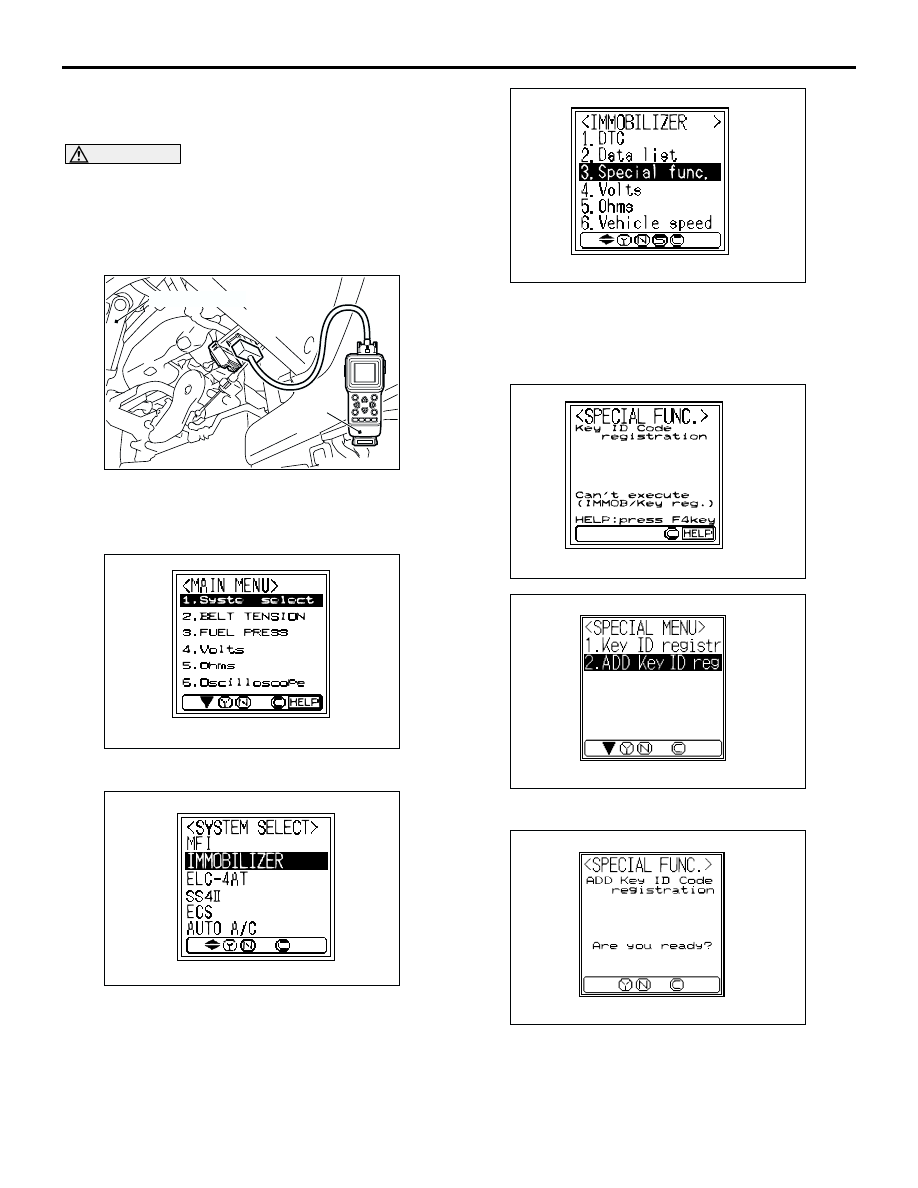

1. Connect MUT-II (MB991502) to the 16-pin

diagnosis connector.

2. Turn the ignition switch to "ON" position.

3. At "System Select," press "YES"

4. Select "Immobilizer," press "YES".

5. Select "Special Func", press "YES". If diagnosis

code No.11 exists, "Can't execute" will be
displayed. Check for diagnosis code No.11 (Refer
to

P.54A-9

.)

6. Select "Add key ID reg", press "YES".

7. Press the "YES" key to start key ID registration.

AC300830

Steering shaft

MUT-II

AB

AC000522AD

AC000523AC

AC000530AC

AC000518AC

AC101478

AB

AC101477

AB

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-28

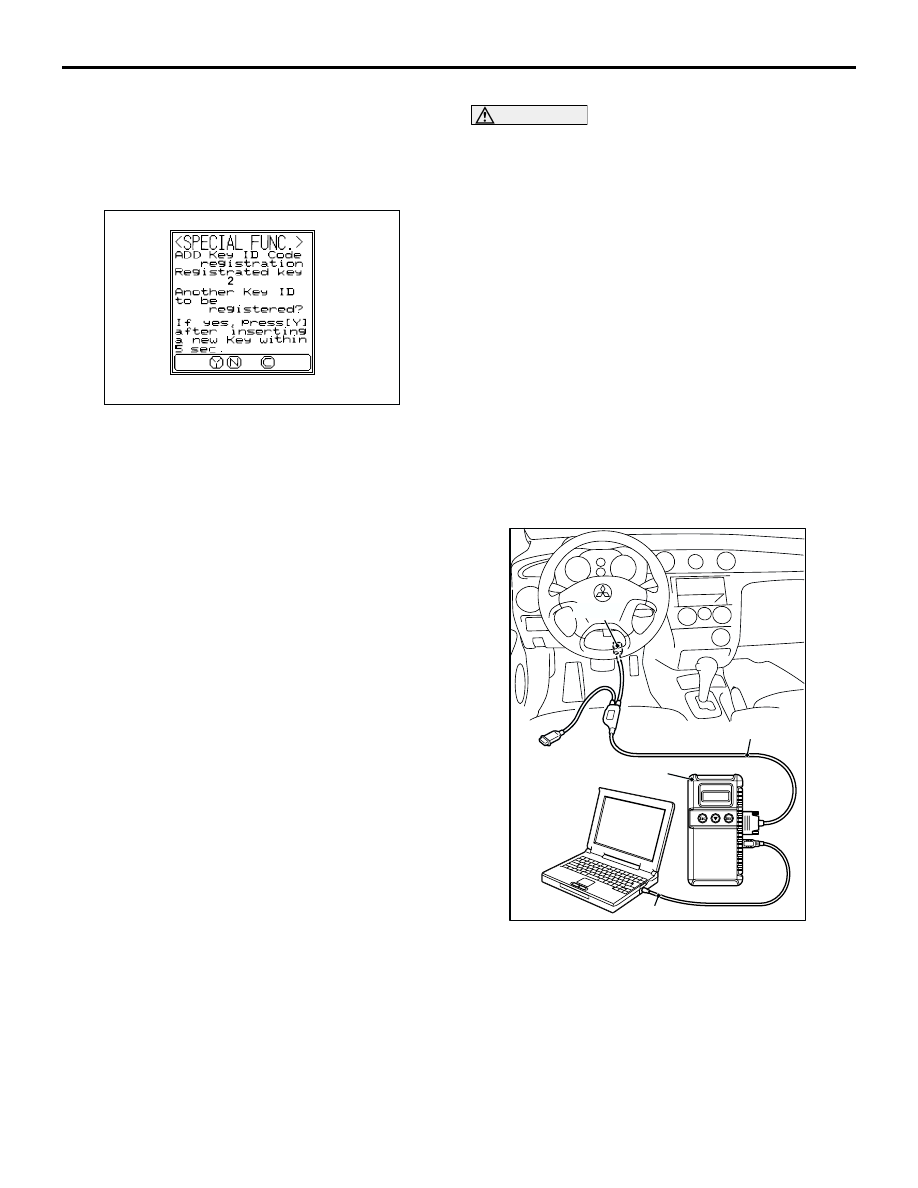

8. This will be displayed when the add key ID

registration is successful. If an error occurs during
key ID registration, the message "Can't execute"
will be displayed. If the key has already been
registered, "Key ID has been registered" will be
displayed.

9. The number of keys currently registered will be

displayed. To register an additional key, replace
the ignition key with the next key to be registered
within five seconds and then press the "YES" key.
Key ID registration screen will be displayed, then
register another key.
NOTE: A maximum of eight different keys can be
registered.

10.If key ID registration is complete, press the "NO"

key.

11.This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

12.Check that the engine can be started with each of

the ignition keys.

13.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

14.Turn the ignition switch to "LOCK" (OFF) position.
15.Disconnect MUT-II.

KEY ID (ENCRYPTED CODE)
REGISTRATION <MUT-III>

All ignition keys can be registered with MUT-III.
Additional ignition keys can be registered with
MUT-III.

Registration with the MUT-III

CAUTION

To prevent damage to MUT-III, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting MUT-III.
NOTE:

.

Before registration, check that no diagnosis code
is set. If a diagnosis code is set, resolve the
problem beforehand.

Using the key ID register function will cause all
key IDs that have been previously registered in
the immobilizer-ECU to be erased. All keys need
to be registered. Those which have been
registered before should be on hand before using
this function.

If registering more than one key, do not
disconnect MUT-III halfway through the
registration process.

After registering key IDs, check that the engine
can be started using all of the keys that have
been registered. If the engine will not start, refer
to Immobilizer System Diagnosis

P.54A-8

.

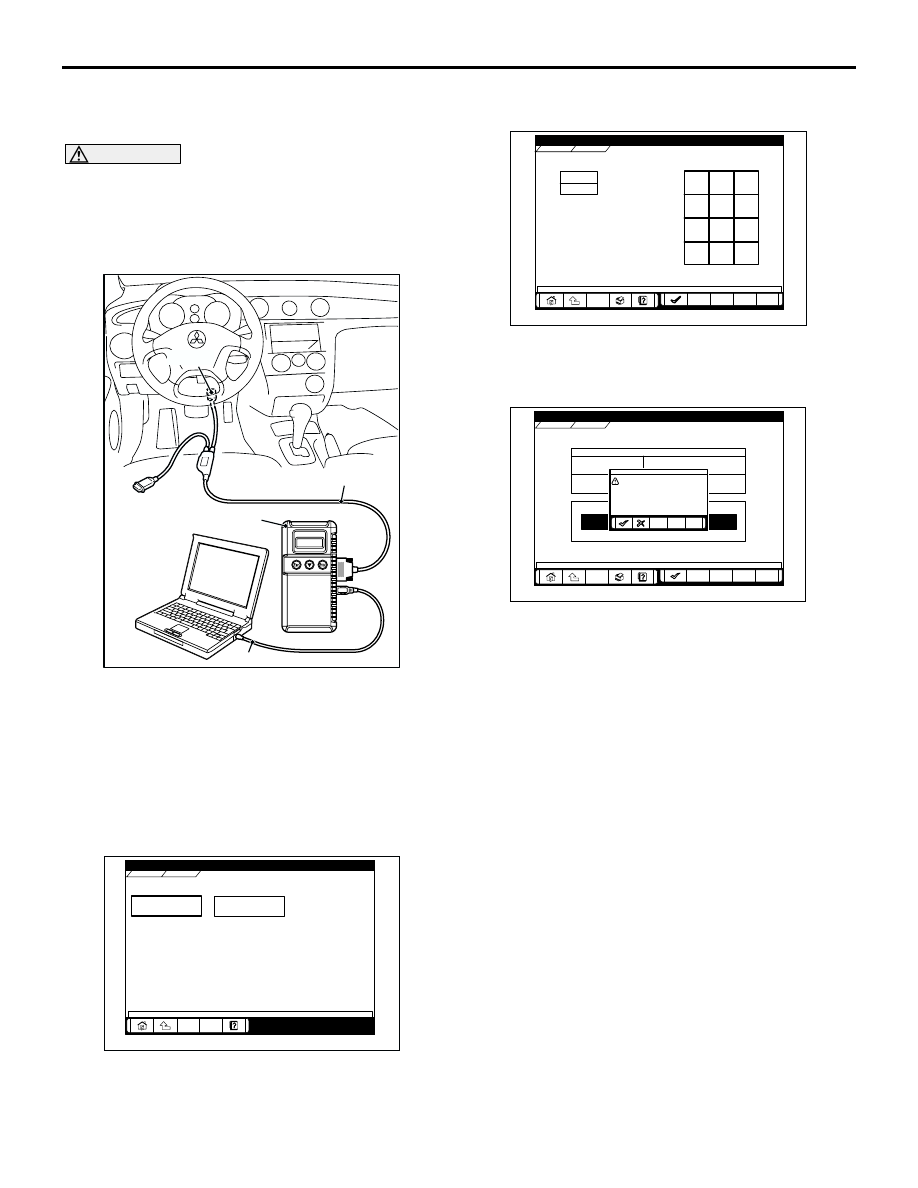

1. Connect the MUT-III to the diagnosis connector

(16-pin).

2. Turn the ignition switch to "ON" position.

AC101476

AB

AC308915AB

MB991911

16-PIN

MB991827

MB991824

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-29

3. Select "System select" from the start-up screen.

4. Choose "IMMOBILIZER" from the "POWER

TRAIN" tab.

5. Choose "Special Function" from "IMMOBILIZER"

screen.

6. Choose "Key registration" from "Special Function"

screen.

7. Enter the vehicle’s password (secret code) on the

"Key registration" screen, and then click the check
mark icon. Follow the prompts on the screen to
insert key(s) into the ignition switch to begin key
registration.

8. If the key ID was registered successfully,

"Progress" indication will turn active (gray). Then
the registration process completes. If the key ID
failed to be registered, "In-Complete" indication
will turn active (gray).

9. The number of keys currently registered will be

displayed. To register an additional key, replace
the ignition key with the next key to be registered
within five seconds. Key ID registration screen will
be displayed, then register another key.
NOTE: A maximum of eight different keys can be
registered.

10.This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

11.Check that the engine can be started with each of

the ignition keys.

12.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

13.If not diagnosis code is shown, terminate the

MUT-III.

14.Turn the ignition switch to "LOCK" (OFF) position.
15.Disconnect MUT-III.

System select

Special function

CAN bus diagnosis

Function Select Menu

Menu

AC209666

Maintenance

AD

MPI/GDI/DIESEL

ELC-A/T/CVT

IMMOBILIZER

SS4II

TCL/STARLTY CONTROL

AUTO CRUISE

CHASSIS

BODY

System Select Menu

POWER TRAIN

AC305175

Check Chart For

 Problem Sy

Data List

Special

Function

Self-diagnosis

Simulated Vehicle

Speed Out

Resistor

Voltmeter

POWERTRAIN

IMMOBILIZER

IMMOBILIZER

AC305176

Key ID registration

Additional Key

Registration

POWERTRAIN

Special Function

IMMOBILIZER

Special Function

AC305177

POWERTRAIN

IMMOBILIZER

Special Function

7

8

9

4

5

6

1

2

3

0

Back

Space

Clear

Key registration

AC207300

AD

POWERTRAIN

IMMOBILIZER

Special Function

IMMOBILIZER-ECU registration

Progress

In-Complete

Key registration

AC207302

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-30

Registration of additional keys with the MUT-III
Additional key(s) can be registered with the MUT-III
while keeping all existing key data.

CAUTION

To prevent damage to MUT-III, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting MUT-III.
NOTE: To register additional keys with the MUT-III,
no registered keys must be lost.

1. Connect MUT-III to the 16-pin diagnosis

connector.

2. Turn the ignition switch to "ON" position.
NOTE: Before registration, check that no diagnosis
code is set. If a diagnosis code is set, resolve the
problem beforehand.
3. Carry out steps 3 to 6 of the sub-section

"Registration with MUT-III."

4. Choose "Transponder ID addition" from "Special

Function" screen.

5. Enter the vehicles password (secret code) on the

"Transponder ID addition" screen, and then click
the check mark icon.

6. If an additional registration is made successfully,

the screen will ask if another key is registered or
not. If the third ignition key is registered, remove
the key, which has been registered. Then insert
the third key within five seconds, and then turn it
to the ON position.

7. Register the additional ignition key according to

step 6 above. The number of the registered
ignition keys are shown on "The number of
registered key" screen.
NOTE: A maximum of eight different keys can be
registered.

8. This completes the registration operation. Turn

the ignition switch "LOCK" (OFF) and leave it off
for approximately ten seconds.

9. Check that the engine can be started with each of

the ignition keys.

10.Check that the immobilizer system diagnosis

code and MPI system diagnosis code did not set.

11.If not diagnosis code is shown, terminate the

MUT-III.

12.Turn the ignition switch to "LOCK" (OFF) position.
13.Disconnect MUT-III.

AC308915AB

MB991911

16-PIN

MB991827

MB991824

Key ID registration

Additional Key

Registration

POWERTRAIN

Special Function

IMMOBILIZER

Special Function

AC305177

POWERTRAIN

IMMOBILIZER

Password

Special Function

7

8

9

4

5

6

1

2

3

0

Back

Space

Clear

Trasponder ID addition

AC207301

AC207301

AC209775

POWERTRAIN

IMMOBILIZER

Key ID register

The number of registered key

3

Progre

Special Function

Trasponder ID addition

About Additional Transponder
ID SET

If register another key ID, press the
OK button after inserting a new key
within 5 sec and turning on IG-SW.
