HEADLINING

INTERIOR

52A-27

HEADLINING

REMOVAL AND INSTALLATION

M1521001400304

REMOVAL SERVICE POINT

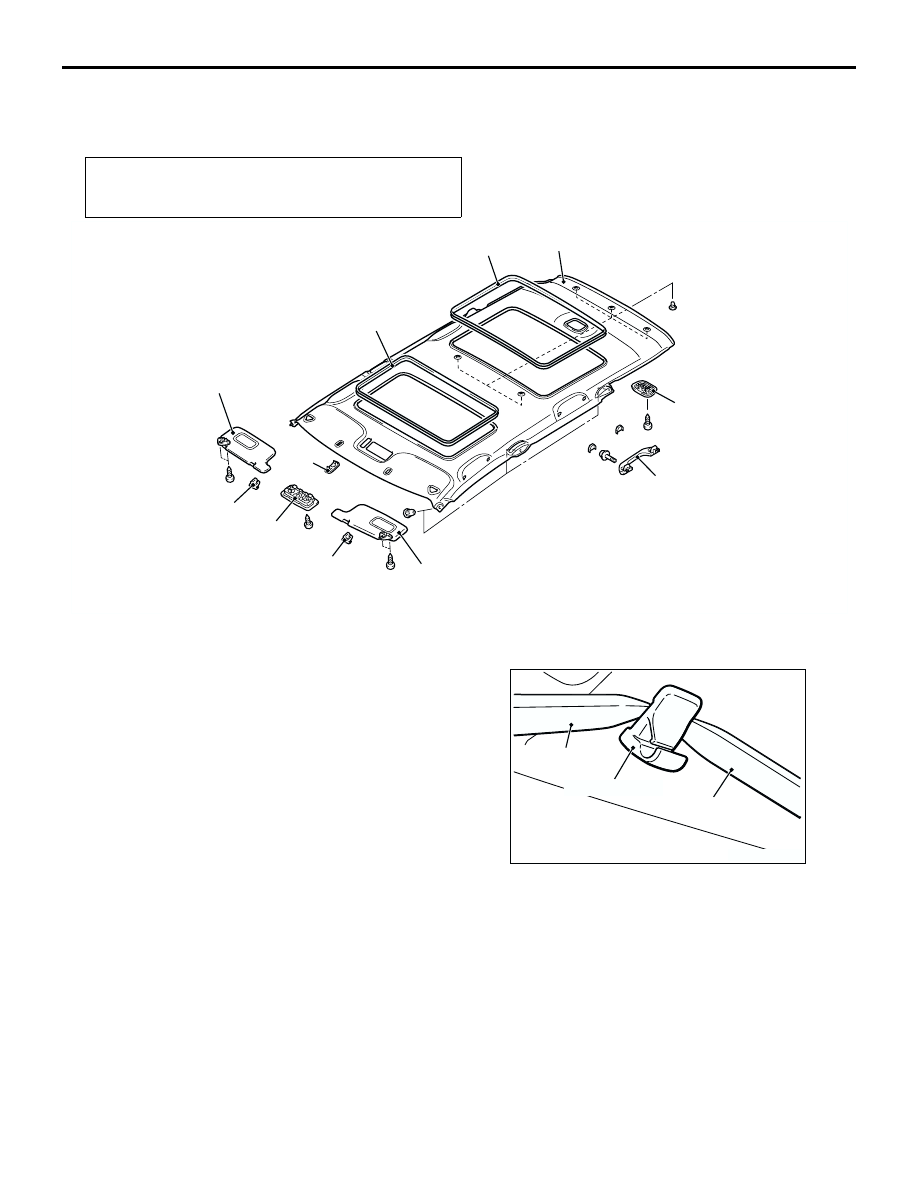

<<A>> SUN VISOR HOLDER REMOVAL

Insert the special tool ornament remover
(MB990784) into side claws of the sun visor holder
through the both sides to remove the hinges.

Pre-removal and Post-installation Operation

•

Removal and Installation of Front Pillar Trim, Centre Pillar

Trim Upper, Quarter Trim Upper (Refer to

P.52A-18

).

AC301290

1

2

3

4

5

5

6

6

7

8

9

AB

Removal steps

1.

Assist grip

2.

Rear room lamp assembly

3.

Front room lamp/map lamp
assembly

4.

Sun roof switch cover <Vehicles
with sun roof>

<<A>>

5.

Sun visor holder

6.

Sun visor assembly

7.

Front headlining trim <Vehicles with
sun roof>

8.

Rear headlining trim <Vehicles with
sun roof>

9.

Headlining

AC005512

MB990784

Sun visor holder

MB990784

AD

INSIDE REAR VIEW MIRROR

INTERIOR

52A-28

INSIDE REAR VIEW MIRROR

M1521002600185

REMOVAL SERVICE POINTS

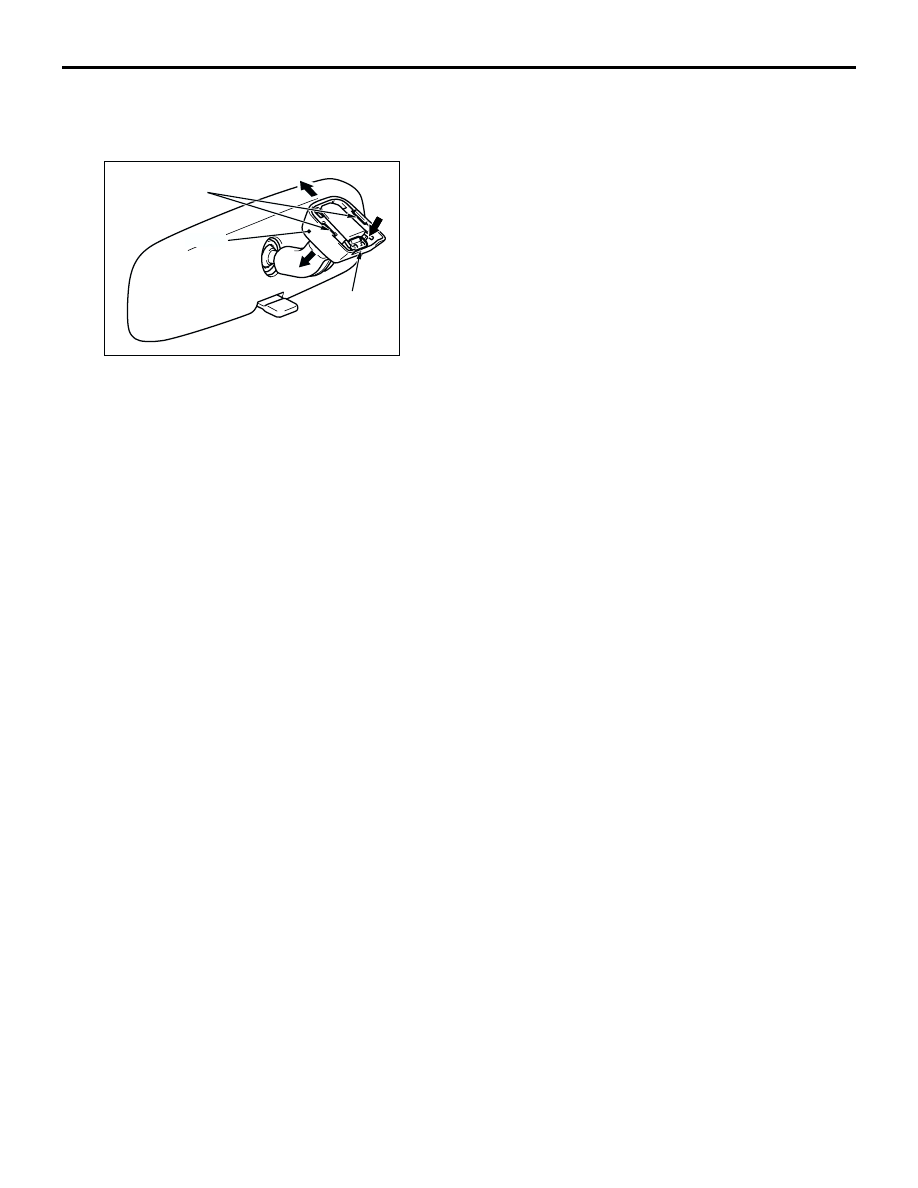

1. Disengage the claw A and lower the cover toward

arrow 1 direction.

2. Push the claw B toward arrow 2 direction to

unlock, and pull out the mirror toward arrow 3
direction.

AC209066

Claw B

Claw A

Cover

1

2

3

AD

FRONT SEAT ASSEMBLY

INTERIOR

52A-29

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001300407

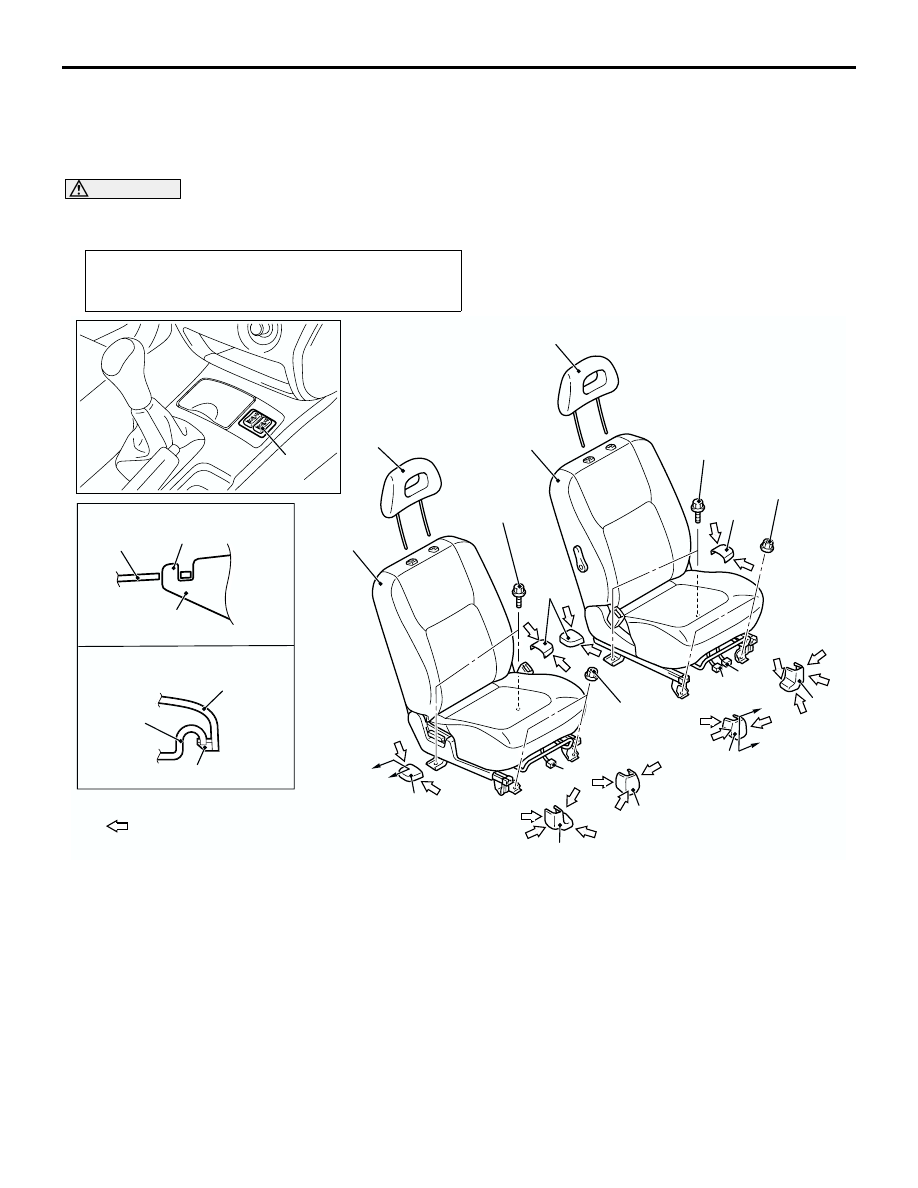

<L.H. DRIVE VEHICLES>

CAUTION

For the removal of the front seat assembly on vehicles with the side air bags, refer to GROUP 52B,
Service Precautions

P.52B-4

 and Air Bag Module and Clock Spring

P.52B-179

.

Pre-removal and Post-installation Operation
Removal and Installation of Rear Floor Console Assembly
(Refer to

P.52A-14

.)

AC301693

NOTE
         : Claw position

Section A – A

Section B – B

Claw

Claw

8

4, 5

3

8

2

3

4

5

5

4

7

3

3

1

1

8

8

44 ± 10 N·m

44 ± 10 N·m

30 ± 5 N·m

30 ± 5 N·m

A

A

B

B

AC

6

6

1.

Headrest

2.

Heated seat switch <Vehicles with
heated seat>
Front seat assembly removal
steps

3.

Front seat anchor cover

4.

Seat anchor cover outer

5.

Seat anchor cover inner

6.

Harness connector <Vehicles with
side-air bag>

7.

Harness connector <Vehicles with
heated seat>

>>A<<

8.

Front seat assembly

Front seat assembly removal
steps (Continued)

FRONT SEAT ASSEMBLY

INTERIOR

52A-30

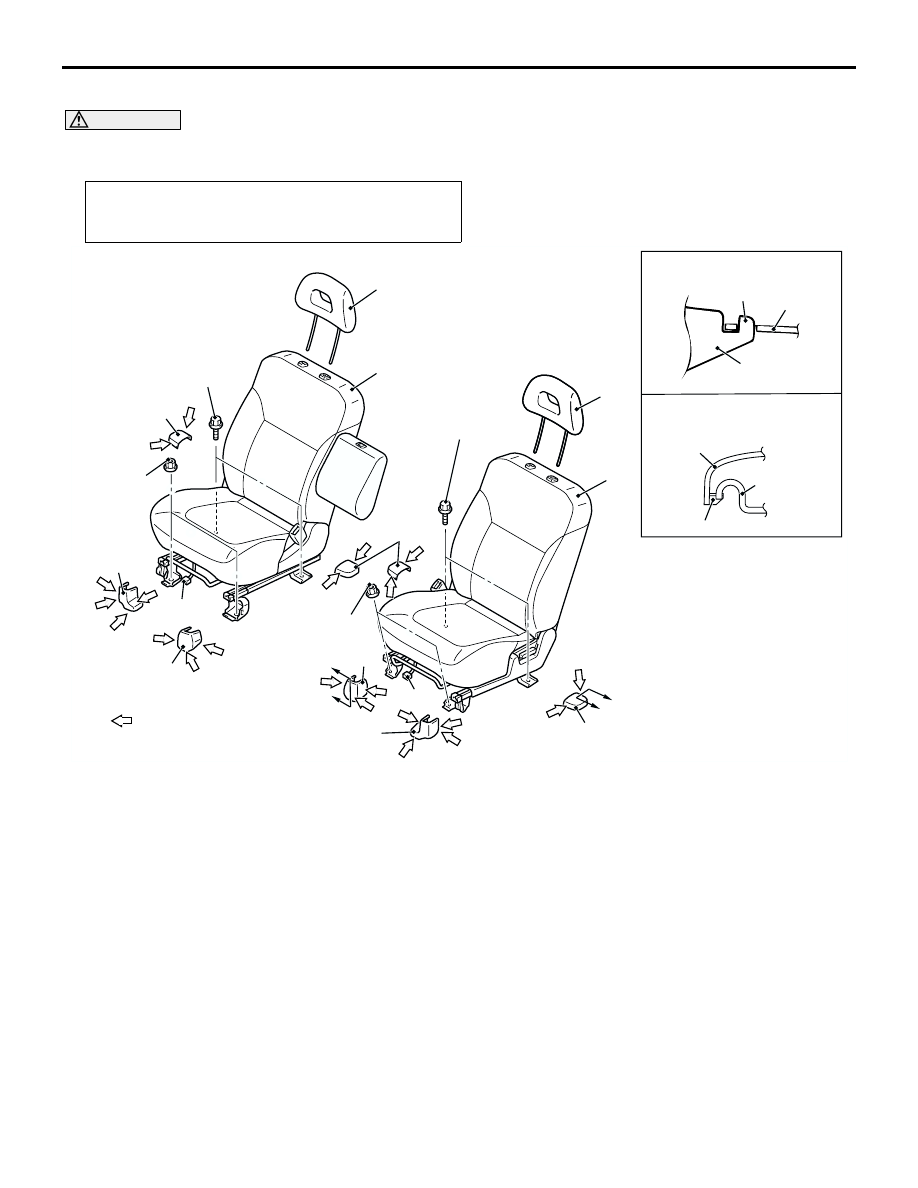

<R.H. DRIVE VEHICLES>

CAUTION

For the removal of the front seat assembly on vehicles with the side air bags, refer to GROUP 52B,
Service Precautions (Refer to

P.52B-4

) and Air Bag Module and Clock Spring (Refer to

P.52B-179

).

Pre-removal and Post-installation Operation
Removal and Installation of Floor Console Assembly (Refer
to

P.52A-14

.)

AC309222 AB

1

1

6

6

2

2

2

3

4

4

5

3

30 ± 5 N·m

44 ± 10 N·m

30 ± 5 N·m

44 ± 10 N·m

Section



A – A

Section



B – B

Claw

3, 4

6

2

6

A

A

B

B

Claw

NOTE
         : Claw Position

5

1.

Head restraint
Front seat assembly removal
steps

2.

Front seat anchor cover

3.

Seat anchor cover outer

4.

Seat anchor cover inner

5.

Harness connector <Vehicles with
side-air bag>

>>A<<

6.

Front seat assembly

Front seat assembly removal
steps (Continued)
