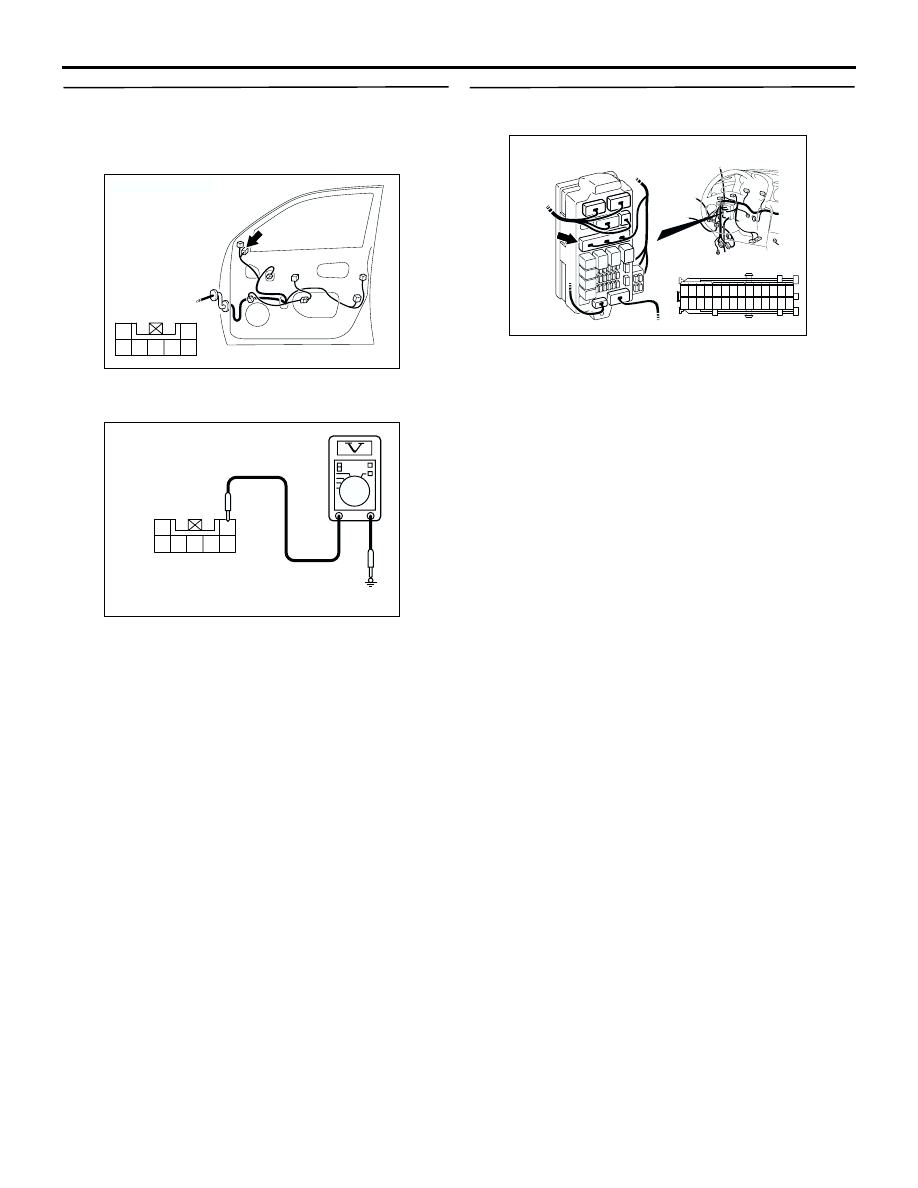

STEP 3. Connector check: E-16 door mirror
assembly (RH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

STEP 4. Measure the resistance at the E-16 door
mirror assembly (RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-16 door mirror assembly

connector terminal No.2 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between E-16
door mirror assembly (LH) connector terminal
No.2 and body earth.

•

Check the earth wires for open circuit.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15, and repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC301412

Connector: E-16

E-16

Harness side

AE

2
7 6

1
3

5 4

AC301412

Connector: E-16

E-16

Harness side

AE

2
7 6

1
3

5 4

AC301694

2
7 6

1
3

5 4

Connector E-16
(harness side)

AC

AC301412

Connector: E-16

E-16

Harness side

AE

2
7 6

1
3

5 4

AC301397

Connector: C-15

AD

C-15(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

DOOR MIRROR

EXTERIOR

51-52

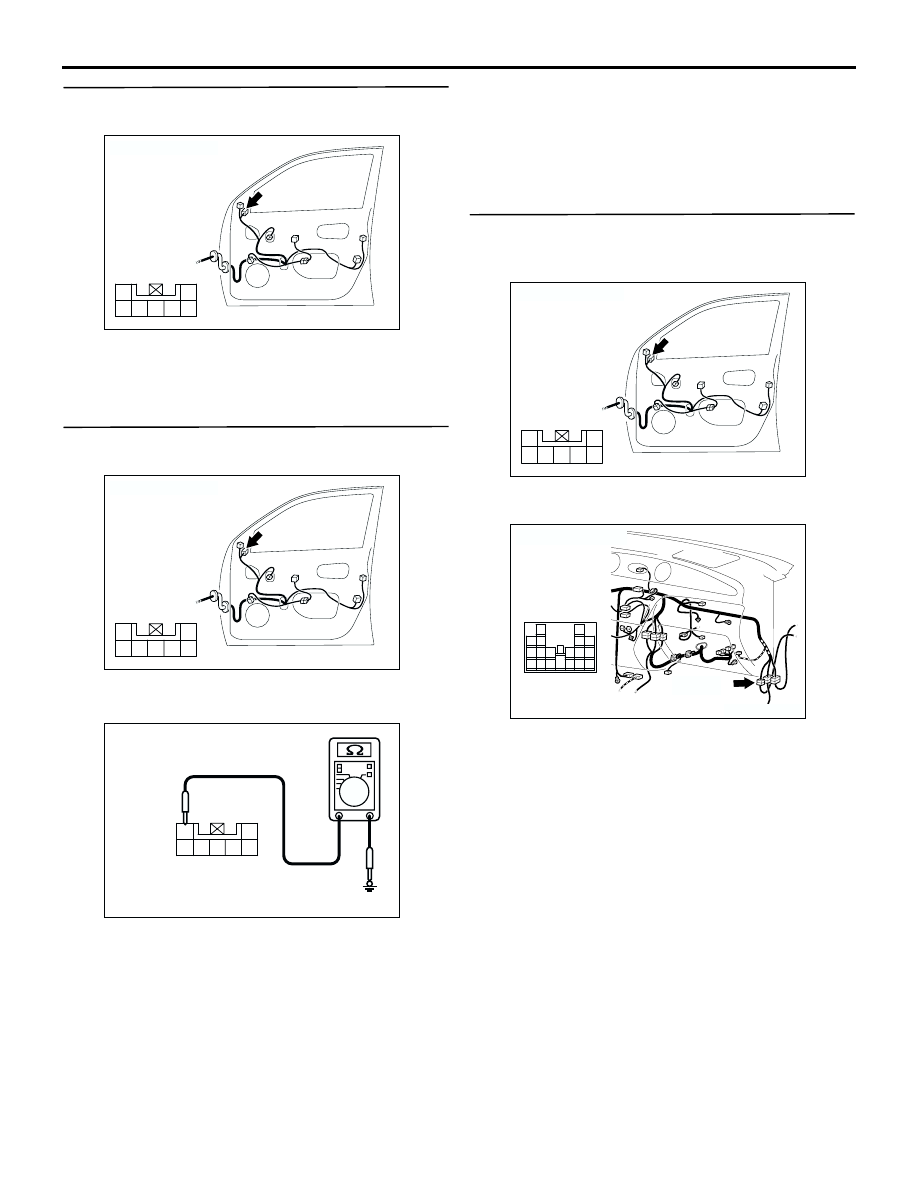

STEP 6. Measure the voltage at the E-16 door
mirror assembly (RH) connector.
(1) Turn the ignition switch to the ON position.
(2) Defogger switch: ON

(3) Disconnect the connector, and measure at the

wiring harness side.

(4) Voltage between E-16 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Go to Step 7.

STEP 7. Connector check: C-205 junction block
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

AC301412

Connector: E-16

E-16

Harness side

AE

2
7 6

1
3

5 4

2
7 6

1
3

5 4

AC301695

Connector E-16
(harness side)

AB

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

DOOR MIRROR

EXTERIOR

51-53

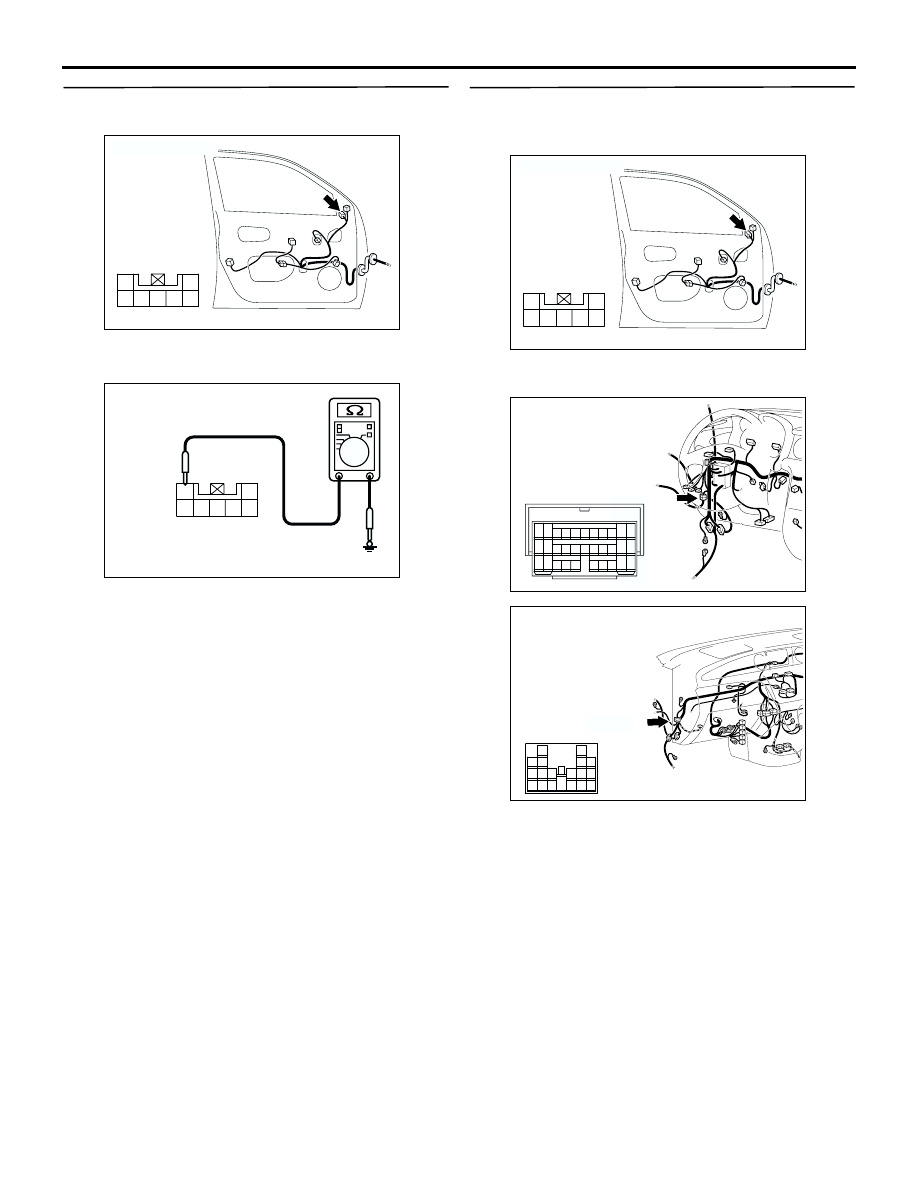

STEP 8. Check the wiring harness between E-16
door mirror assembly (RH) connector terminal
No.1 and C-205 junction block connector
terminal No.3.

•

Check the power supply line for open circuit.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15, and repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Repair the wiring harness.

STEP 9. Connector check: E-06 door mirror
assembly (LH) connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

STEP 10. Check the door mirror assembly (LH).

Check that the heater element of the door mirror
assembly (LH) is in good condition (Refer to the
heated door mirror check

P.51-48

).

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Replace the door mirror assembly (LH).

AC301412

Connector: E-16

E-16

Harness side

AE

2
7 6

1
3

5 4

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

AC301397

Connector: C-15

AD

C-15(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC301418

Connector: E-06

E-06

Harness side

AE

2
7 6

1
3

5 4

DOOR MIRROR

EXTERIOR

51-54

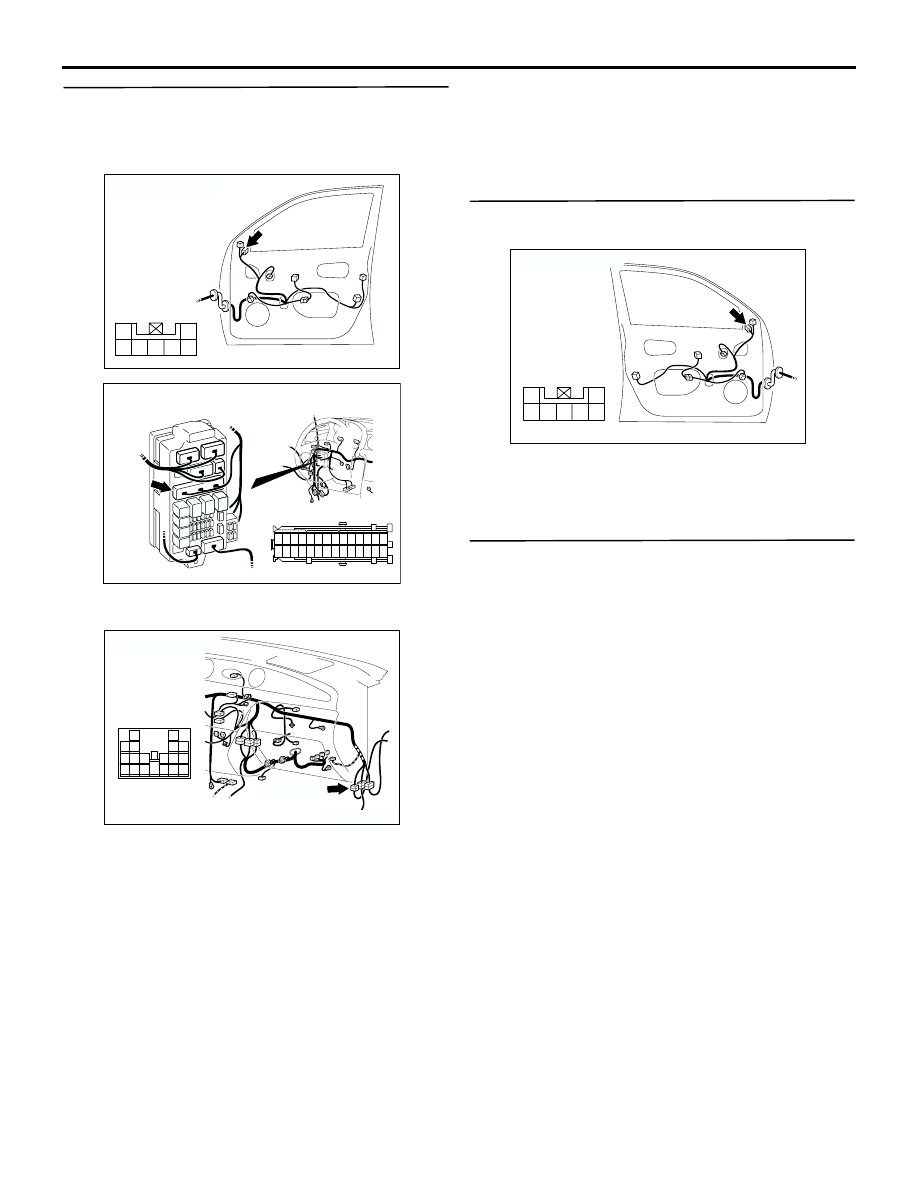

STEP 11. Measure the resistance at the E-06 door
mirror assembly (LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-06 door mirror assembly

connector terminal No.2 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Go to Step 12.

STEP 12. Check the wiring harness between E-06
door mirror assembly (LH) connector terminal
No.2 and body earth.

•

Check the earth wires for open circuit.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-118 <L.H. driver vehicles>
and C-34 <R.H. driver vehicles>, and repair if
necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC301418

Connector: E-06

E-06

Harness side

AE

2
7 6

1
3

5 4

AC301694

2
7 6

1
3

5 4

Connector E-06
(harness side)

AB

AC301418

Connector: E-06

E-06

Harness side

AE

2
7 6

1
3

5 4

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

AC308735

Connector: C-34
<RHD>

AG

C-34(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2
