Mitsubishi Outlander (2003+). Manual - part 334

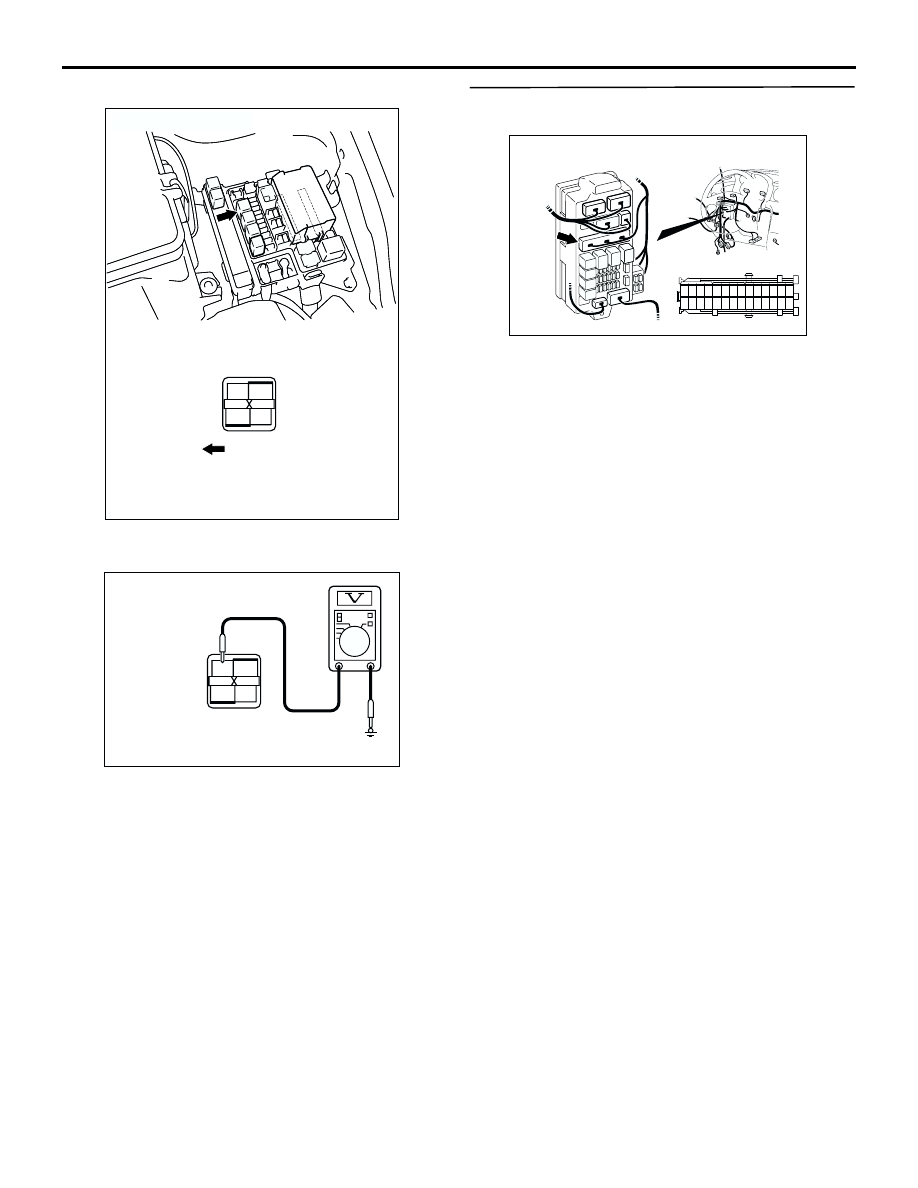

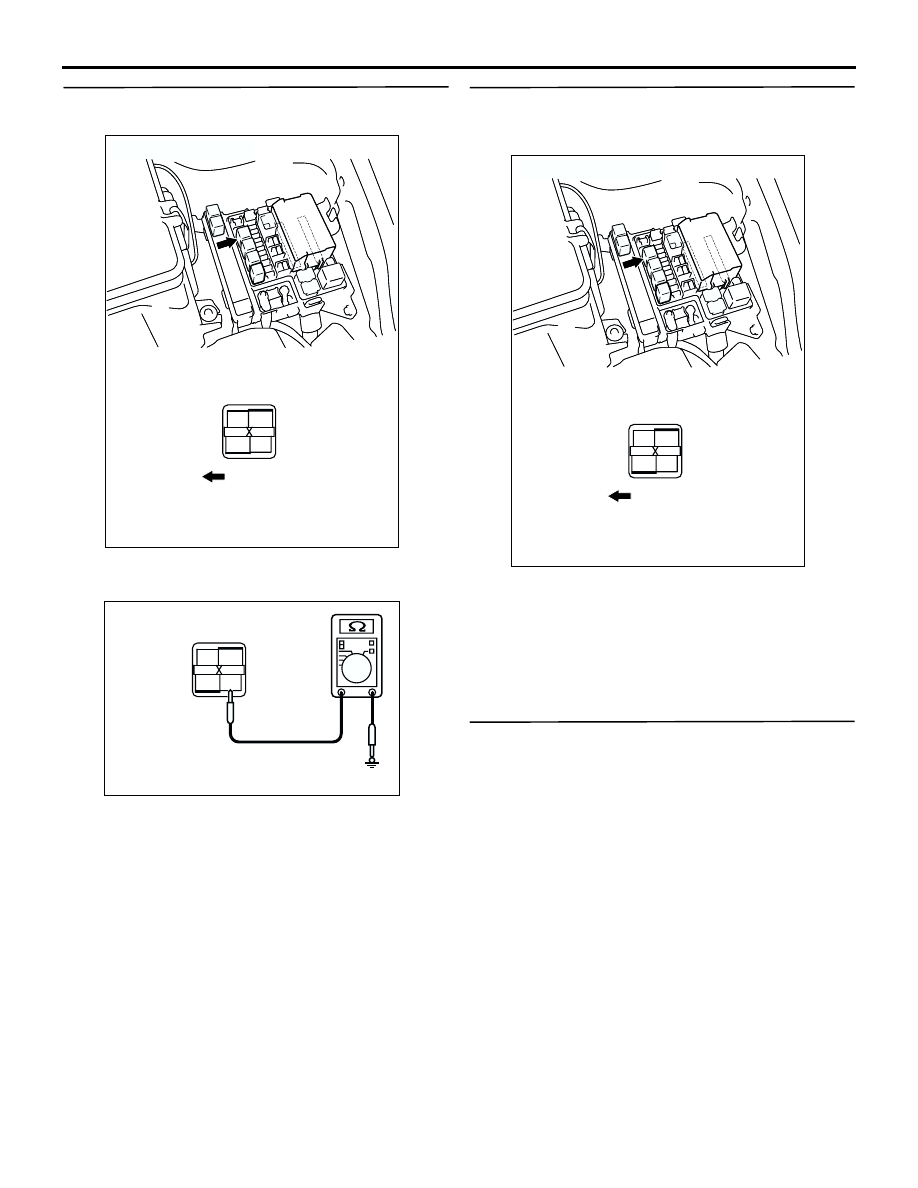

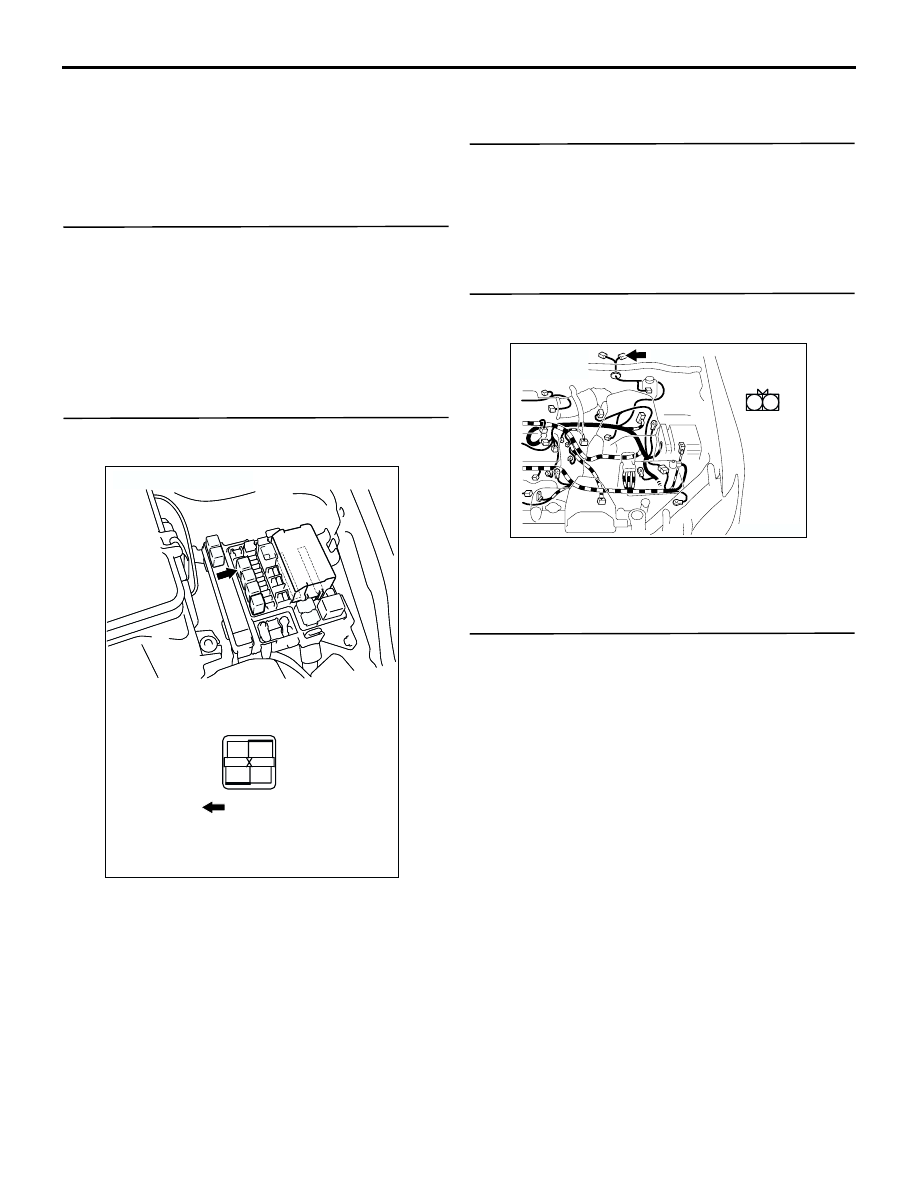

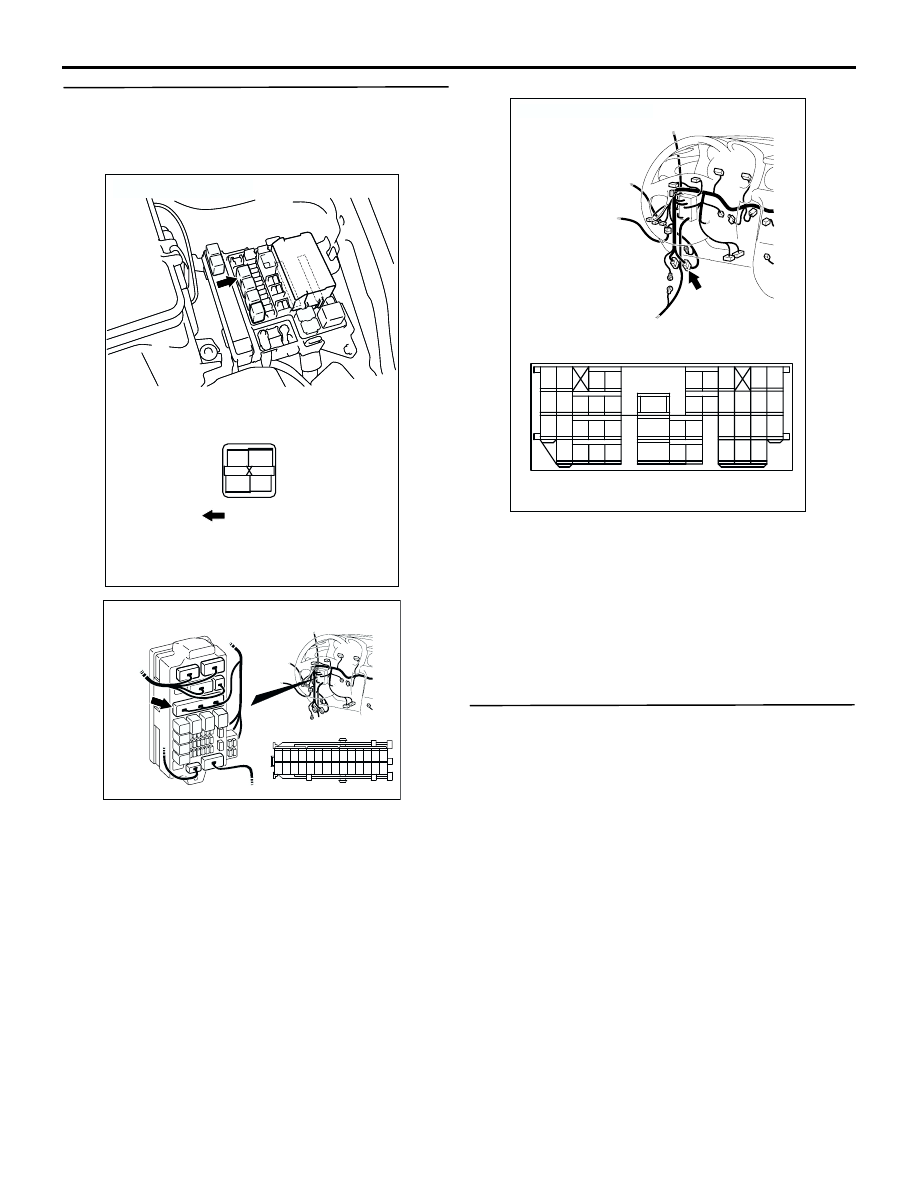

WIPER DEICER

EXTERIOR

51-35

POSSIBLE CAUSES

•

Malfunction of the wiper deicer

•

Malfunction of the wiper deicer relay

•

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the defogger.

Check that the rear defogger works normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the rear defogger (Refer to
GROUP 55A

−

 Trouble symptom chart

P.55A-4

 or GROUP 55B

−

 Trouble symptom

chart

P.55B-28

).

STEP 2. Connector check: A-08X wiper deicer
relay connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Check the wiper deicer relay.

Check that the wiper deicer relay works normally
(Refer to wiper deicer relay check

P.51-43

).

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the wiper deicer relay.

STEP 4. Connector check: B-32 wiper deicer
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

STEP 5. Check the wiper deicer.

Check that the wiper deicer works normally (Refer to
wiper deicer check

P.51-43

).

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the wiper deicer.

AC301483AH

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-08X

AC301521

Connector:
B-32

B-32(B)

B-32

Harness side

AE

2 1

WIPER DEICER

EXTERIOR

51-36

STEP 6. Measure the resistance at the A-08X
wiper deicer relay connector.

(1) Disconnect the connector, and measure at the

relay box side.

(2) Resistance between A-08X wiper deicer relay

connector terminal No.3 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 8.

NO : .

Go to Step 7.

STEP 7. Check the wiring harness between A-08X
wiper deicer relay connector terminal No.3 and
body earth.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

STEP 8. Measure the voltage at the A-08X wiper
deicer relay connector.
(1) Turn the ignition switch to the ON position.

AC301483AH

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-08X

1

3

2

4

AC301834 AB

Connector A-08X
(relay box side)

AC301483AH

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-08X

WIPER DEICER

EXTERIOR

51-37

(2) Defogger switch: ON

(3) Disconnect the connector, and measure at the

relay box side.

(4) Voltage between A-08X wiper deicer relay

connector terminal No.2 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 9.

STEP 9. Connector check: C-205 junction block
connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

AC301483AH

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-08X

1

3

2

4

AC301835 AB

Connector A-08X
(relay box side)

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

WIPER DEICER

EXTERIOR

51-38

STEP 10. Check the wiring harness between
A-08X wiper deicer relay connector terminal No.2
and C-205 junction block connector terminal
No.3.

•

Check the power supply line for open circuit.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-116, and repair if
necessary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

STEP 11. Measure the voltage at B-32 wiper
deicer connector.
(1) Turn the ignition switch to the ON position.

AC301483AH

1

3

2

4

Front of
vehicle

Relay box side

Connector: A-08X

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

AC301396

Connector: C-116

AB

C-116

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22
