Mitsubishi Outlander (2003+). Manual - part 333





REAR WIPER AND WASHER

EXTERIOR

51-31

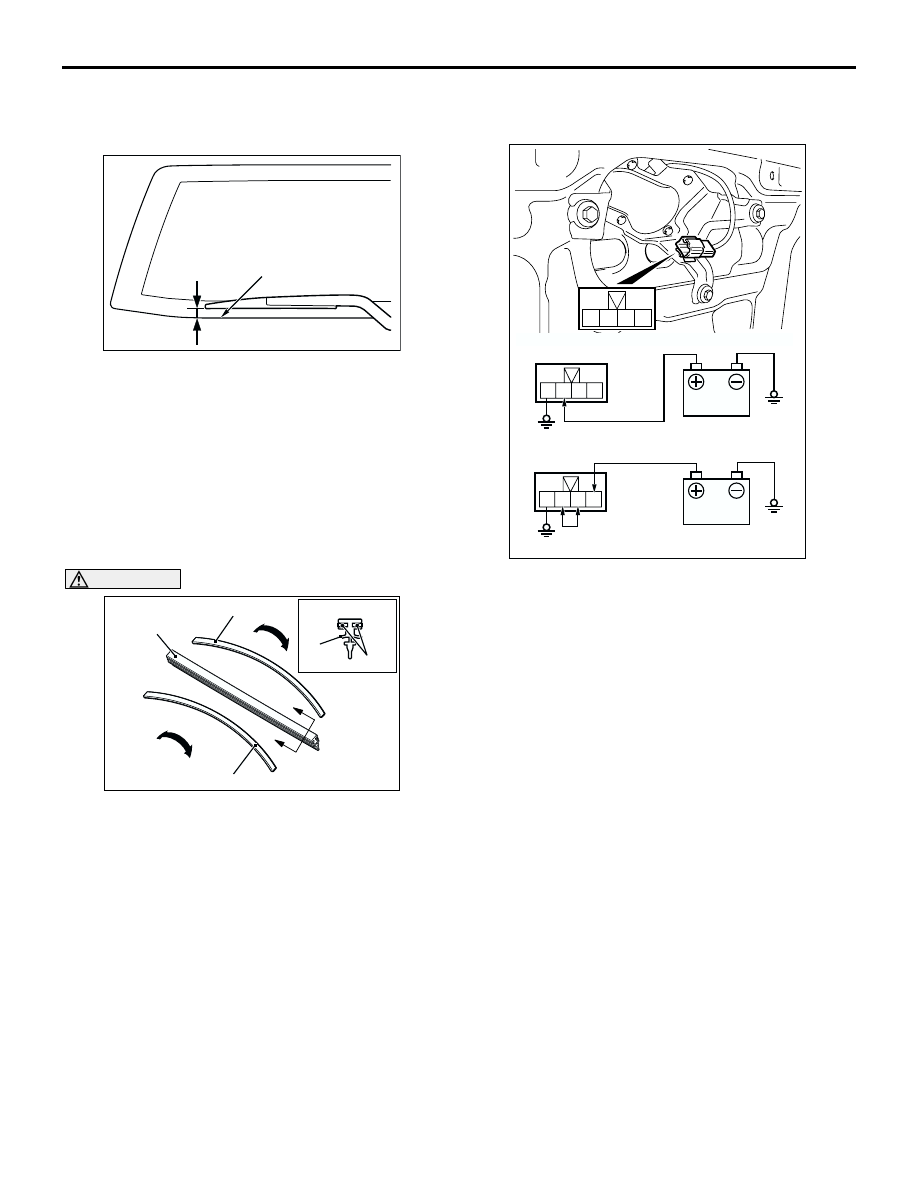

INSTALLATION SERVICE POINTS

>>A<< REAR WIPER ARM AND BLADE
ASSEMBLY INSTALLATION

Before installing the rear wiper arm and blade
assembly, operate the rear wiper motor so that the
motor stops at the predetermined park position.
Install the rear wipe arm and blade assembly and
adjust the rear wiper blade position so that the blade
end stops at the predetermined position (standard
position).

Standard value: (A) 30

±

 5 mm

>>B<< WIPER BLADE INSTALLATION

CAUTION

Use a curved backing like that shown for the
backing of a wiper blade to ensure sustained
wiper wiping performance.

INSPECTION

M1511008600223

REAR WIPER MOTOR CHECK

Inspect the rear wiper motor by removing the
harness connector with the motor attached to the
vehicle.

Wiper motor operation
Connect the battery to the rear wiper motor as shown
in the illustration (A) and check the motor operation.

Wiper motor at stop position operation
1. Connect the battery to the rear wiper motor as

shown in the illustration (A).

2. Disconnect the battery cable from the rear wiper

motor while it is turning and then check to see that
the motor stops.

3. Re-connect the battery as shown in Figure (B).
4. Check to see that the rear wiper motor runs and

then stops at the automatic stop position.

AC309422

End of tailgate glass

AB

A

AC101090

AD

Wiper blade

Backing

Backing

A

A

Section A – A

Wiper
blade

Backing

1

2

3

4

AC103246

1 2 3 4

1 2 3 4

AC

(A) Operation check

(B) Stop position check

REAR WIPER AND WASHER

EXTERIOR

51-32

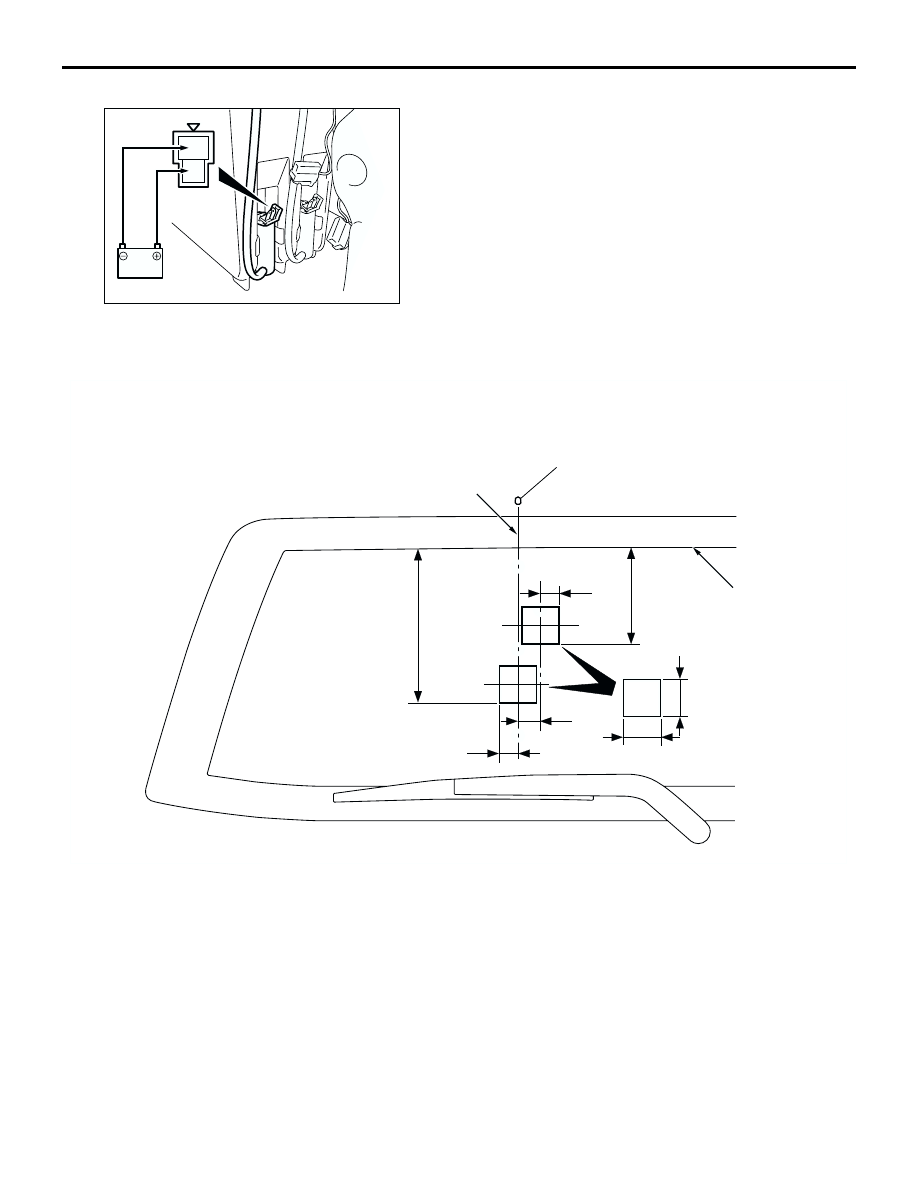

REAR WASHER MOTOR CHECK

1. Remove the rear washer tank assembly with the

washer hose attached. Then fill the washer tank
with water.

2. Check to see that the water is vigorously sprayed

when connecting the positive battery terminal to
terminal number 2 and terminal number 1 to the
negative battery terminal.

REAR WASHER FLUID EJECTION CHECK
Move the nozzle to adjust the position so that the
spray is in the area shown in the illustration.

1

2

AC107605 AC

AC100520

Rear washer nozzle

perpendicular

Units: mm

210

Ceramic line

terminal

Rear washer

nozzle

25

130

50

30

25

50

AC

WIPER DEICER

EXTERIOR

51-33

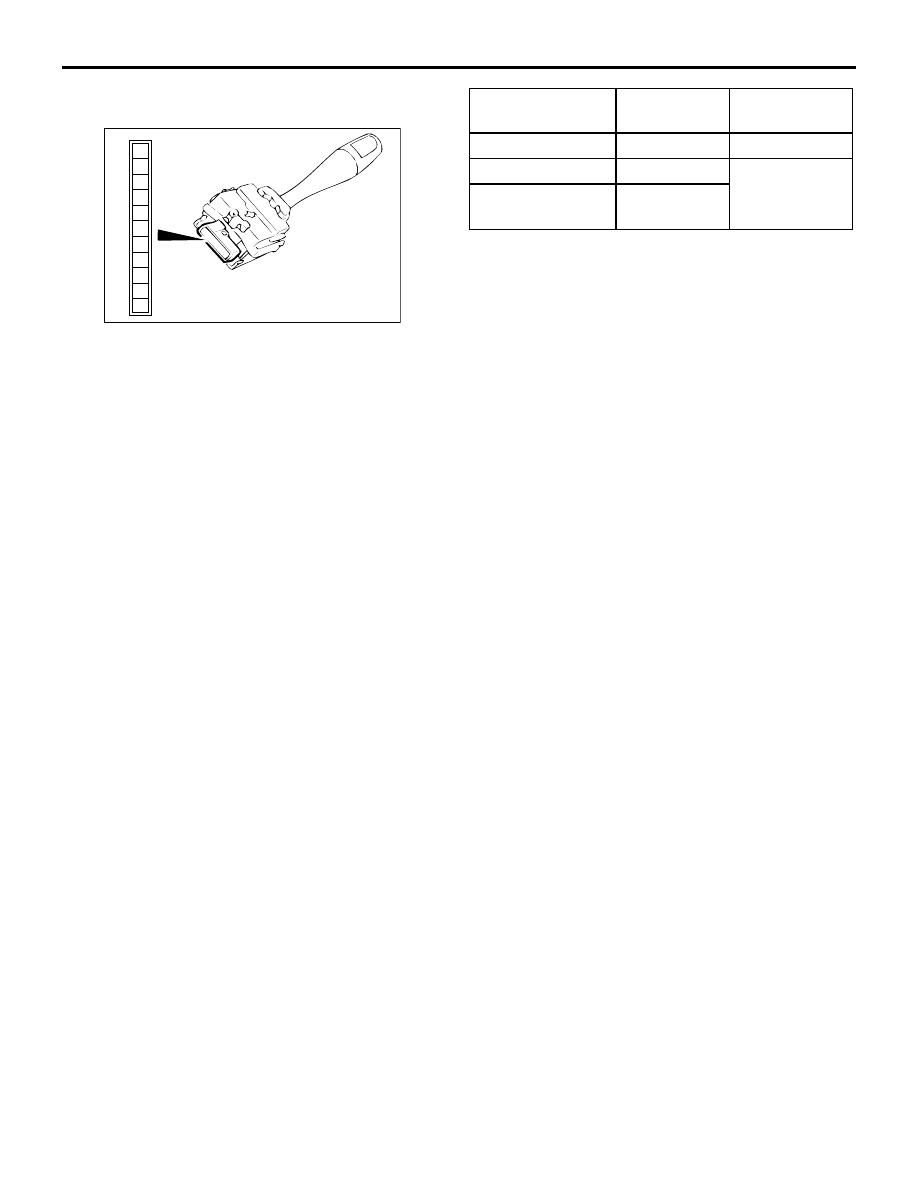

REAR WIPER AND WASHER SWITCH CHECK
<L.H.DRIVE VEHICLE>

Check continuity between the switch terminals.

 <R.H.DRIVE VEHICLE>
NOTE: The rear wiper and washer switch is
integrated in the column-ECU, so can not be
checked as an individual part. However, its operation
can be checked by the input signal check.

.

For 2400 (not using SWS monitor): GROUP 54B,
SWS Diagnosis

P.54B-15

.

For 2400 (using SWS monitor): GROUP 54C,
SWS Diagnosis

P.54C-29

.

WIPER DEICER

GENERAL INFORMATION

M1511000100688

Wiper Deicer operation
The defogger relay switch is activated (ON) by
turning on the A/C-ECU built-in defogger switch
when the ignition switch is in the "ON" position.
When the defogger relay is turned ON, power is
supplied to the rear defogger and wiper deicer, and
the heater of the wiper deicer starts operations. The
defogger comes with a timer function and will

automatically turn OFF the switch approximately 11
minutes <manual A/C> or 20 minutes <automatic
A/C> after the defogger switch is turned ON. The
wiper deicer operations are also terminated along
with the rear defogger, at this time.

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1511014600095

Refer to GROUP 00

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

.

1

6

8

11

10

9

7

5

4

3

2

AC000417

Switch position

Tester
connection

Specified
condition

OFF

 6, 5

 6

Open circuit

Rear wiper switch 4

 6

Less than 2
ohms

Rear washer
switch

 6

WIPER DEICER

EXTERIOR

51-34

SYMPTOM PROCEDURES

INSPECTION PROCEDURE : Wiper Deicer Does not Operate

COMMENTS ON TROUBLE SYMPTOM
The wiper deicer should work for approximately 11
minutes <manual A/C> or 20 minutes <automatic
A/C> when the rear defogger switch is turned on. If
the wiper deicer does not work for the specified
period, the defogger relay circuit and the power

supply and/or earth circuit to the wiper deicer may be
defective. The wiper deicer itself or its relay may be
also defective.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

RELAY
BOX

WIPER
DEICER
RELAY

WIPER
DEICER

DEFOGGER
RELAY

DEFOGGER

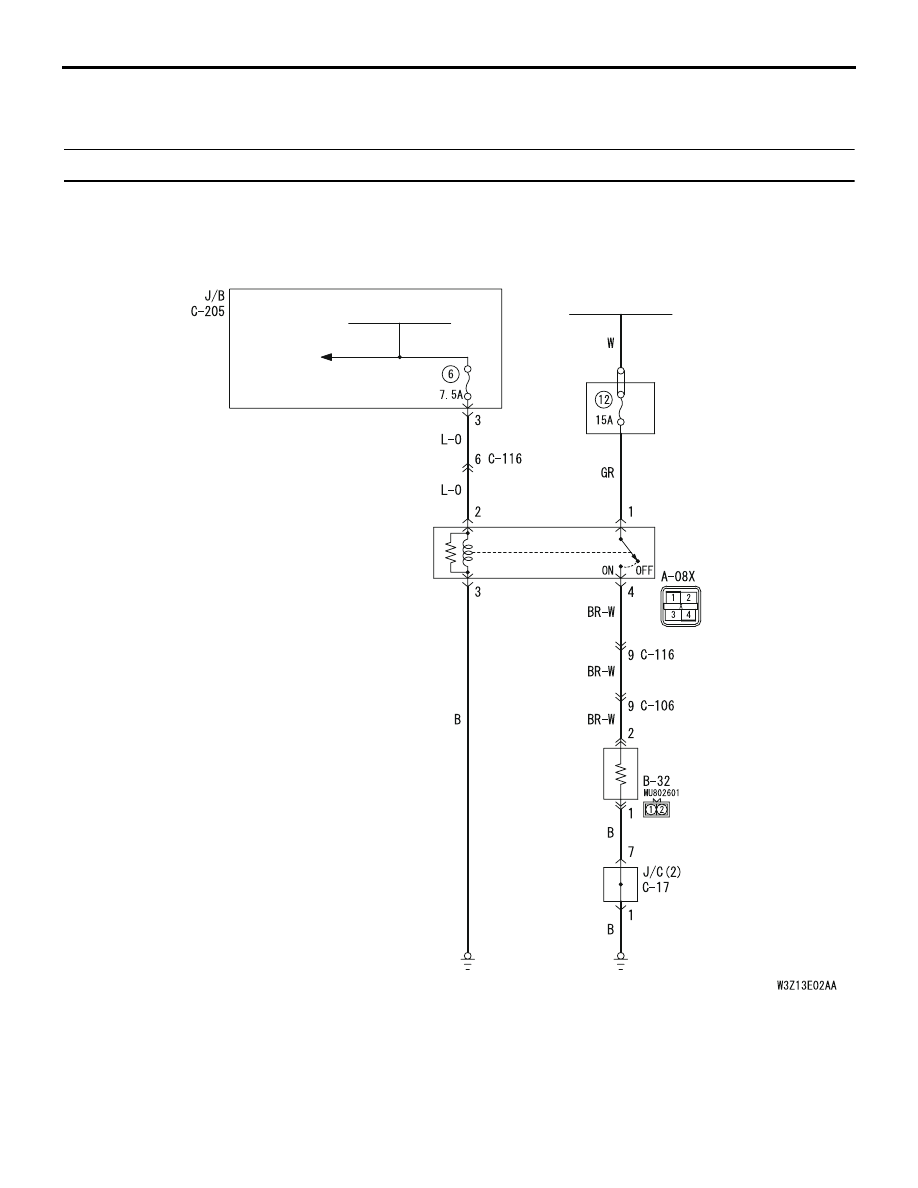

Wiper deicer Circuit
