TRANSMISSION MOUNTING <M/T>

POWER PLANT MOUNT

32-7

INSTALLATION SERVICE POINT

>>A<< TRANSMISSION MOUNTING STOPPER
INSTALLATION

Install the transmission mounting stopper so that its
arrow points upward.

INSPECTION

M1321001500169

•

Check the transmission mounting body side
bracket insulator for cracks, separation or
deformation.

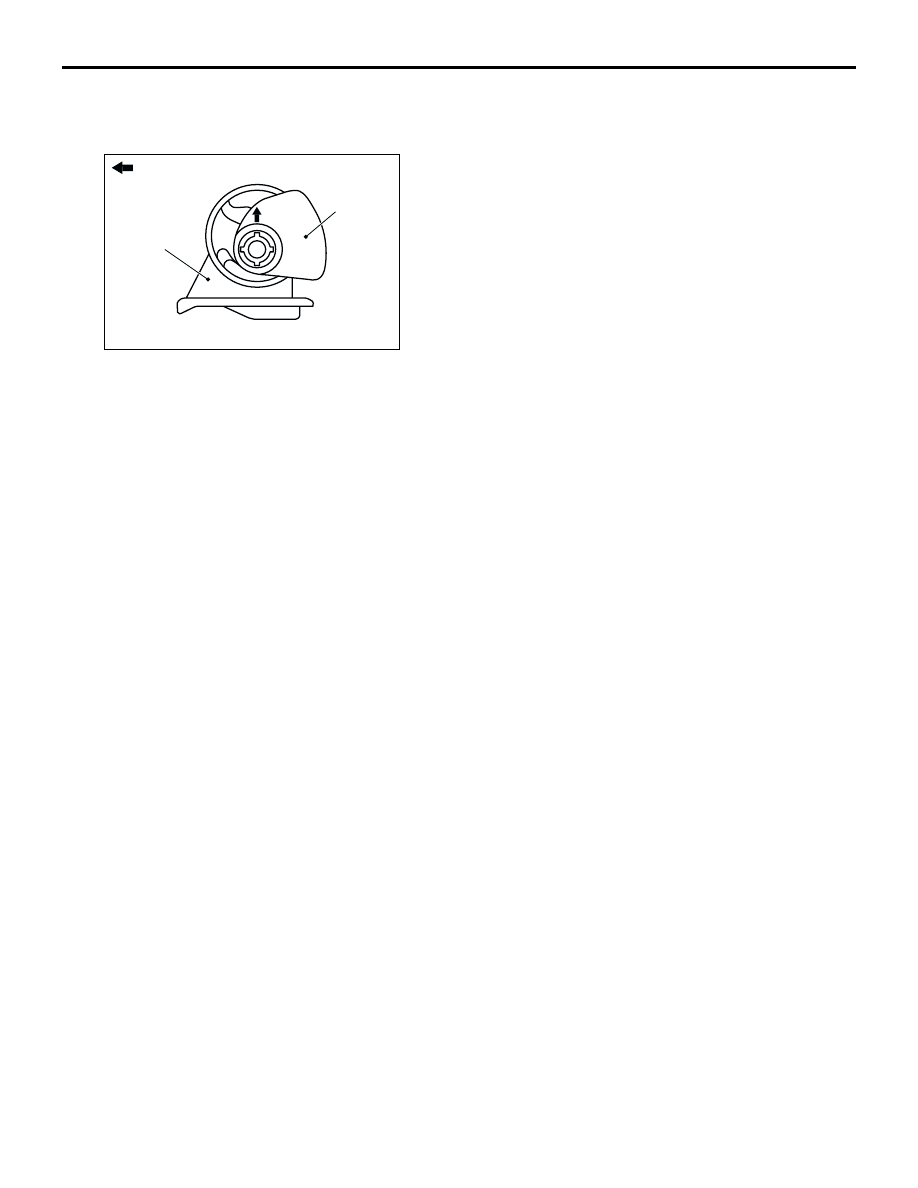

AC200645 AF

Engine side

Transmission
mounting body
side bracket

Transmission
mounting
stopper

TRANSMISSION MOUNTING <A/T>

POWER PLANT MOUNT

32-8

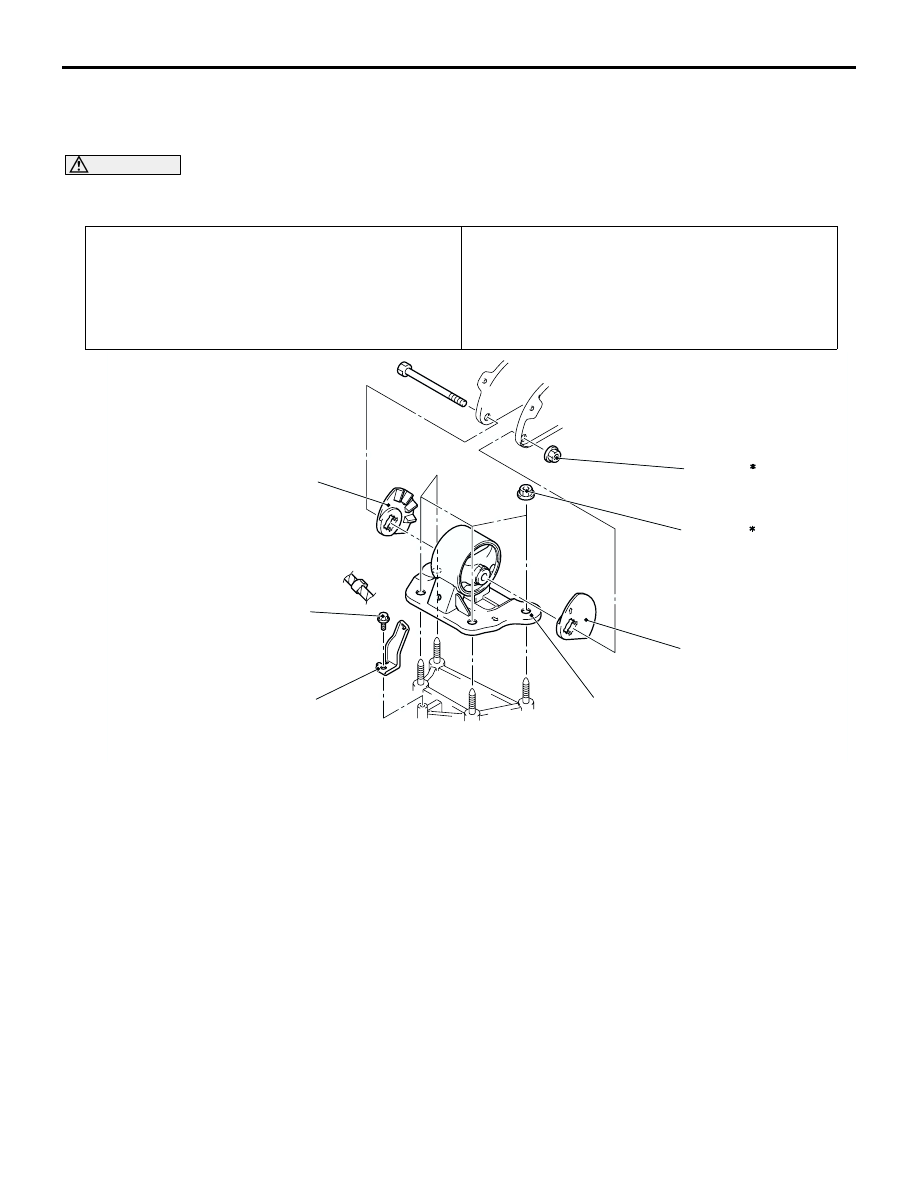

TRANSMISSION MOUNTING <A/T>

REMOVAL AND INSTALLATION

M1321001400496

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation

•

Raise the engine and transmission assembly until its
weight is not applied to the insulator, and support it

securely.

•

Battery and Battery Tray Removal.

•

Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-4

).

Post-installation Operation

•

Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-4

).

•

Battery and Battery Tray Installation.

AC107606

1

2

3

3

23 ± 3 N·m

47 ± 7 N·m

82 ± 7 N·m

AC

Removal steps

1.

Control wiring harness bracket

2.

Transmission mounting body side
bracket

>>A<<

3.

Transmission mounting stopper

Removal steps (Continued)

TRANSMISSION MOUNTING <A/T>

POWER PLANT MOUNT

32-9

INSTALLATION SERVICE POINT

>>A<< TRANSMISSION MOUNTING STOPPER
INSTALLATION

Install the transmission mounting stopper so that its
arrow points upward.

INSPECTION

M1321001500170

•

Check the transmission mounting body side
bracket insulator for cracks, separation or
deformation.

AC200645 AF

Engine side

Transmission
mounting body
side bracket

Transmission
mounting
stopper

ENGINE ROLL STOPPER, CENTREMEMBER <4G63>

POWER PLANT MOUNT

32-10

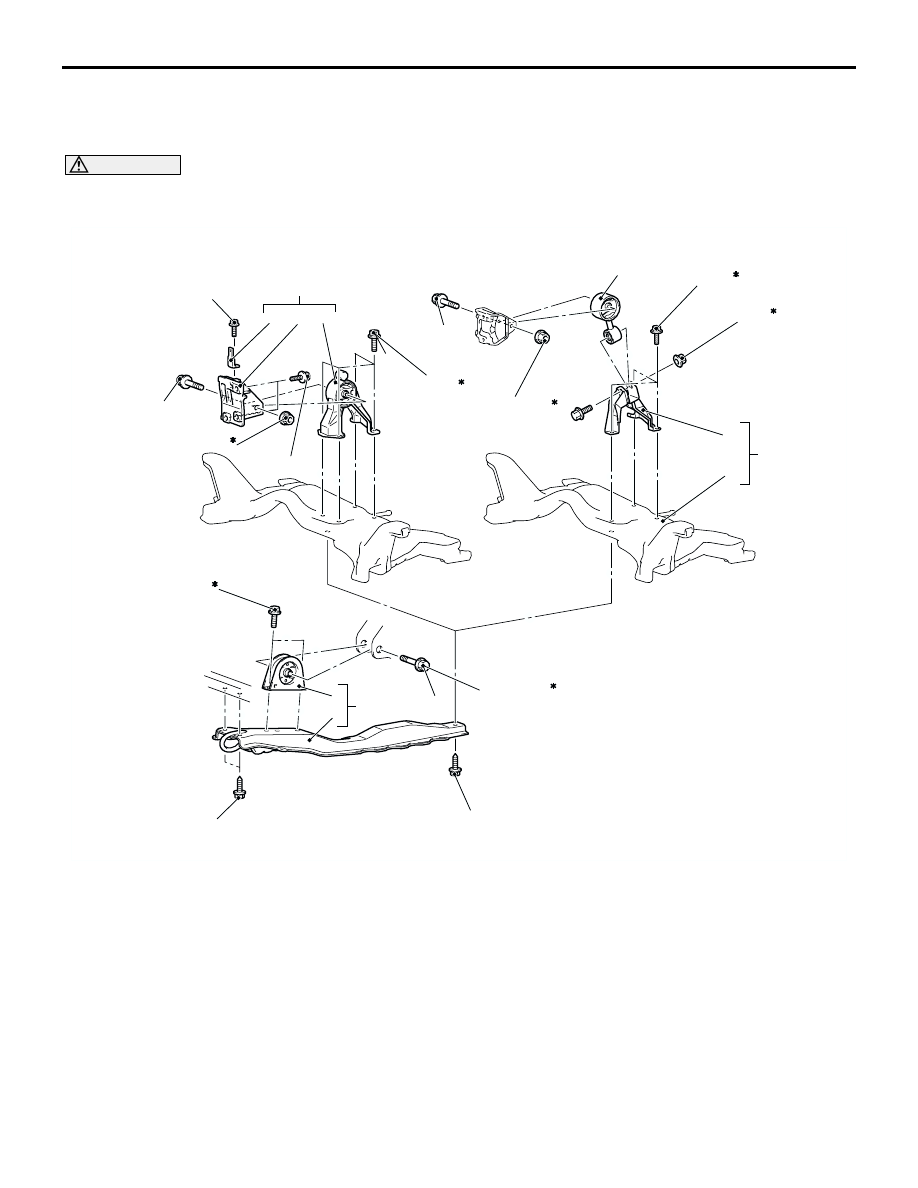

ENGINE ROLL STOPPER, CENTREMEMBER <4G63>

REMOVAL AND INSTALLATION

M1321002300339

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

AC309561

11 ± 1 N·m

45 ± 5 N·m

70 ± 10 N·m

52 ± 7 N·m

5

9

8

7

<2WD>

6

10

45 ± 5 N·m

52 ± 7 N·m

52 ± 7 N·m

11

<4WD>

45 ± 5 N·m

52 ± 7 N·m

3

4

1

2

69 ± 10 N·m

69 ± 10 N·m

AB

5

14

13

12

Engine roll stopper bracket and
centremember removal steps

•

Under cover (Refer to GROUP 51,
Under cover

P.51-19

).

1.

Engine roll stopper bracket
connecting bolt

2.

Centremember and engine roll
stopper bracket assembly

3.

Centremember

>>A<<

4.

Engine roll stopper bracket

Engine rear roll stopper bracket
removal steps <2WD>

5.

Engine rear roll stopper bracket
connecting bolt

6.

Engine rear roll stopper bracket
mounting bolt

7.

Engine rear roll stopper bracket
and mount bracket assembly

8.

Clamp bracket

9.

Rear roll mount bracket

10. Engine rear roll stopper bracket
