TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-123

STEP 17. Connector check: C-105 intermediate
connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the defective connector.

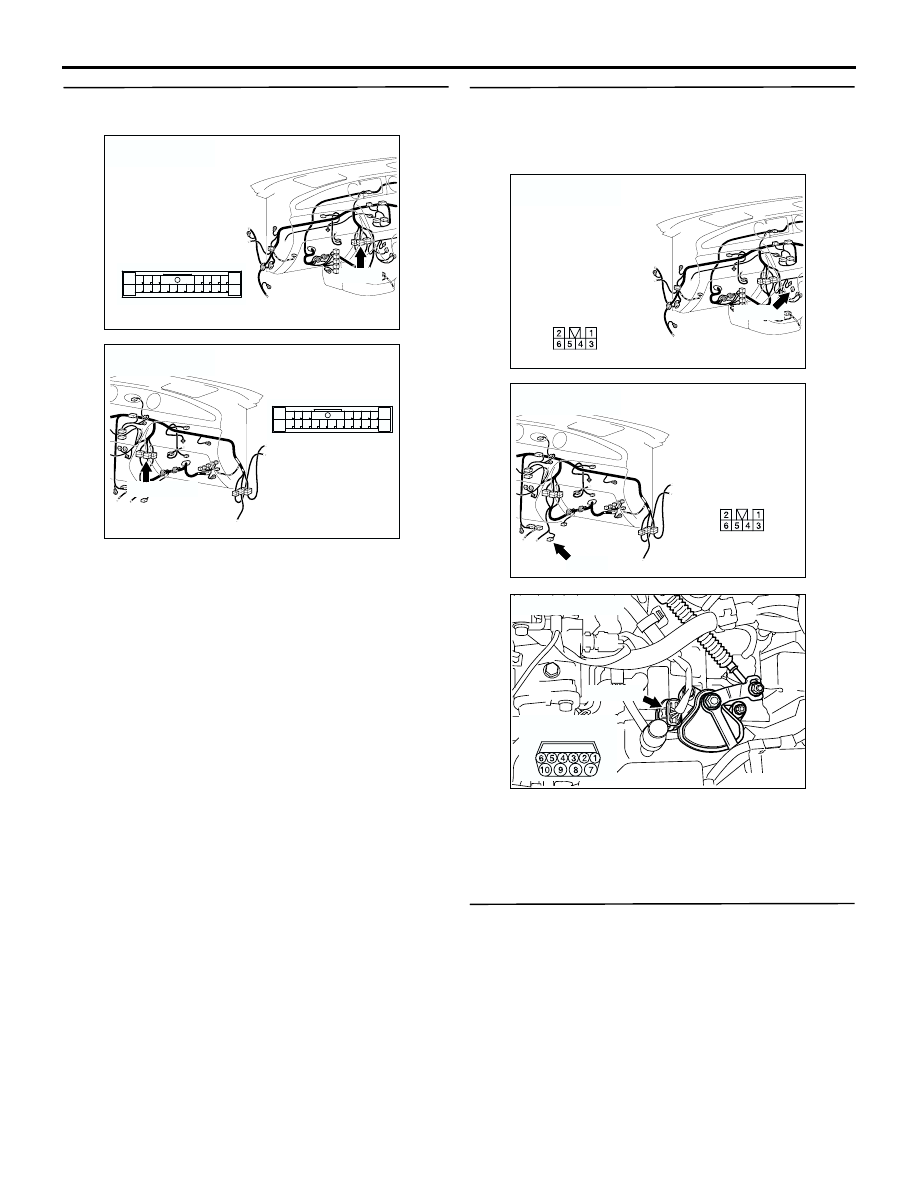

STEP 18. Check the harness between shift switch
assembly connector C-129 <RHD>, C-143 <LHD>
terminal No.1 and inhibitor switch connector
B-35 terminal No.1.

Check the power supply line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the wiring harness.

STEP 19. Check the shift switch assembly.

Refer to

P.23A-167

 <RHD> or

P.23A-166

 <LHD>.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Replace the shift switch assembly.

AC308735

AW

C-105

Connector: C-105
<RHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

AC308718

AR

C-105

Connector: C-105
<LHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-124

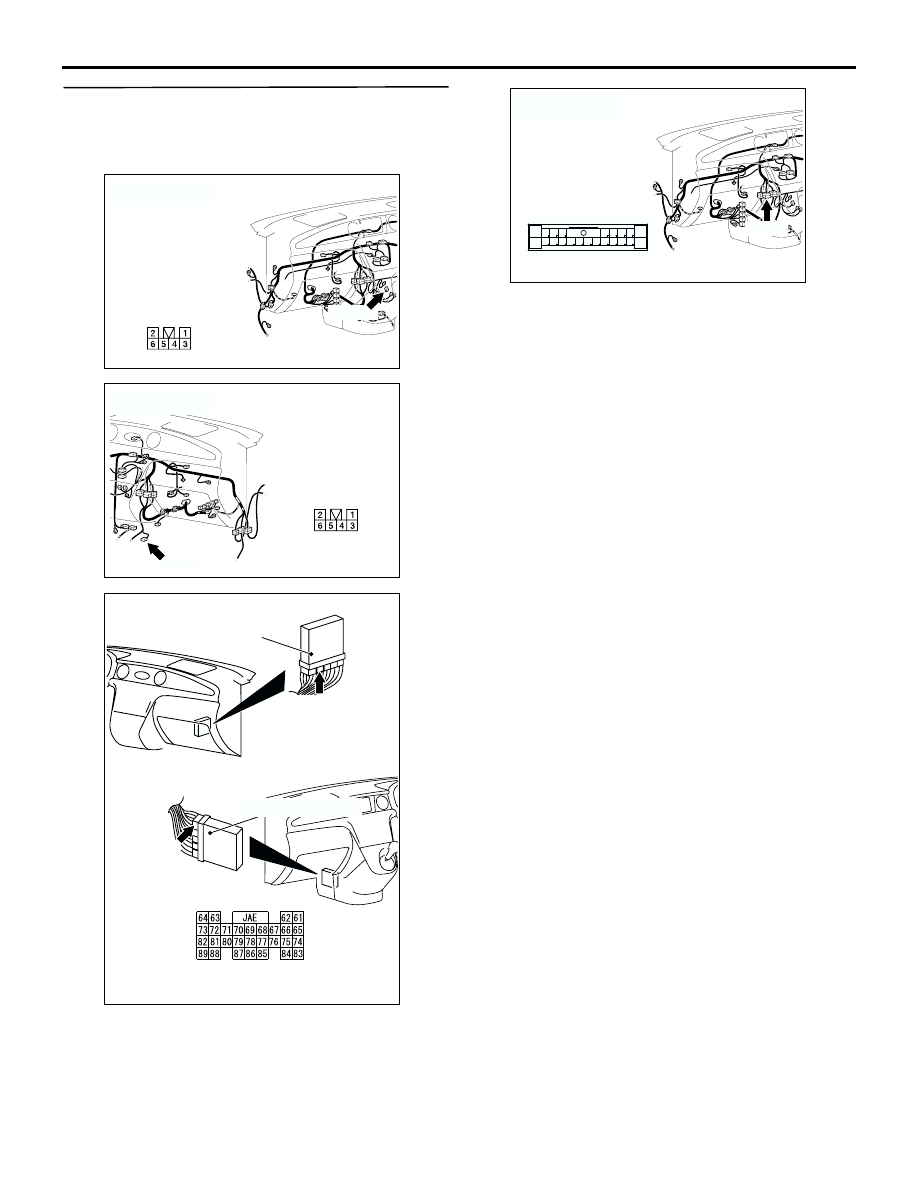

STEP 20. Connectors check: C-129 <RHD>, C-143
<LHD> shift switch assembly connector, C-141
engine-A/T-ECU connector, C-105 intermediate
connector <RHD>

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair the defective connector.

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC308735

AW

C-105

Connector: C-105
<RHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-125

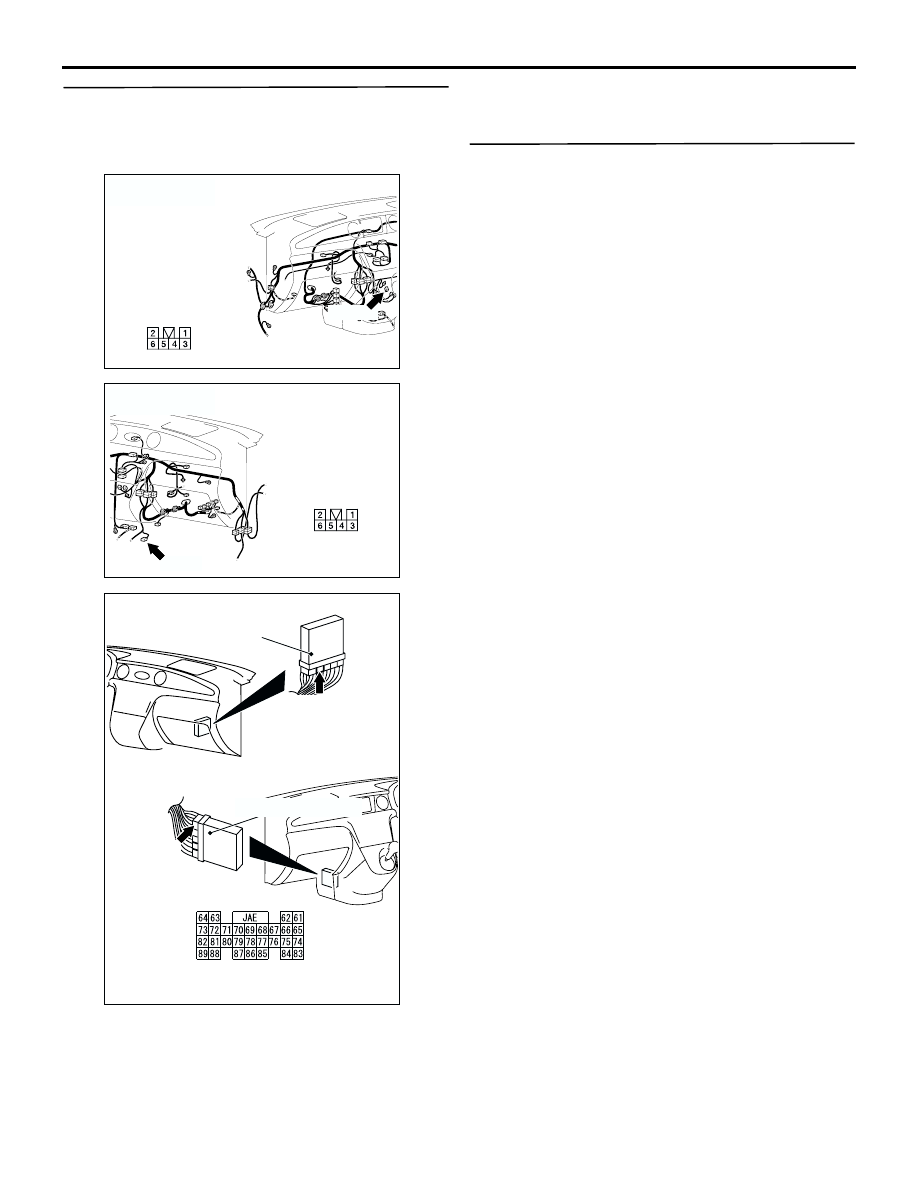

STEP 21. Check the harness between shift switch
assembly connector C-129 <RHD>, C-143 <LHD>
terminal No.6 and engine-A/T-ECU connector
C-141 terminal No.77.

Check the output line for short-circuited or open
circuit.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the wiring harness.

STEP 22. Check the shift switch assembly.

Refer to

P.23A-167

 <RHD> or

P.23A-166

 <LHD>.

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Replace the shift switch assembly.

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-126

STEP 23. Connectors check: C-129 <RHD>, C-143
<LHD> shift switch assembly connector, C-141
engine-A/T-ECU connector, C-105 intermediate
connector <RHD>

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Repair the defective connector.

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

AC309479 AE

Connector: C-141 <LHD>

Connector: C-141 <RHD>

Engine-A/T-ECU

Harness side

Engine-A/T-ECU

C-141 (GR)

C-141 (GR)

AC308735

AW

C-105

Connector: C-105
<RHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9
