CLUTCH HOUSING

MANUAL TRANSMISSION OVERHAUL

22B-45

CLUTCH HOUSING

DISASSEMBLY AND REASSEMBLY

M1222003700176

DISASSEMBLY SERVICE POINTS

<<A>> OUTER RACE REMOVAL

Using special tool Claw (MD999566), remove the
outer race from the clutch housing.

AK204400

4

5

6

1

2

3

7

9.8 ± 2.0 N·m

AC

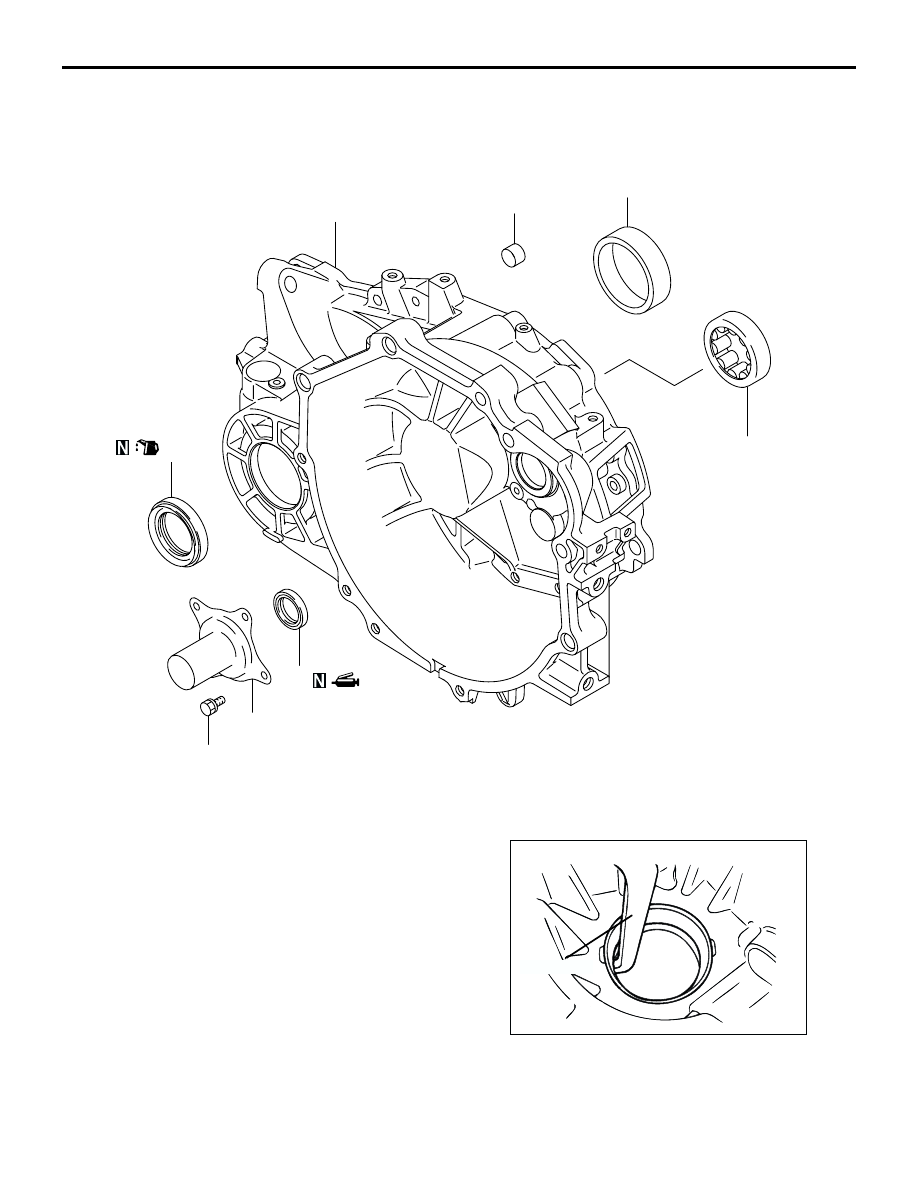

Disassembly steps

1.

Clutch release bearing retainer

>>E<<

2.

Oil seal

>>D<<

3

Oil seal <F5M42>

<<A>>

>>C<<

4.

Outer race

<<B>>

>>B<<

5.

Outer race

>>A<<

6.

Bushing

7.

Clutch housing

AK204276

MD999566

AB

CLUTCH HOUSING

MANUAL TRANSMISSION OVERHAUL

22B-46

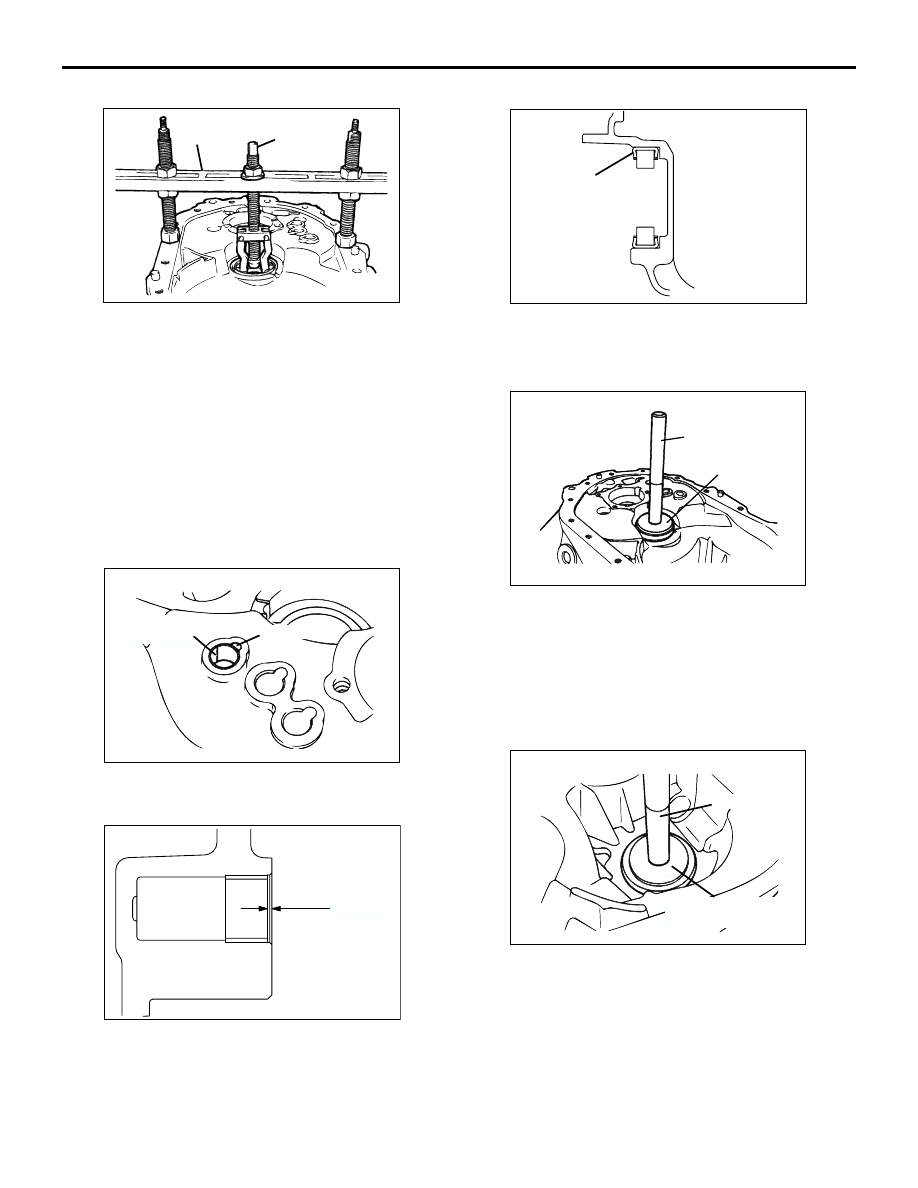

<<B>> OUTER RACE REMOVAL

1. Set special tools as indicated in the figure.

•

Valve spring compressor (MD998772)

•

Bearing outer race remover (MD998346)

2. Turn the nut on special tool Bearing outer race

remover (MD998346) to pull up on the tool and
take out the outer race.

REASSEMBLY SERVICE POINTS

>>A<< BUSHING INSTALLATION

1. Press fit the bushing so the seam is away from

the air vent.

2. Be sure the bushing is fully seated as shown. It

must be 1 mm below the housing surface.

>>B<< OUTER RACE INSTALLATION

1. Check the installation direction of the outer race.

Install the outer race so the side with the model
number stamping can be seen.

2. Using special tools, press fit the outer race into

the clutch housing.

•

Handle (MB990938)

•

Installer adapter (MB990934)

>>C<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.

2. Using special tools, press fit the outer race into

the clutch housing.

•

Handle (MB990938)

•

Installer adapter (MB990935)

•

Bearing outer race installer (MB991550)

AK204277AB

MD998346

MD998772

AK204278

Seam of bushing

Air vent

AB

AK204291

1 mm

AC

AK204279

Model number
stamped side

AB

AK204280

MB990938

MB990934

AB

AK204281

MB990935 <F5M42>
MB991550 <W5M42>

MB990938

AC

CLUTCH HOUSING

MANUAL TRANSMISSION OVERHAUL

22B-47

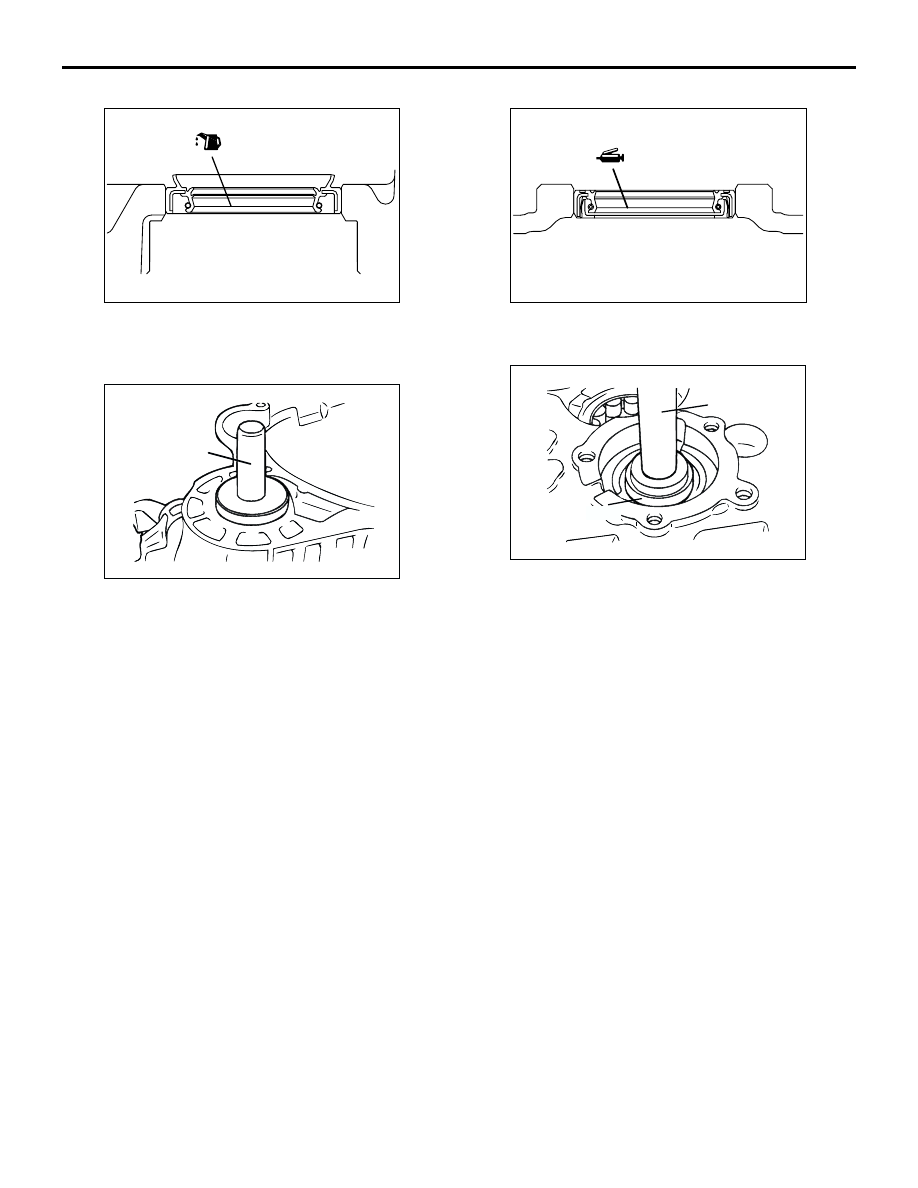

>>D<<OIL SEAL INSTALLATION

1. Apply gear oil (Hypoid gear oil SAE 75W-90 or

75W-85W conforming to API classification GL-4)
to the oil seal lip.

2. Using special tool Differential oil seal installer

(MD998325), press fit the oil seal into the clutch
housing.

>>E<< OIL SEAL INSTALLATION

1. Pack grease (MITSUBISHI genuine grease part

No.0101011 or equivalent).

2. Using special tools, press fit the oil seal into the

clutch housing.

•

Handle (MB990938)

•

Installer adapter (MB990926)

AK204282AB

AK204283

MD998325

AB

AK204284AC

AK204285

MB990938

MB990926

AB

TRANSMISSION CASE

MANUAL TRANSMISSION OVERHAUL

22B-48

TRANSMISSION CASE

DISASSEMBLY AND REASSEMBLY

M1222013400079

REASSEMBLY SERVICE POINTS

>>A<< BUSHING INSTALLATION

1. Press fit the bushing so the seam is away from

the air vent.

AK204407

1

2

5

6

4

3

AB

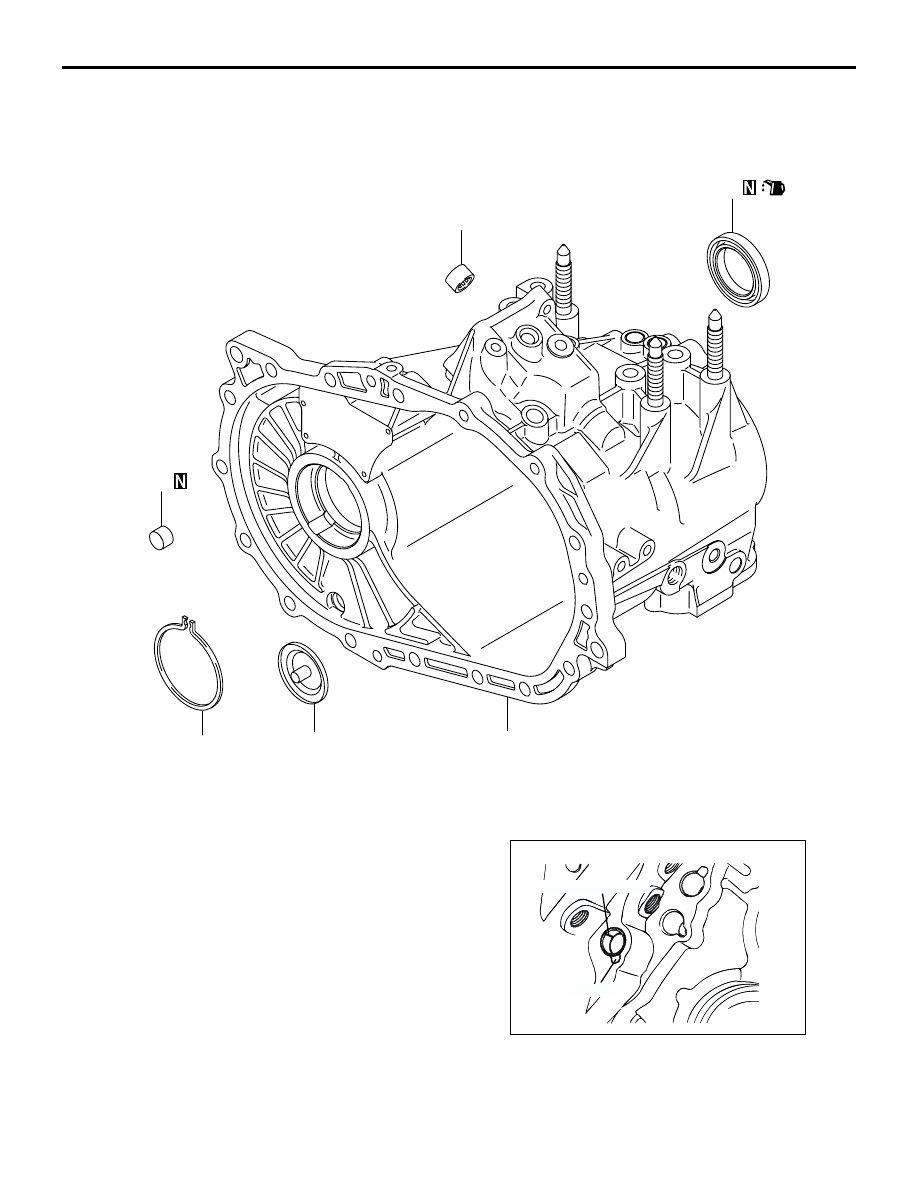

Disassembly steps

>>C<<

1.

Oil seal

>>B<<

2.

Needle bearing

3.

Oil guide

4.

Snap ring

>>A<<

5.

Bushing

6.

Transaxle

AK204292

Seam of bushing

Air vent

AB
