CLUTCH RELEASE CYLINDER

CLUTCH OVERHAUL

21B-9

CLUTCH RELEASE CYLINDER

 DISASSEMBLY AND REASSEMBLY

M1212001500119

DISASSEMBLY SERVICE POINT

<<A>> PISTON ASSEMBLY REMOVAL

1. Cover with a shop towel to prevent the piston from

popping out.

CAUTION

Apply compressed air slowly to prevent brake
fluid from splashing.
2. Apply the compressed air into the tube mounting

hole to remove the piston assembly.

AK204216

2

5

4

1

6

9

7

8

17 ± 1 N·m

3

AB

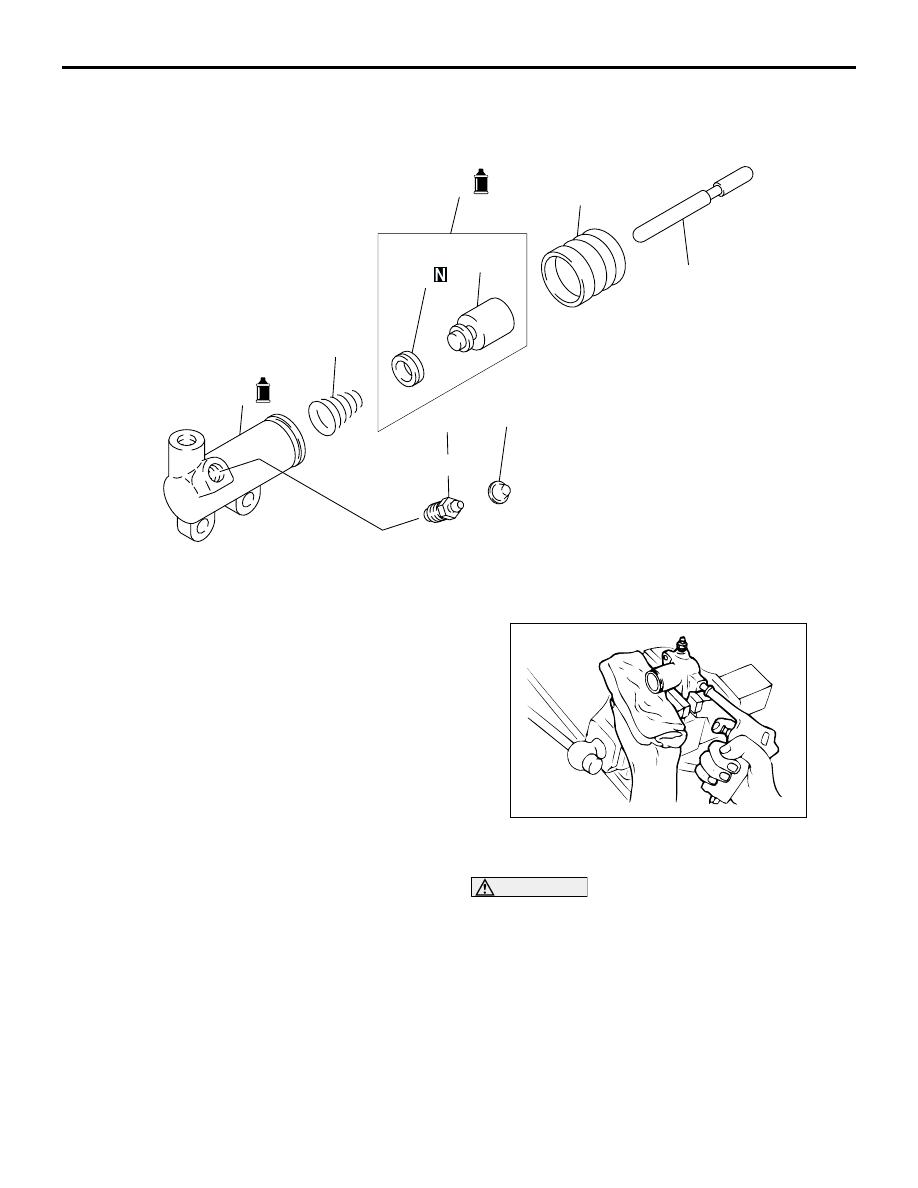

Disassembly steps

1.

Push rod

2.

Boot

<<A>>

>>A<<

3.

Piston assembly

4.

Piston cup

5.

Piston

6.

Conical spring

7.

Cap

8.

Air bleeder

9.

Release cylinder

AKX00765

CLUTCH RELEASE CYLINDER

CLUTCH OVERHAUL

21B-10

REASSEMBLY SERVICE POINT

>>A<< PISTON ASSEMBLY INSTALLATION

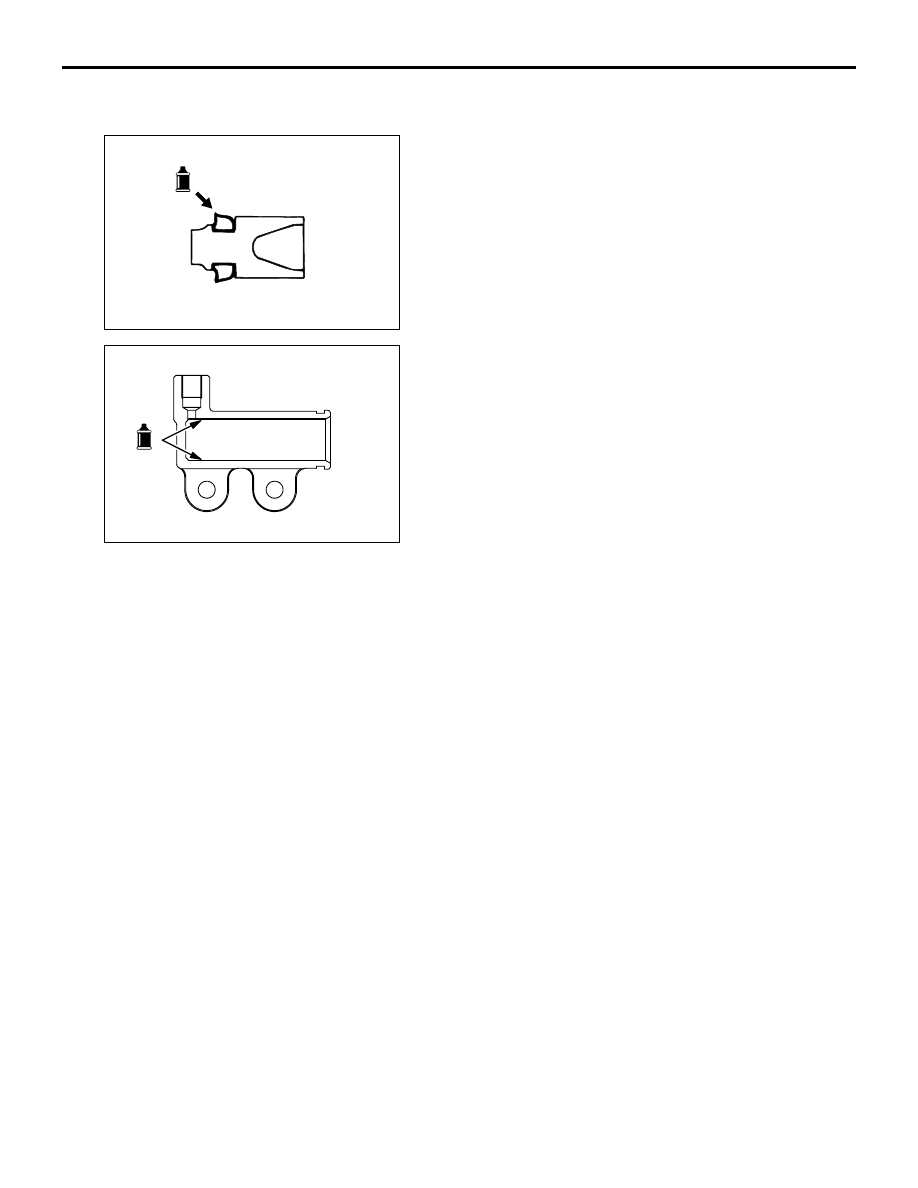

1. Apply brake fluid DOT3 or DOT4 to the piston cup

and inner surface of the release cylinder.

2. Insert the piston assembly into the release

cylinder.

INSPECTION

M1212001600150

RELEASE CYLINDER
1. Check the bore of the release cylinder for rust,

scratches or damage.

2. Using a cylinder gauge, measure the inside

diameter of the release cylinder at about there
positions (the deepest, middle and brim
positions).
If the clearance from the outside diameter of the
piston exceeds the limit, replace the release
cylinder as an assembly.

AK204411AB

AK204412AB

22A-1

GROUP 22A

MANUAL

TRANSMISSION (FF)

CONTENTS

GENERAL INFORMATION . . . . . . . .

22A-2

LUBRICANT. . . . . . . . . . . . . . . . . . . .

22A-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

22A-3

TROUBLESHOOTING . . . . . . . . . . . .

22A-4

INTRODUCTION. . . . . . . . . . . . . . . . . . . . .

22A-4

TROUBLESHOOTING STRATEGY . . . . . .

22A-4

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

22A-4

SYMPTOM PROCEDURES . . . . . . . . . . . .

22A-4

ON-VEHICLE SERVICE. . . . . . . . . . .

22A-8

TRANSMISSION OIL LEVEL CHECK  . . . .

22A-8

TRANSMISSION OIL REPLACEMENT. . . .

22A-8

TRANSFER OIL CHECK. . . . . . . . . . . . . . .

22A-8

TRANSFER OIL REPLACEMENT  . . . . . . .

22A-8

TRANSMISSION CONTROL*. . . . . . .

22A-9

REMOVAL AND INSTALLATION . . . . . . . .

22A-9

SHIFT LEVER ASSEMBLY . . . . . . . . . . . . .

22A-12

DISASSEMBLY AND REASSEMBLY . . . . .

22A-12

TRANSFER ASSEMBLY  . . . . . . . . . .

22A-13

REMOVAL AND INSTALLATION . . . . . . . .

22A-13

TRANSMISSION ASSEMBLY  . . . . . .

22A-15

REMOVAL AND INSTALLATION . . . . . . . .

22A-15
