IGNITION SYSTEM

ENGINE ELECTRICAL

16-41

REMOVAL AND INSTALLATION <4G69>

M1163004000501

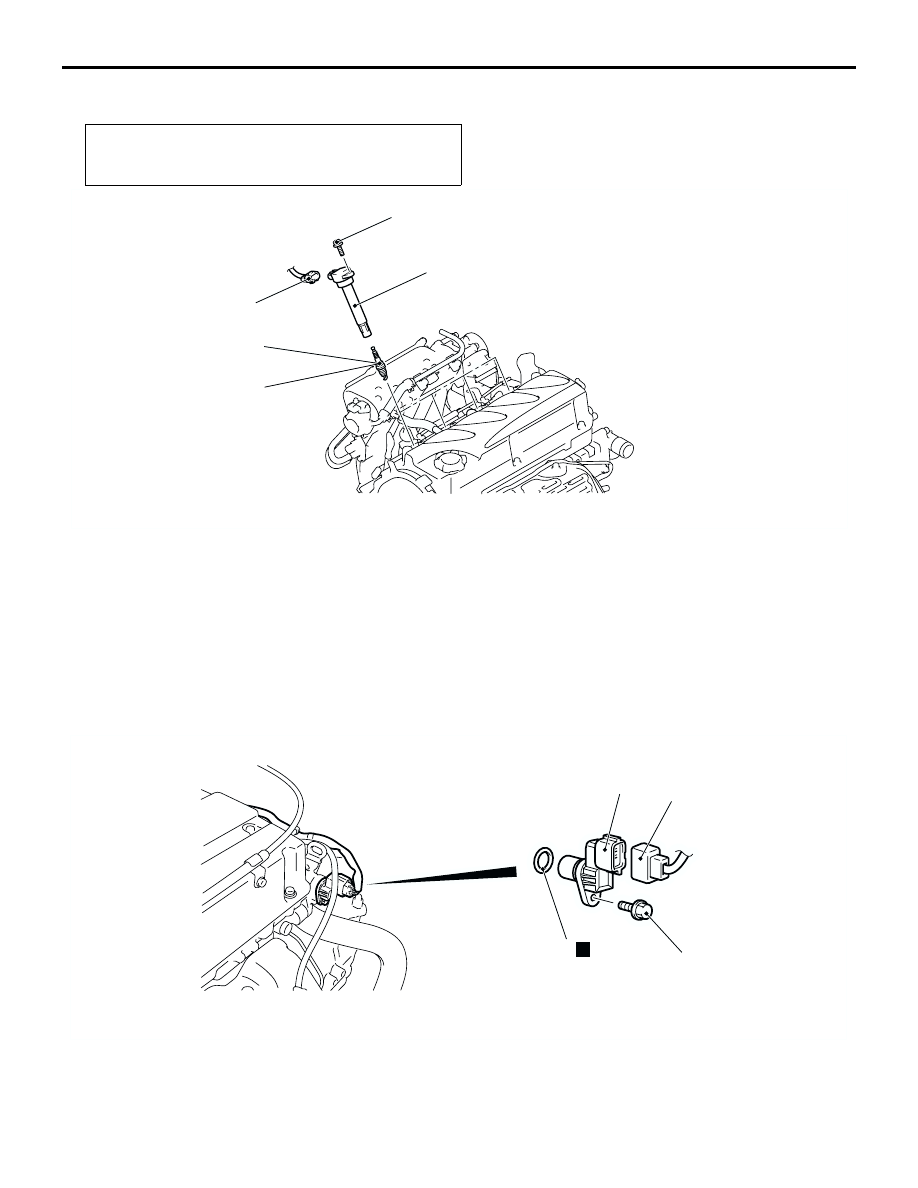

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003400517

<4G63>

Pre-removal and Post-installation Operation
Resonator Removal and Installation (Refer to GROUP 15,
Air Cleaner

P.15-4

).

AC305115

10 ± 2 N·m

25 ± 5 N·m

1

2

3

AD

Removal steps

1.

Ignition coil connectors

2.

Ignition coils

3.

Spark plugs

Removal steps (Continued)

AC301556

N

1

2

3

8.8 ± 1.0 N·m

AB

Removal steps

1.

Camshaft position sensor
connector connection

2.

Camshaft position sensor

3.

O-ring

Removal steps (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-42

<4G69>

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <4G63>

M1163003500514

AC304319

AC302233

AC305127

N

1

2

3

11 ± 1 N·m

AC

Removal steps

1.

Camshaft position sensor
connector connection

2.

Camshaft position sensor

3.

O-ring

Removal steps (Continued)

AC301612

8.8 ± 1.0 N·m

7

8.8 ± 1.0 N·m

8

1

22 ± 4 N·m

4

2

3

49 ± 9 N·m

49 ± 9 N·m

5

22 ± 4 N·m

3.0 ± 0.5 N·m

6

IGNITION SYSTEM

ENGINE ELECTRICAL

16-43

REMOVAL SERVICE POINT

<<A>> POWER STEERING OIL PUMP ASSEMBLY
REMOVAL
Remove the power steering oil pump assembly from
the bracket with the hose attached.
NOTE: Place the removed power steering oil pump
assembly in a place where it will not be a hindrance
when removing and installing and secure it with a
cord or wire.

REMOVAL AND INSTALLATION <4G69>

M1163003500525

Removal steps

1.

Power steering pressure switch
connector

2.

A/C compressor connector

3.

A/C compressor connector clamp

<<A>>

4.

Power steering oil pump assembly

5.

Power steering oil pump bracket

6.

Rocker cover centre cover

7.

Crankshaft position sensor

8.

Crankshaft position sensor
connector bracket

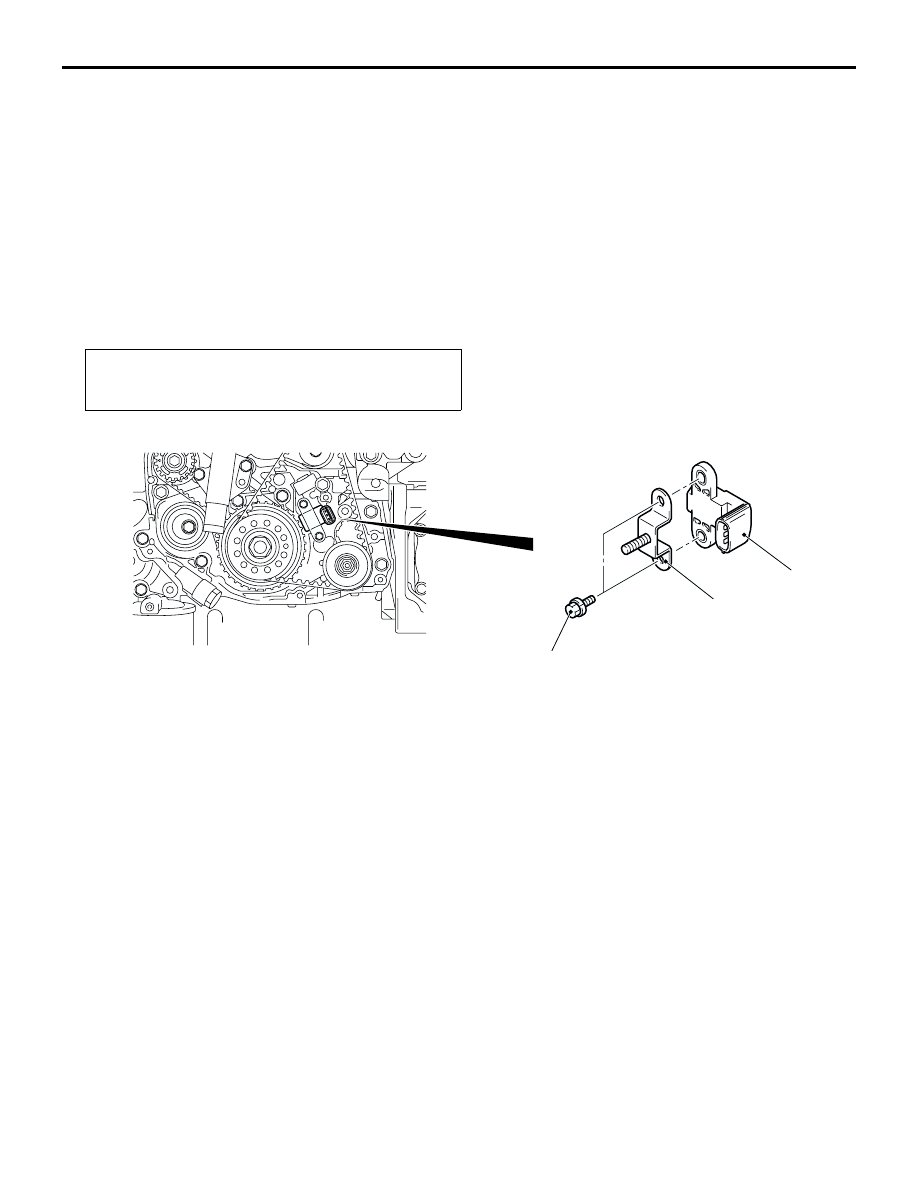

Pre-removal and Post-installation Operation
Timing Belt Lower Cover Removal and Installation (Refer to
GROUP 11C, Timing Belt

P.11C-36

).

AC305391

1

2

8.5 ± 0.5 N·m

AD

Removal steps

1.

Timing belt lower cover bracket

2.

Crankshaft position sensor

IGNITION SYSTEM

ENGINE ELECTRICAL

16-44

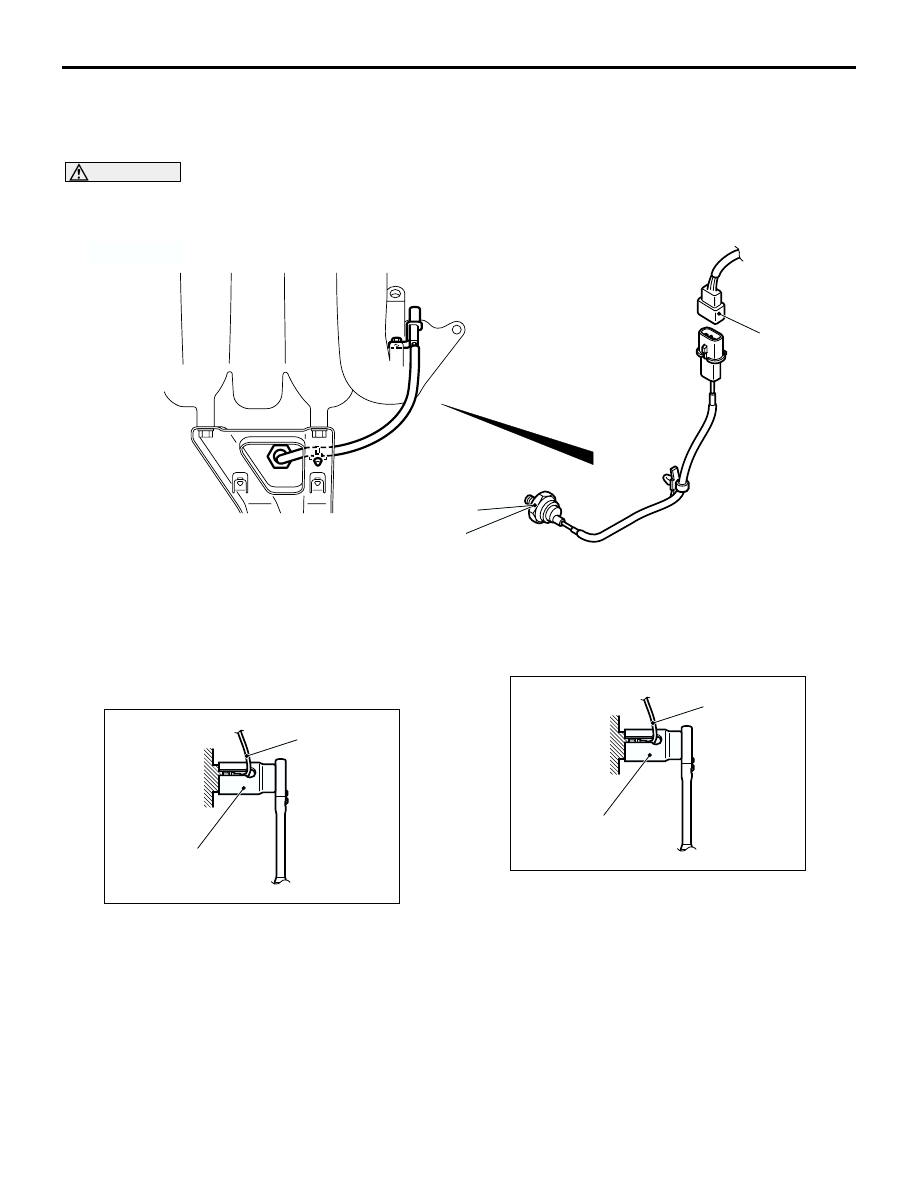

DETONATION SENSOR

REMOVAL AND INSTALLATION <4G63>

M1163002800631

CAUTION

Do not drop or hit the detonation sensor against other components. Internal damage may result, and
the detonation sensor will need to be replaced.

REMOVAL SERVICE POINT

<<A>> DETONATION SENSOR REMOVAL

Use special tool detonation sensor wrench
(MD998773) to remove the detonation sensor.

INSTALLATION SERVICE POINT

>>A<< DETONATION SENSOR INSTALLATION

Use special tool detonation sensor wrench
(MD998773) to tighten the detonation sensor to the
specified torque.

AC301657

2

1

23 ± 2 N·m

AB

<Intake side>

Removal steps

1.

Detonation sensor connector
connection

<<A>>

>>A<<

2.

Detonation sensor

AC100807

MD998773

Detonation
sensor

AC

AC100807

MD998773

Detonation
sensor
