TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-235

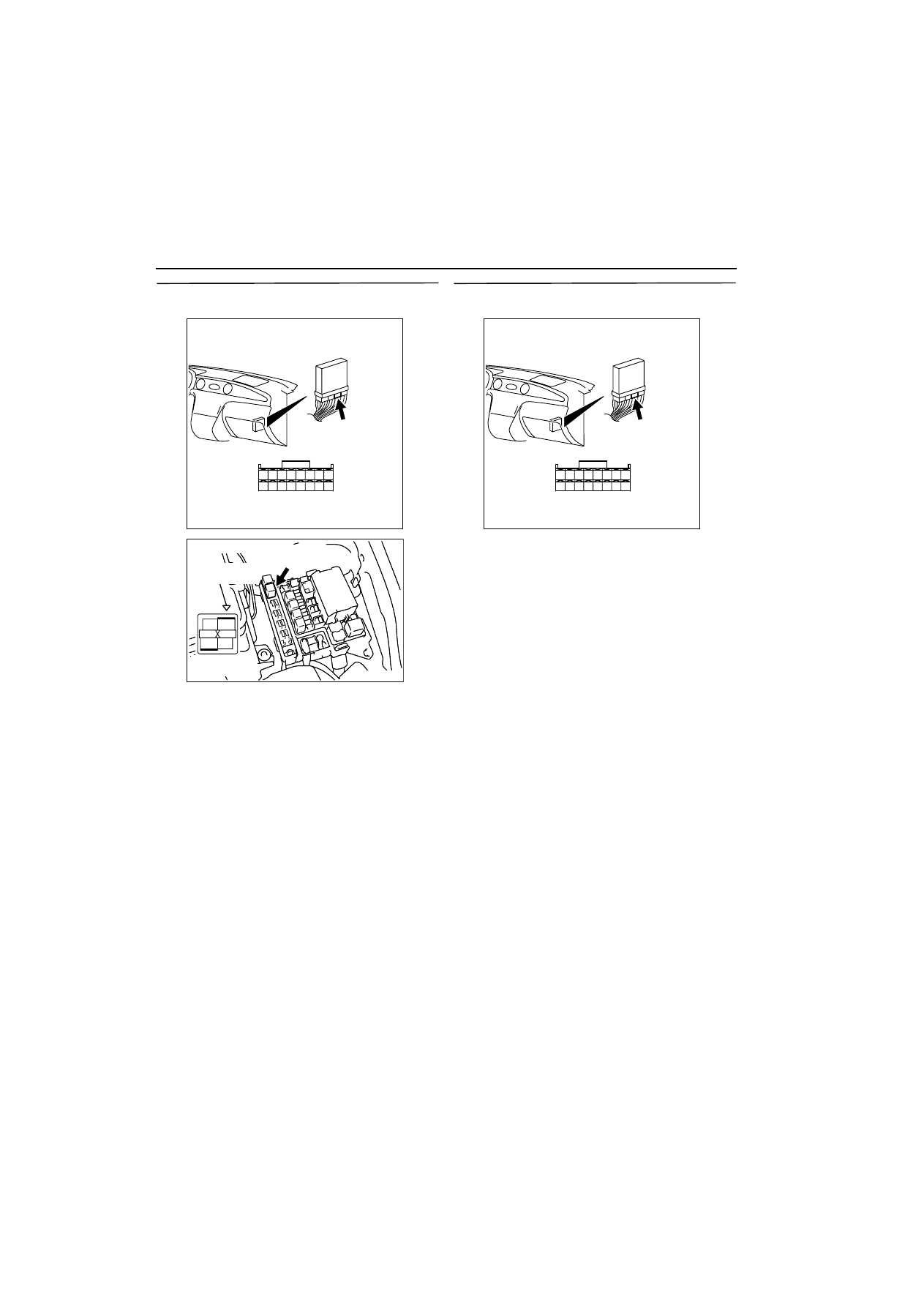

STEP 5. Measure voltage at C-134 engine-ECU
connector.

œ

Measure engine-ECU terminal voltage.

œ

Ignition switch: ON

œ

Voltage between terminal No. 12 and earth, also
between terminal No. 25 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Check and repair C-134 engine-ECU

connector.

NO :

Go to Step 6 .

STEP 6. Connector check: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 7. Measure voltage at C-137 engine-ECU
connector.

œ

Measure engine-ECU terminal voltage.

œ

Ignition switch: ON

œ

Voltage between terminal No. 82 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Go to Step 8 .

STEP 8. Connector check: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-236

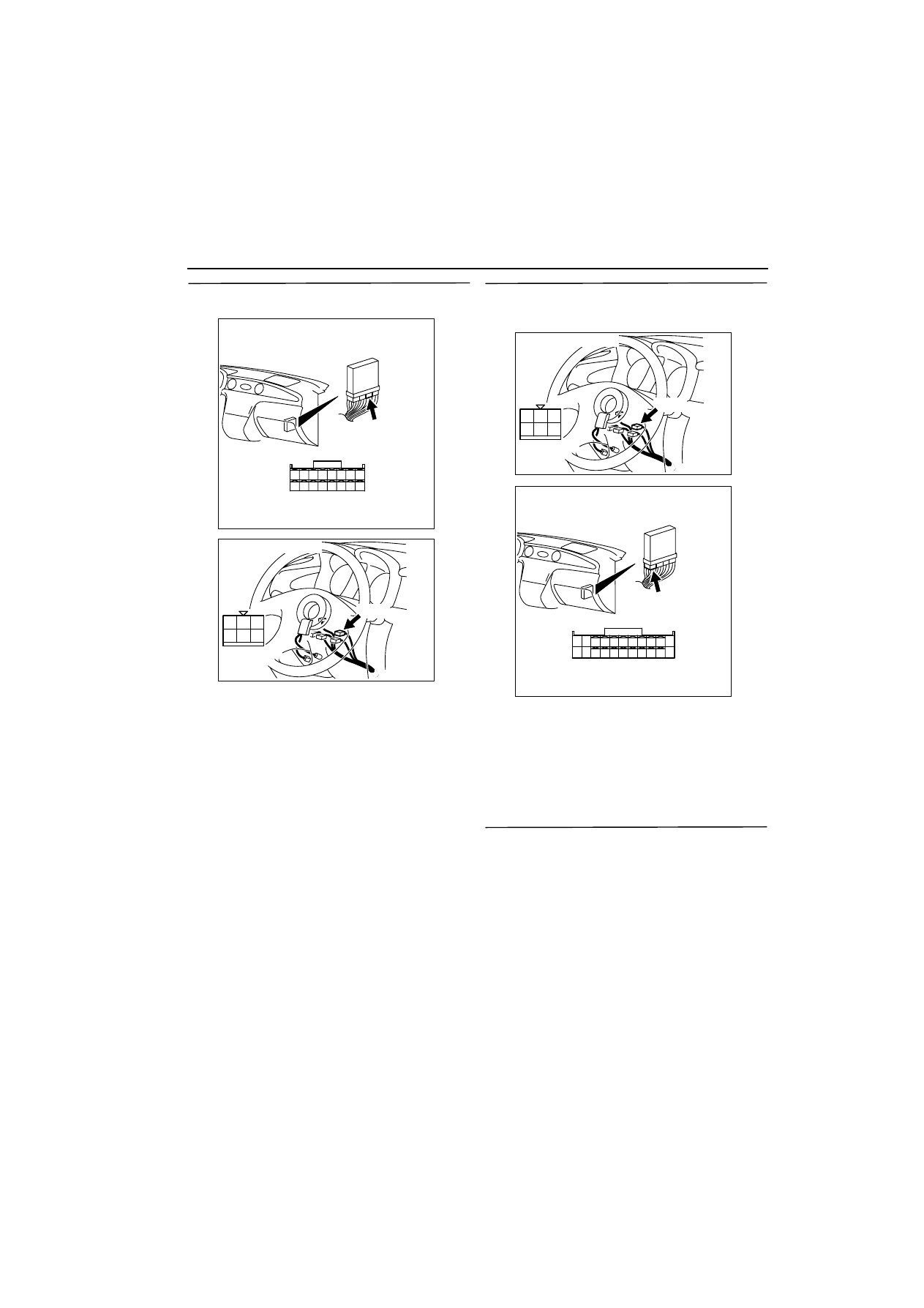

STEP 9. Check ignition switch.

œ

Check ignition switch (Refer to GROUP 54A

-



Ignition Switch

-

 Ignition Switch

3

54A



).

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Replace ignition switch.

STEP 10. Connector check: C-303 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair.

STEP 11. Check harness between C-303 (terminal
No. 2) ignition switch connector and C-137
(terminal No. 82) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connectors C-106, C-202 and C-203, and repair if
necessary.

œ

Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Check and repair ignition switch IG1 power

supply line harness and connector.

œ

Check power supply line for short
circuit.

NO :

Repair.

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-237

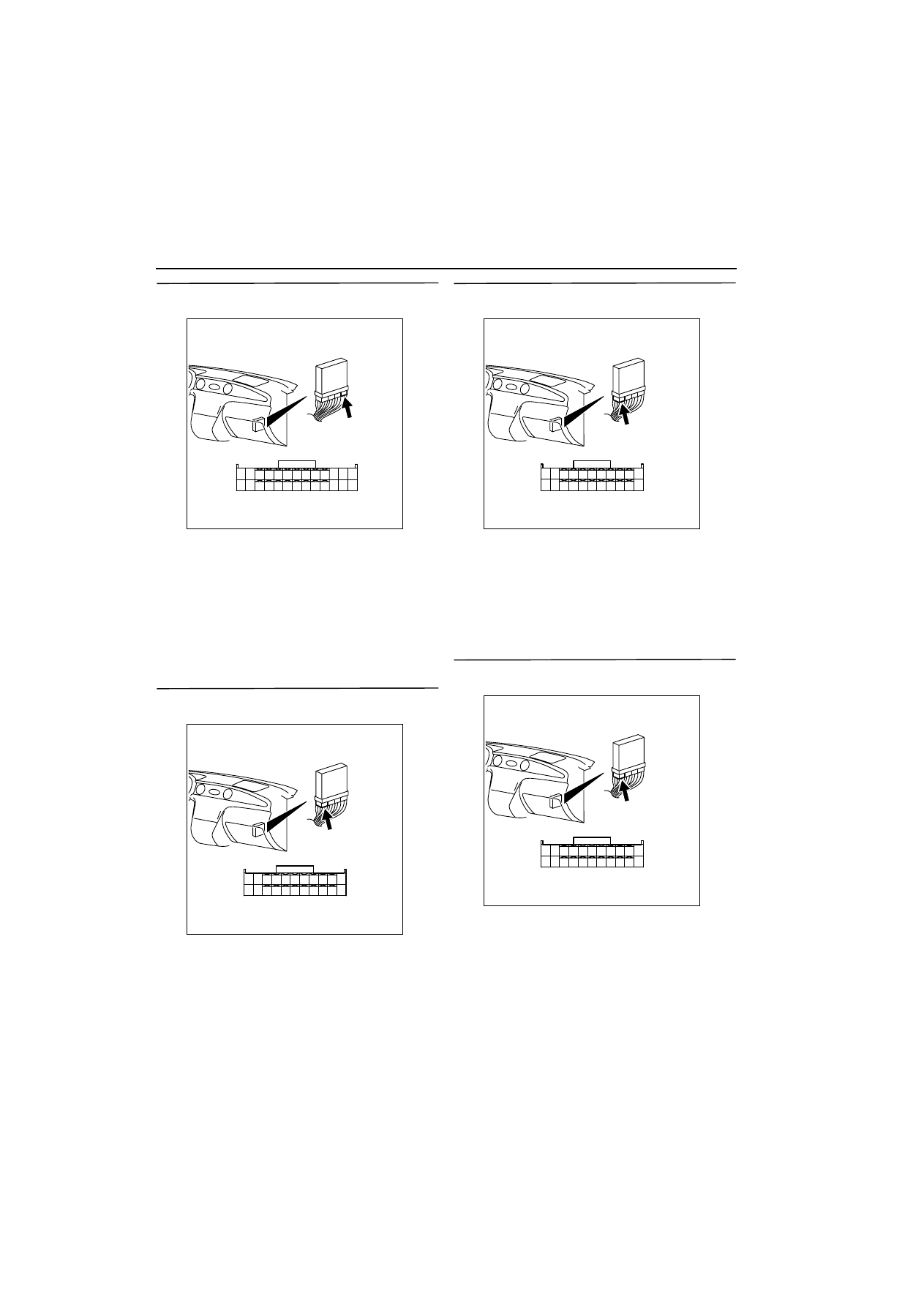

STEP 12. Measure voltage at C-135 engine-ECU
connector.

œ

Measure engine-ECU terminal voltage.

œ

Ignition switch: OFF

œ

Voltage between terminal No. 38 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Check and repair harness between B-17X

(terminal No. 2) engine control relay
connector and C-135 (terminal No. 38)
engine-ECU connector.

œ

Check earthing line for open/short
circuit.

STEP 13. Measure voltage at C-135 engine-ECU
connector.

œ

Measure engine-ECU terminal voltage.

œ

Ignition switch: ON

œ

Voltage between terminal No. 38 and earth.

OK: 1 V or less

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Go to Step 14 .

AK300256

34 33 32

36 35

37

42

45

31

39

38

46

40

41

43

44

AB

CONNECTOR: C-135

C-135

Harness side connector

AK300255

2

1

3

4

Relay box’s
triangle marks

AB

CONNECTOR: B-17X

B-17X

Harness side
connector

AK300256

34 33 32

36 35

37

42

45

31

39

38

46

40

41

43

44

AB

CONNECTOR: C-135

C-135

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-238

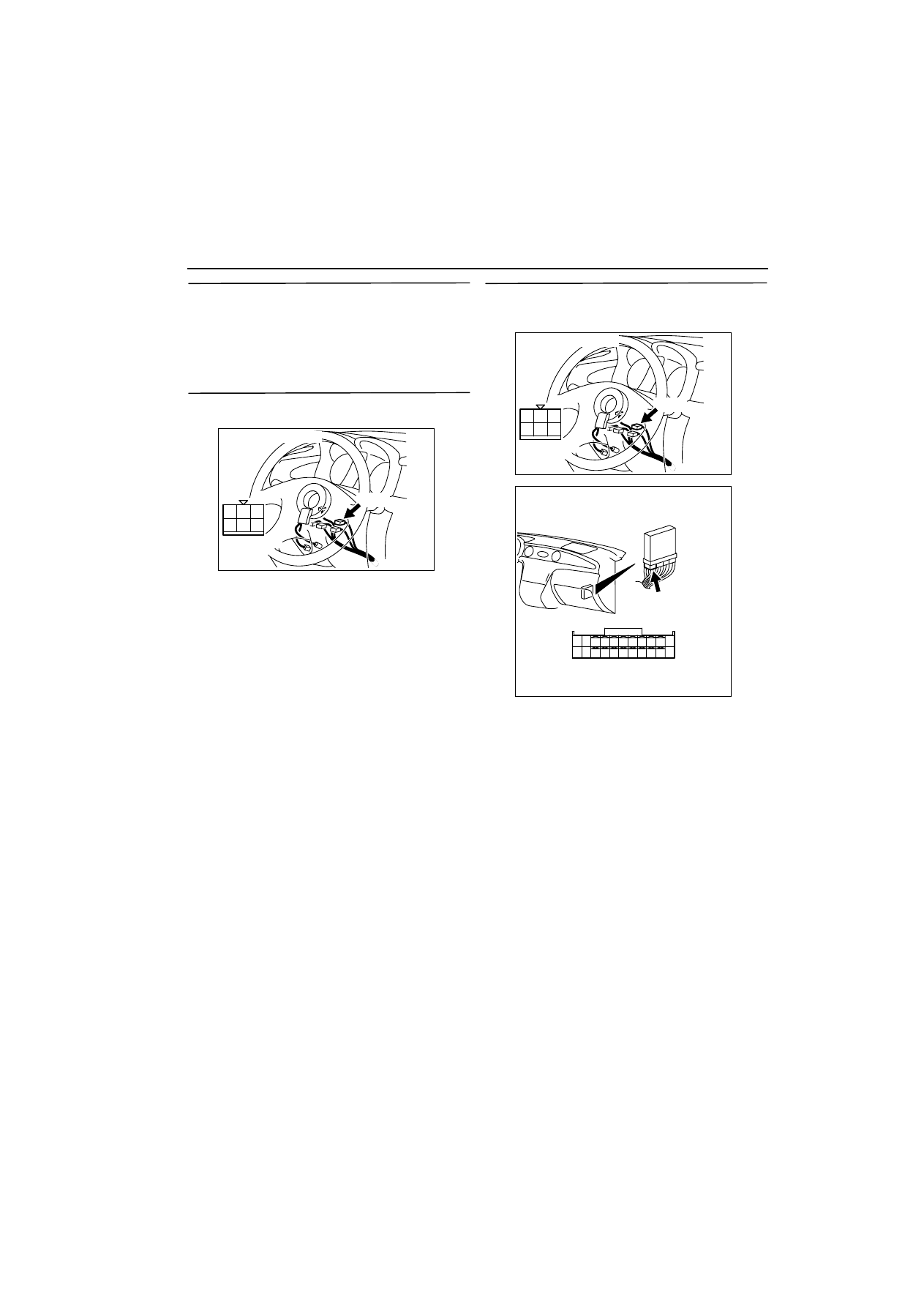

STEP 14. Connector check: C-135 engine-ECU
connector, C-303 ignition switch connector

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair.

STEP 15. Check harness between C-303 (terminal
No. 2) ignition switch connector and C-137
(terminal No. 82) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connectors C-106, C-202 and C-203 and repair if
necessary.

œ

Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Repair.

STEP 16. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

-

 How to Use

Troubleshooting/Inspection Service Points

3

00



).

AK300256

34 33 32

36 35

37

42

45

31

39

38

46

40

41

43

44

AB

CONNECTOR: C-135

C-135

Harness side connector

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector
