SPECIAL TOOLS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <4WD>

35C-75

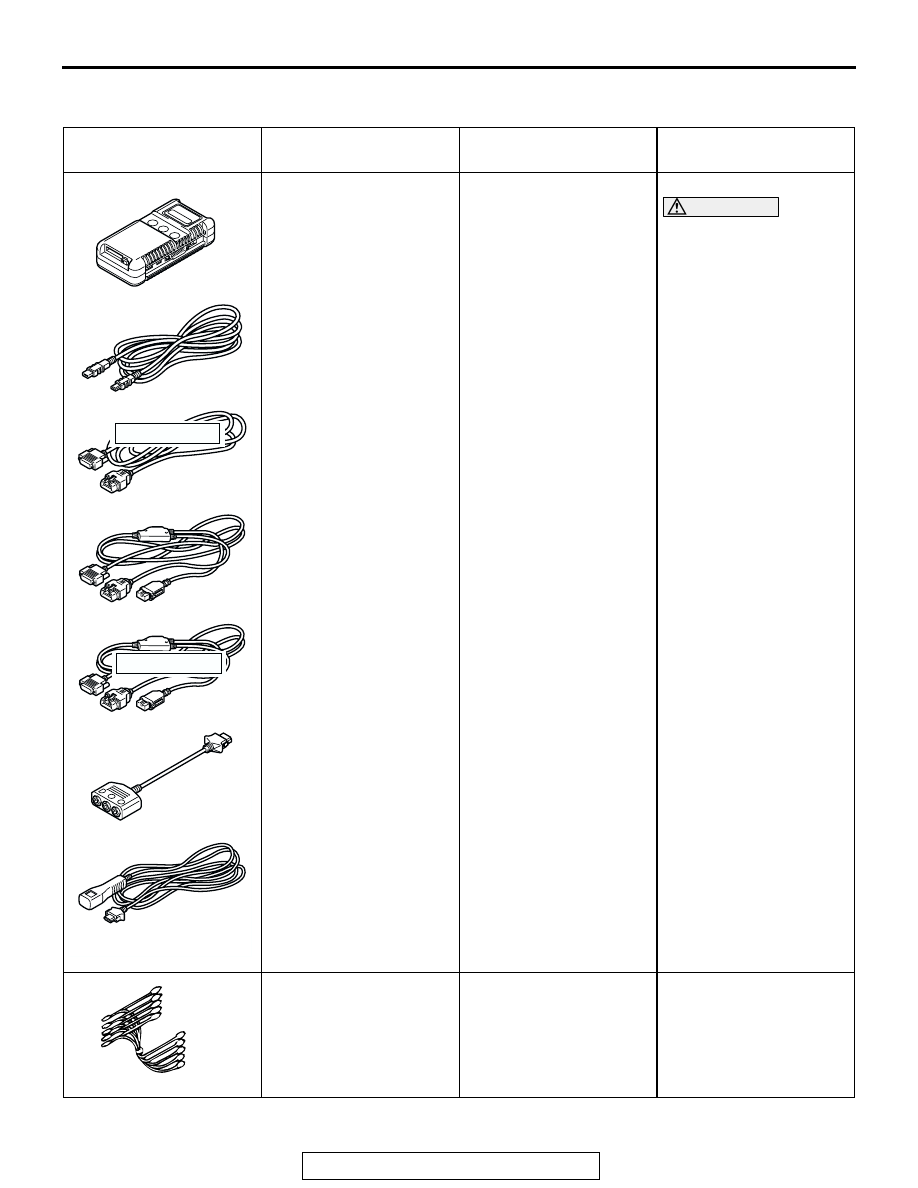

SPECIAL TOOLS

M1352000600750

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness

A (Vehicles with CAN
communication
system)

D: MUT-III main harness

B (Vehicles without
CAN communication
system)

E: MUT-III main harness

C (for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
MUT-III trigger harness is
not necessary when
pushing V.C.I. ENTER
key.

Checking for ABS system

CAUTION

MUT-III main harness B
(MB991911) should be
used. MUT-III main
harness A and C should
not be used for this
vehicle.

MB991348
The harness set

−

For checking of G-sensor

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MB991348

ON-VEHICLE SERVICE

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <4WD>

35C-76

ON-VEHICLE SERVICE

BLEEDING

M1352001500284

Refer to GROUP 35B, On-vehicle Service

P.35B-61

.

WHEEL SPEED SENSOR OUTPUT VOLTAGE
MEASUREMENT

M1352001600559

Refer to GROUP 35B, On-vehicle Service

P.35B-62

.

HYDRAULIC UNIT CHECK

M1352001700619

Refer to GROUP 35B, On-vehicle Service

P.35B-63

.

ABS RELAY CHECK

M1352011000149

Refer to GROUP 35B, On-vehicle Service

P.35B-66

.

DISCHARGED BATTERY

M1352003500570

Refer to GROUP 35B, On-vehicle Service

P.35B-66

.

MASTER CYLINDER AND BRAKE BOOSTER

REMOVAL AND INSTALLATION

M1352004000211

Refer to GROUP 35A, Master Cylinder and Brake
Booster

P.35A-28

.

MASTER CYLINDER DISASSEMBLY AND ASSEMBLY

M1352004500216

Refer to GROUP 35B, Master Cylinder and Brake
Booster

P.35B-67

.

INSPECTION

M1352004100070

Refer to GROUP 35B, Master Cylinder and Brake Booster

P.35B-68

.

HYDRAULIC UNIT

REMOVAL AND INSTALLATION

M1352008600505

Refer to GROUP 35B, Hydraulic Unit

P.35B-69

.

WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <4WD>

35C-77

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION

M1352008300582

Refer to GROUP 35B, Wheel Speed Sensor

P.35B-71

.

INSPECTION

M1352008400482

Refer to GROUP 35B, Wheel Speed Sensor

P.35B-72

.

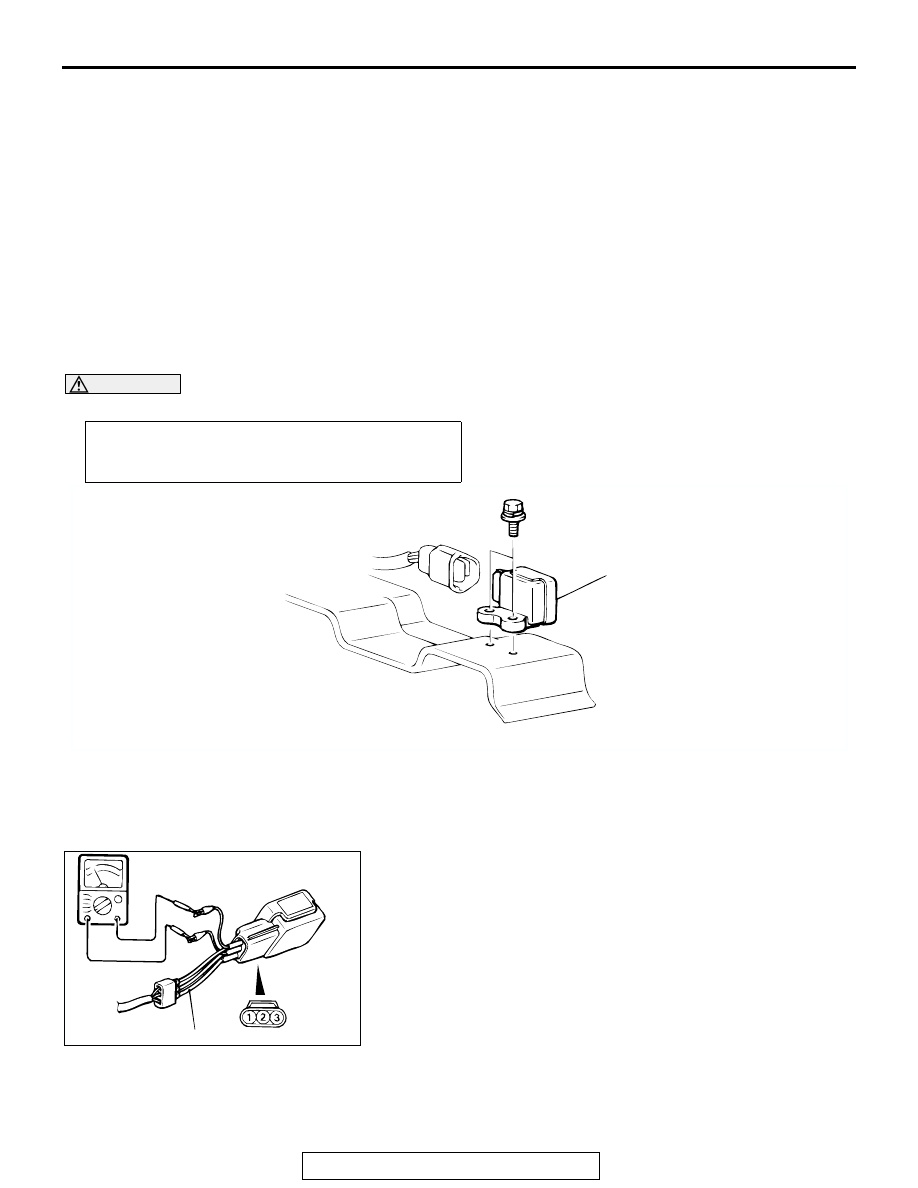

G-SENSOR

REMOVAL AND INSTALLATION

M1352010100295

CAUTION

Do not drop or apply a shock on the G-sensor.

G-SENSOR CHECK

M1352010200098

Required Special Tool:

• MB991348: Test Harness Set

1. Disconnect the G-sensor connector and connect special tool

MB991348, between terminals of the disconnected
connector.

2. With the ignition switch turned to the "ON" position, read the

voltage between terminals number 2 and number 3.

Standard Value: 2.4

− 2.6 V

3. With special tool MB991348 connected, rotate so that the

arrow faces straight down. Read output voltage between
terminals number 2 and number 3.

Standard Value: 3.4

− 3.6 V

4. If the voltage deviates from the standard value, make sure

that nothing is wrong with the power supply wire and ground
wire and then replace the G-sensor.

Pre-removal and Post-installation Operation
• Front and Rear Console Assembly Removal and Installa-

tion (Refer to GROUP 52A, Floor Console

P.52A-40

.)

AC004987

G-SENSOR

AB

AC004984

MB991348

AB

SPECIFICATIONS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <4WD>

35C-78

SPECIFICATIONS

SERVICE SPECIFICATION

M1352000300630

For the service specifications of the wheel speed sensor, refer to GROUP 35B, Service Specification

P.35B-73

.

ITEM

STANDARD VALUE

G-sensor output voltage V

Stationary vehicles

2.4

− 2.6

Arrow facing downward

3.4

− 3.6
