ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-17

.

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

.

STEP 1. Check the wheel speed sensor installation.
Q: Is the wheel speed sensor bolted securely in place at

the front knuckle or the rear axle housing?
YES :
Go to Step 2.
No :  Install it properly. Refer to

P.35B-71

. Then go to Step

8.

STEP 2. Check the harness wires between ABS-ECU
connector A-85 (terminal No.20 and 21) and wheel speed
sensor <front: LH> connector A-18 (terminal No.1 and 2).

Q: Are any harness wires between ABS-ECU connector

A-85 (terminal No.20 and 21) and wheel speed sensor
<front: LH> connector A-18 (terminal No.1 and 2)
damaged?
YES :
Repair them and go to Step 8.
NO :  Go to Step 3.

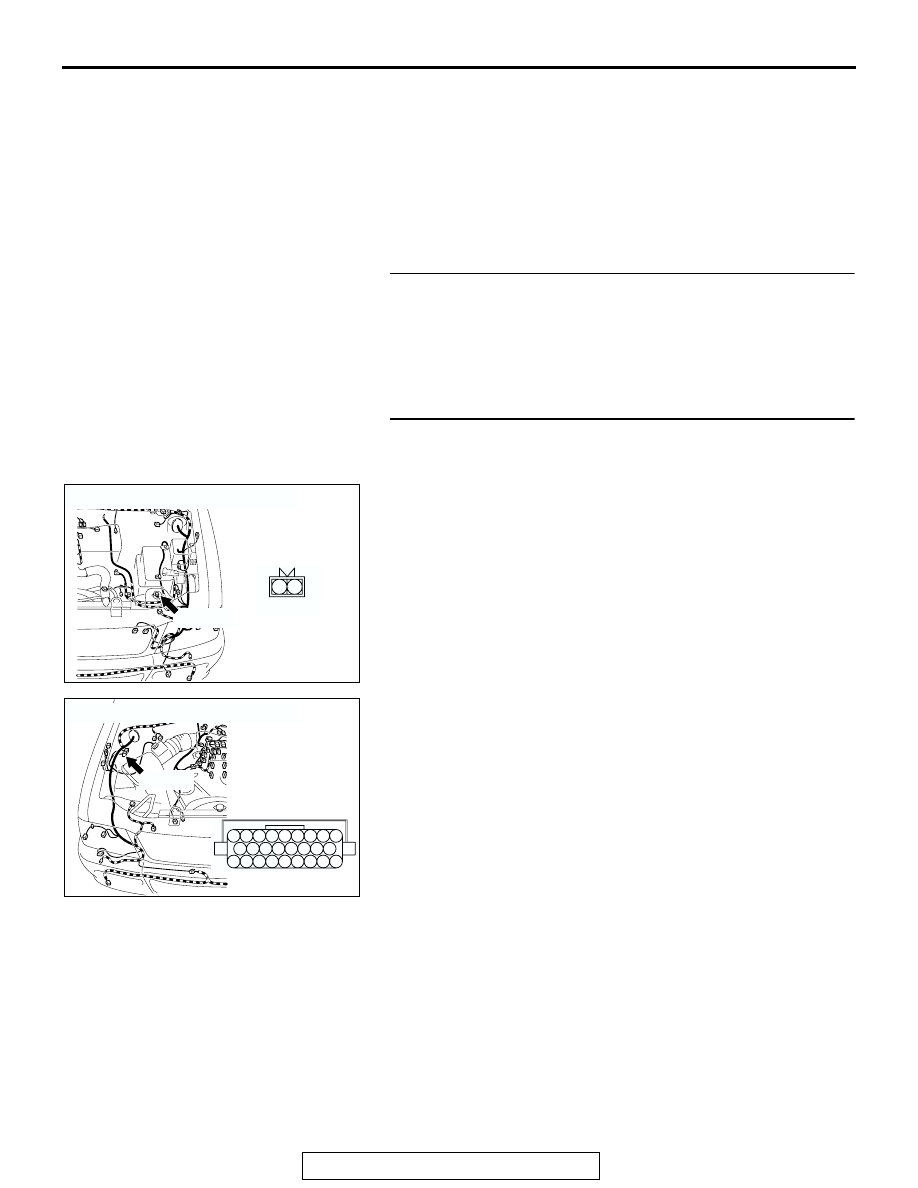

AC201945

CONNECTOR : A-18

A-18(B)

AB

1

2

A-18 HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

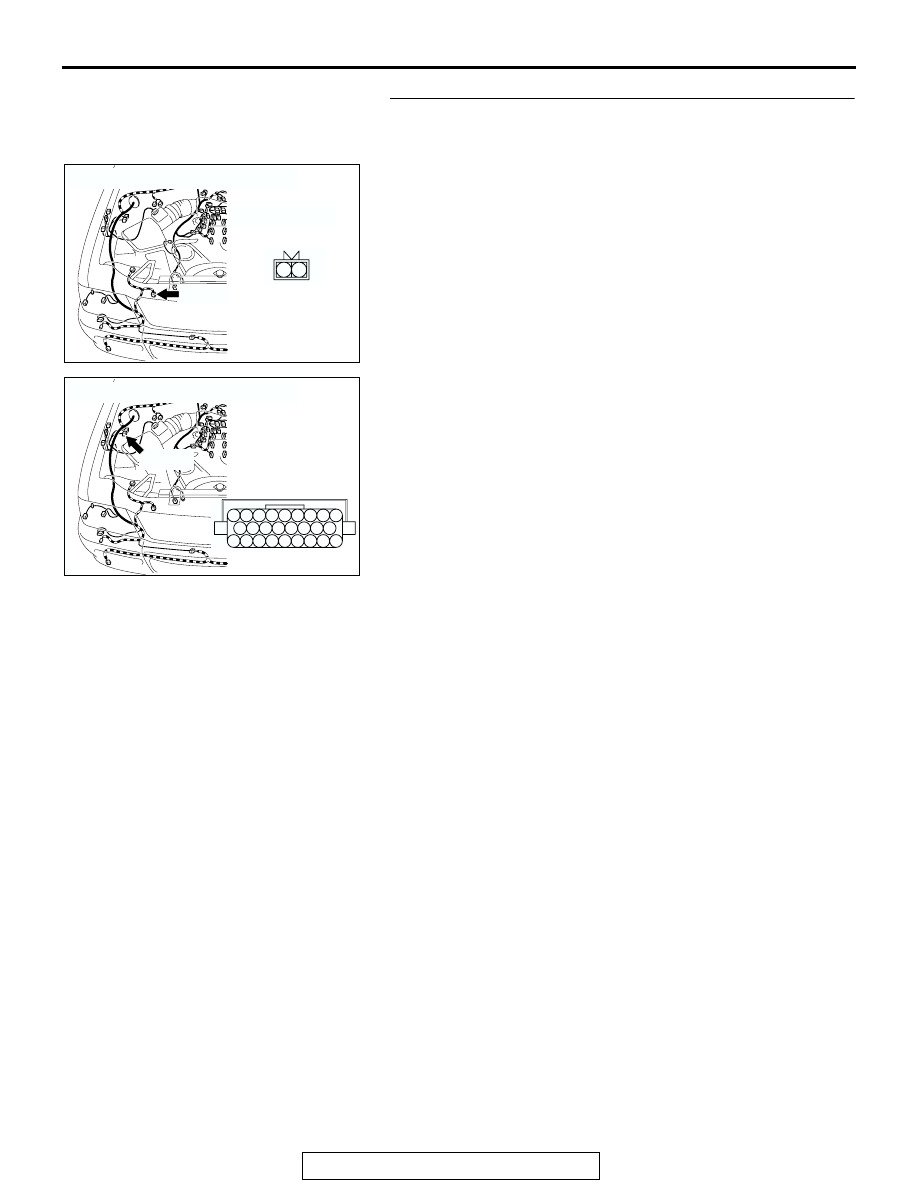

AC201944

CONNECTOR : A-85

A-85(B)

A-85 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

18

12 11

20 19

10

3 2 1

13

14

22

23

17 16

25 24

15

8 7 6 5 4

21

9

26

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-18

STEP 3. Check the harness wires between ABS-ECU
connector A-85 (terminal No.18 and 19) and wheel speed
sensor <front: RH> connector A-31 (terminal No.1 and 2).

Q: Are any harness wires between ABS-ECU connector

A-85 (terminal No.18 and 19) and wheel speed sensor
<front: RH> connector A-31 (terminal No.1 and 2)
damaged?
YES :
Repair them and then go to Step 8.
NO :  Go to Step 4.

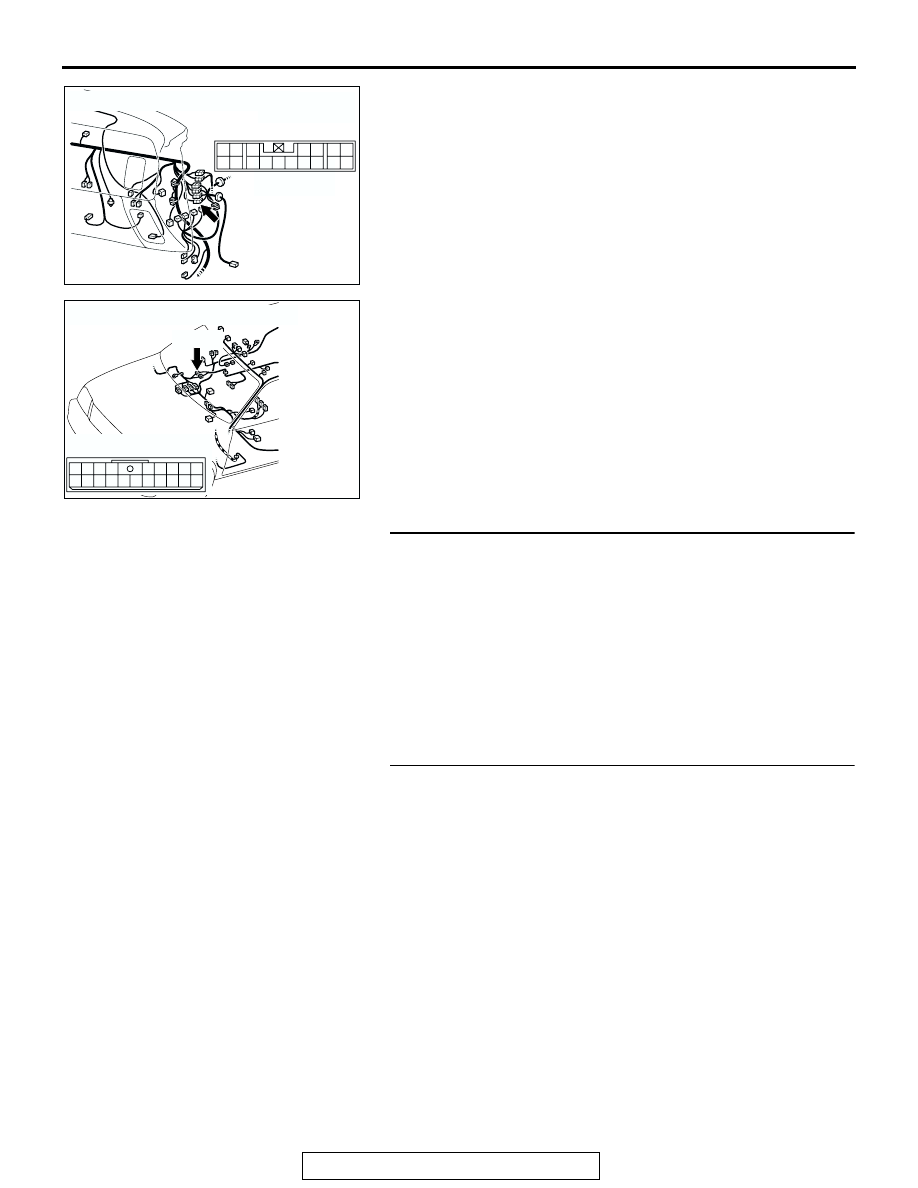

AC201944

CONNECTOR : A-31

A-31(B)

A-31 HARNESS
CONNECTOR:
COMPONENT SIDE

AB

1

2

2 1

AC201944

CONNECTOR : A-85

A-85(B)

A-85 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

18

12 11

20 19

10

3 2 1

13

14

22

23

17 16

25 24

15

8 7 6 5 4

21

9

26

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-19

STEP 4. Check the harness wires between ABS-ECU
connector A-85 (terminal No.1, 2, 3 and 4) and wheel speed
sensor connector E-29 <rear: LH> (terminal No. 1 and 2) or
E-39 <rear RH> (terminal No. 1 and 2).

AC201944

CONNECTOR : A-85

A-85(B)

A-85 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

18

12 11

20 19

10

3 2 1

13

14

22

23

17 16

25 24

15

8 7 6 5 4

21

9

26

AC201954

CONNECTOR : E-29

E-29(B)

E-29 HARNESS
CONNECTOR:
COMPONENT SIDE

AB

1

2

AC201953

CONNECTOR : E-39

E-39(B)

E-39 HARNESS
CONNECTOR:
COMPONENT SIDE

AB

1

2

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS) <RWD>

35B-20

NOTE: After inspecting intermediate connectors C-17 and
E-45, inspect the wires. If intermediate connector C-17 or E-45
is damaged, repair or replace it. Refer to GROUP 00E, Har-
ness Connector Inspection

P.00E-2

. If the connector has been

repaired or replaced, go to Step 8.
Q: Are any harness wires between ABS-ECU connector

A-85 (terminal No.1, 2, 3 and 4) and wheel speed sensor
connector E-29 <rear: LH> (terminal No.1 and 2) or E-39
<rear RH> (terminal No.1 and 2) damaged?
YES :
Repair them and then go to Step 8.
NO :  Go to Step 5.

STEP 5. Measure the wheel speed sensor output voltage.

Refer to

P.35B-62

.

Output Voltage:

• When measured with a voltmeter: 70 mV or more

• When measured with oscilloscope (maximum voltage): 200

mV or more

Q: Is the measured voltage within the specified range?

YES : Replace the hydraulic unit (integrated with ABS-ECU)

and then go to Step 8.

NO :  Go to Step 6.

STEP 6. Check the wheel speed sensor or ABS rotor.

Refer to

P.35B-71

. If there is damage in any of the check items,

replace the wheel speed sensor.

Check items:

• Wheel speed sensor internal resistance

Standard value: 1.3

 1.5 k

• Wheel speed sensor insulation resistance

Standard value: 100 k

• Toothed ABS rotor check

Q: Is the wheel speed sensor or ABS rotor damaged?

YES :  Replace it and then go to Step 8.
NO :  Go to Step 7.

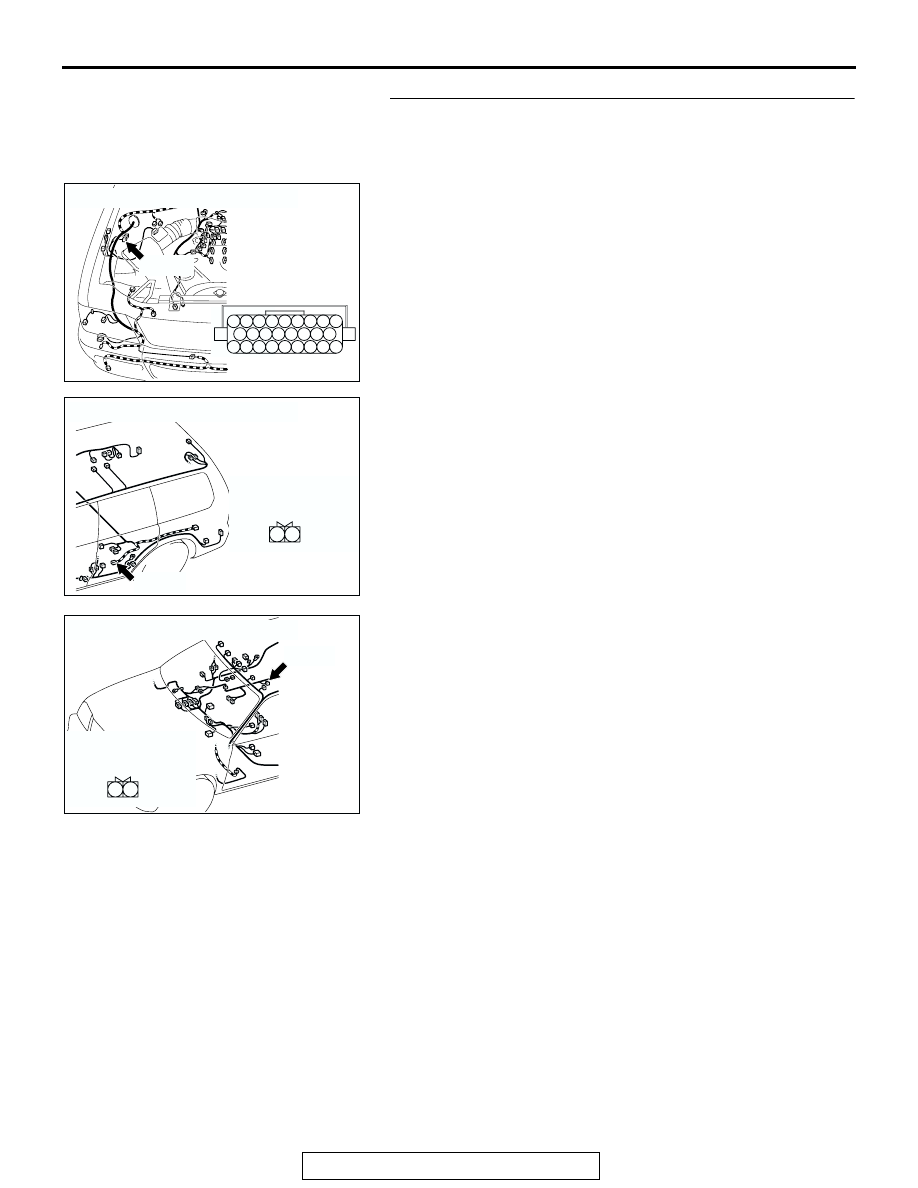

AC201950

CONNECTOR : C-17

C-17

AB

17

7

15

5

16

6

12 13

10

3

11

14

4

8

1

9

2

AC201953

CONNECTOR : E-45

E-45(B)

E-45(B)

AC

1

10

2

11

3

12

4

1314 15

5

16

6

17

7

18

8

19

9

20
