SENSOR CABLE INSTALLATION PROCEDURE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-105

2. Make a cut in the grommet in the place shown in the

illustration, and pass the sensor cable through the cut.

3. Run the sensor cable along the front wiring harness, and

then secure the cable to the harness with insulation tape.

4. Apply the specified sealant inside the grommet.

5. Exchange the terminal of the front wiring harness connector

C-17 (Female side connector) shown in the illustration with
the terminal of the sensor cable shown in the illustration.

.

POST-INSTALLATION INSPECTION
1. Reconnect the negative (

−) battery cable.

2. Turn the ignition key to the "ON" position.
3. Does the "SRS" warning light illuminate for approximately 7

seconds, and then remain off for at least 5 seconds after
turning "OFF?"

4. If yes, SRS system is functioning properly. If no, refer to

"SRS Diagnosis" on

P.52B-61

.

AC003323 AC

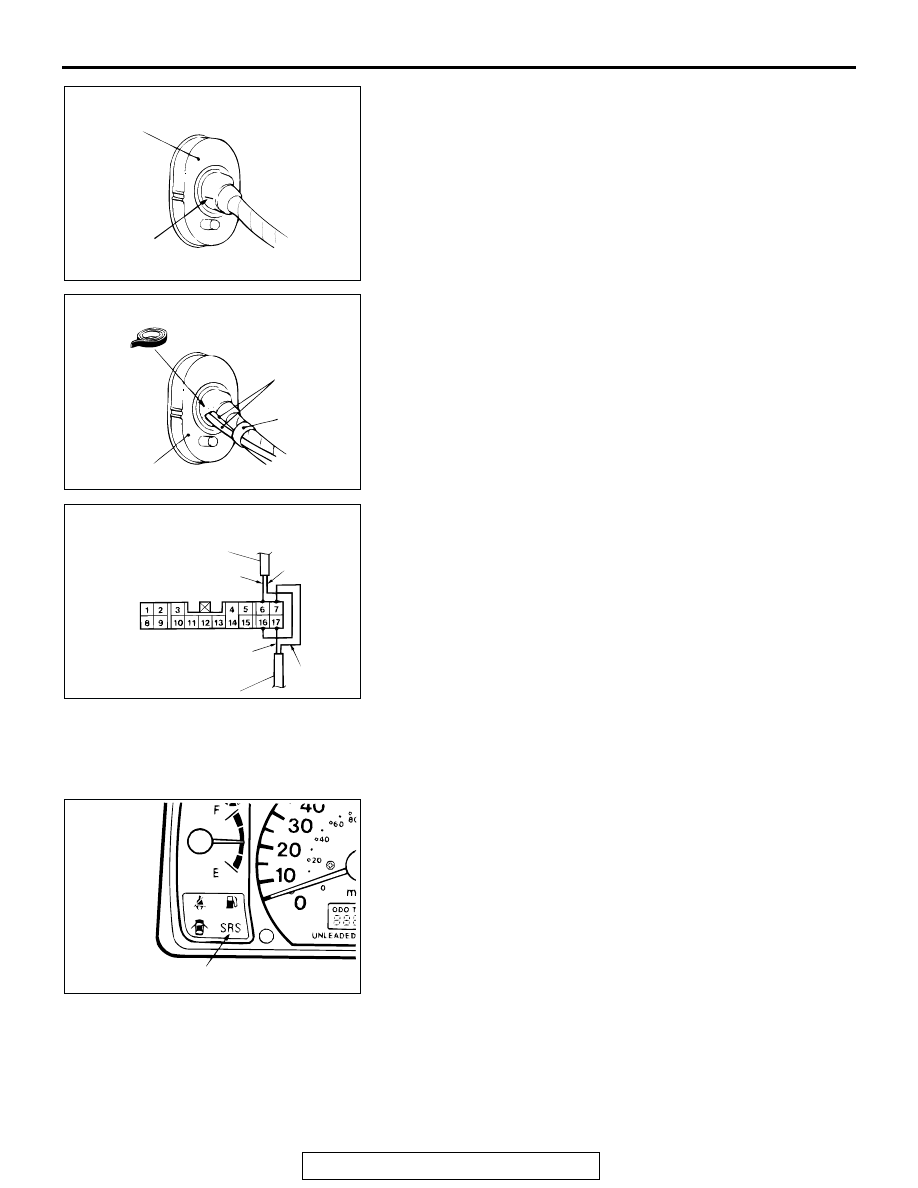

GROMMET

CUT

AC003324

GROMMET

SENSOR CABLE

PLASTIC
TAPE

AC

AC203507

WHITE RED

SENSOR CABLE (RH)

BLACK

SENSOR CABLE (LH)

WHITE

BLACK RED

C-17 HARNESS CONNECTOR
(FEMALE SIDE CONNECTOR): HARNESS SIDE

AC

AC003277AC

SRS WARNING LIGHT

SPECIFICATIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-106

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1524004900181

SERVICE SPECIFICATION

M1524000400151

SEALANT

M1524000600069

ITEM

SPECIFICATION

Air bag module (driver's side) mounting screw

8.8 N

⋅m (78 in-lb)

Front impact sensor bolt

4.9 N

⋅m (43 in-lb)

Seat belt with pre-tensioner bolt

44 N

⋅m (33 ft-lb)

SRS-ECU bolt

4.9 N

⋅m (43 in-lb)

SRS-ECU bracket bolt

4.9 N

⋅m (43 in-lb)

Steering wheel nut

39 N

⋅m (29 ft-lb)

ITEM

STANDARD VALUE

Front impact sensor resistance

Ω

820

± 82

Clock spring resistance

Ω

Less than 0.4

ITEM

SPECIFIED SEALANT

Sensor cable

3M

 ADD part No.8633 or equivalent

31-1

GROUP 31

WHEEL AND TIRE

CONTENTS

WHEEL AND TIRE DIAGNOSIS . . . .

31-2

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

31-2

WHEEL BALANCE ACCURACY AND TIRE
RADIAL-FORCE VARIATION CHECK . . . .

31-3

ON-VEHICLE SERVICE. . . . . . . . . . .

31-7

TIRE INFLATION PRESSURE CHECK . . .

31-7

TIRE WEAR CHECK . . . . . . . . . . . . . . . . . .

31-7

WHEEL RUNOUT CHECK  . . . . . . . . . . . . .

31-7

SPECIFICATIONS  . . . . . . . . . . . . . . .

31-8

FASTENER TIGHTENING
SPECIFICATION . . . . . . . . . . . . . . . . . . . . .

31-8

GENERAL SPECIFICATIONS  . . . . . . . . . .

31-8

SERVICE SPECIFICATIONS . . . . . . . . . . .

31-8

WHEEL AND TIRE DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-2

WHEEL AND TIRE DIAGNOSIS

DIAGNOSIS

M1311000700471

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

Rapid wear
at shoulders

Under-inflation
or lack of
rotation

Adjust the tire
pressure.

P.31-7

Rapid wear
at center

Over-inflation
or lack of
rotation

Cracked
treads

Under-inflation

Adjust the tire
pressure.

P.31-7

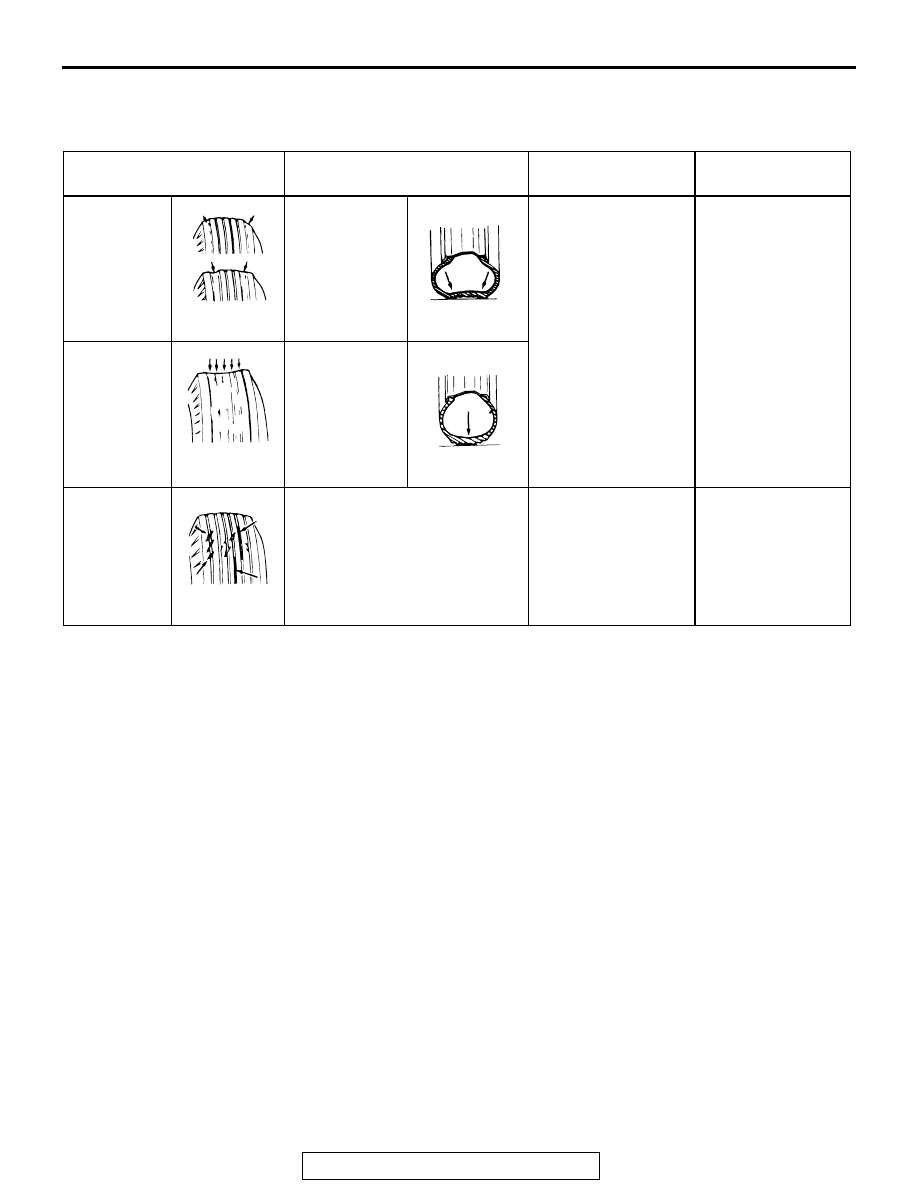

ACX00923AB

ACX00924 AB

ACX00925AB

ACX00926AB

ACX00927AB
