AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-101

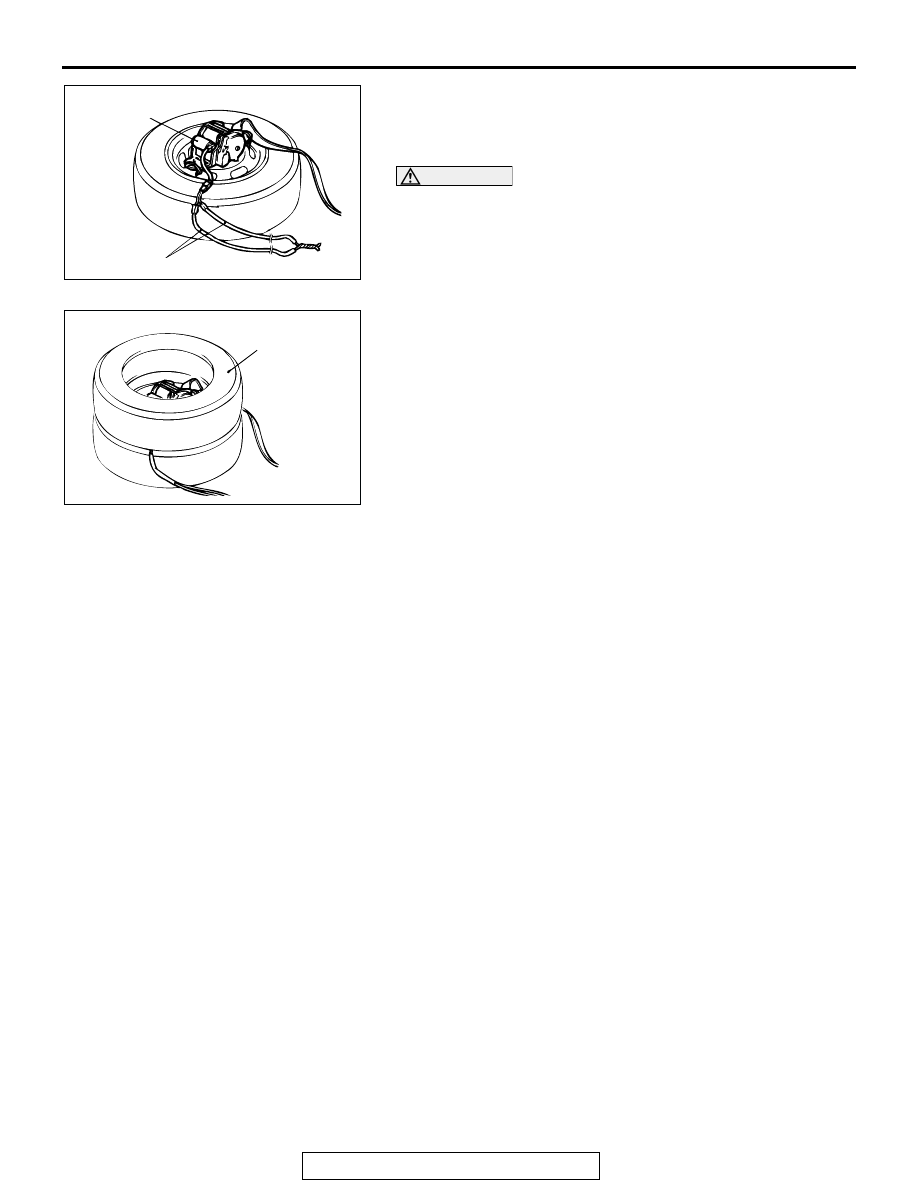

(3) Seat belt pre-tensioner

a. Connect special tool MB686560, which the

deployment wires is attached to, to the seat belt
pre-tensioner connector.

CAUTION

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the air bag deploys could
damage the adapter harness.

b. Pass the thick wires through the hole on the seat belt

pre-tensioner bracket and secure them to the front
(raised part) of the wheel on two places.

c. Pull the seat belt out the outside of the tire, and then

place one tire without a wheel inside on top of the
existing tire.

AC004296 AB

SEAT BELT
PRE-TENSIONER

DEPLOYMENT WIRES

AC004297

TYRES WITHOUT
WHEELS

AB

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-102

WARNING

•

Before deployment and operation, check carefully
to be sure that no one is nearby.

•

After the air bag has been deployed or the seat belt
pre-tensioner has been triggered, the inflator is
very hot. So wait for at least thirty minutes before
the inflator is handled. See Deployed Air Bag Mod-
ule and Seat Belt pre-tensioner Disposal Proce-
dures (Refer to

P.52B-103

) for post-deployment

handling instructions.

•

Just in case that the air bag module could not
been deployed or the seat belt pre-tensioner could
not been operated, contact the MMNA Tech Line.

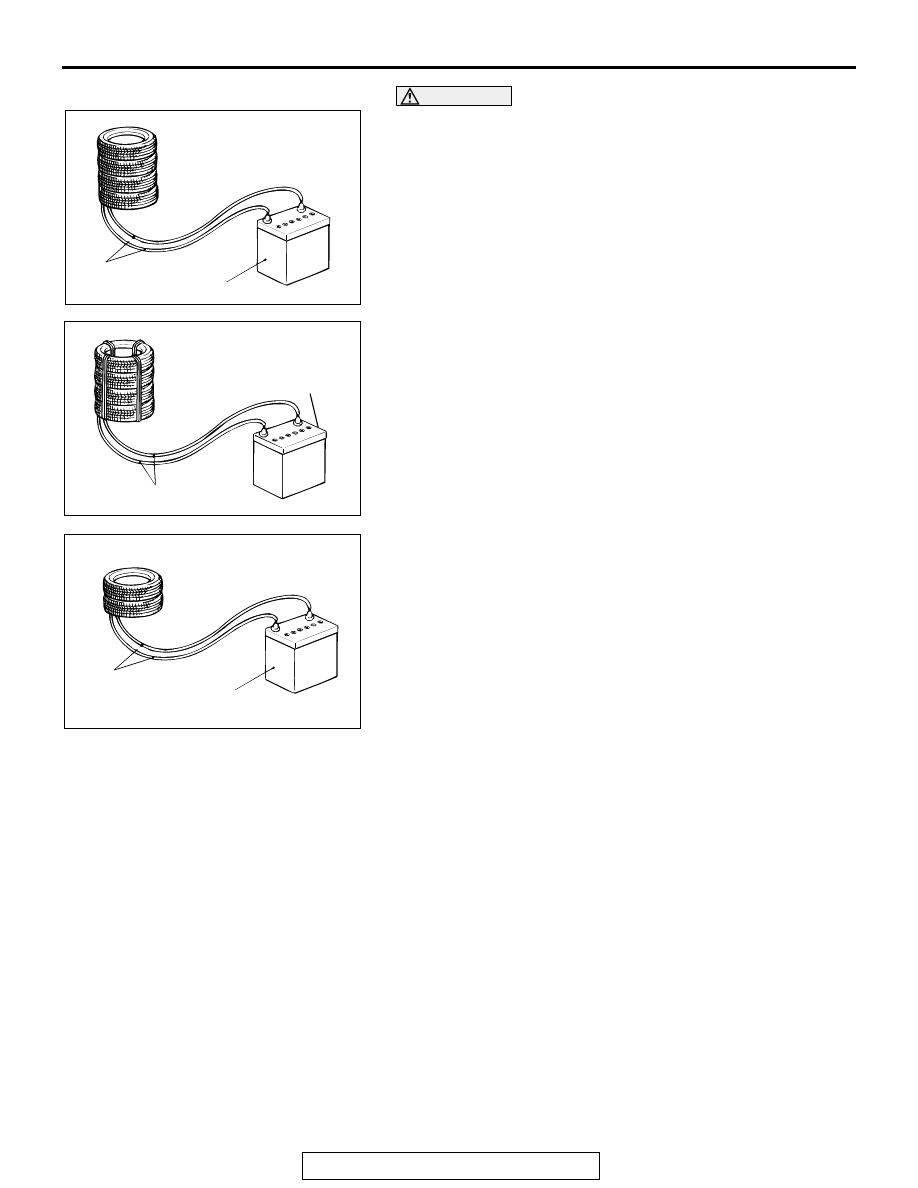

5. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has bee removed from
the vehicle) to deploy the air bag and operate the seat belt
pre-tensioner.

6. For the disposal of an deployed air bag module or seat belt

pre-tensioner, see the Deployed Air Bag Module Disposal
Procedures .

ACX01313 AC

<DRIVER'S SIDE>

VEHICLE
BATTERY

DEPLOYMENT
WIRES

ACX01315

<FRONT PASSENGER'S SIDE>

DEPLOYMENT
WIRES

VEHICLE
BATTERY

AC

AC004294 AB

<SEAT BELT PRE-TENSIONER>

DEPLOYMENT
WIRES

VEHICLE BATTERY

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-103

DEPLOYED AIR BAG MODULE DISPOSAL

After deployment and operation, the air bag module and seat
belt pre-tensioner should be disposed of in the same manner
as any other scrap parts, adhering to local laws and/or legisla-
tion. Observe the following precautions during air bag disposal:
1. The inflator will be quite hot immediately following

deployment, so wait at least 30 minutes to allow it cool
before attempting to handle it.

2. Do not put water or oil on the air bag after deployment or on

the seat belt pre-tensioner after operation.

WARNING

If after following these precautions, any material does
get into the eyes or on the skin, immediately rinse the
affected area with a large amount of clean water. If
any irritation develops, seek medical attention.

3. There may be material on the deployed air bag module or

the operated seat belt pre-tensioner, that could irritate the
eye and/or skin. Wear gloves and safety glasses when
handling a deployed air bag module or the operated seat
belt pre-tensioner.

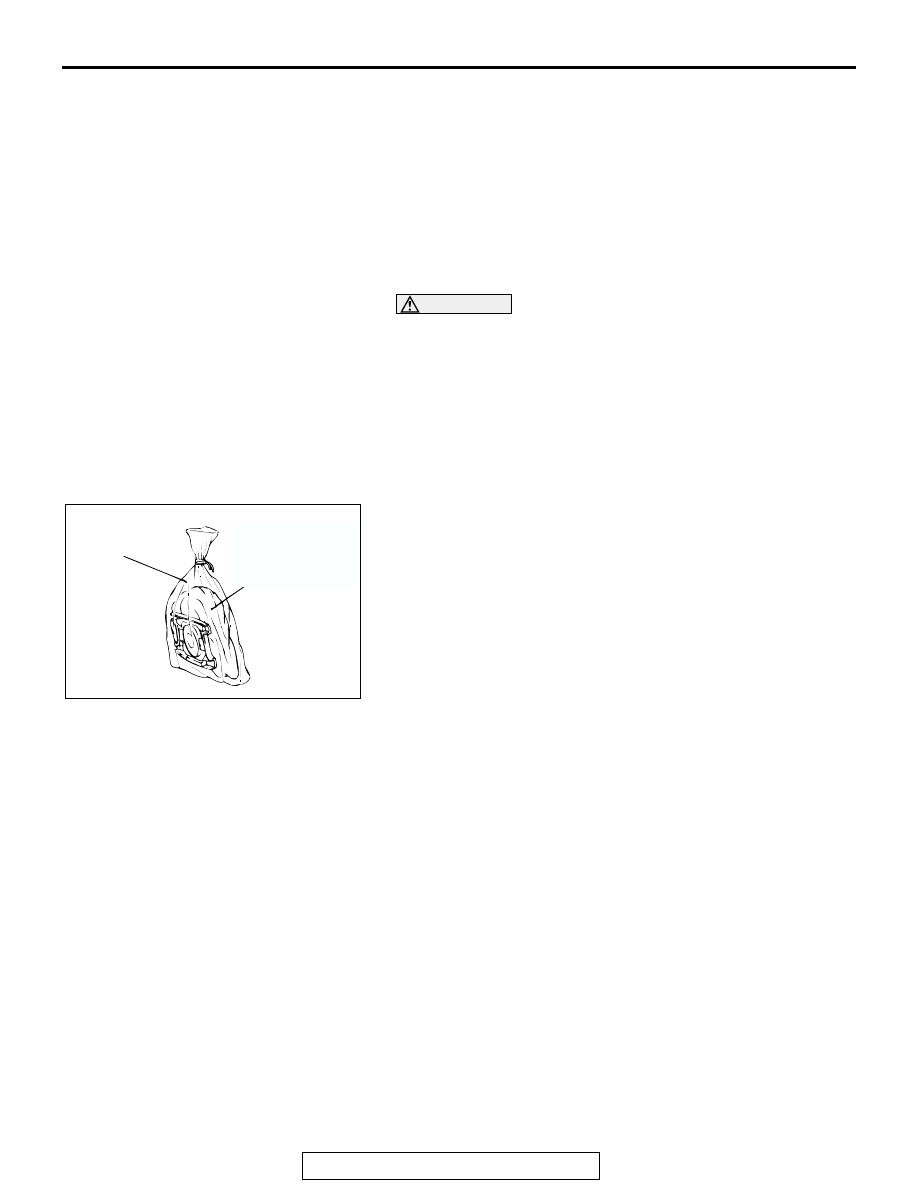

4. Tightly seal the air bag module and seat belt pre-tensioner in

a strong plastic bag for disposal.

5. Be sure to always wash your hands after completing this

operation.

ACX00613

STRONG
PLASTIC
BAG

AIR BAG
MODULE AND
SEAT BELT
PRE-TENSIONER

AB

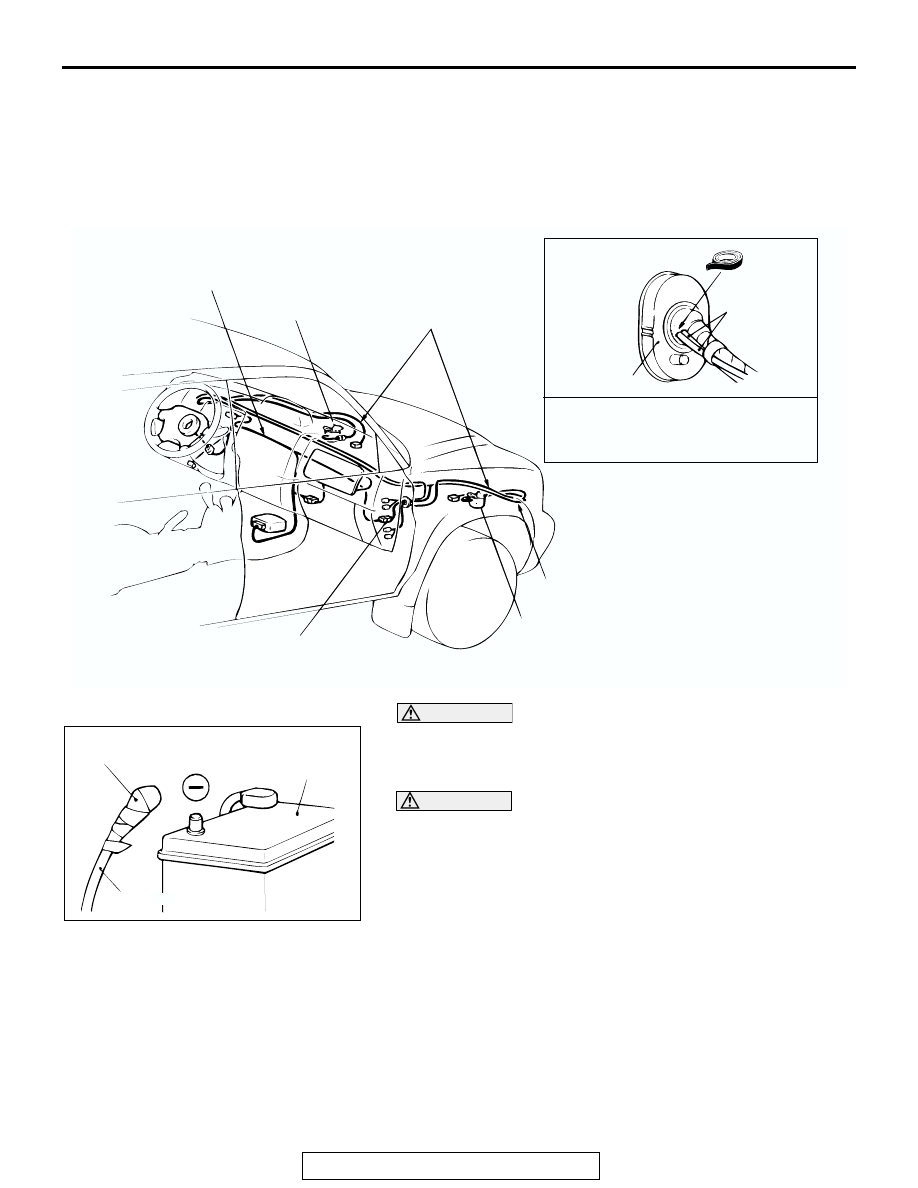

SENSOR CABLE INSTALLATION PROCEDURE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-104

SENSOR CABLE INSTALLATION PROCEDURE

M1524001300072

If there is a malfunction in the front wiring harness
between the front impact sensor and body wiring har-
ness, install and route a new sensor cable (Refer to

P.52B-17

.)

.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-17

.)

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

1. Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and air bags
deployment.

AC003322

BODY WIRING
HARNESS

FRONT IMPACT
SENSOR (LH)

SENSOR CABLE

SENSOR
CABLE

GROMMET

SEALANT:
3M™AAD Part No. 8633 OR
EQUIVALENT

FRONT WIRING HARNESS
CONNECTOR C-17

FRONT IMPACT SENSOR (RH)

FRONT WIRING HARNESS

AB

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC
