Mitsubishi Montero Sport (2004+). Manual - part 731

MARK

TSB Revision

EXTERIOR

51-23

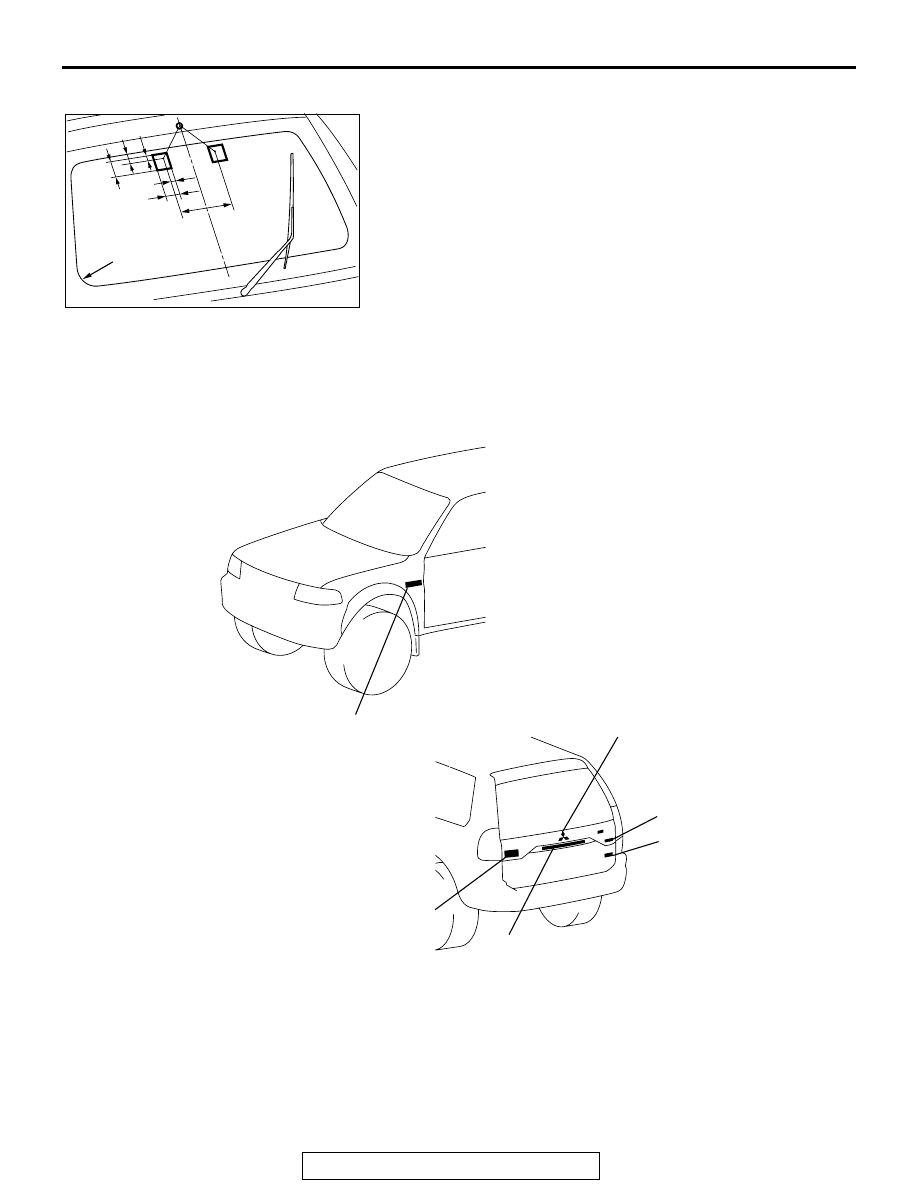

REAR WASHER FLUID EJECTION CHECK

Move the nozzle to adjust so that the water is sprayed out
within the range shown in the illustration.
A: 55 mm (2.16 inches)
B: 38 mm (1.49 inches)
C: 20 mm (0.78 inches)
D: 207 mm (8.1 inches)

MARK

 REMOVAL AND INSTALLATION

M1511011800584

Y0136AA

AC004168

A

B C

C

A

D

CERAMIC LINE

AB

AC200769

1

2

6

5

4

3

AE

>>A<< 1. "MONTERO SPORT" MARK

>>A<<

2. "MONTERO SPORT" MARK

>>A<<

3. "AWD" DECAL

>>A<<

4. "GRADE" MARK

>>A<<

5. "3-DIAMOND" MARK

>>A<<

6. "MITSUBISHI" MARK

MARK

TSB Revision

EXTERIOR

51-24

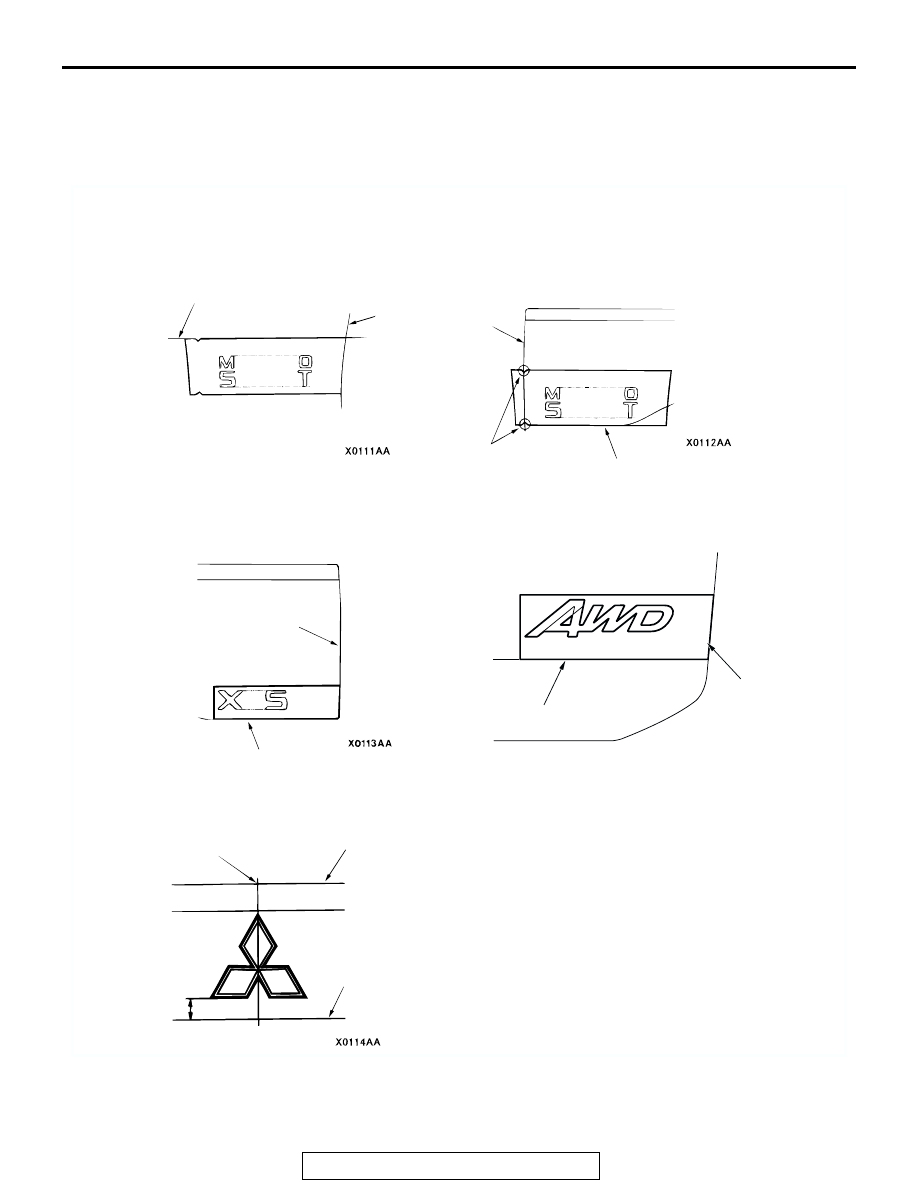

INSTALLATION SERVICE POINT

.

>>A<< MARK INSTALLATION
1. Installation position

Attach to the position shown in the illustration.

AC103788

AC103787

AD

"MONTERO SPORT" MARK

ALIGN TO PRESS LINE

FENDER
PANEL
END LINE

LIFTGATE
GARNISH
END LINE

ALIGN TO NOTCH

LIFTGATE GARNISH
END LINE

LIFTGATE GARNISH END LINE

ALIGN TO PRESS LINE

LIFTGATE
END LINE

LIFTGATE GARNISH END LINE

LIFTGATE GARNISH
CENTER LINE

LIFTGATE GARNISH
END LINE

LIFTGATE GARNISH
END LINE

14.8 mm
(0.58 in)

"GRADE" MARK

"AWD" DECAL, "GRADE" MARK

"3-DIAMOND" MARK

DOOR MIRROR

TSB Revision

EXTERIOR

51-25

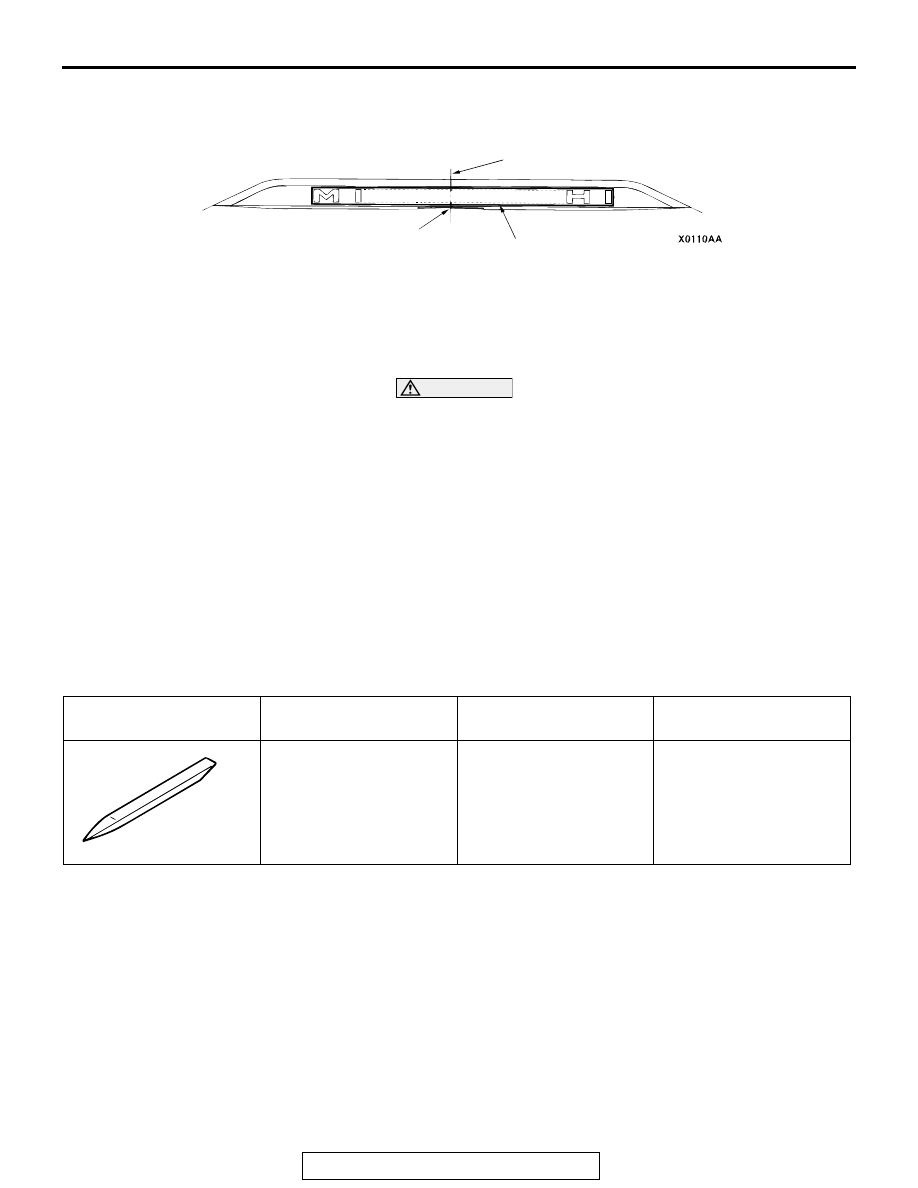

2. Installation procedure

(1) Use 3M

 AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

CAUTION

When attaching the marks, the surrounding temperature
should be 20

− 38°C (60 − 100°F) and the air should be

completely free from dust. If the surrounding temperature
is low than 20

°C (60°F), the marks and their application

surface on the body should be heated to 20

− 38°C (60 −

100

°F).

(2) Peel off the backing paper from the reverse side of the

marks, carefully attach the marks to the vehicle body in
the exact position shown.

DOOR MIRROR

SPECIAL TOOL

M1511000600735

AC003986

NOTCH

ALIGN TO LOWER END
OF LIFTGATE GARNISH

LIFTGATE GARNISH CENTER LINE

AB

MITSUBISHI MARK

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784 Ornament
remover

General service tool

Removal of remote
controlled mirror switch

MB990784

DOOR MIRROR

TSB Revision

EXTERIOR

51-26

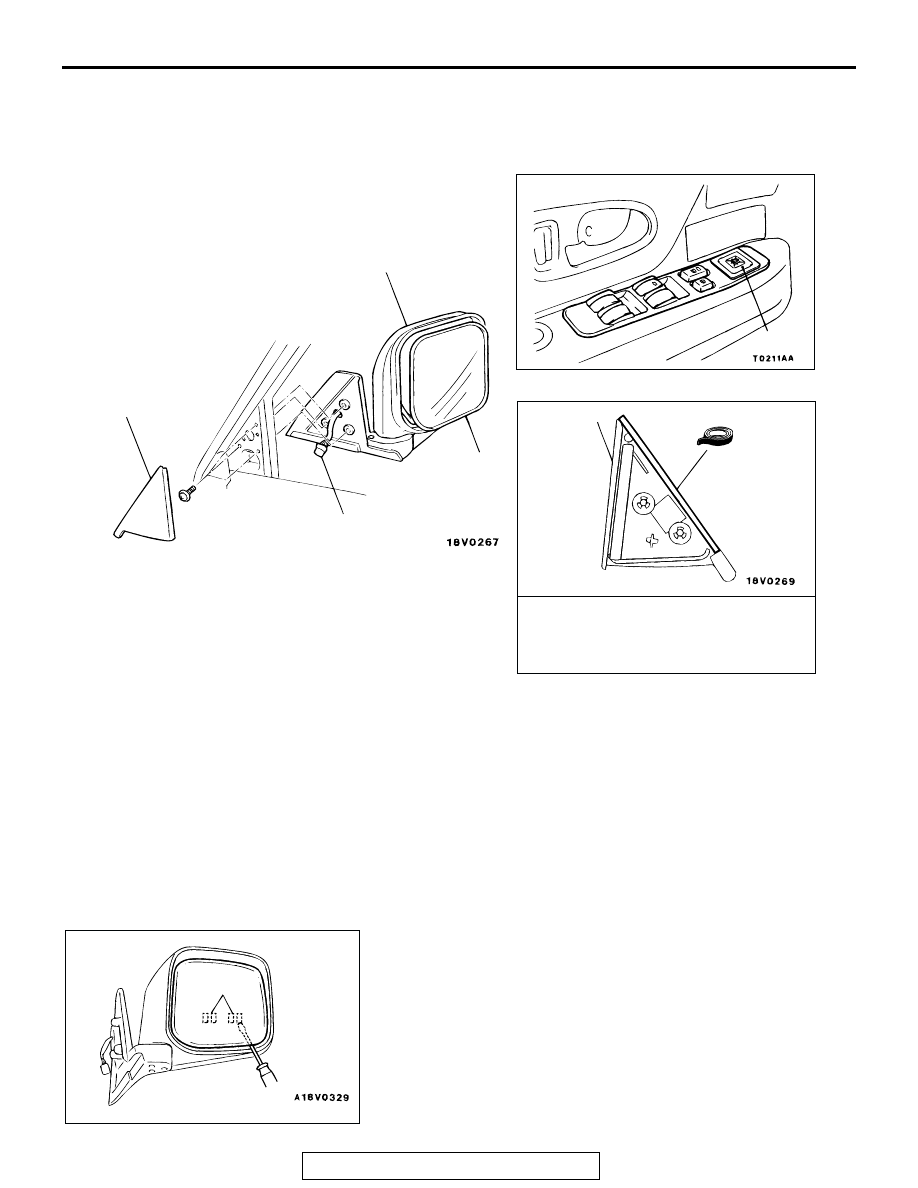

DOOR MIRROR

REMOVAL AND INSTALLATION

M1511006400397

Required Special Tool:

• MB990784: Ornament Remover

REMOVAL SERVICE POINT

.

<<A>> MIRROR REMOVAL
1. Tilt the mirror upward by hand, insert a flat-tipped

screwdriver onto which protective tape has been wound,
and then pry the claws off of the actuator.

AC003987

3

2

5

4

2

1

ADHESIVE TAPE:
DOUBLE-SIDED TAPE 5 mm (0.2 in)
WIDTH AND 0.4 mm (0.02 in) THICKNESS

AB

1. REMOTE CONTROLLED MIRROR

SWITCH

DOOR MIRROR REMOVAL STEPS
2. DELTA COVER, INNER
3. HARNESS CONNECTOR

<VEHICLES WITH REMOTE
CONTROLLED MIRROR>

4. MIRROR ASSEMBLY

<<A>>

5. MIRROR

DOOR MIRROR REMOVAL STEPS

AC003988

CLAWS

AB
