AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-397

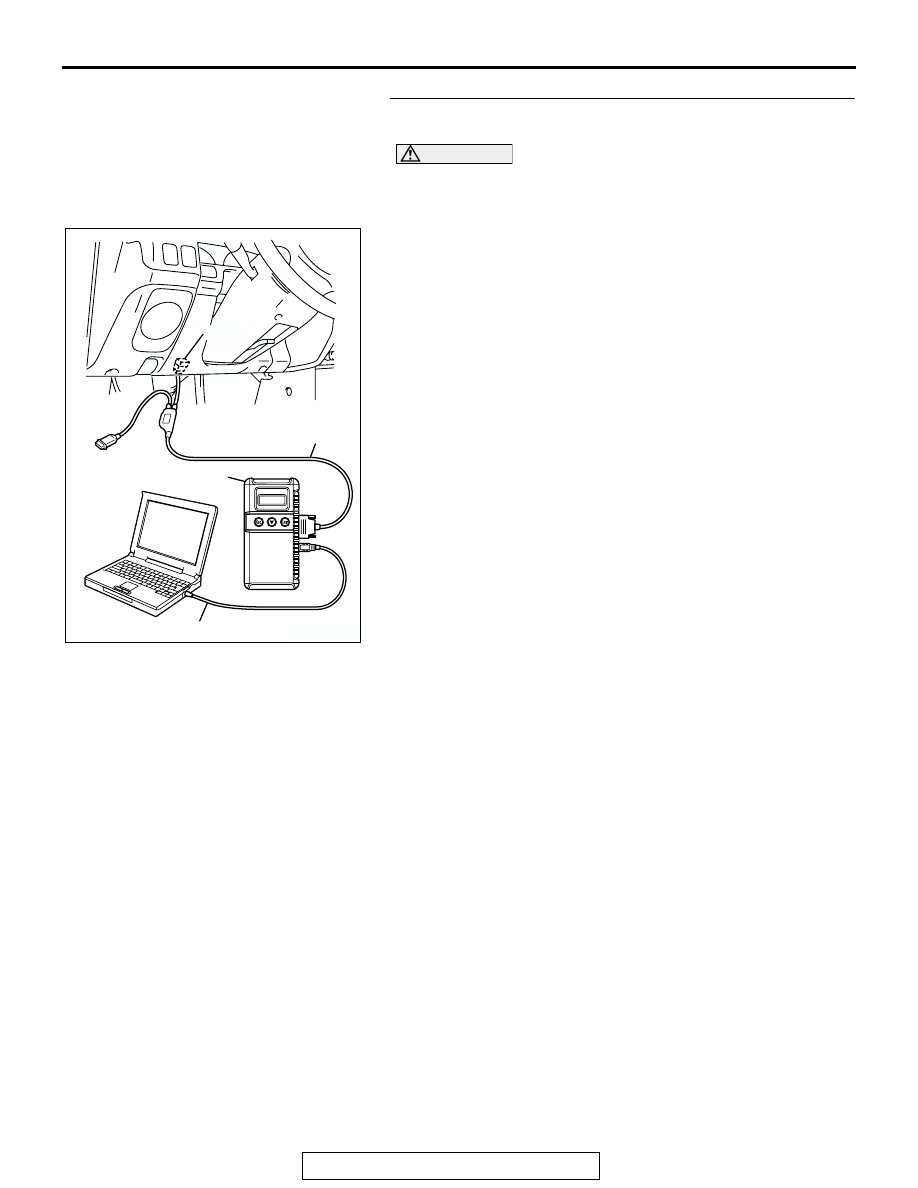

STEP 10. Using scan tool MB991958, check data list item
66: Overdrive Off Signal (Auto-cruise control-ECU Signal).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and prepare to test drive the vehicle.

(Operate the auto-cruise)

(3) Set scan tool MB991958 to data reading mode.

• Item 66: Overdrive Off Signal (Auto-cruise control-ECU

Signal).

• When driving at level road, the display should be

"OFF."

• When driving at uphill road, the display should be

"ON."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the auto-cruise control-ECU operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Replace the PCM.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-398

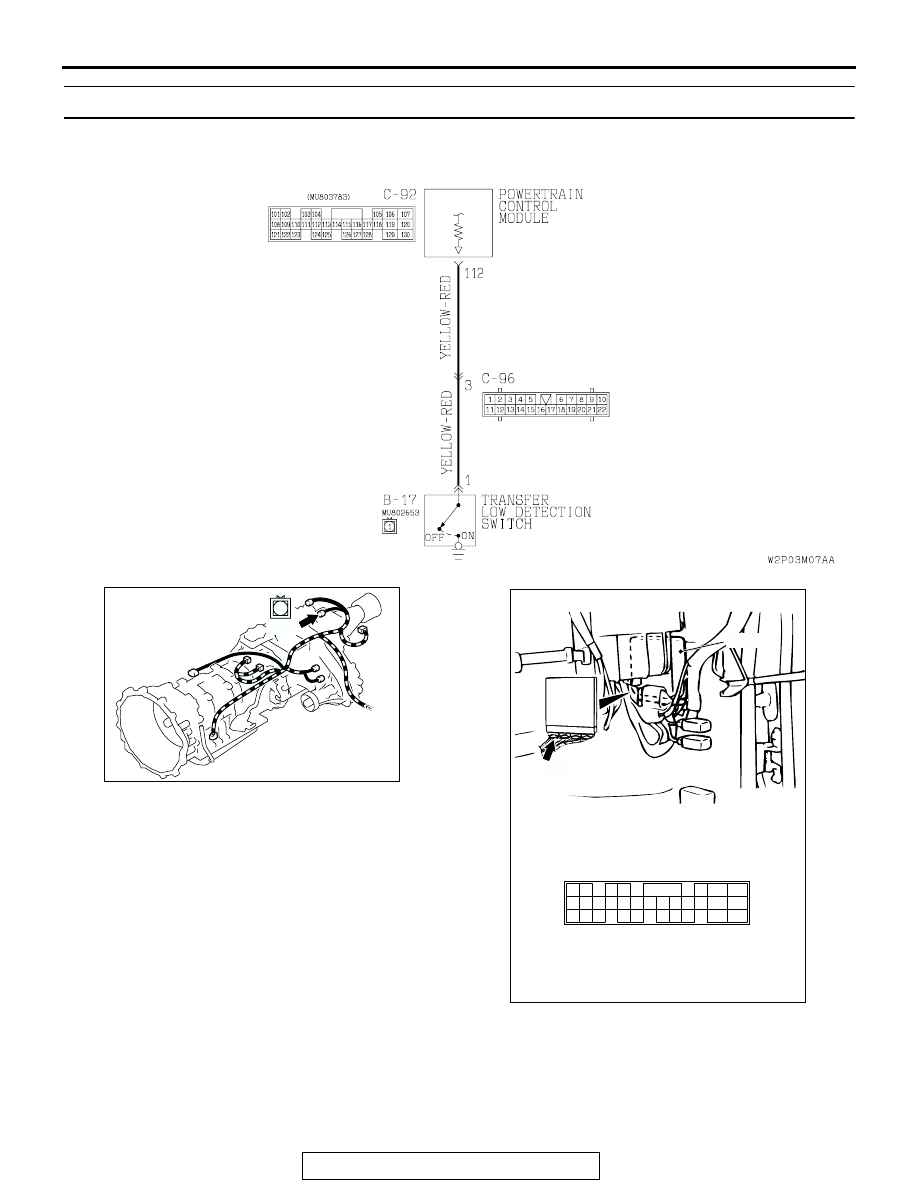

INSPECTION PROCEDURE 17: Transfer Low Detection Switch System

AC103768

Transfer Low Detection Switch System Circuit

AB

AC103769

CONNECTOR: B-17

AC

B-17

1

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-399

.

CIRCUIT OPERATION

• A battery positive voltage is applied to the trans-

fer low detection switch output terminal (terminal
1) from the PCM (terminal 112) via the resistance
in the unit.

• The transfer low detection switch is grounded

through the transfer case to the vehicle body.

.

COMMENT
If the transmission will not shift to 3rd gear, or if it
shifts to 3rd gear when the transfer lever is in the
"4L" position, the cause is probably a malfunction of
the transfer low detection switch.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the transfer low detection switch

• Damaged harness, connector

• Malfunction of the PCM

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

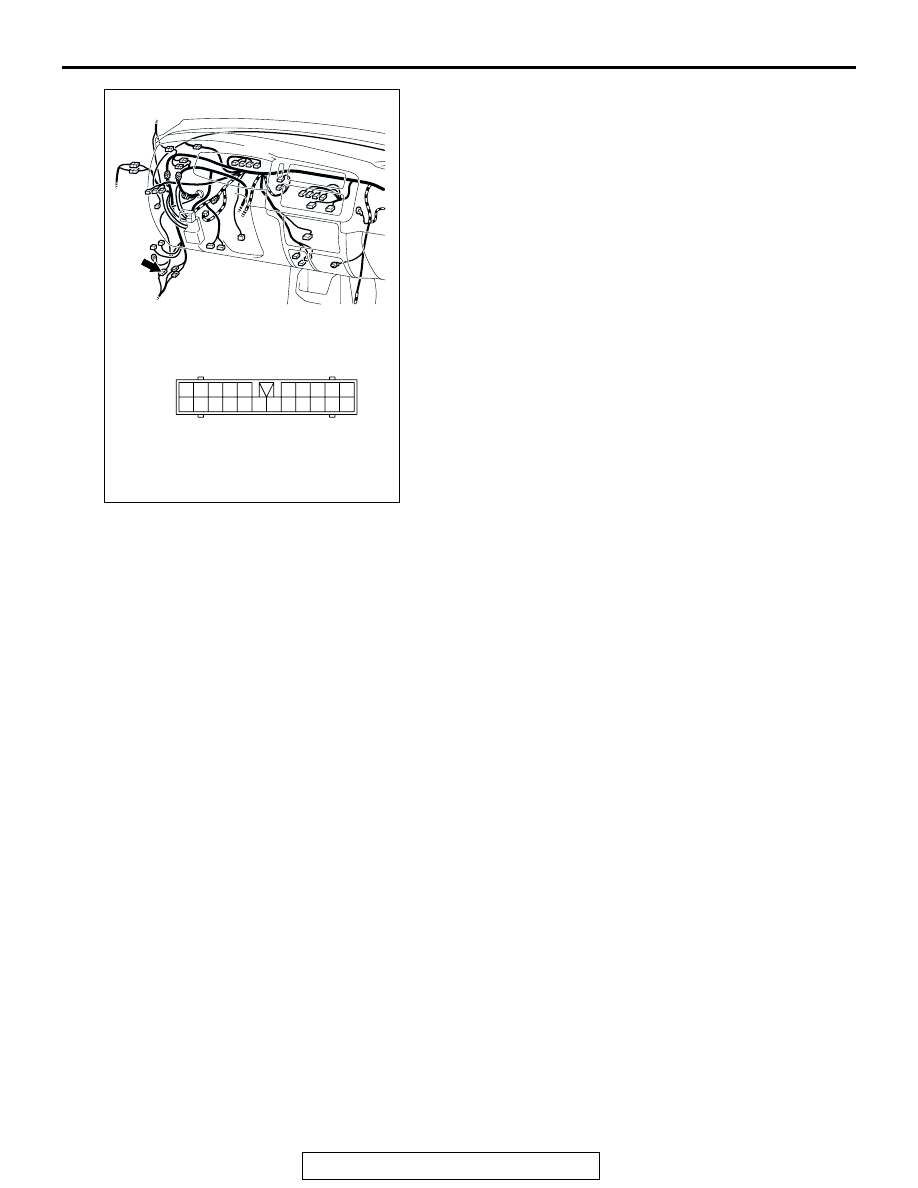

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-400

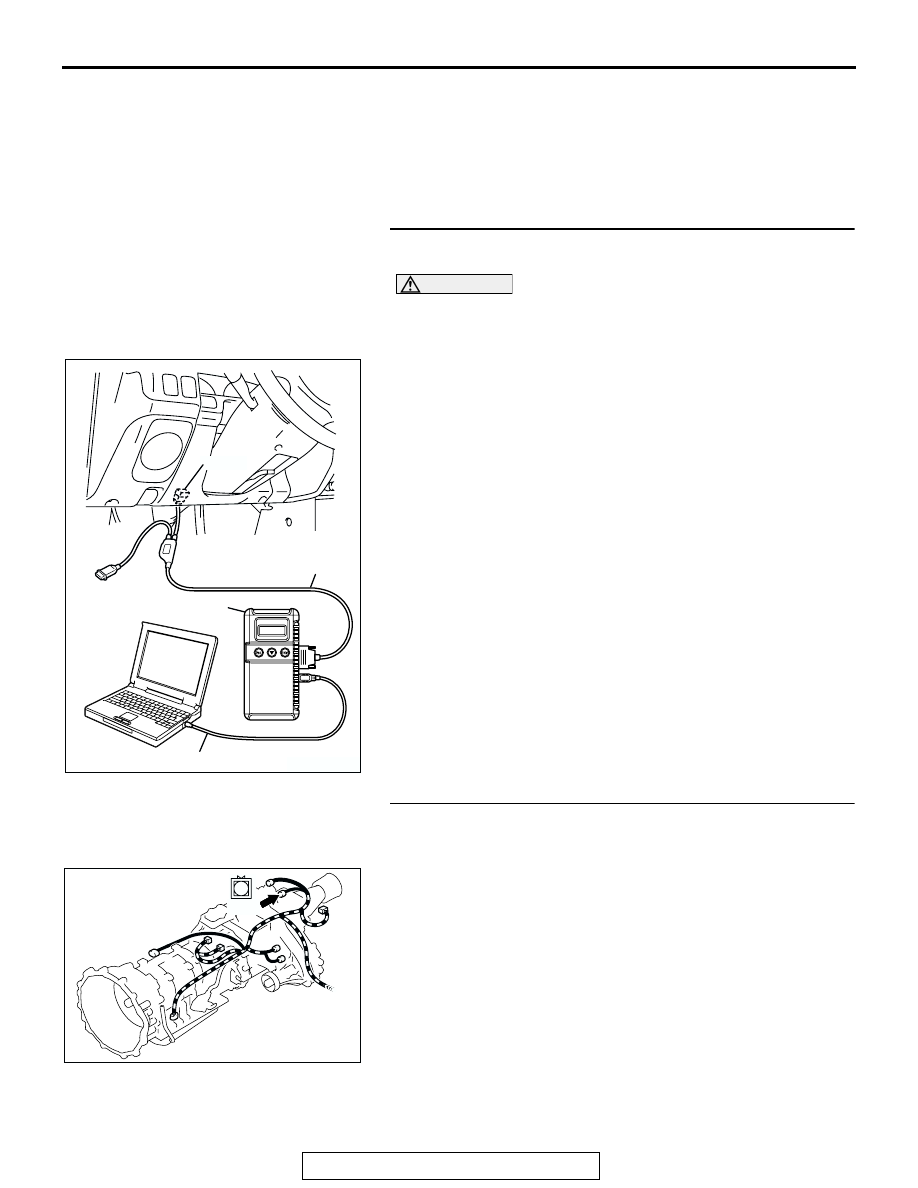

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Using scan tool MB991958, check data list item 75:
Transfer Low Detection Switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode.

• Item 75: Transfer Low Detection Switch.

• When the transfer shift lever position is 4L, the scan

tool MB991958 display should be "ON."

• When the transfer shift lever position is other than

4L, the scan tool MB991958 display should be
"OFF."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the switch operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Go to Step 2.

STEP 2. Check transfer low detection switch connector
B-17 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AC103769

CONNECTOR: B-17

AC

B-17

1
