AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-393

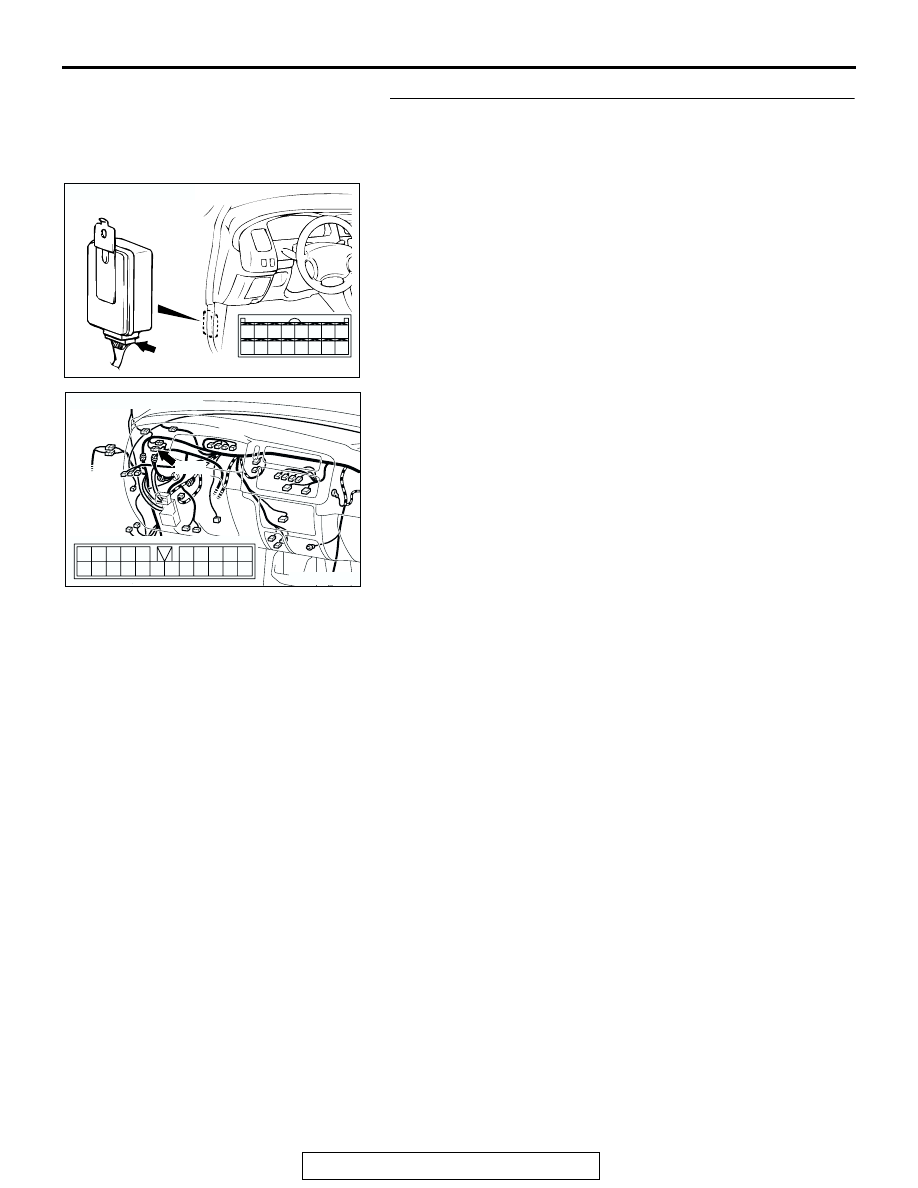

STEP 5. Check the harness for open circuit, short circuit to
ground or damage between auto-cruise control-ECU
connector C-35 terminal 3 and PCM connector C-91
terminal 75.

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC004478

CONNECTOR: C-35

AC

15

14

5 6 7

12

11

4

2 3

13

9

1

10

16

8

C-35 (B)

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-394

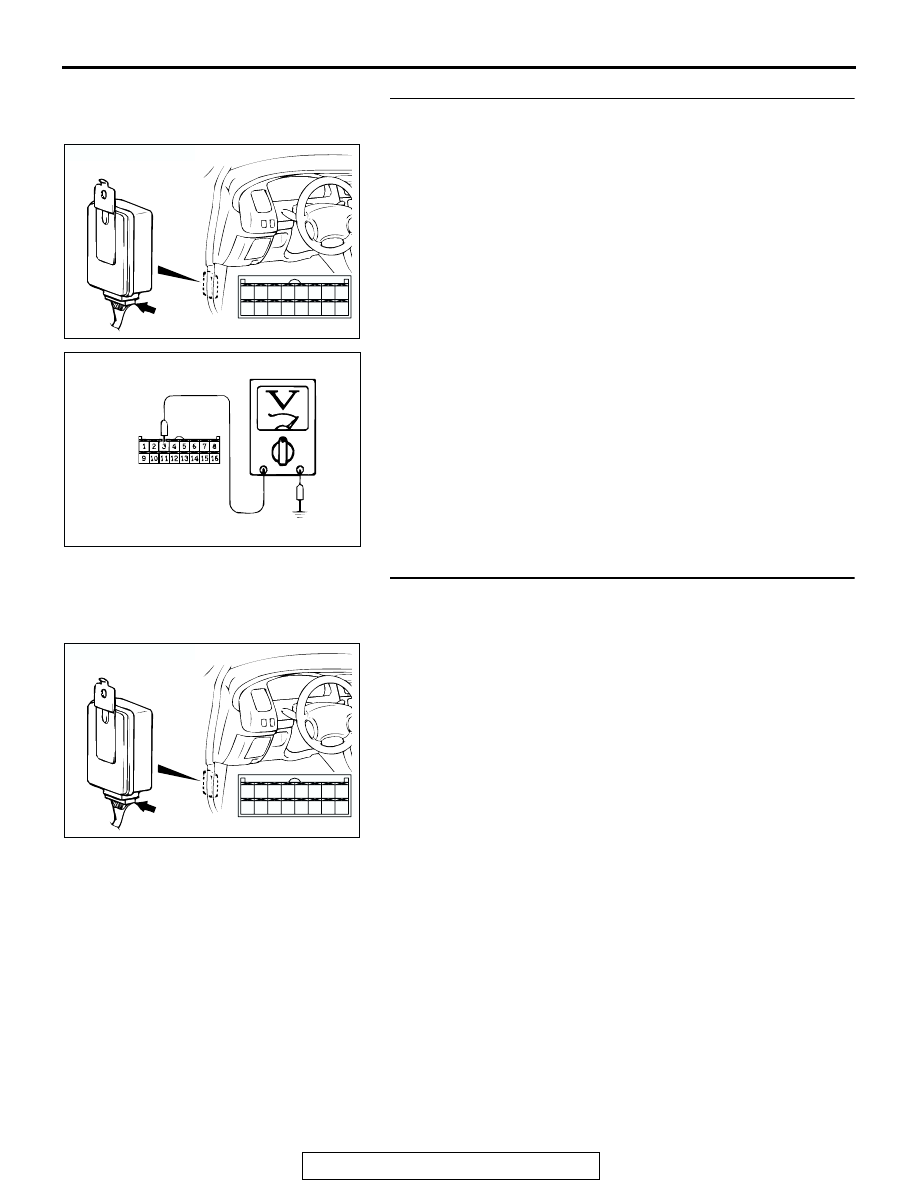

STEP 6. Measure the signal voltage at auto-cruise
control-ECU connector C-35 by backprobing.

(1) Do not disconnect connector C-35.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 3 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 7.
NO :  Go to Step 8.

STEP 7. Check auto-cruise control-ECU connector C-35 for
looser, corroded or damaged terminals, or terminals
pushed back in the connector

Q: Are the connector and terminals in good condition?

YES : Go to Step 10.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC004478

CONNECTOR: C-35

AC

15

14

5 6 7

12

11

4

2 3

13

9

1

10

16

8

C-35 (B)

AC002119

C-35 HARNESS CONNECTOR:
HARNESS SIDE

AI

AC004478

CONNECTOR: C-35

AC

15

14

5 6 7

12

11

4

2 3

13

9

1

10

16

8

C-35 (B)

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-395

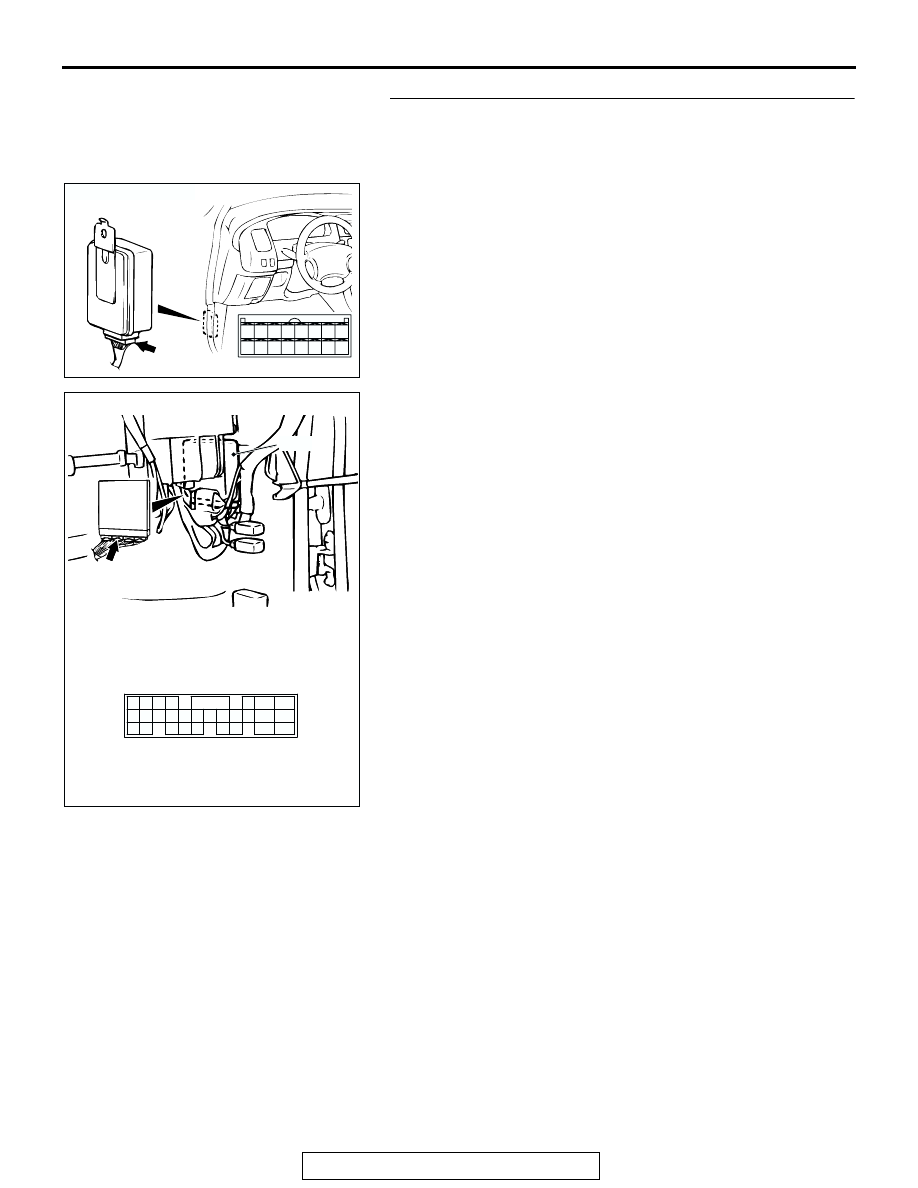

STEP 8. Check auto-cruise control-ECU connector C-35
and intermediate connector C-41 for looser, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC004478

CONNECTOR: C-35

AC

15

14

5 6 7

12

11

4

2 3

13

9

1

10

16

8

C-35 (B)

AC202442

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

CONNECTOR: C-41

C-41

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-396

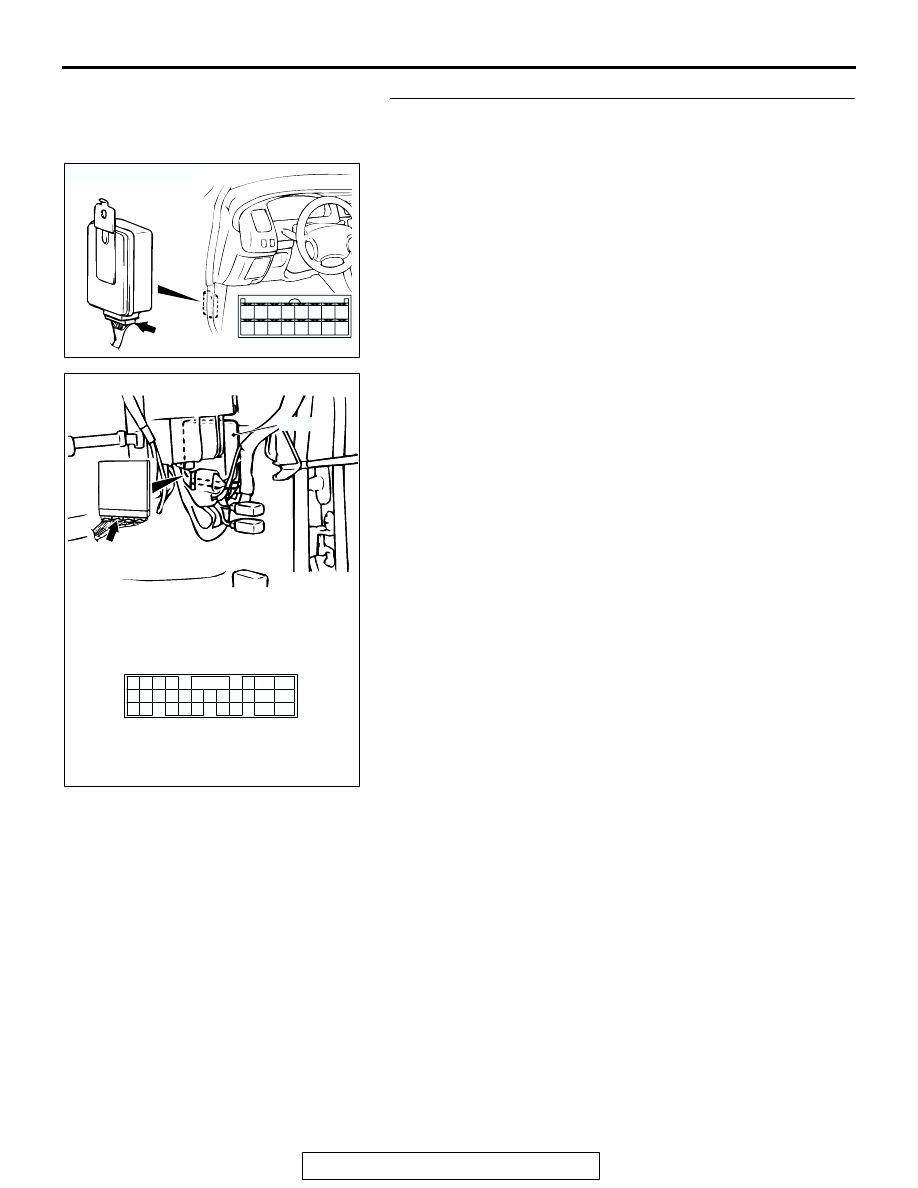

STEP 9. Check harness for short circuit to ground between
auto-cruise control-ECU connector C-35 terminal 3 and
PCM connector C-91 terminal 75.

Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair or replace the harness wire.

AC004478

CONNECTOR: C-35

AC

15

14

5 6 7

12

11

4

2 3

13

9

1

10

16

8

C-35 (B)

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89
