AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-245

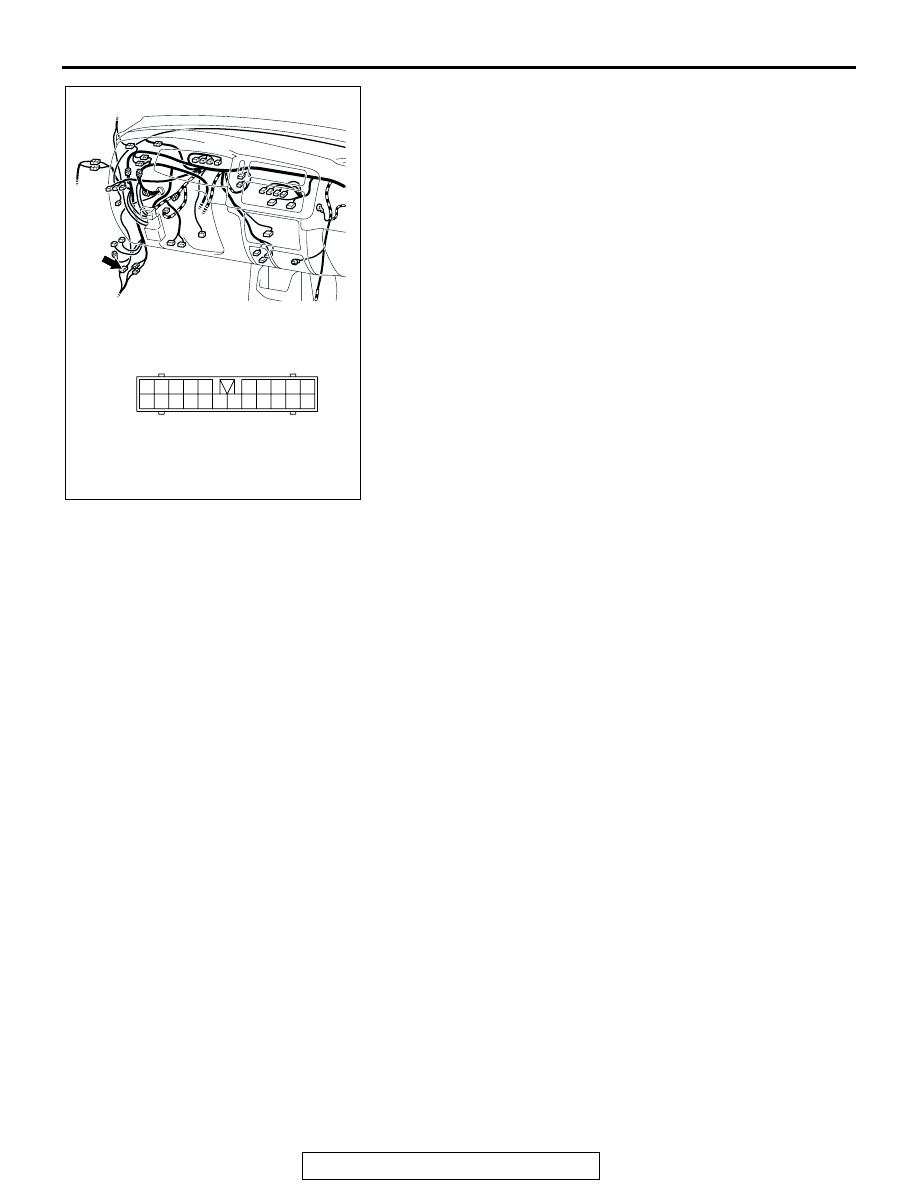

STEP 6. Check A/T control solenoid valve assembly
connector B-02, PCM connector C-92 and intermediate
connector C-96 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-246

Q: Are the connectors and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-247

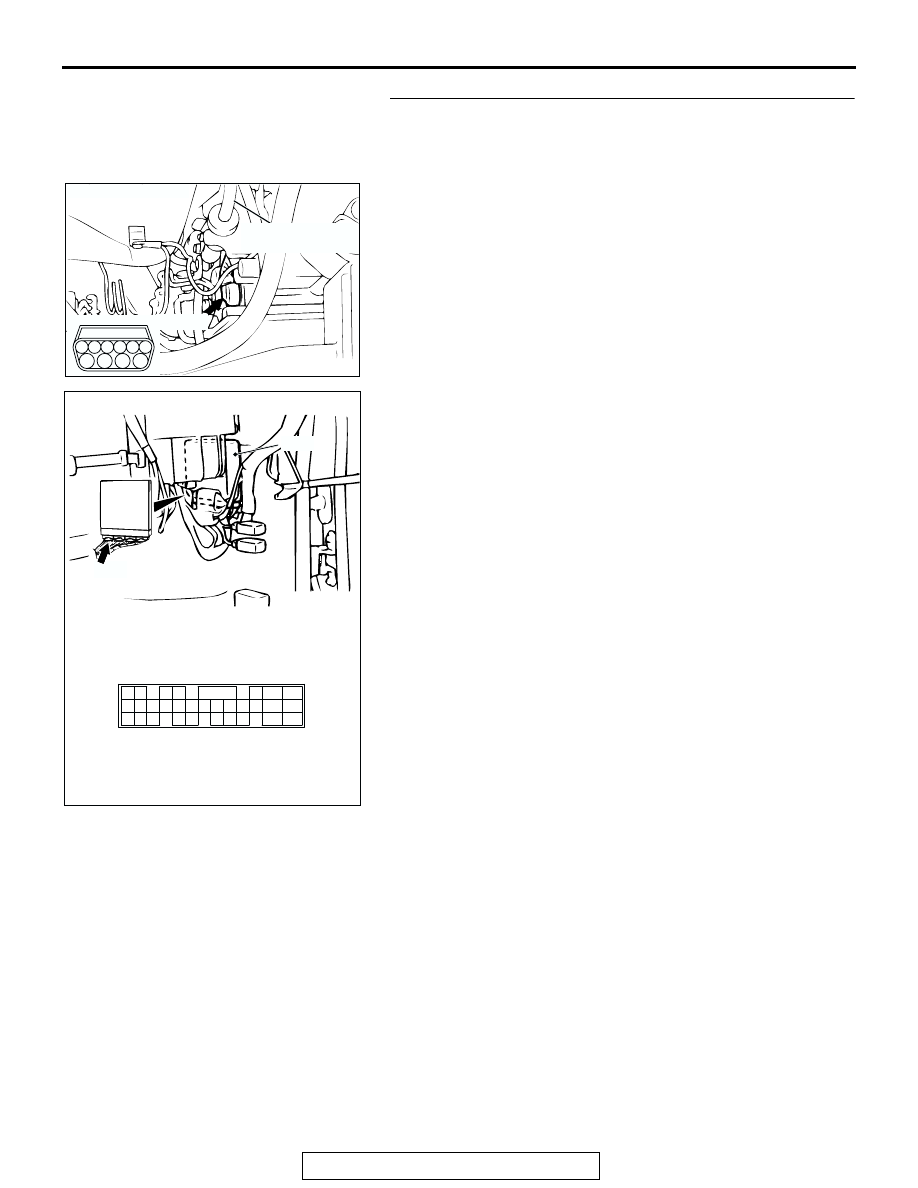

STEP 7. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector B-02 terminal 3 and PCM connector C-92
terminal 120.

Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair or replace the harness wire.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-248

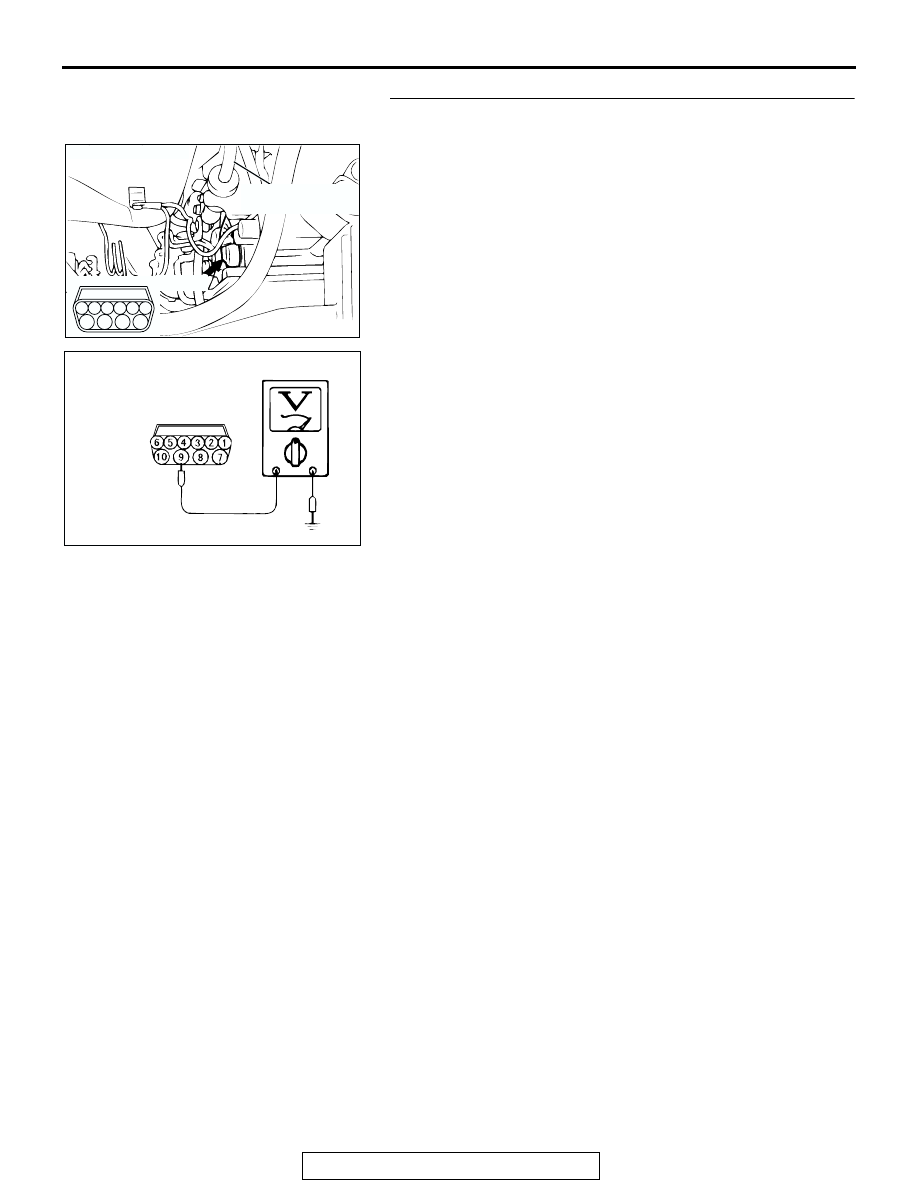

STEP 8. Measure the supply voltage at A/T control
solenoid valve assembly connector B-02.

(1) Disconnect solenoid valve assembly harness connector

B-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between harness connector B-02

terminal 9 and ground.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 9.

AC202437

6

10

4

9

5

3

8

2

7

1

CONNECTOR:B-02

AB

B-02 (B)

TRANSMISSION
CONTROL CABLE

AC001967

AM

B-02 HARNESS CONNECTOR:
COMPONENT SIDE
