Mitsubishi Montero Sport (2004+). Manual - part 664





AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-221

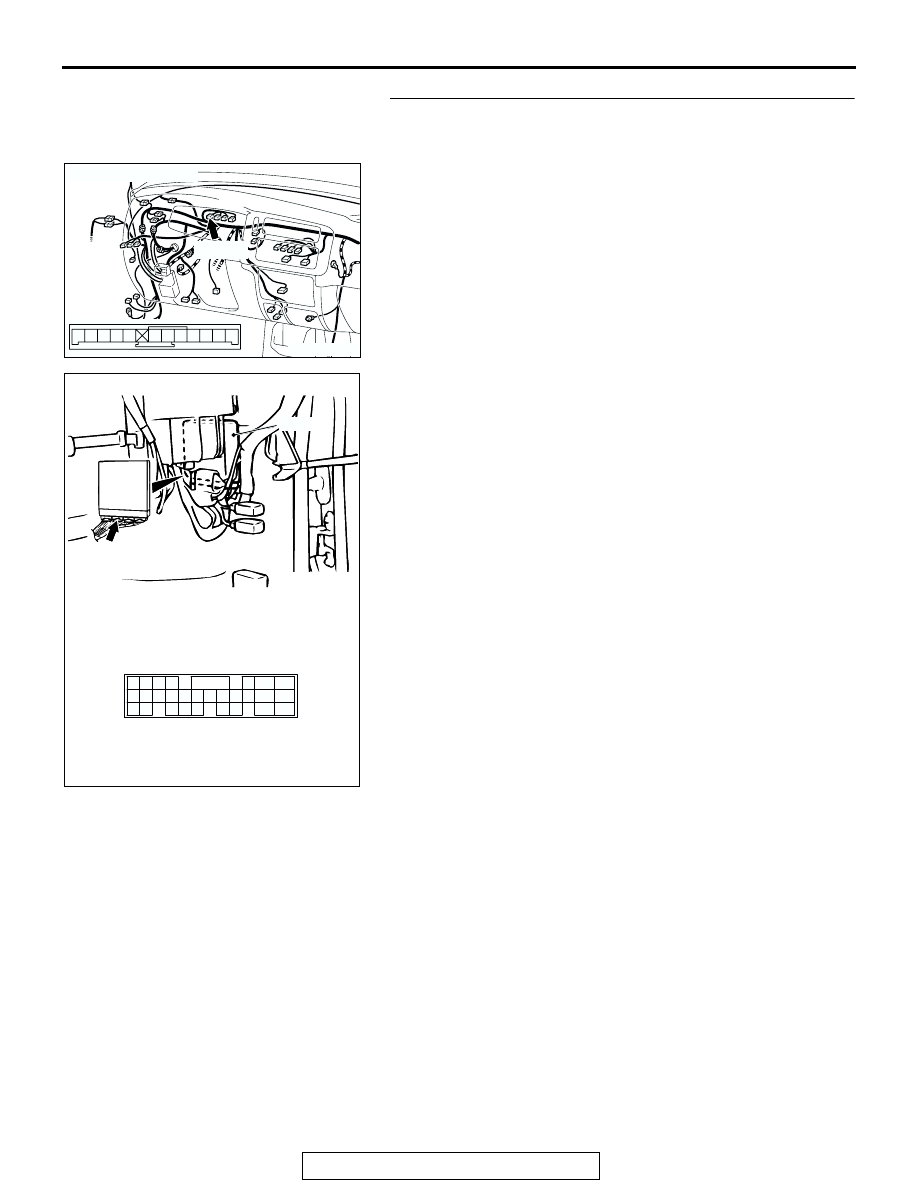

STEP 5. Check the harness for open circuit or short circuit
to ground between combination meter connector C-02
terminal 51 and PCM connector C-91 terminal 80.

Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair or replace the harness wire.

AC202396

62

61

58 59 60

57

56

55

54

53

52

51

AB

CONNECTOR: C-02

C-02 (B)

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-222

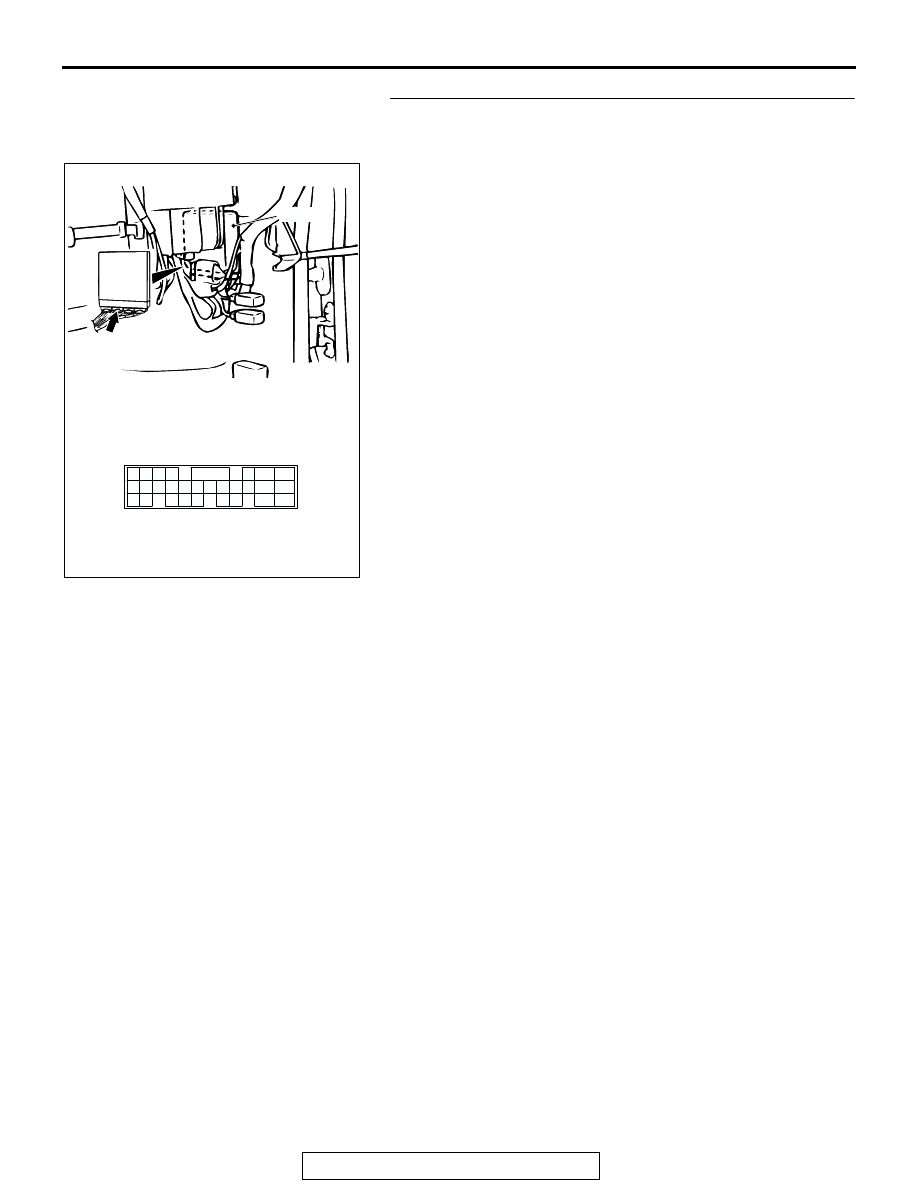

STEP 6. Check PCM connector C-91 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202435

PCM

59
68

58
67

46 47

57

56

53
64

54

65

55

66

50

62

51

63

49

48
60 61

52

44

41 42 43

45

AC202435

PCM

CONNECTOR: C-91

AB

C-91 (GR)

71 72 73 74

75 76

77

78 79 80 81 82 83 84 85 86 87 88

90 91

92 93 94

95 96

97

98

89

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-223

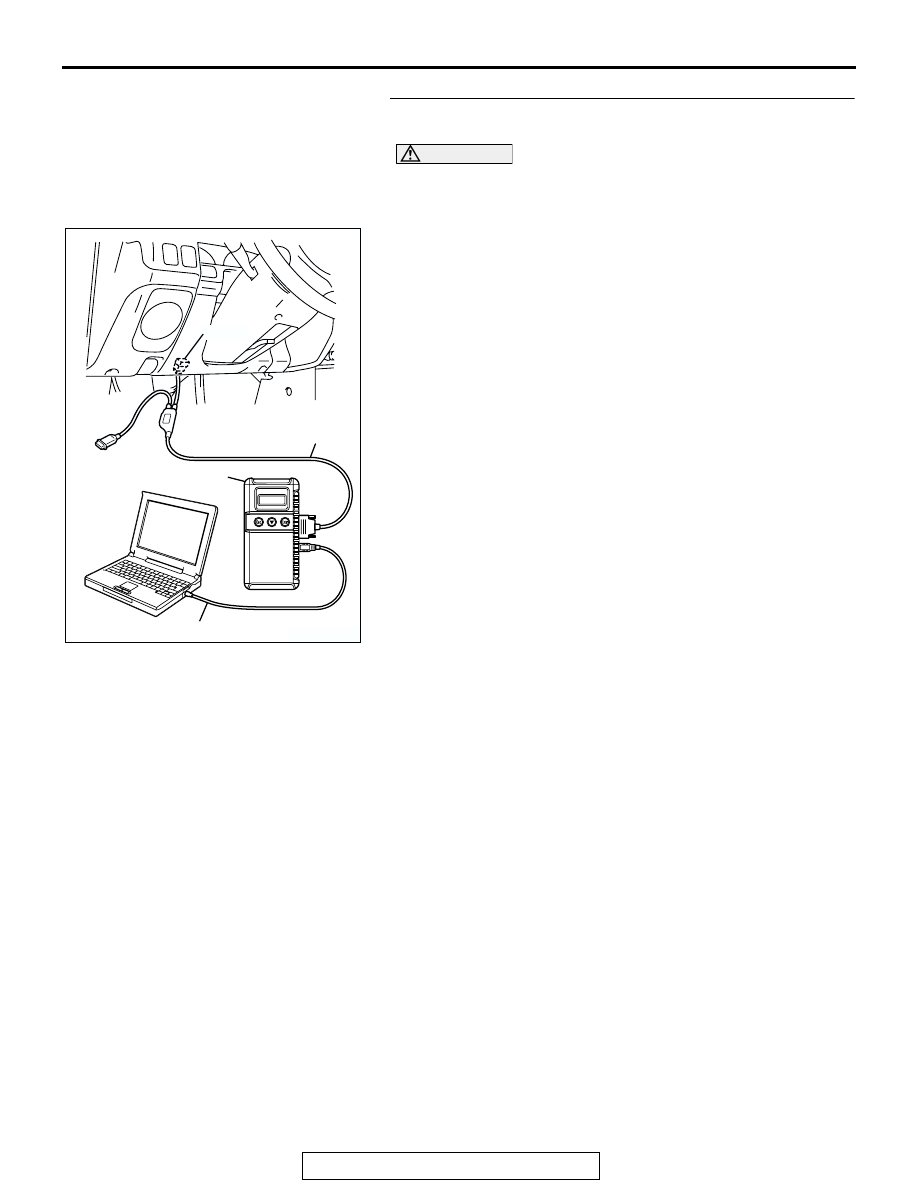

STEP 7. Using scan tool MB991958, check data list item 29:
Vehicle Speed Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to "LOCK" (OFF) position before connect-
ing or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to data reading mode.

• Item 29: Vehicle Speed Sensor.

• Check that the speedometer and scan tool display

speed match when driving at a vehicle speed of 40
km/h (25 mph).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Replace the PCM.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-224

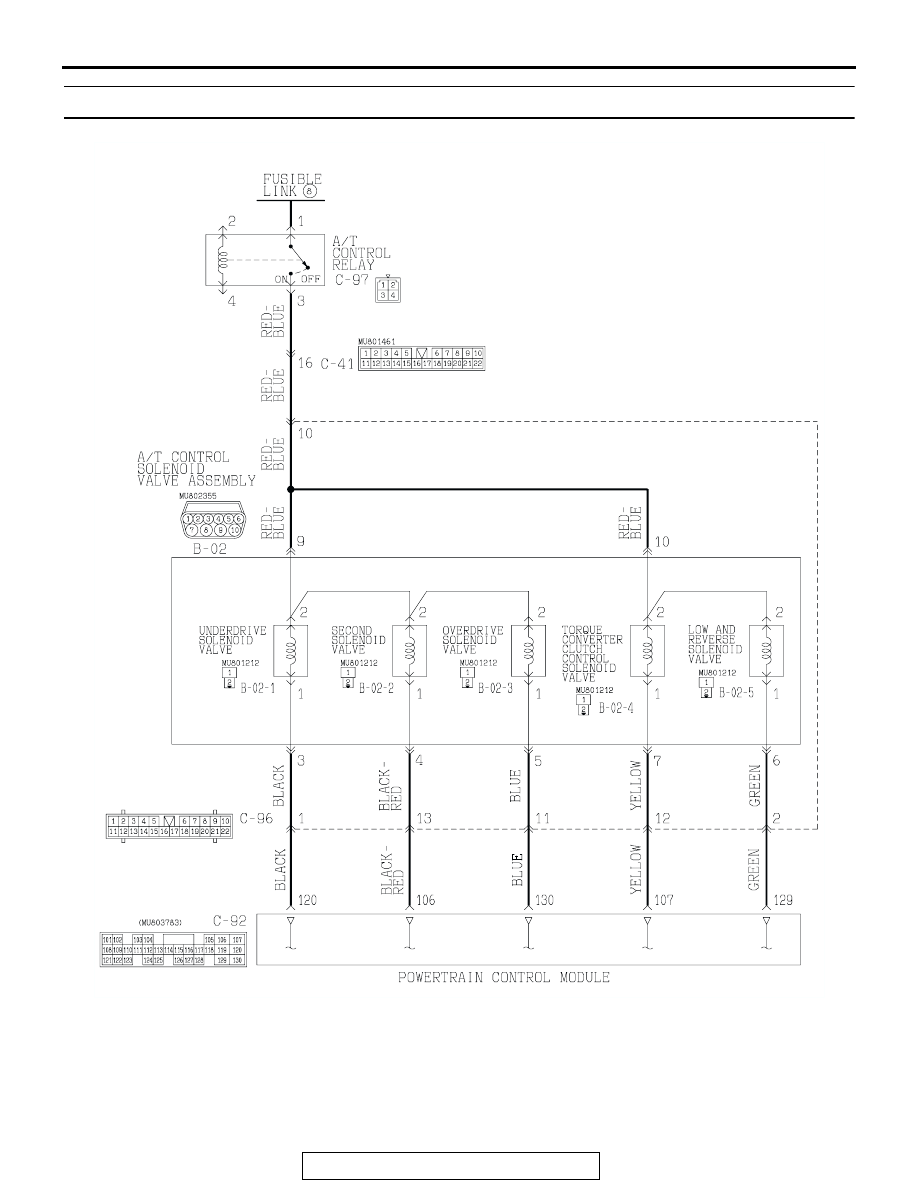

DTC 31 (P0753): Low-Reverse Solenoid Valve System

AC203806

Solenid Valve System Circuit

AC
