AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-177

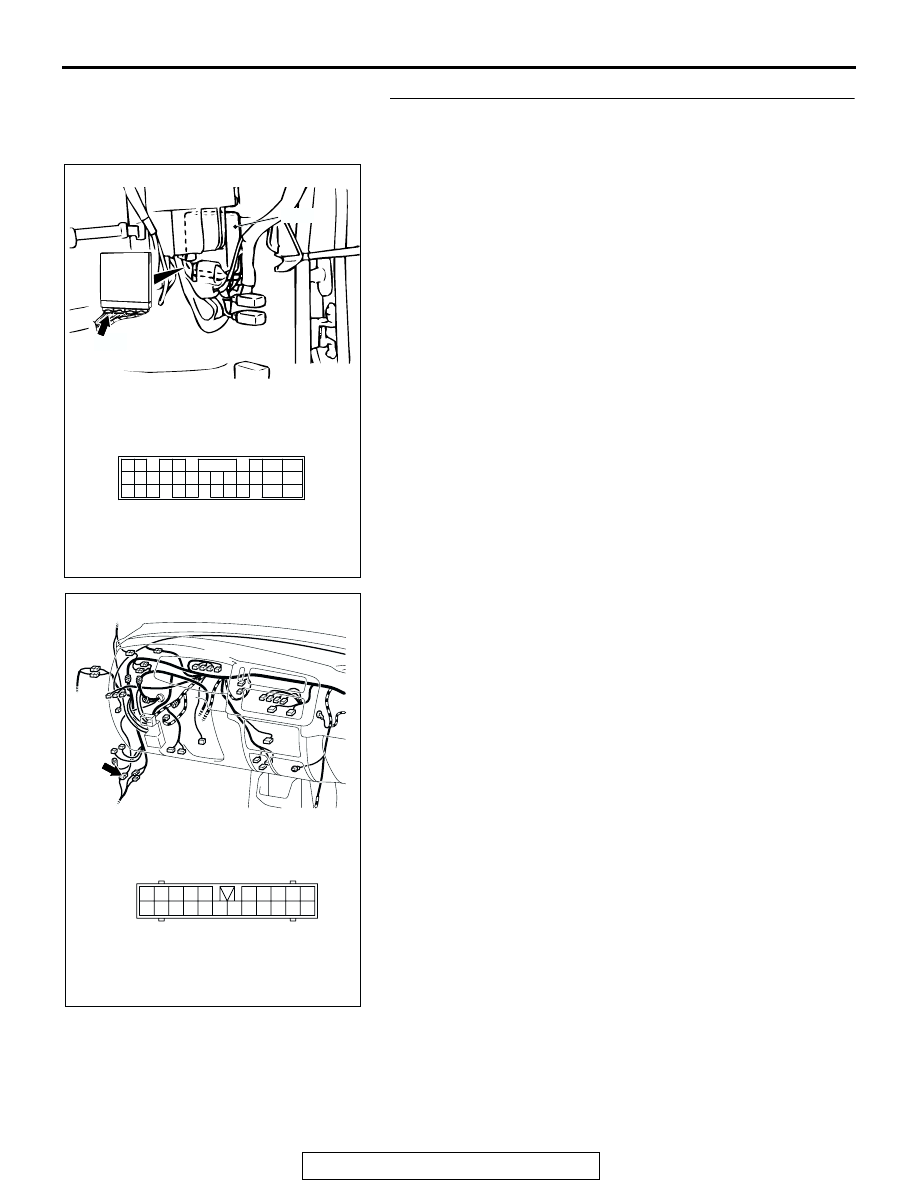

STEP 52. Check PCM connector C-92 and intermediate
connector C-96 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 53.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-178

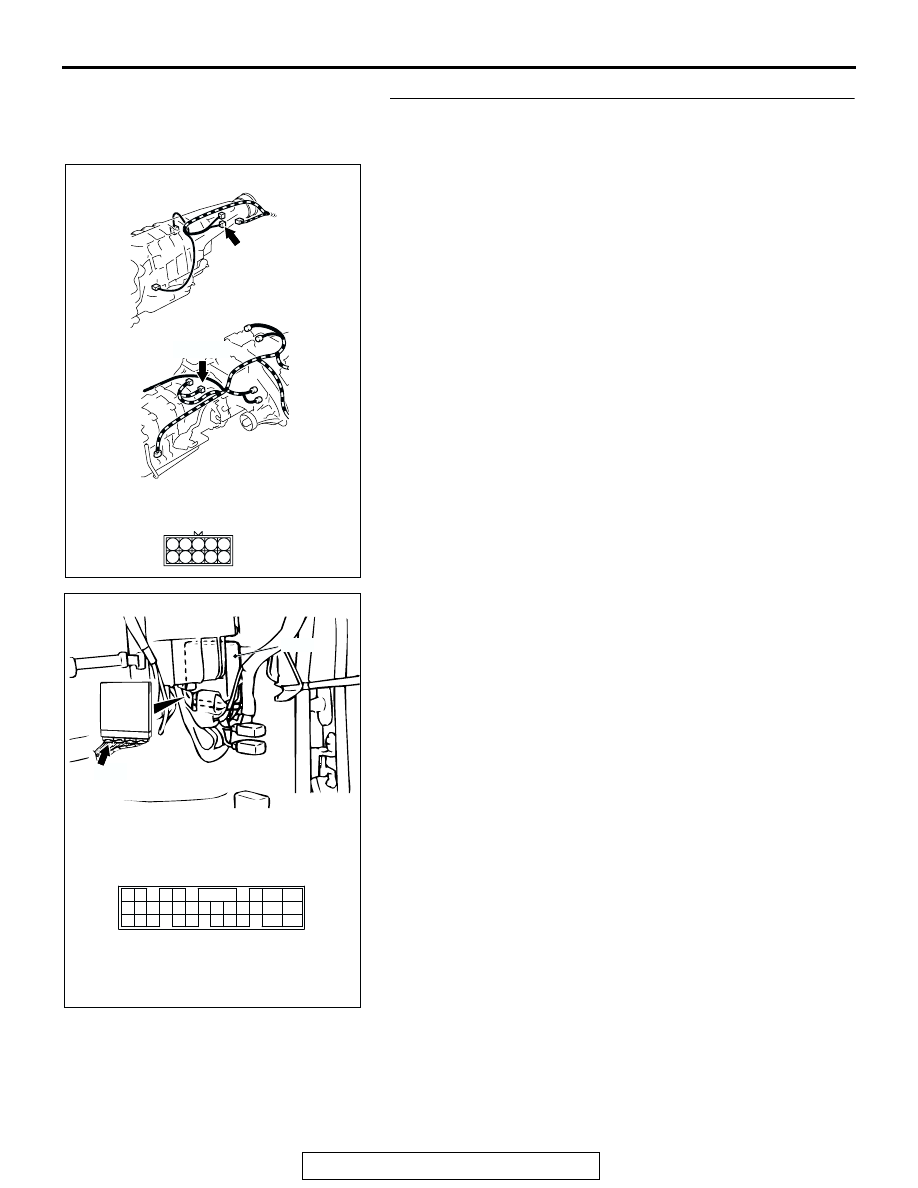

STEP 53. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-01 terminal 6 and PCM connector C-92 terminal 110.

Q: Is the harness wire in good condition?

YES : Go to Step 54.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-179

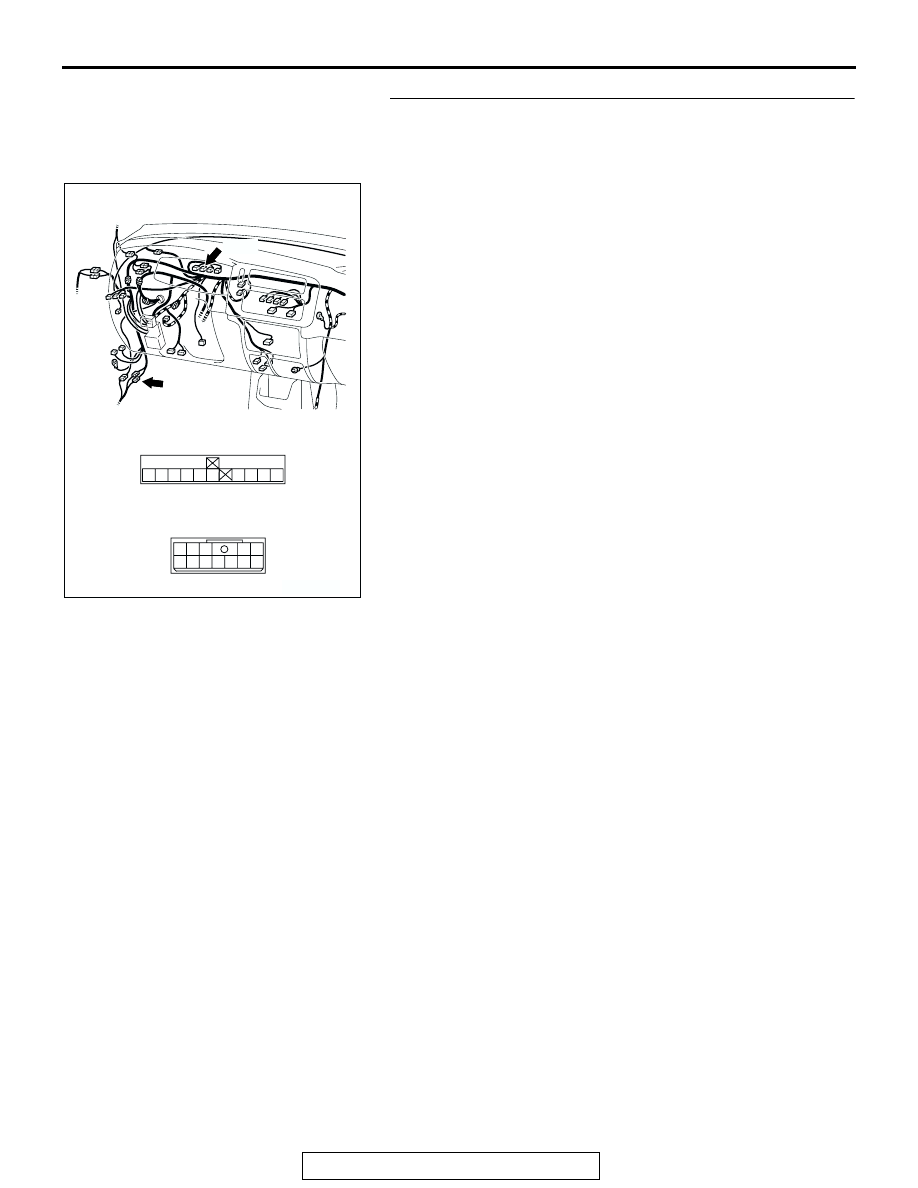

STEP 54. Check intermediate connector C-30 and
combination meter connector C-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 55.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC103770

4

3

10 11

9

8

5

12

1
6

2
7

49

48

50

46

45

44

41 42 43

47

CONNECTORS: C-03, C-30

C-30

C-03

C-30

C-03

AB

AC202394

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-180

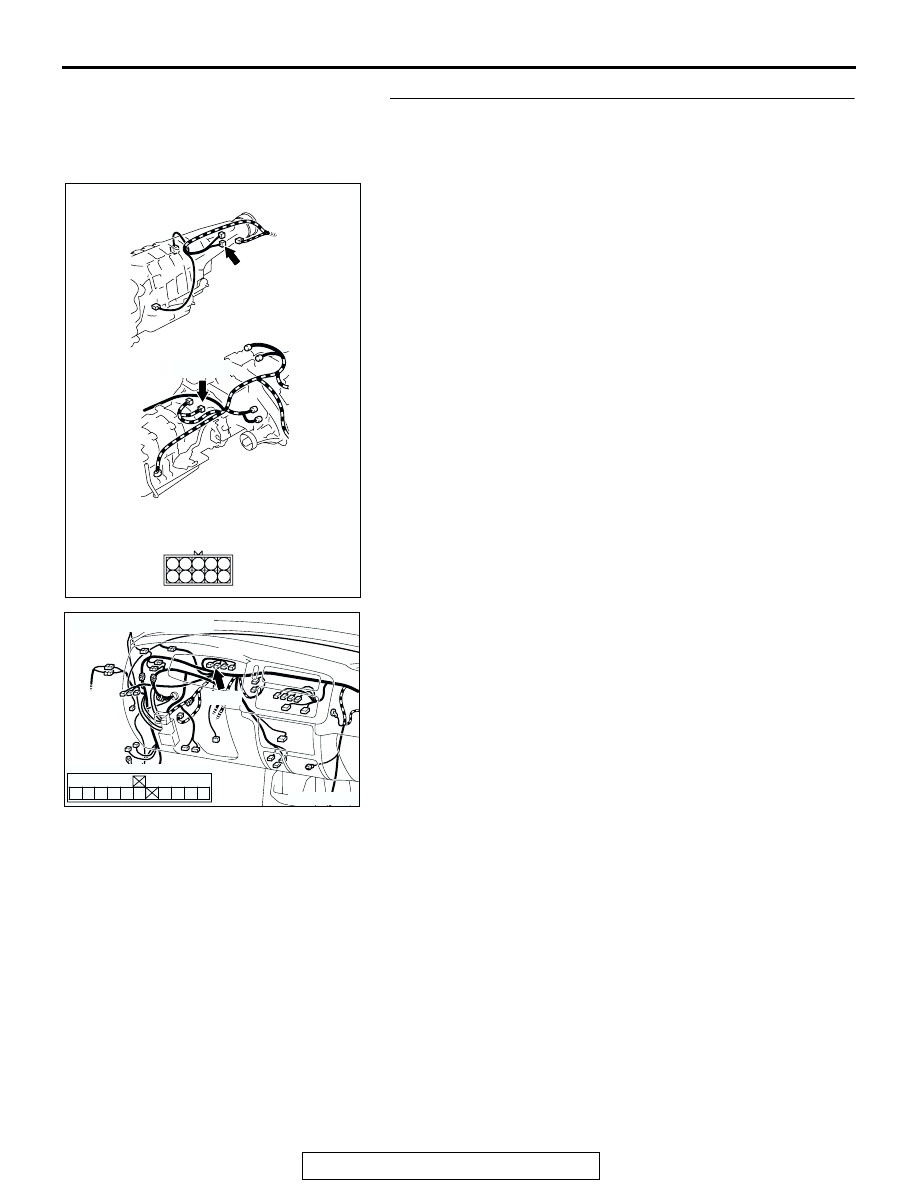

STEP 55. Check harness for short circuit to ground
between transmission range switch connector B-01
terminal 6 and combination meter connector C-03 terminal
47.

Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202395

49

48

50

46

45

44

41 42 43

47

CONNECTOR: C-03

C-03

AB
