Mitsubishi Montero Sport (2004+). Manual - part 649





AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-161

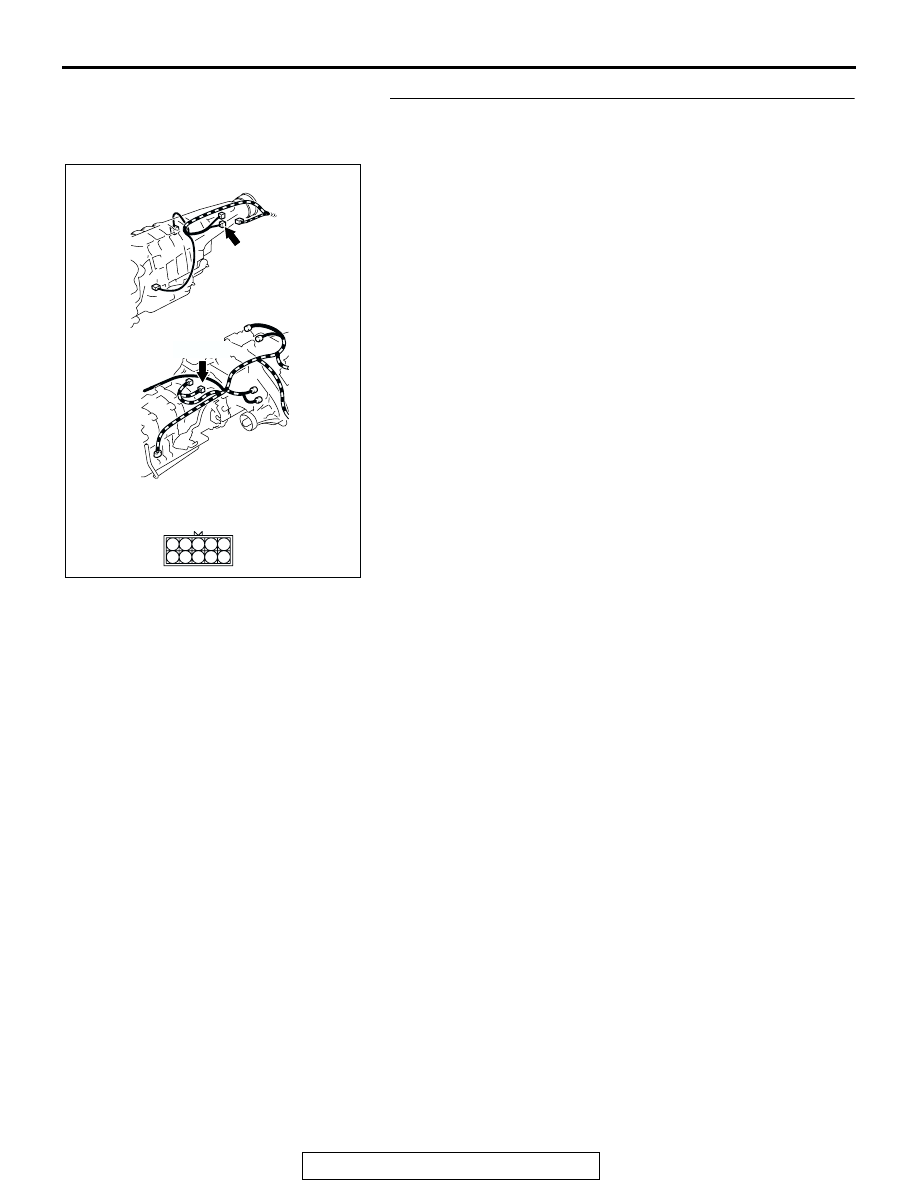

STEP 36. Check transmission range switch connector B-01
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is the connector in good condition?

YES : Go to Step 37.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-162

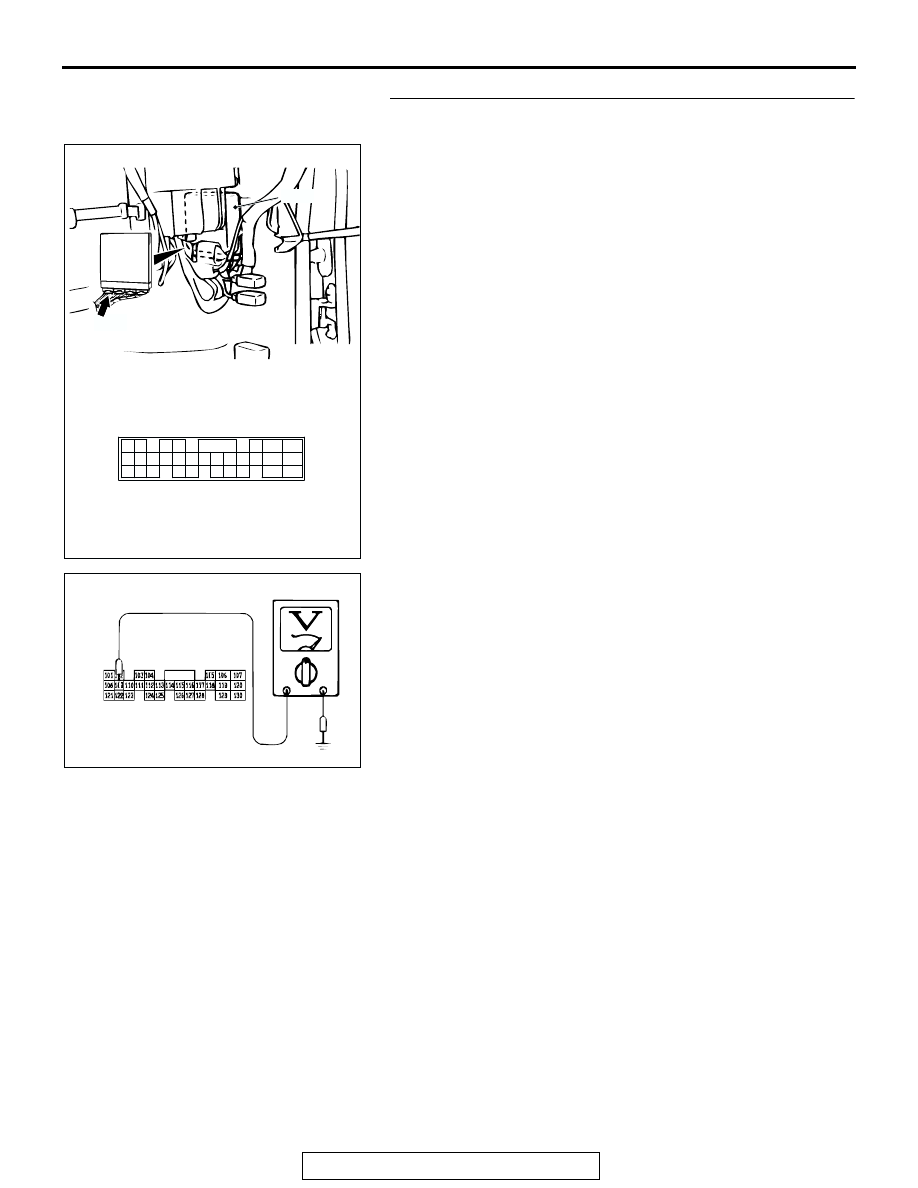

STEP 37. Measure the transmission range switch output
voltage at PCM connector C-92 by backprobing.

(1) Do not disconnect connector C-92.
(2) Turn the ignition switch to the "ON" position.
(3) Move the selector lever to the "3" position.

(4) Measure the voltage between terminal 109 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 13.
NO :  Go to Step 38.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AC001907AJ

C-92 HARNESS CONNECTOR:
HARNESS SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-163

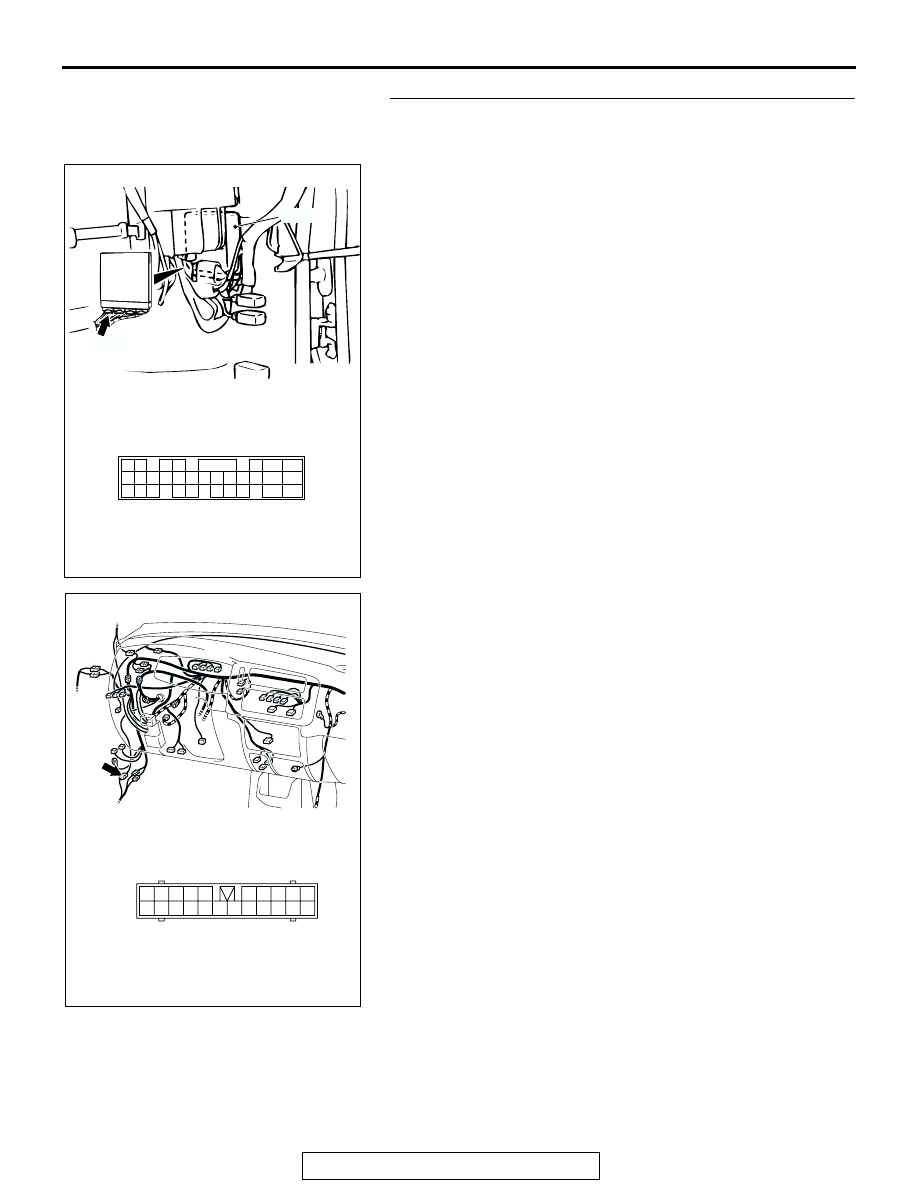

STEP 38. Check PCM connector C-92 and intermediate
connector C-96 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 39.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AC202318

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTOR: C-96

C-96

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-164

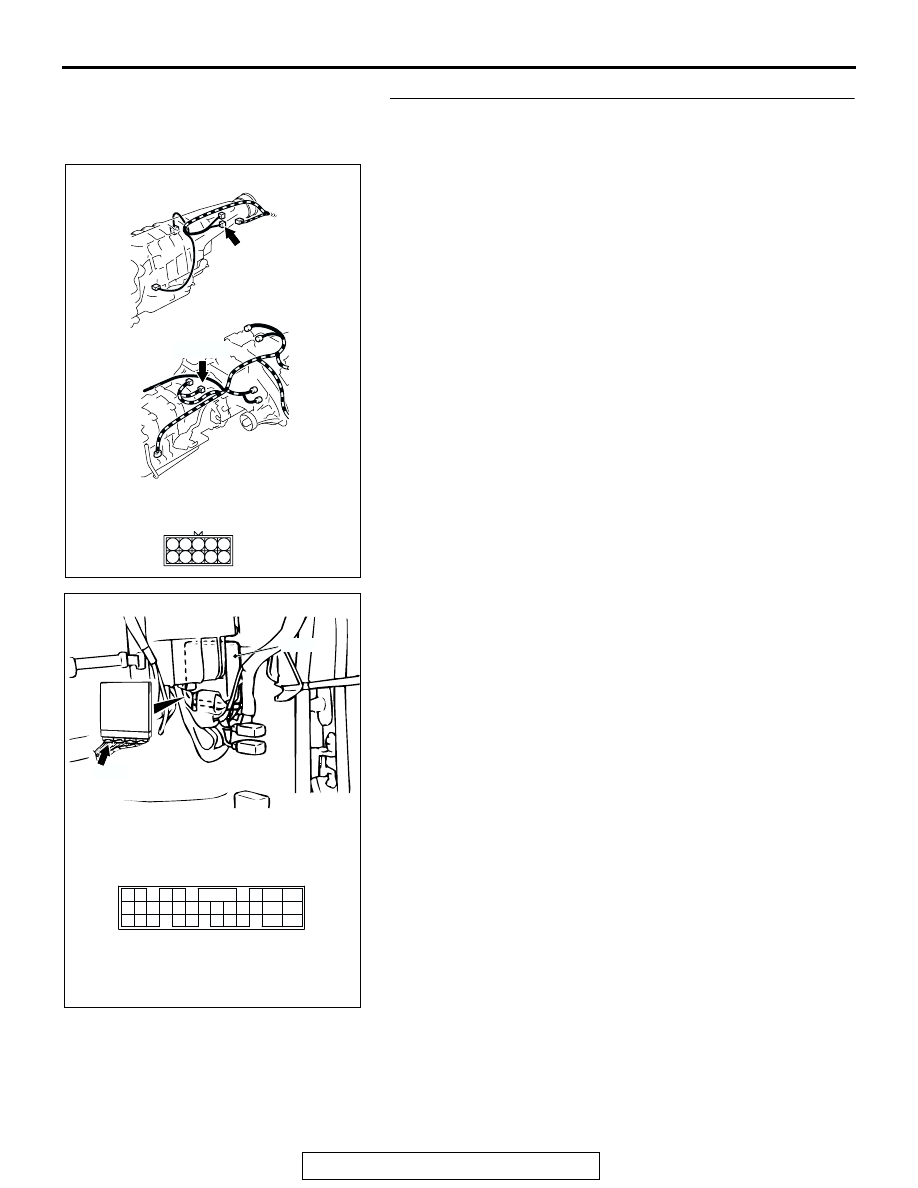

STEP 39. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-01 terminal 4 and PCM connector C-92 terminal 109.

Q: Is the harness wire in good condition?

YES : Go to Step 40.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB
