AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-157

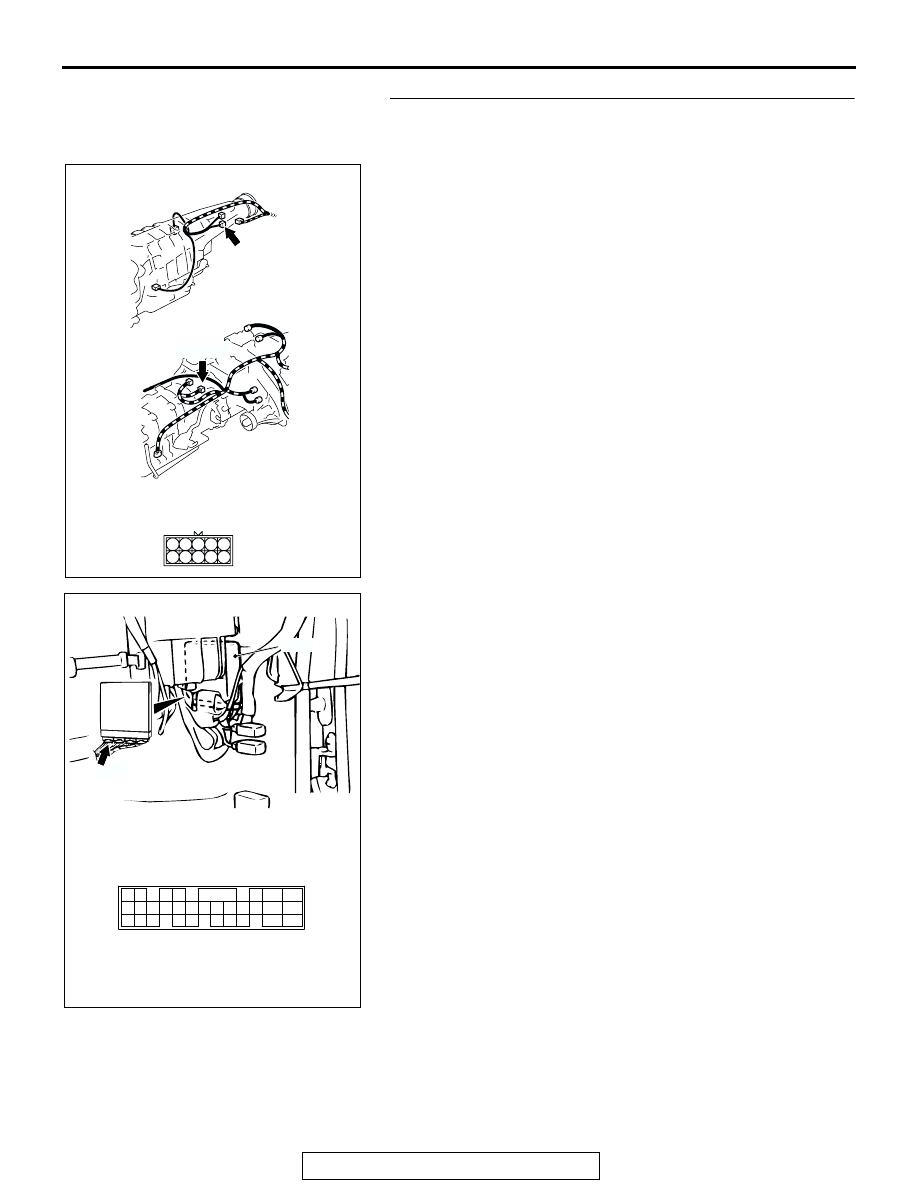

STEP 32. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-01 terminal 3 and PCM connector C-92 terminal 102.

Q: Is the harness wire in good condition?

YES : Go to Step 33.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-158

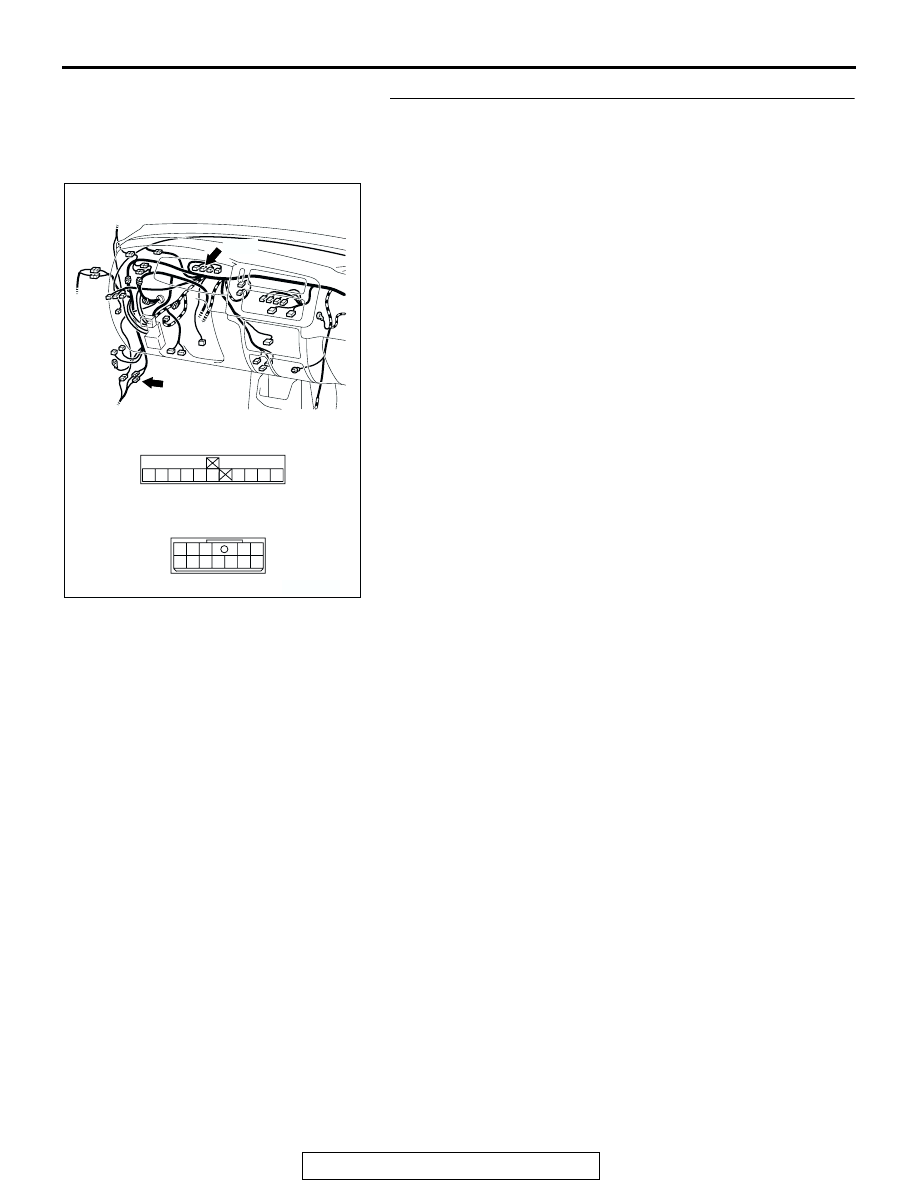

STEP 33. Check intermediate connector C-30 and
combination meter connector C-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 34.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC103770

4

3

10 11

9

8

5

12

1
6

2
7

49

48

50

46

45

44

41 42 43

47

CONNECTORS: C-03, C-30

C-30

C-03

C-30

C-03

AB

AC202394

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-159

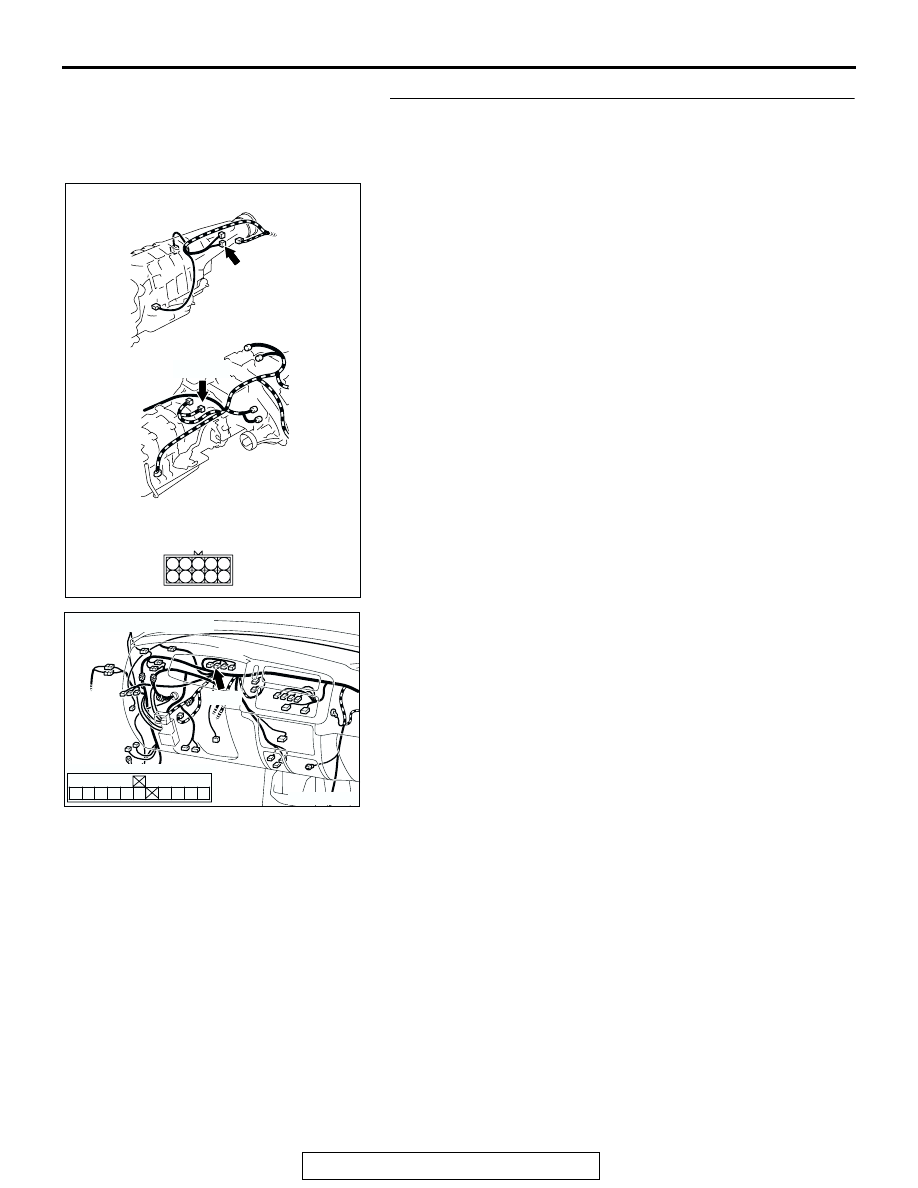

STEP 34. Check harness for short circuit to ground
between transmission range switch connector B-01
terminal 3 and combination meter connector C-03 terminal
44.

Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC202395

49

48

50

46

45

44

41 42 43

47

CONNECTOR: C-03

C-03

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-160

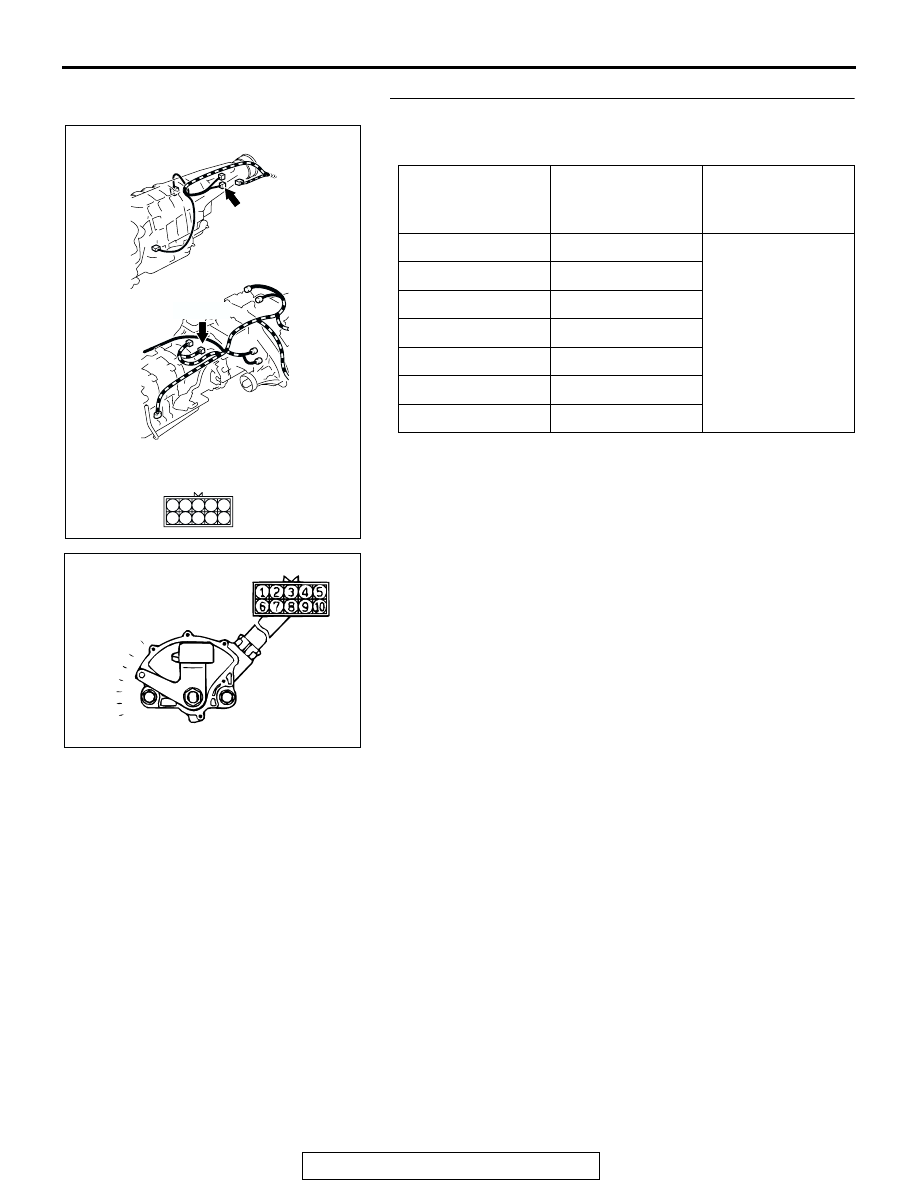

STEP 35. Check the transmission range switch.

Measure the resistance between the terminals for each trans-
mission range as indicated in the table below.

Q: Is the measured resistance less than 2 ohms for each

selector position?
YES : Go to Step 36.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transmission

P.23B-19

.

TRANSMISSION
RANGE

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

1

− 7

Less than 2 ohms

R

7

− 8

N

2

− 7

D

3

− 7

3

4

− 7

2

5

− 7

L

6

− 7

AC202393

4
9

5

10

3
8

2
7

6

1

CONNECTOR: B-01
<RWD>

<4WD>

B-01 (B)

B-01 (B)

AB

AC004076

P

R

N

D

3
2

L

AB
