Mitsubishi Montero Sport (2004+). Manual - part 622

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-53

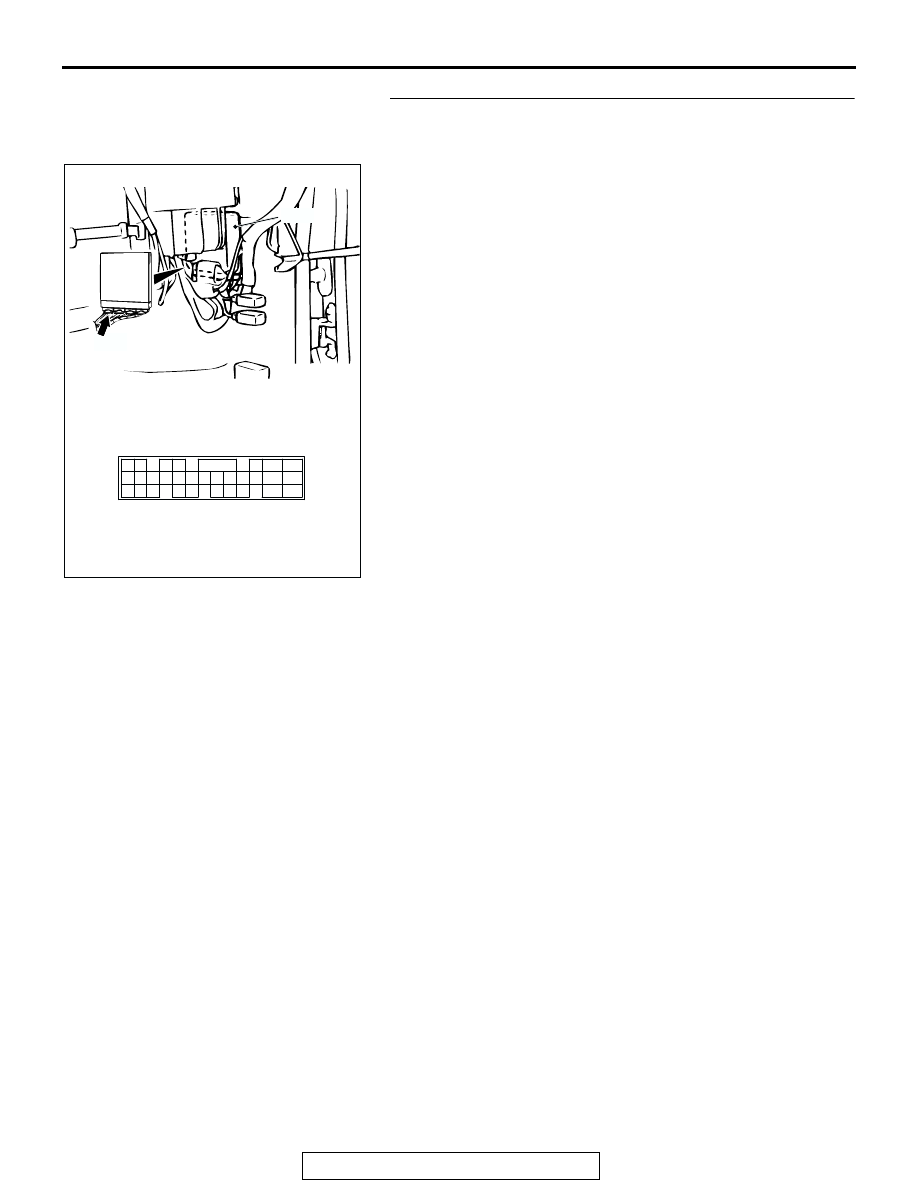

STEP 11. Check PCM connector C-92 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 12.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-54

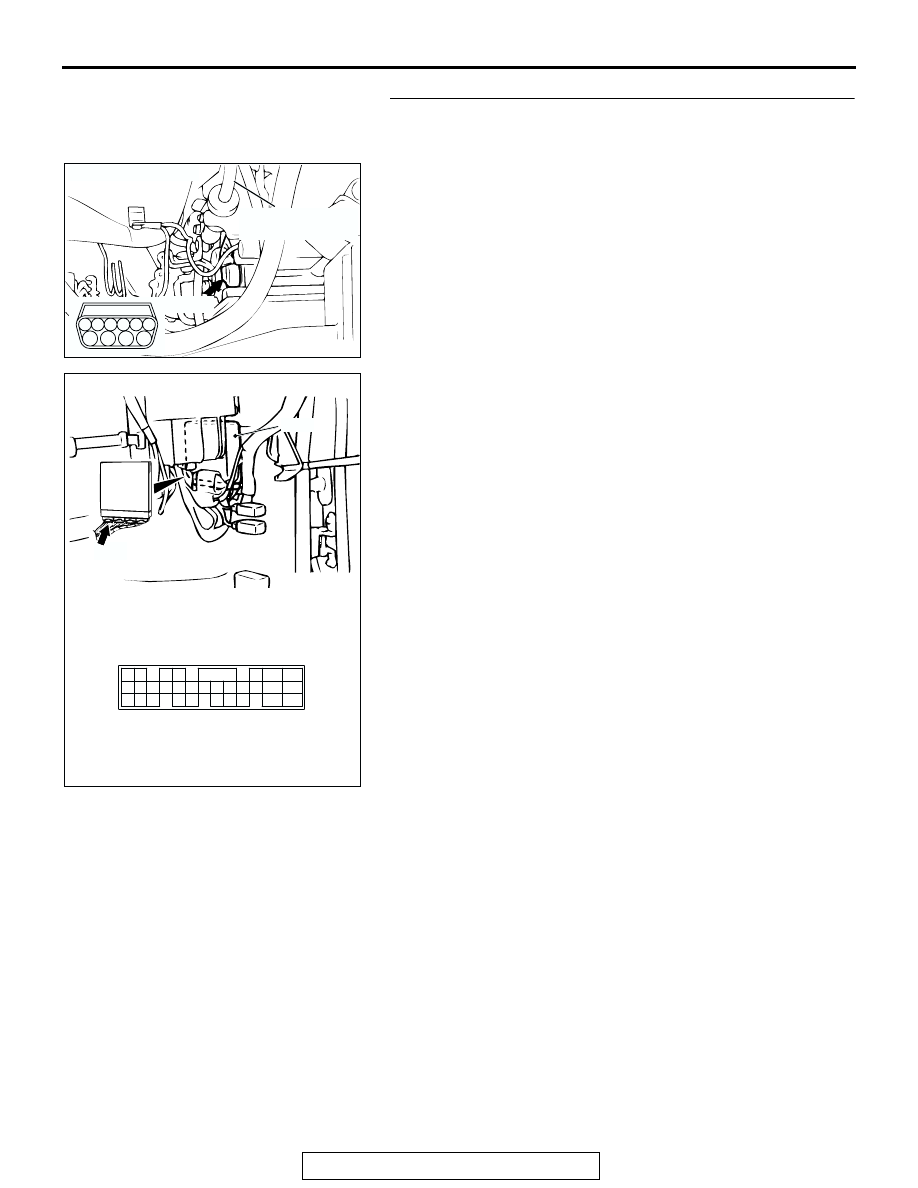

STEP 12. Check the harness for a short circuit to ground
between A/T control solenoid valve connector B-02
terminal 1 and PCM connector C-92 terminal 124.

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC202314

6

10

4

9

5

3

8

2

7

1

CONNECTOR: B-02

TRANSMISSION
CONTROL CABLE

B-02 (B)

AB

AC202317

PCM

120

107

119

106

129 130

118

105

117

114115116

126127128

104

111

103

112

108

101102

109110

121122123

124

113

125

CONNECTOR: C-92

C-92 (GR)

AB

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-55

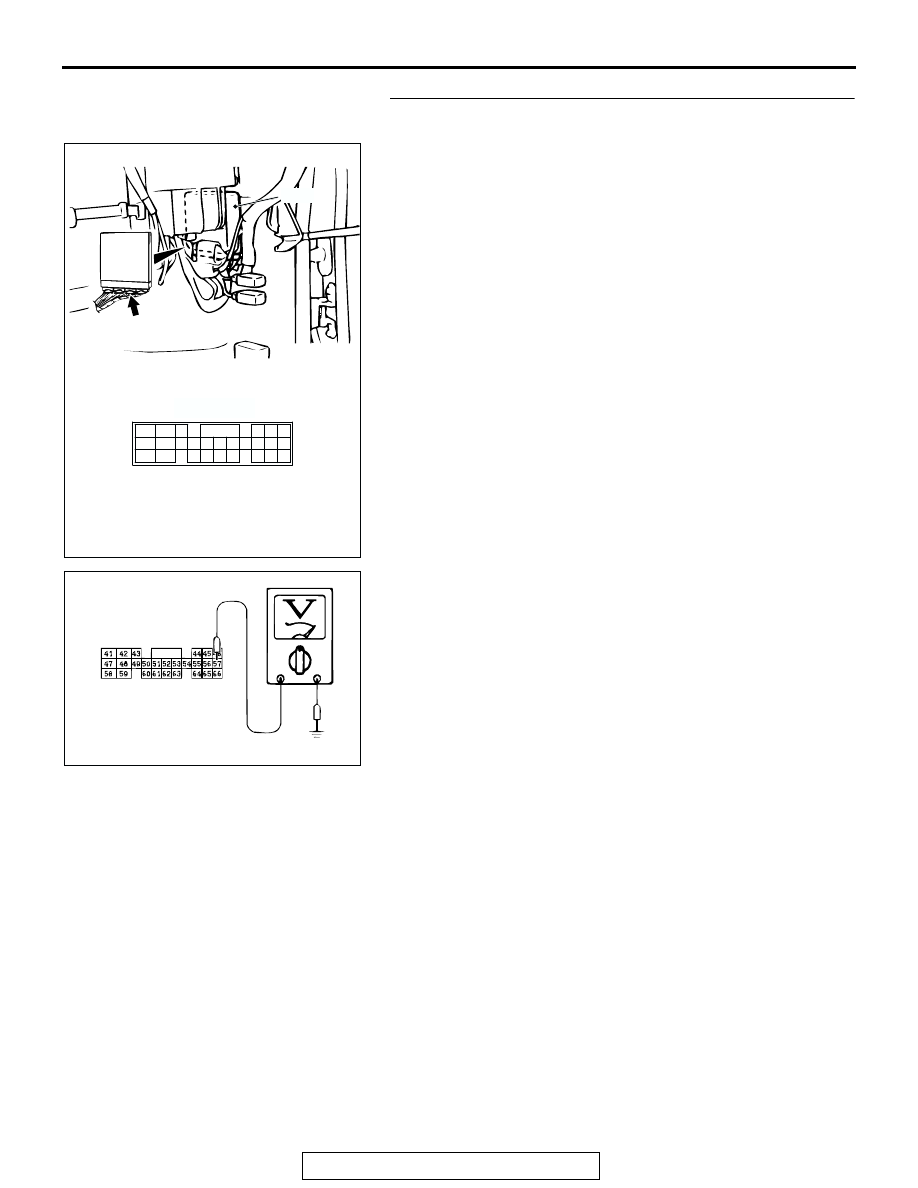

STEP 13. Measure the ground voltage at PCM connector
C-90 by backprobing.

(1) Do not disconnect connector C-90.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 57 and ground by

backprobing.

• Voltage should measure 0.5 volt or less.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 14.
NO :  Go to Step 16.

PCM

60

46

66

57

45

44

64

55 56

65

62 63

52 53

5051

61

42

59

48

41
47
58

43
49

54

AC202313

C-90 (GR)

AB

CONNECTOR: C-90

C-90 (GR)

AC001791

C-90 HARNESS  CONNECTOR:
HARNESS SIDE

AP

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-56

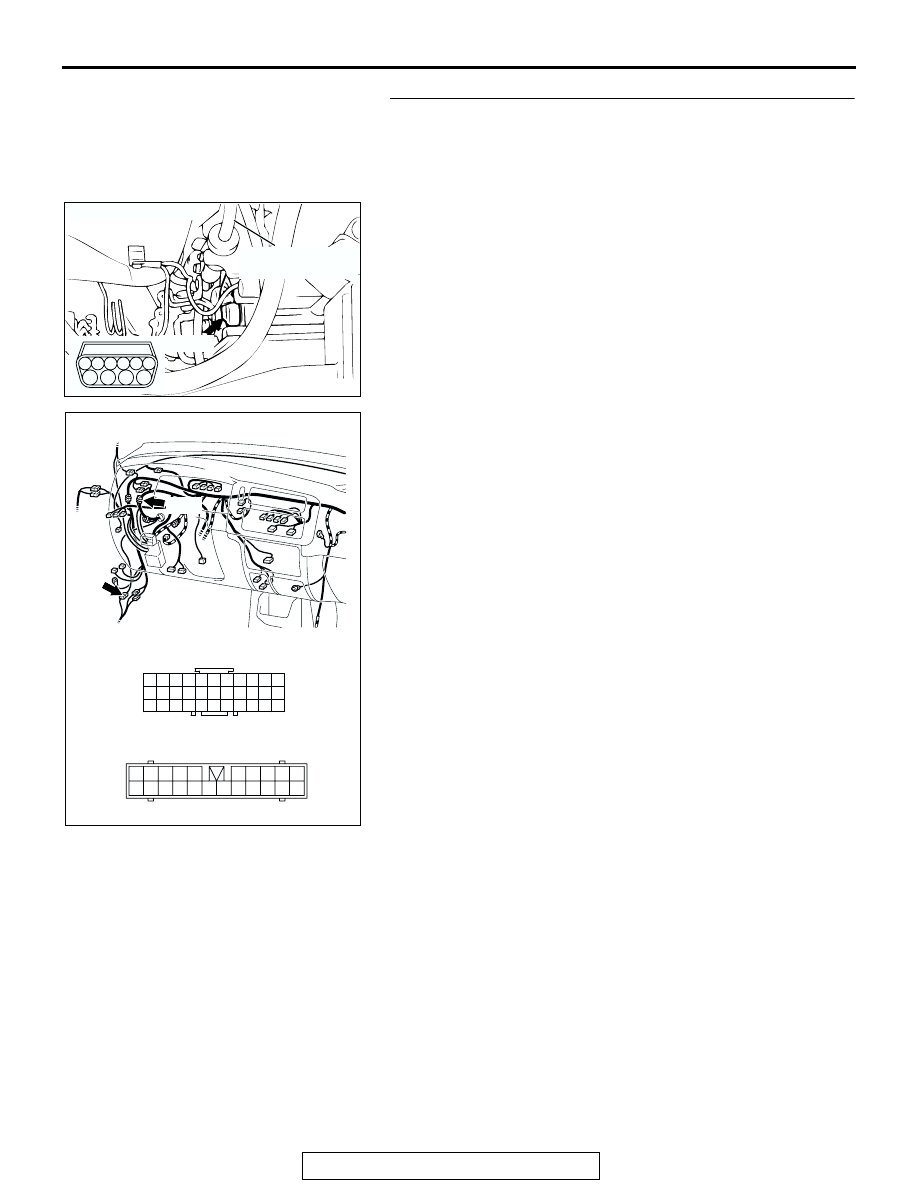

STEP 14. Check A/T control solenoid valve assembly
connector B-02, joint connector C-71, intermediate
connector C-96 and PCM connector C-90 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

AC202314

6

10

4

9

5

3

8

2

7

1

CONNECTOR: B-02

TRANSMISSION
CONTROL CABLE

B-02 (B)

AB

AC202315

9 10

8

6 7

31 32

30

29

21

20

19

18

5

4

2

1

3

27

26

24

23

25

16

15

14

13

12

28

17

33

22

11

22

9 10

20

19

6 7 8

21

17

1516

5

14

1213

3

2

4

18

11

1

AB

CONNECTORS: C-71, C-96

C-71

C-96

C-71

C-96
