RWD
The engine and transmission assembly is supported
at three points, where insulators are used. (Two
points for the engine, one point for the transmission.)
The number 2 crossmember is bolted to the frame
and supports the transmission.

4WD
The engine and transmission assembly is supported
at four points, where insulators are used. (Two points
for the engine, two points for the transmission) The
differential assembly is supported at three points,
where mounting brackets and mounting rubber
pieces are used. The front suspension crossmember
is bolted to the frame and supports the front differen-
tial. The number 2 crossmember is bolted to the
frame and supports the transmission and transfer.

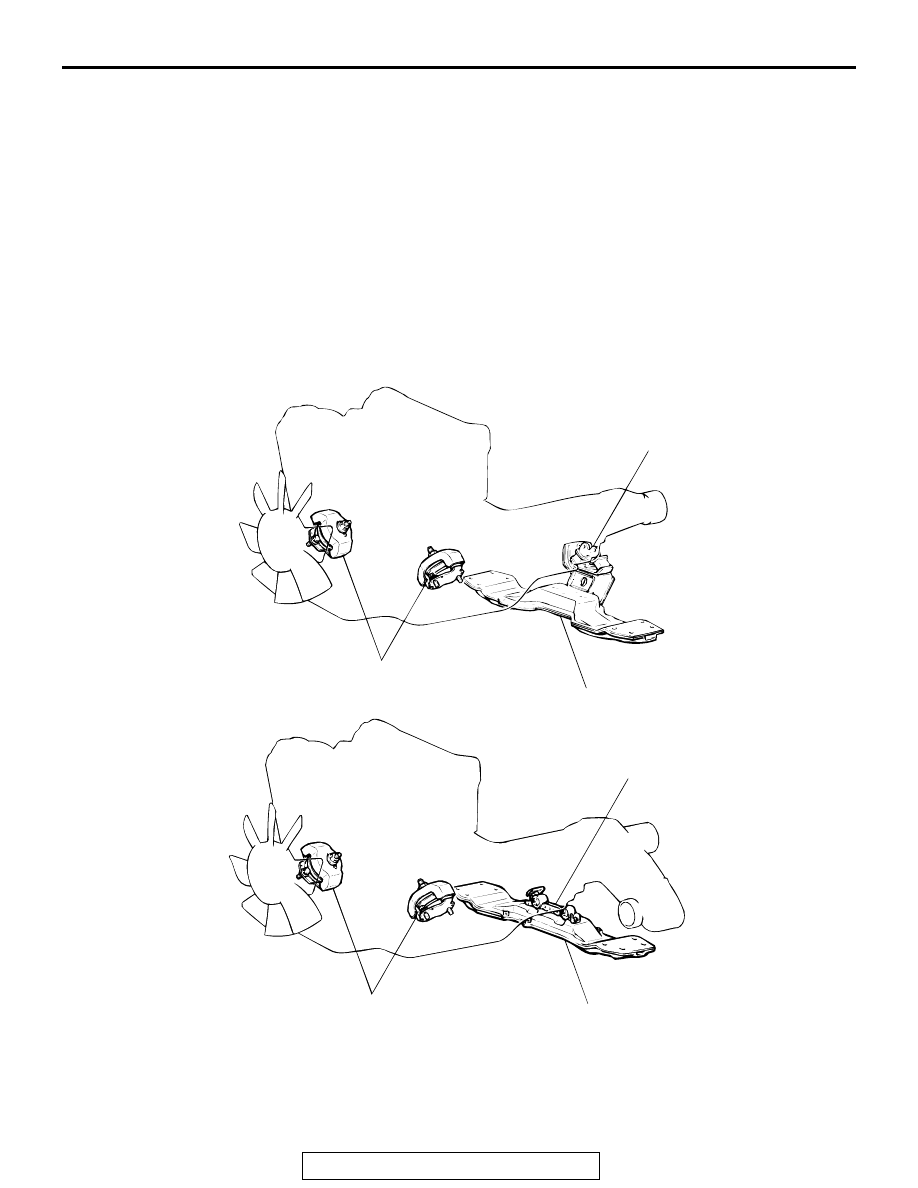

CONSTRUCTION DIAGRAM

AC004539

REAR ENGINE MOUNT

FRONT ENGINE MOUNT

NO.2 CROSSMEMBER

FRONT ENGINE MOUNT

REAR ENGINE MOUNT

ENGINE MOUNT
<RWD>

<4WD>

GENERAL DESCRIPTION

TSB Revision

POWER PLANT MOUNT

32-3

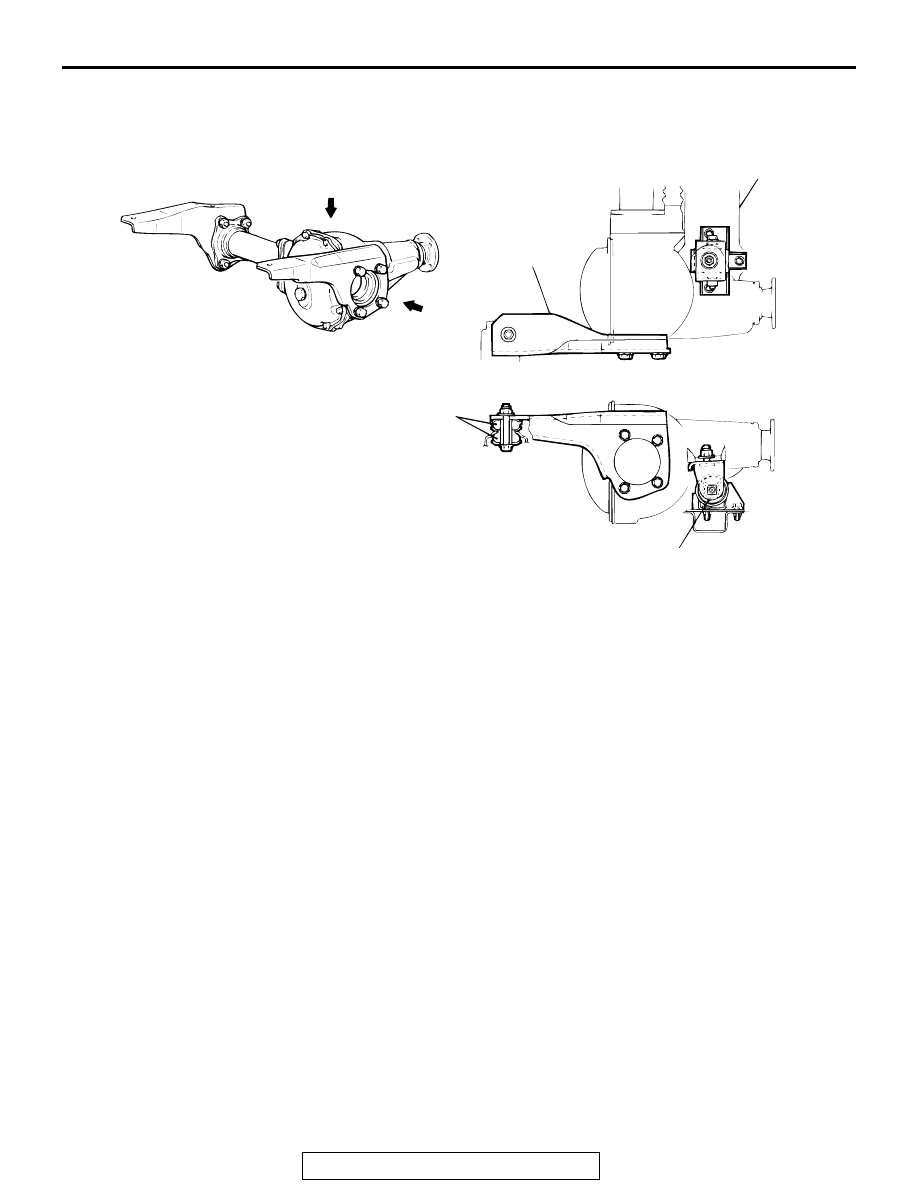

AC004540

VIEW A

VIEW B

RUBBER

INSULATORS

MOUNTING
BRACKET

FRONT
SUSPENSION
CROSSMEMBER

FRONT DIFFERENTIAL MOUNT

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-4

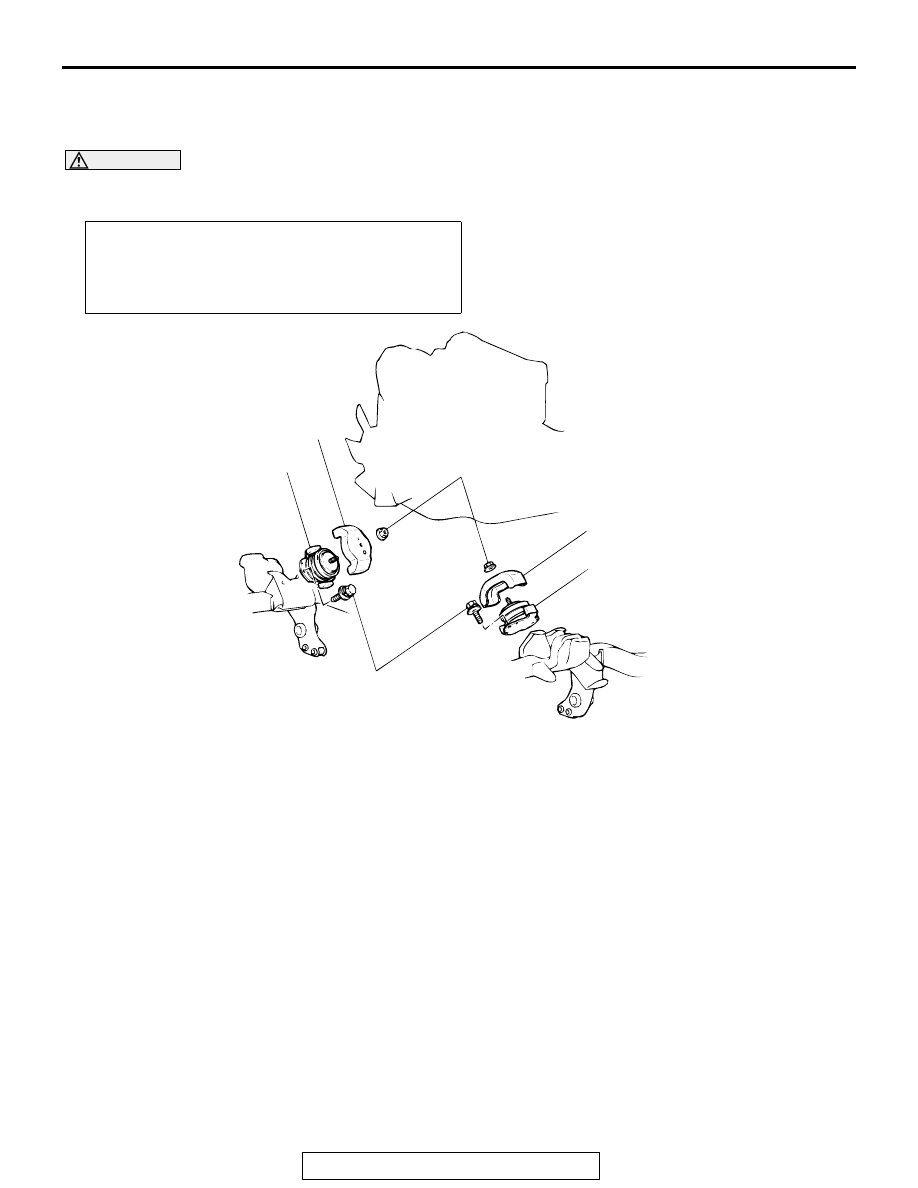

ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321001100536

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
• Air Cleaner Assembly Removal and Installation (Refer to

GROUP 15, Air Cleaner

P.15-4

• Under Skid Plate and Under Cover Removal and Installa-

tion (Refer to GROUP 42, Under Cover

P.42-207

AC004541

44 N·m*
33 ft-lb*

25 N·m*
18 ft-lb*

REMOVAL STEPS

•

ENGINE ASSEMBLY REMOVAL
(REFER TO GROUP 11A,
ENGINE ASSEMBLY

P.11A-16

ENGINE MOUNT STOPPER

>>A<<

ENGINE MOUNT INSULATOR

REMOVAL STEPS (Continued)
