Mitsubishi Montero Sport (2004+). Manual - part 524





COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-83

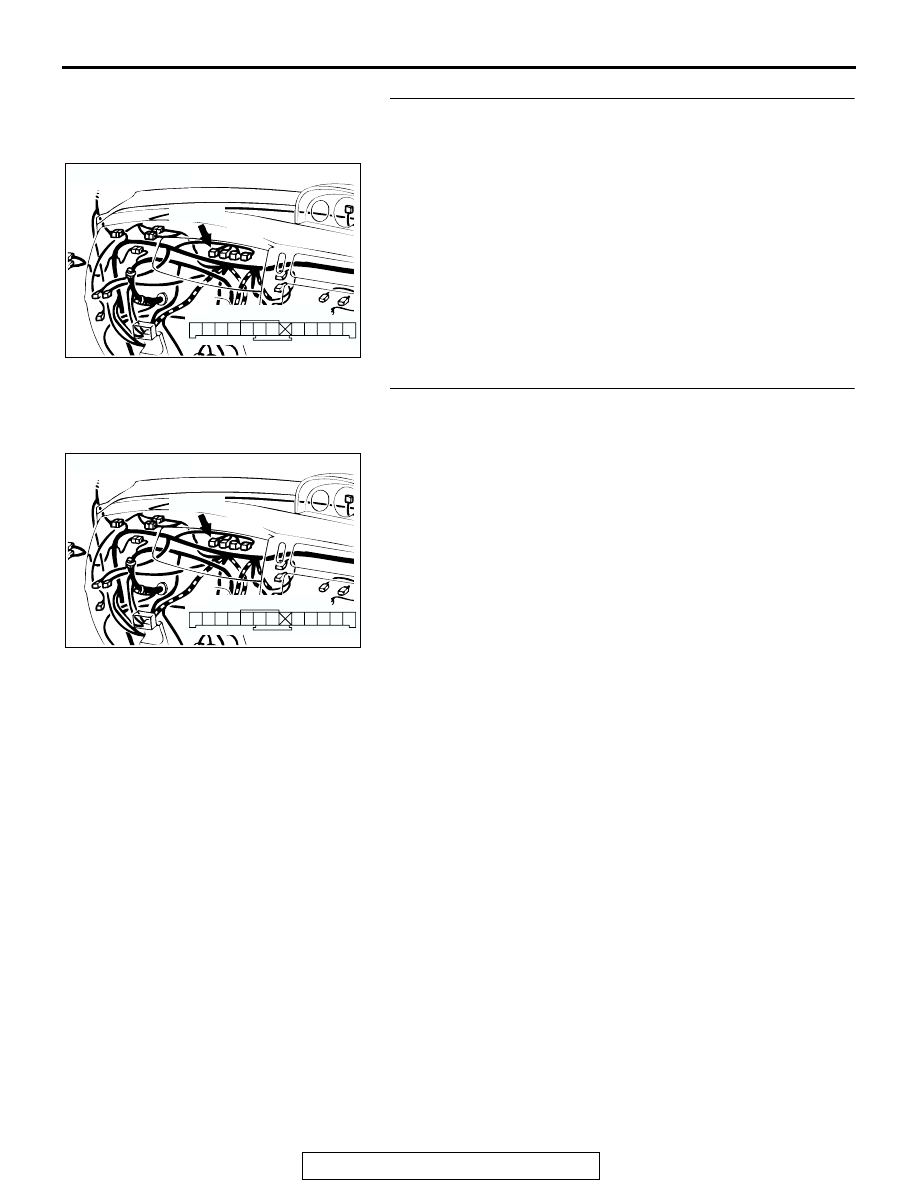

STEP 10. Check combination meter connector C-02 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is combination meter connector C-02 in good

condition?
YES :
Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The speedometer

should work normally.

STEP 11. Check the harness wires between combination
meter connector C-02 (terminal No.53) and fusible link

number 8.

AC201839

CONNECTOR: C-02

AC

51

52

55 54 53

56

58

59

57

60

61

62

COMPONENT SIDE

C-02 (B)

AC201839

CONNECTOR: C-02

AC

51

52

55 54 53

56

58

59

57

60

61

62

COMPONENT SIDE

C-02 (B)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-84

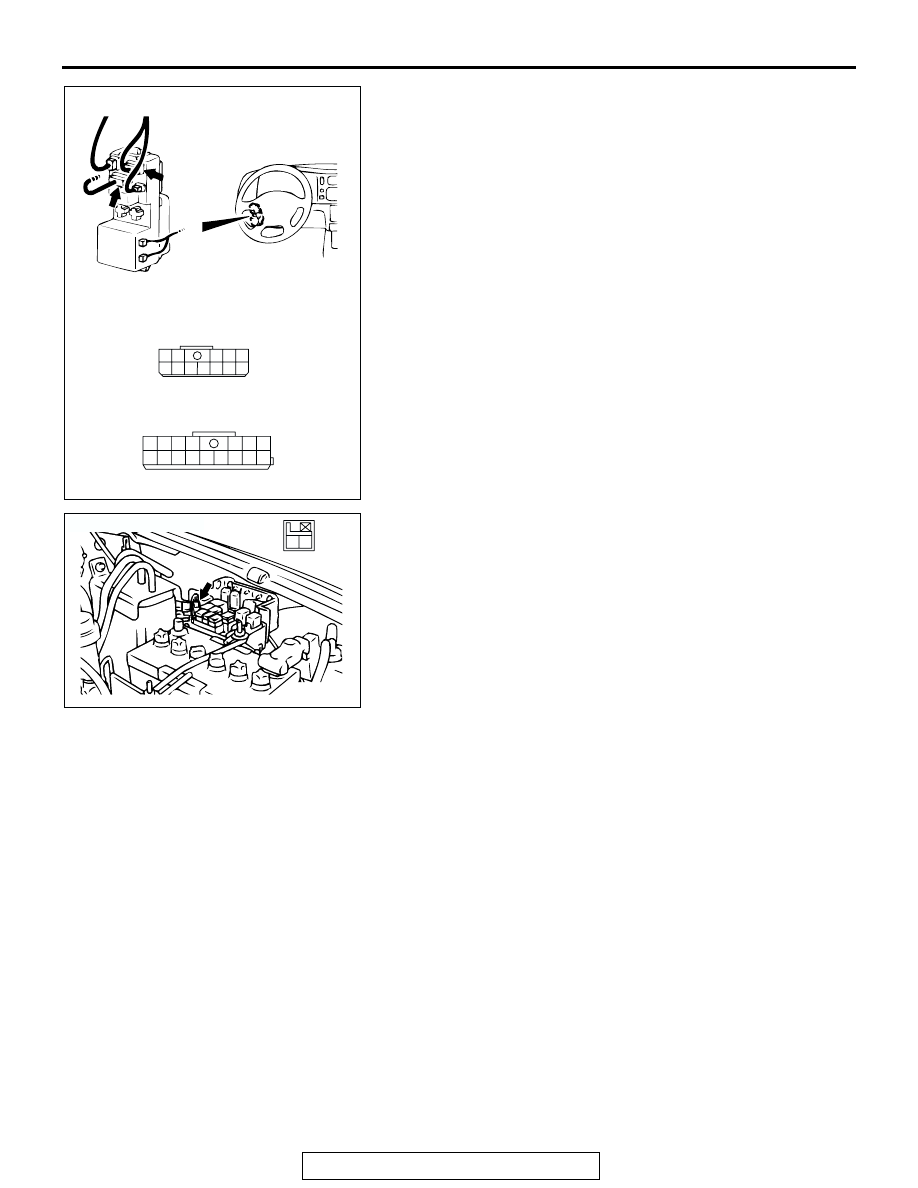

NOTE: After checking junction block connectors D-01 and D-06
and IOD or storage connector A-54X, check the wires. If junc-
tion block connectors D-01 and D-06 and IOD or storage con-
nector A-54X are damaged, repair or replace them. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the harness wires between combination meter

connector C-02 (terminal No.53) and fusible link number
8?
YES :
There is no action to be taken.
NO :  Repair them. The speedometer should work normally.

AC201809

2

3

4

11 10 9 8 7

1
6

5

12

1
8

3

4

5

7 6

10

15

16

14

12

13

11

9

2

D-01 COMPONENT SIDE

D-06 COMPONENT SIDE

AB

D-01

D-06

JUNCTION BLOCK (FRONT)

CONNECTORS: D-01, D-06

AC200774

2

1

CONNECTOR: A-54X

AB

A-54X

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-85

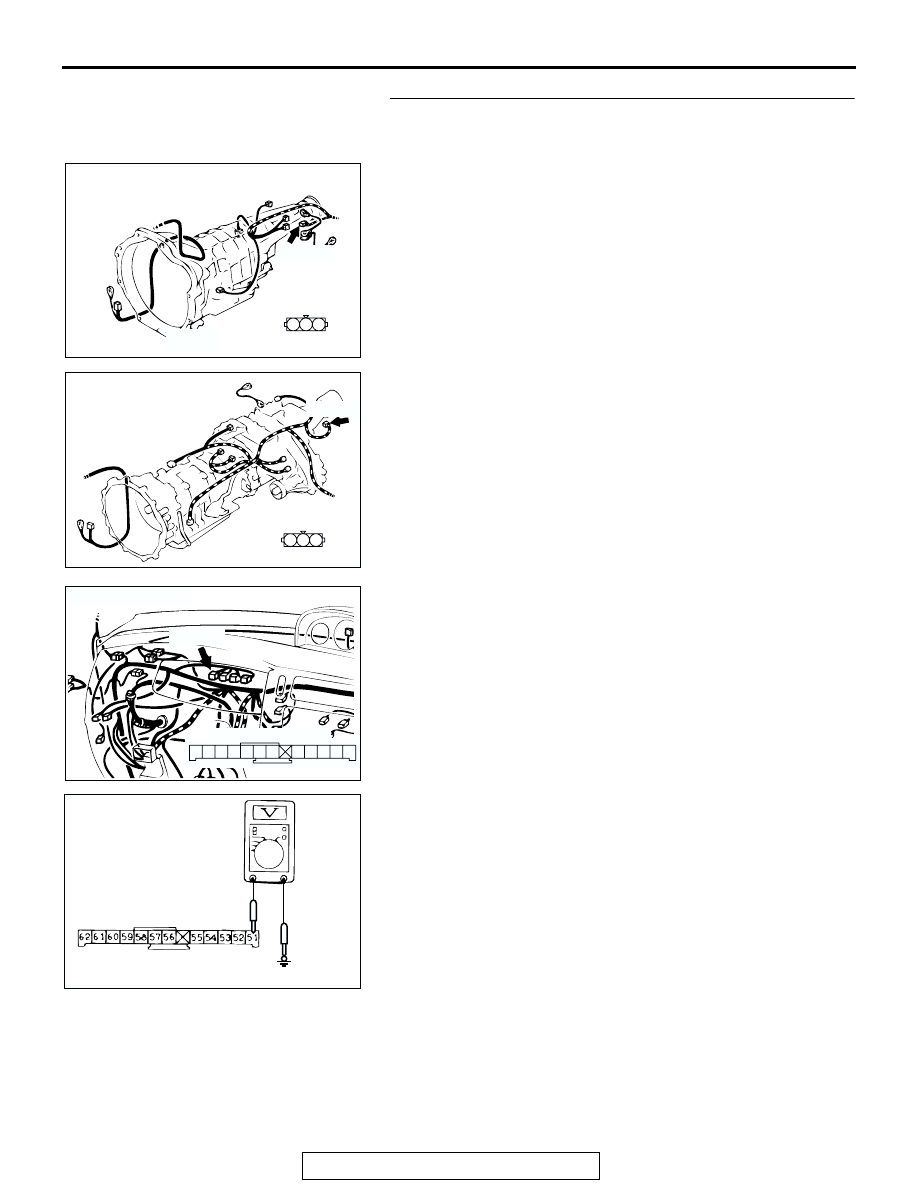

STEP 12. Check the combination meter vehicle speed
sensor input signal circuit at combination meter connector
C-02.

(1) Do not disconnect vehicle speed sensor connector B-09.

(2) Disconnect combination meter connector C-02.
(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal 51 and ground.

• The measured value should be approximately 5 volts.

Q: Does the measured voltage correspond with this range?

YES :  Repair or replace the combination meter

(printed-circuit board or speedometer and
tachometer). The speedometer should work normally.

NO :  Go to Step 13.

AC003458 AC

CONNECTOR: B-09
<RWD>

B-09 (B)

1

2

3

B-09: HARNESS
SIDE CONNECTOR

AC201841

3 2 1

CONNECTOR: B-09

AB

B-09: HARNESS
SIDE CONNECTOR

<4WD>

B-09 (B)

AC201839

CONNECTOR: C-02

AC

51

52

55 54 53

56

58

59

57

60

61

62

COMPONENT SIDE

C-02 (B)

AC003649AB

CONNECTOR C-02
(HARNESS  SIDE)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-86

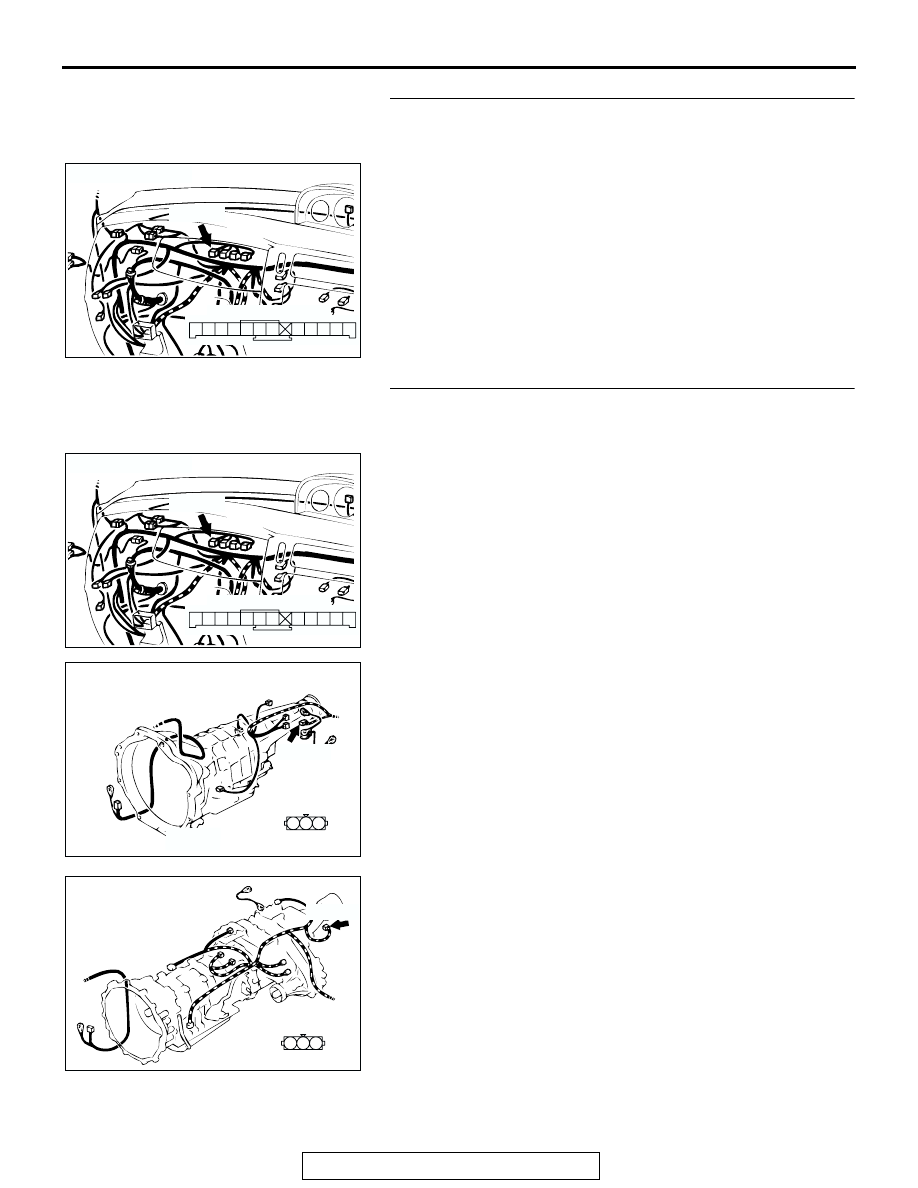

STEP 13. Check combination meter connector C-02 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is combination meter connector C-02 in good

condition?
YES :
Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The speedometer

should work normally.

STEP 14. Check the harness wires between combination
meter connector C-02 and vehicle speed sensor connector

B-09.

AC201839

CONNECTOR: C-02

AC

51

52

55 54 53

56

58

59

57

60

61

62

COMPONENT SIDE

C-02 (B)

AC201839

CONNECTOR: C-02

AC

51

52

55 54 53

56

58

59

57

60

61

62

COMPONENT SIDE

C-02 (B)

AC003458 AC

CONNECTOR: B-09
<RWD>

B-09 (B)

1

2

3

B-09: HARNESS
SIDE CONNECTOR

AC201841

3 2 1

CONNECTOR: B-09

AB

B-09: HARNESS
SIDE CONNECTOR

<4WD>

B-09 (B)
