Mitsubishi Montero Sport (2004+). Manual - part 522





COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-75

COMBINATION METER ASSEMBLY AND VEHICLE SPEED

SENSOR

INTRODUCTION TO COMBINATION METER DIAGNOSIS

M1543009900936

An electrical speedometer and tachometer and fuel
gauge and engine coolant temperature gauge are
mounted on all vehicles. If the speedometer or
tachometer or fuel gauge or engine coolant tempera-
ture gauge does not function, there may be trouble in
the electrical system.

EQUIPMENT DIAGNOSIS

COMBINATION METER DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1543006900506

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
combination meter fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the symptom

chart.

4. Verify that the malfunction is eliminated.

DIAGNOSIS FUNCTION

M1543007000540

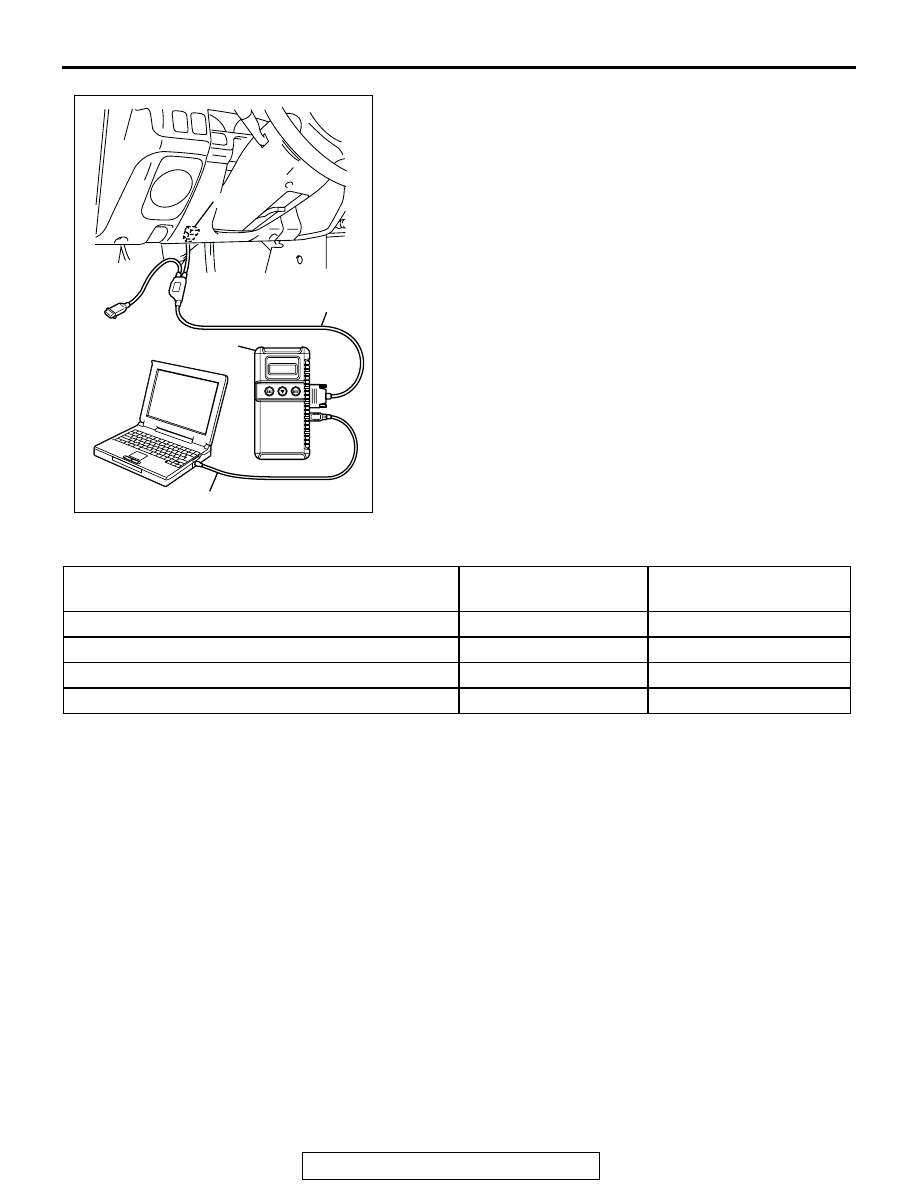

HOW TO CONNECT SCAN TOOL (MUT-III)

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-76

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991911 to special tool MB991824.
5. Connect special tool MB991911 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the MUT-III system on the personal computer.

NOTE: Disconnecting the scan tool MB991958 is the
reverse of the connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF) position.

TROUBLE SYMPTOM CHART

M1543007200696

AK303629AB

MB991911

MB991827

MB991824

16-PIN

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Speedometer does not work.

1



P.54-77

Tachometer does not work.

2



P.54-93

Fuel gauge does not work.

3



P.54-103

Engine coolant temperature gauge does not work.

4



P.54-109

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-77

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Speedometer does not Work.

JUNCTION
BLOCK

RELAY
BOX

IGNITION
SWITCH (IG1)

IOD OR
STORAGE
CONNECTOR

FUSIBLE
LINK

8

COMBINATION
METER

SPEED

VEHICLE
SPEED
SENSOR

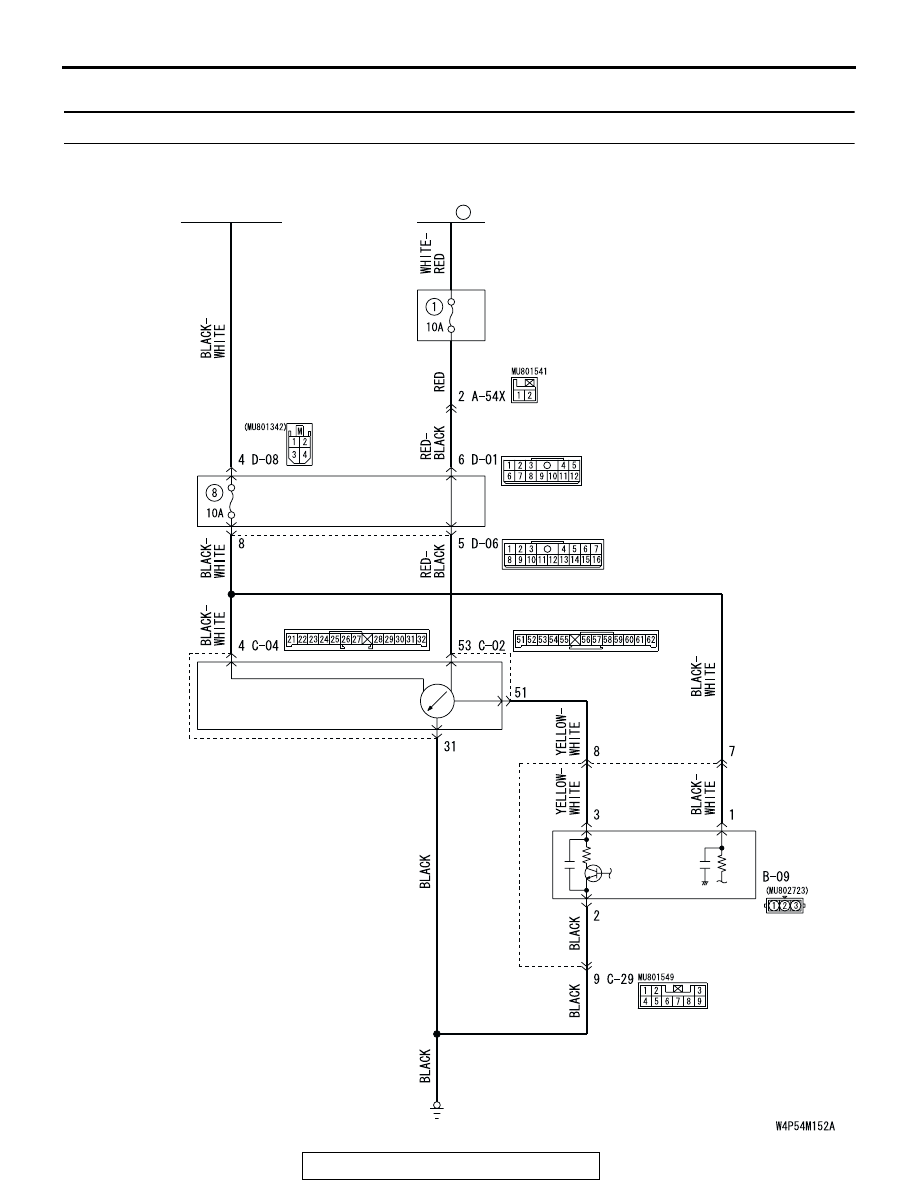

Speedometer Circuit

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54-78

.

CIRCUIT OPERATION

• The ignition switch (IG1) circuit is the power

source for the speedometer and vehicle speed
sensor.

• Current flowing through fusible link number 8 is

the backup power source.

• The vehicle speed sensor is installed on the

transmission. Four pulses are generated with one
turn of the vehicle speed sensor shaft. These
pulse signals are input into the speedometer. The
speedometer calculates the pulse signals that are
input, and operates the indicator. At the same
time, the travel distance is calculated.

.

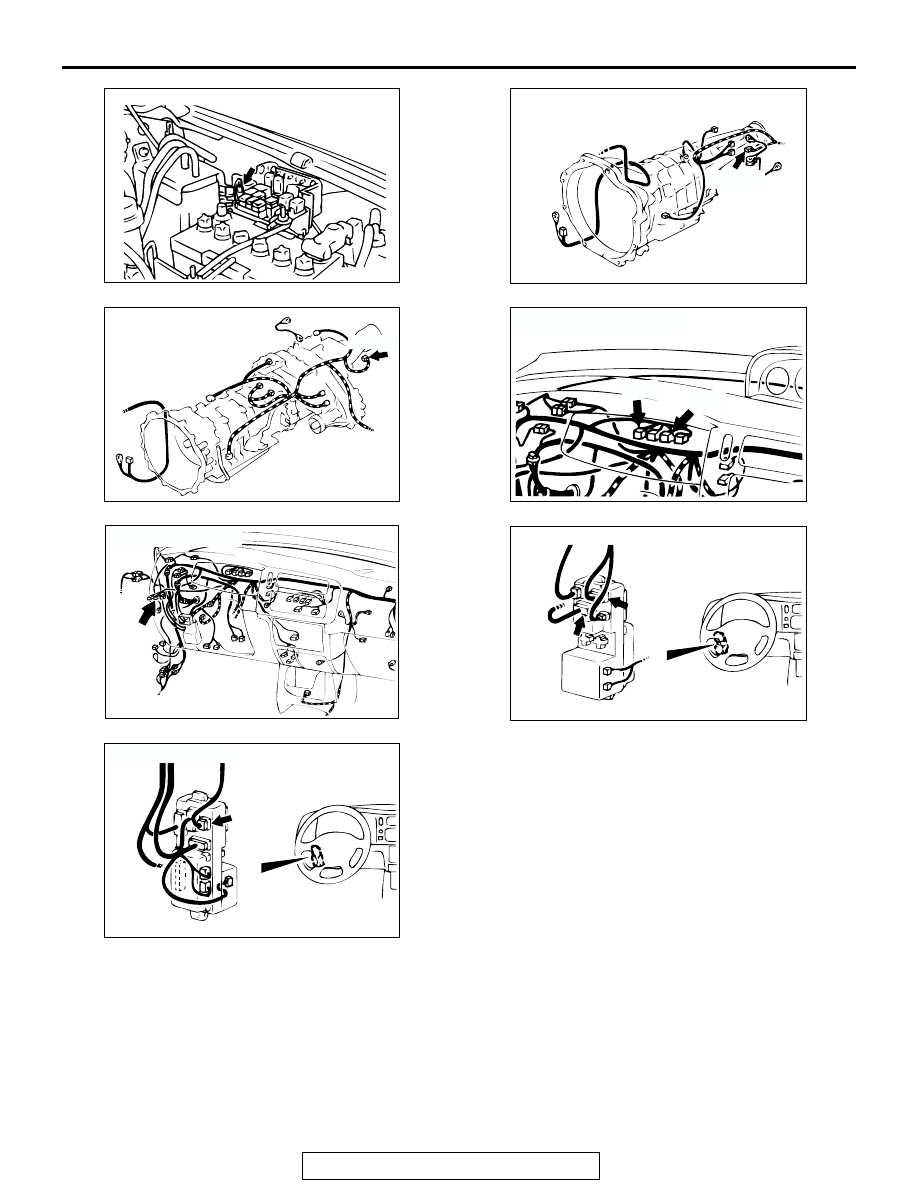

AC003431

CONNECTOR: A-54X

A-54X

AC

AC003458AD

CONNECTOR: B-09
<RWD>

B-09 (B)

AC003456AC

CONNECTOR: B-09
<4WD>

B-09 (B)

AC003459

CONNECTORS: C-02, C-04

C-02

C-04

AB

AC003521

CONNECTOR: C-108

AC

C-108

AC003460 AB

CONNECTORS: D-01, D-06

D-01

D-06

JUNCTION BLOCK (FRONT)

AC003457AE

CONNECTOR: D-08

JUNCTION BLOCK (REAR)

D-08
