IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54-35

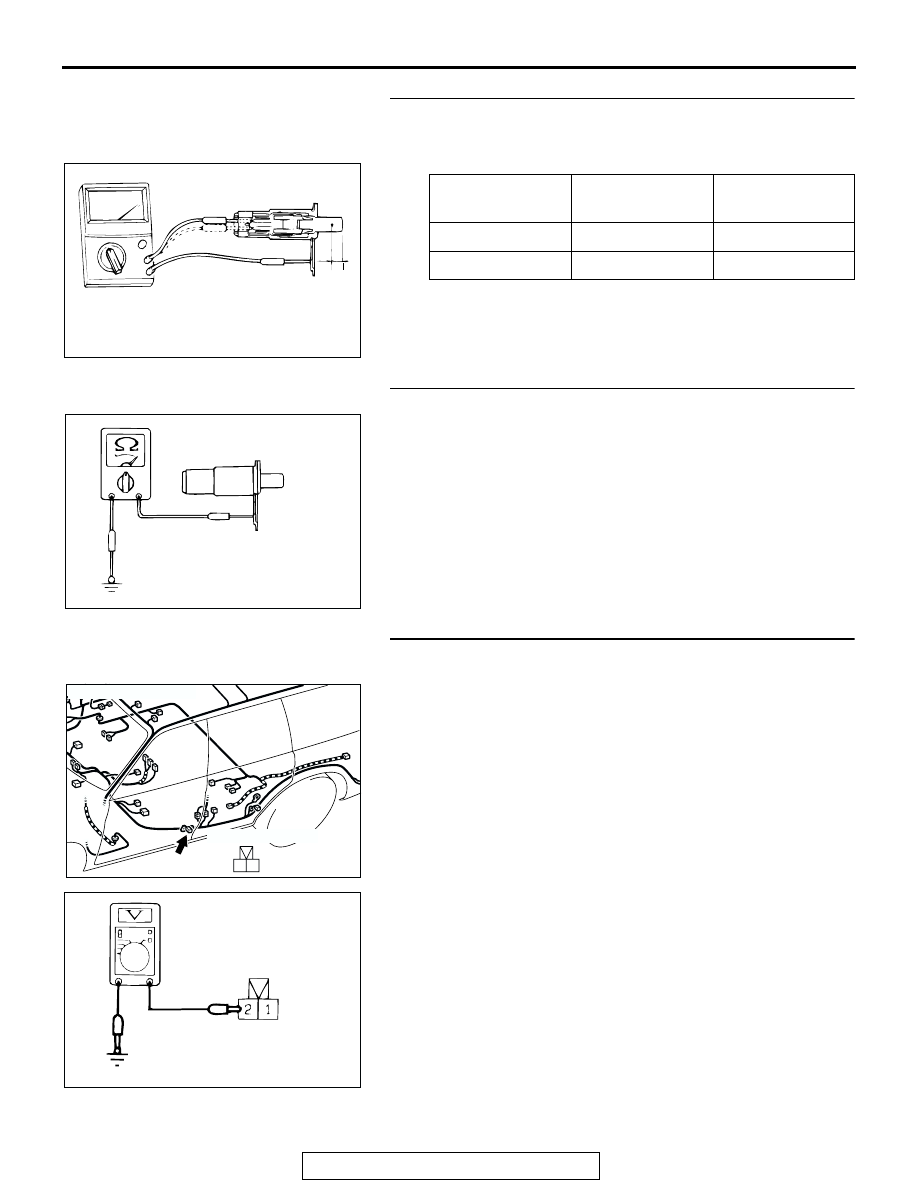

STEP 3. Check the driver's side door switch.

Remove the driver's side door switch. Refer to GROUP 42,
Door

P.42-132

.

Q: Is the driver's side door switch in good condition?

YES : Go to Step 4.
NO :  Replace it. Check that the malfunction is eliminated.

STEP 4. Check the driver's side door switch ground circuit.

Measure the resistance between the driver's side door switch
body (metal section) and ground.

• The measured value should be 2 ohms or less.

Q: Does the measured resistance value correspond with

this range?
YES : Go to Step 5.
NO :  Repair the harness wire or connector. Then check

that the malfunction is eliminated.

STEP 5. Check driver's side door switch connector E-33
input circuit.

(1) Disconnect the driver's side door switch connector E-33 and

the harness side.

(2) Measure the voltage between terminal 2 and ground.

• The measured value should be approximately 5 volts.

Q: Does the measured voltage correspond with this range?

YES : There is no action to be taken.
NO :  Go to Step 6.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− 2, 1 − 3, 2 − 3 Less than 2 ohms

Depressed (OFF) 1

− 2, 1 − 3, 2 − 3 Open circuit

AC002733 AB

1

2

3

AC002734

AC202056

2 1

COMPONENT SIDE

CONNECTOR: E-33

AB

E-33

AC002735

E-33
HARNESS CONNECTOR:
COMPONENT SIDE

AE

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54-36

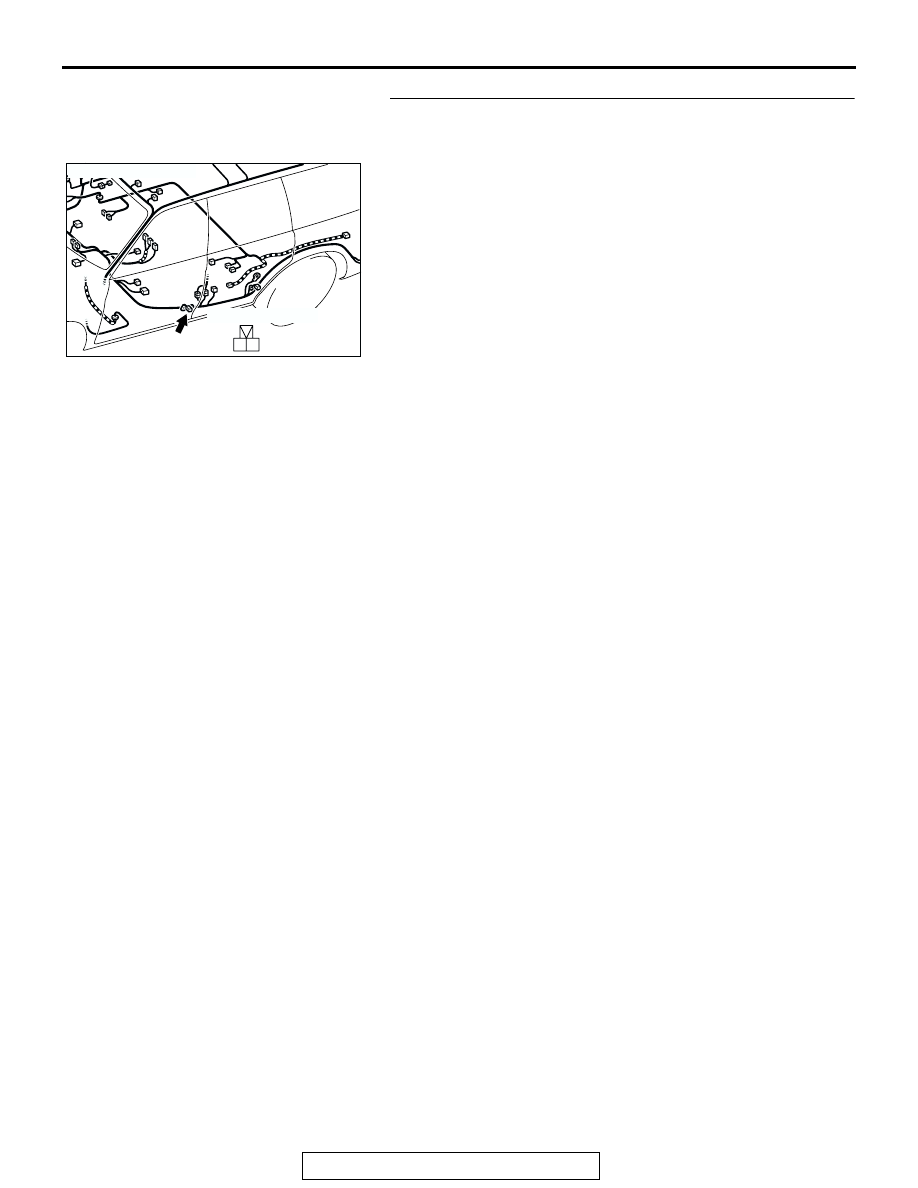

STEP 6. Check driver's side door switch connector E-33
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is driver's side door switch connector E-33 damaged?

YES : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The tachometer

should work normally.

NO :  Go to Step 7.

AC202056

2 1

COMPONENT SIDE

CONNECTOR: E-33

AB

E-33

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54-37

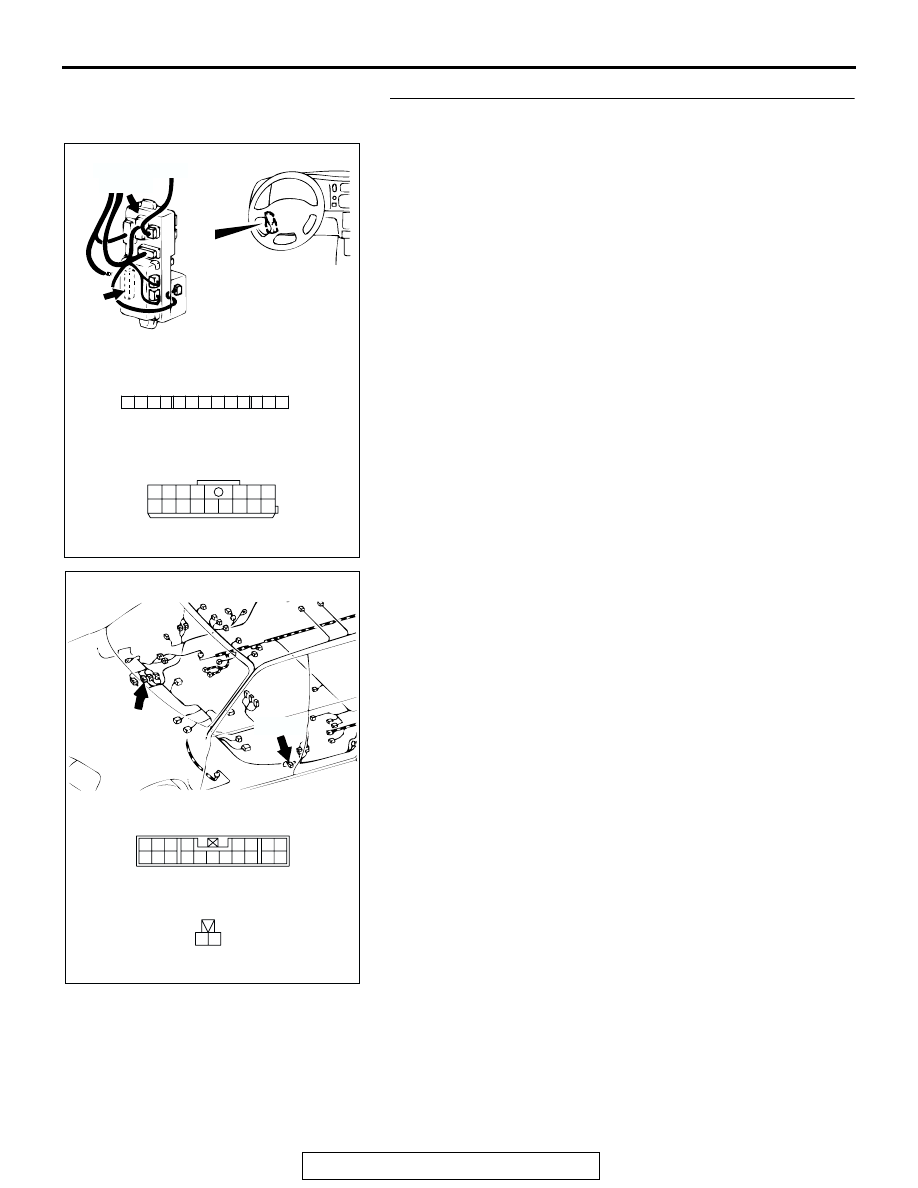

STEP 7. Check the harness wires between driver's side
door switch connector E-33 and ETACS connector D-11.

AC201939

1

3

4

7 6 5

2

9

11

12

10

13

8

1
8

3

4

5

7 6

10

15

16

14

12

13

11

9

2

CONNECTORS: D-11, D-14

D-11

D-14 (B)

D-11 COMPONENT SIDE

D-14 COMPONENT SIDE

AB

JUNCTION BLOCK
 (FRONT)

AC201940

2 1

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTORS: E-33, E-42

AC

E-33 (B)

E-42

COMPONENT SIDE

E-42

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54-38

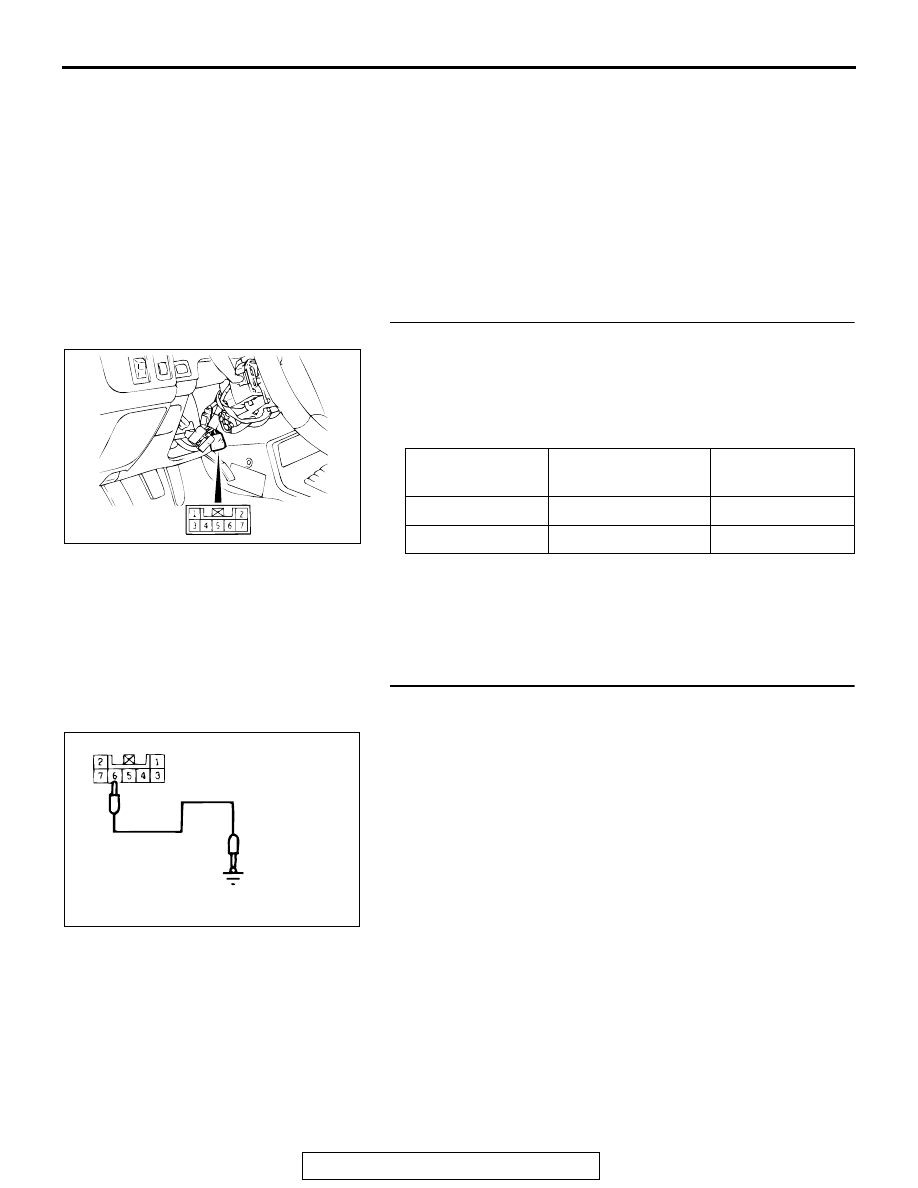

NOTE: After inspecting junction block connector D-14 and
intermediate connector E-42, inspect the wire. If junction block
connector D-14 and intermediate connector E-42 are dam-
aged, repair or replace them. Refer to GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Are the harness wires between driver's side door switch

connector E-33 and ETACS connector D-11 in good
condition?
YES : Go to Step 8.
NO :  Repair them. Then check that the malfunction is

eliminated.

STEP 8. Check for continuity of the key reminder switch.

(1) Remove the driver's side under cover. Refer to

P.52A-37

.

(2) Remove the column covers, lower and upper.
(3) Disconnect wiring connector D-16 from the key reminder

switch and measure at the key reminder switch side.

(4) Measure the resistance between terminal numbers 4 and 6.

Q: Does the measured resistance value correspond with

this range?
YES : Go to Step 9.
NO :  Replace the key reminder switch. Then check that the

malfunction is eliminated.

STEP 9. Check the input signal from the key reminder
switch.

Check that the tone alarm stops sounding when terminal num-
ber 6 is grounded.
Q: Does the tone alarm stop sounding?

YES : Go to Step 10.
NO :  Go to Step 12.

STATUS OF
IGNITION KEY

TESTER
CONNECTION

SPECIFIED
CONDITION

Removed

4

− 6

Less than 2 ohms

Inserted

4

− 6

Open circuit

AC002730

AC002731AB

D-16
HARNESS CONNECTOR:
COMPONENT SIDE
